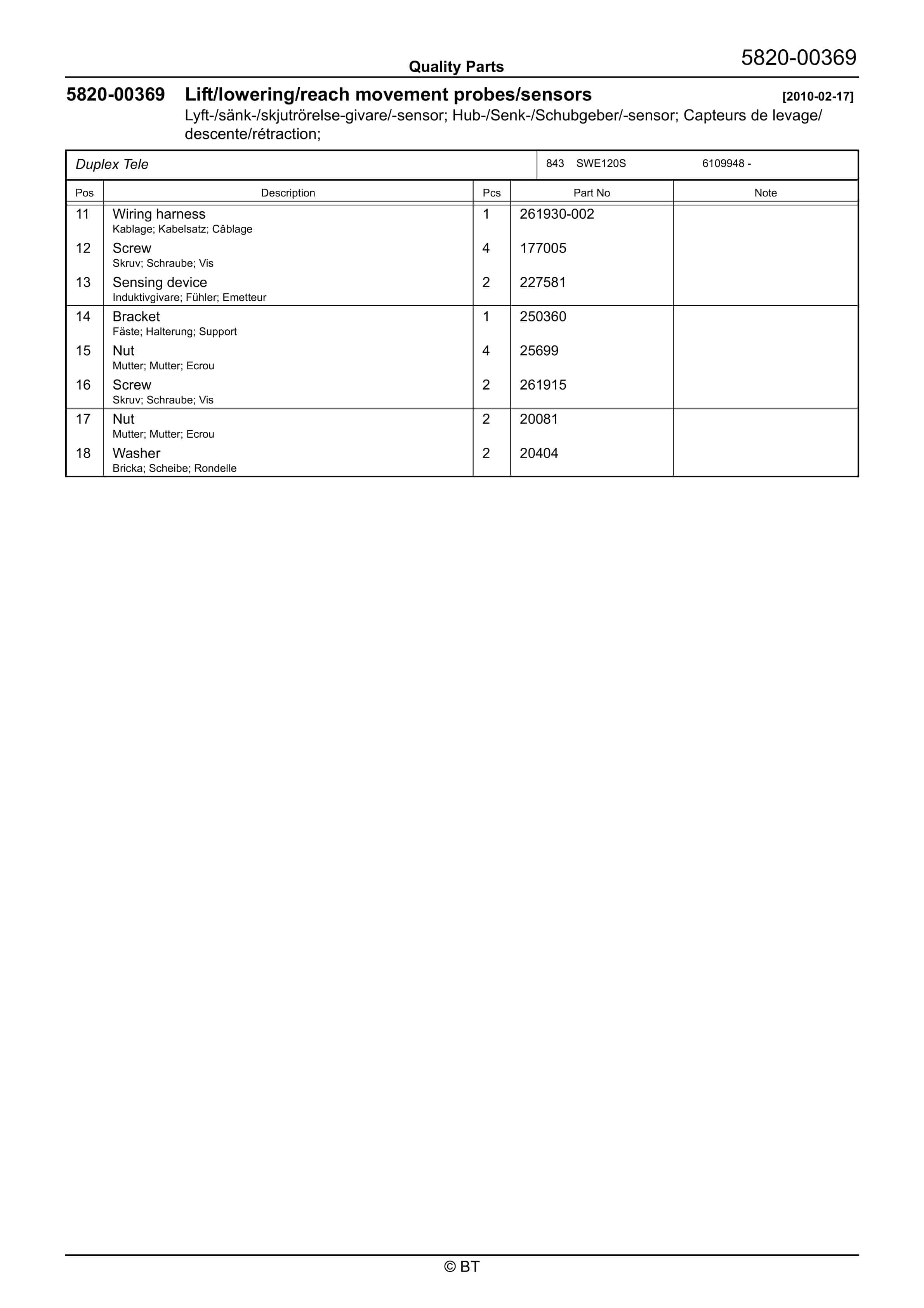

BT SWE120S Quality Parts 7519381 - Image 2

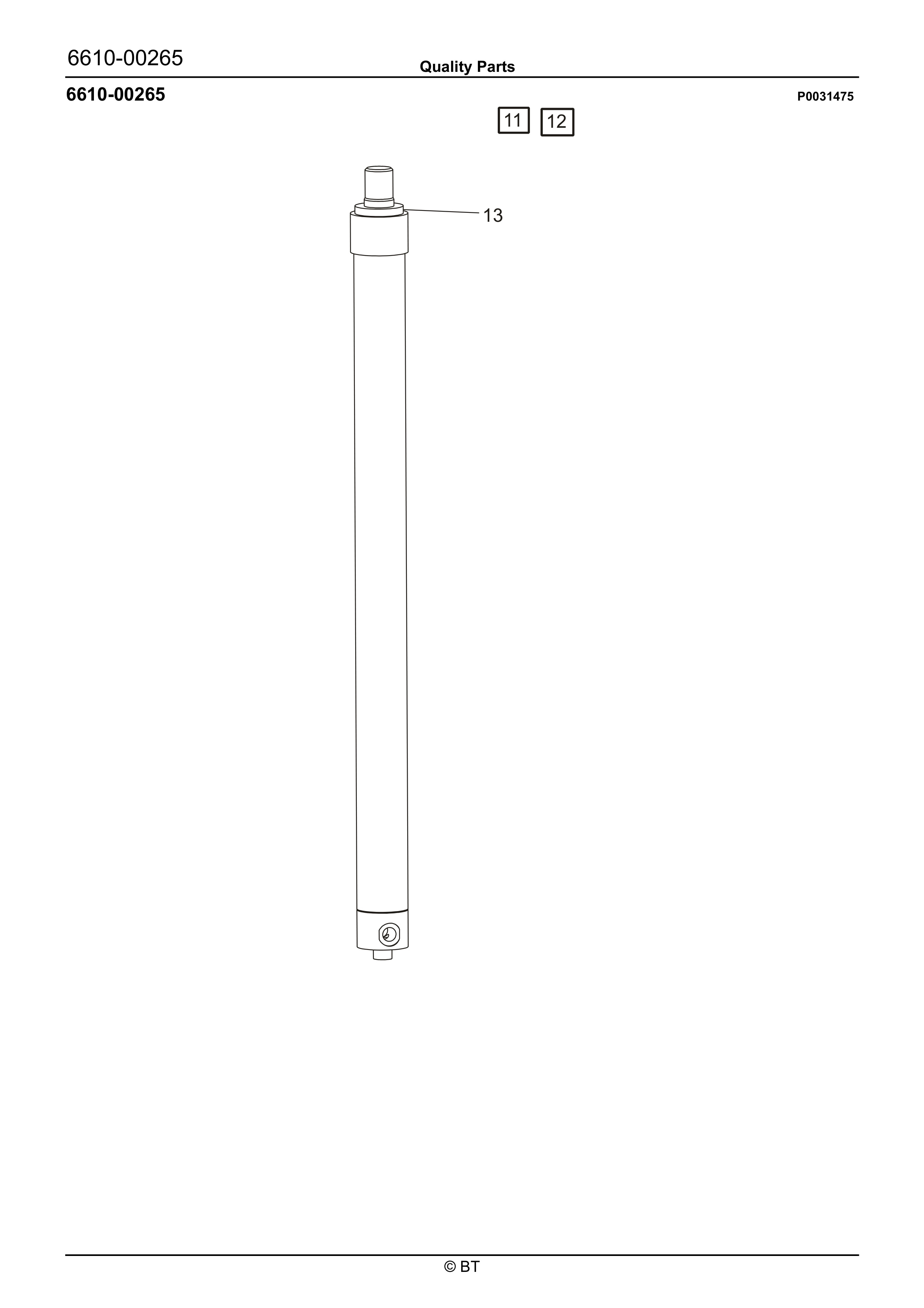

BT SWE120S Quality Parts 7519381 - Image 3

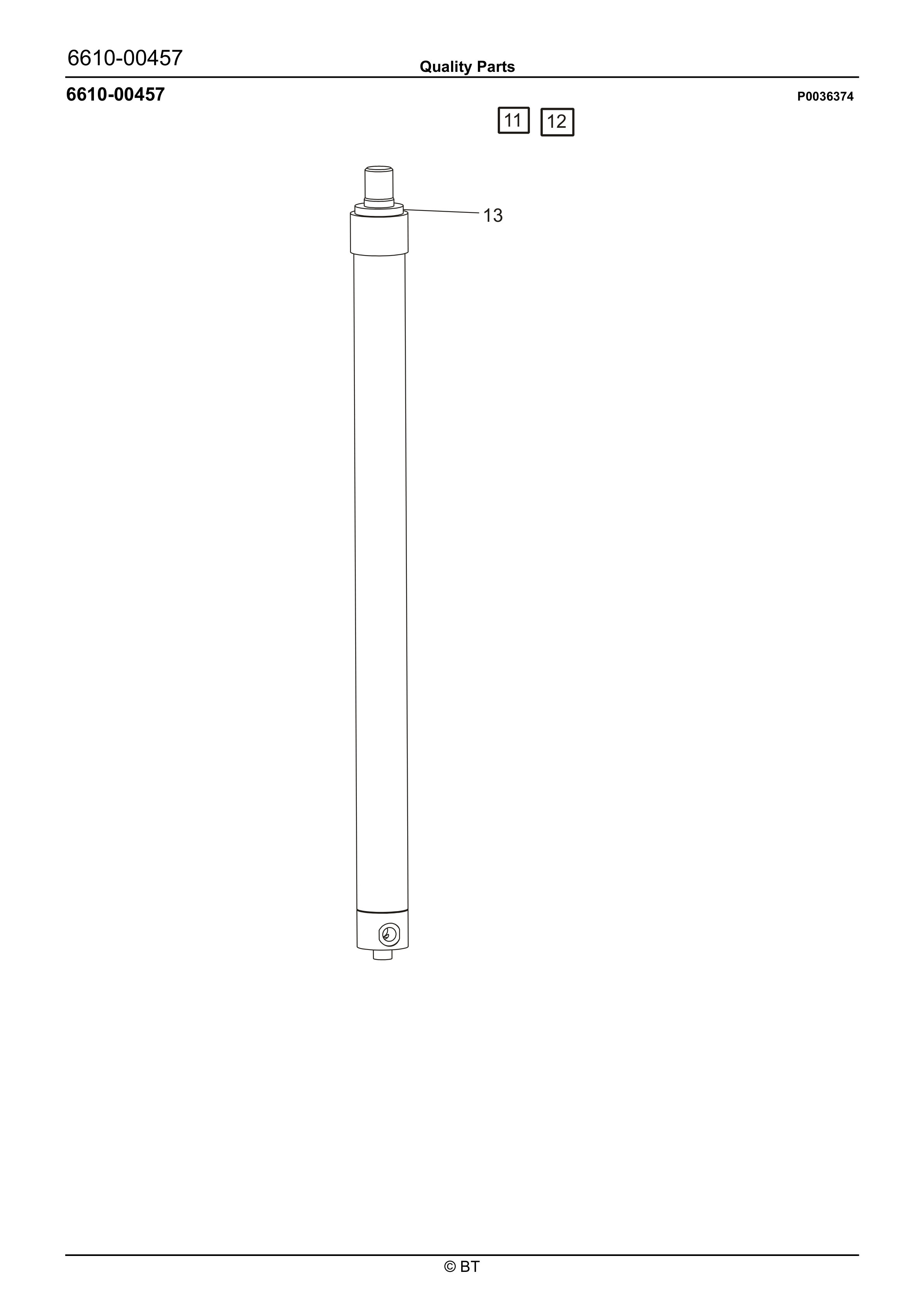

BT SWE120S Quality Parts 7519381 - Image 4

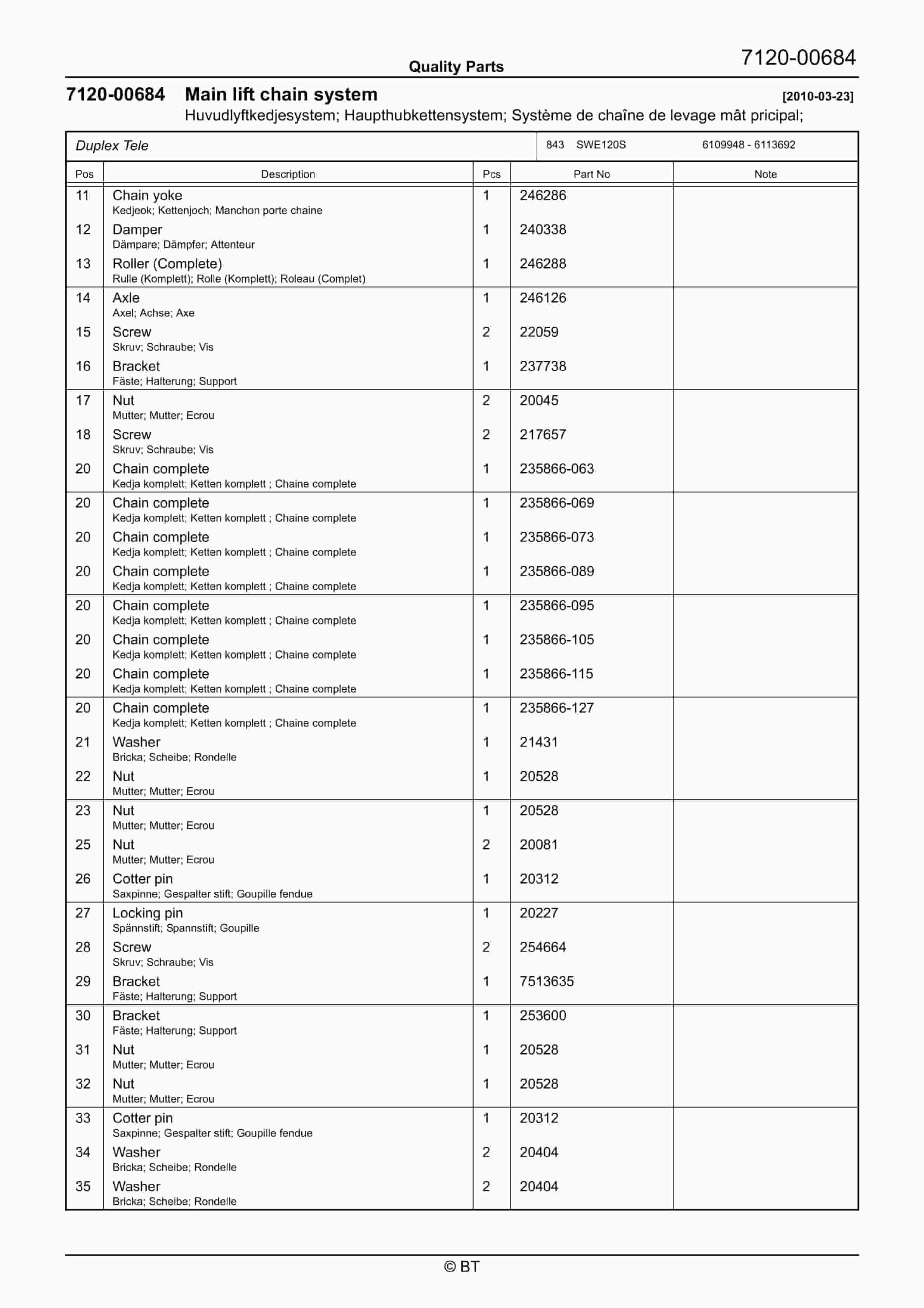

BT SWE120S Quality Parts 7519381 - Image 5

BT SWE120S Quality Parts 7519381

$30.00

Type Of Manual: Quality Parts
Manual ID: 7519381
: Parts Manual PDF
Number of Pages: 173
Size: 14.2MB
Format: PDF

Category: BT Parts Manual PDF

Model List:
- SWE120S

1. Chassis
1.1. Chassi Chassis Châssis
2. Motors
2.1. Motorer Motoren Moteurs
3. Transmission/Drive gear
3.1. Kraftöverföring/Drivväxel Kraftübertragung/Fahrgetriebe Transmission/Groupe de traction
4. Brake/Wheel/Caterpillar system
4.1. Broms-/Hjul-/Bandsystem Brems-/Rad-/Bandsystem Freins/Roues/ Chenilles
5. Steering system
5.1. Styrsystem Steuer-/Lenksystem Système de direction
6. Electrical system
6.1. Elektriskt system Elektroanlage Système électrique
7. Hydraulic/pneumatic system
7.1. Hydraulik/pneumatik Hydraulikanlage/Pneumatik Système hydraulique/pneumatique
8. Work function – lifting masts
8.1. Arbetsfunktion – lyftstativ Arbeitsfunktion – Hubgerüste Fonction de travail – mâts de levage
9. Options/attachments
9.1. Tillbehör/extrautrustning Zubehör/Zusatzausrüstung Equipement supplémentaire/Options
10. P0032962
11. Inspection covers 2010-01-25
12. P0034945
13. Inspection covers 2010-01-25
14. P0032354
15. Battery compartment parts 2010-01-25
16. P0032355
17. Battery compartment parts 2010-01-25
18. P0034916
19. Battery compartment parts 2010-01-25
20. P0034917
21. Battery compartment parts 2010-01-25
22. P0034918
23. Battery compartment parts 2010-01-25
24. P0034919
25. Battery compartment parts 2010-01-21
26. P0032724
27. Boom/mast fixing points 2010-01-19
28. P0035797
29. Platform incl. fixing points 2010-01-25
30. P0036113
31. Finger/foot guards 2010-02-17
32. P0036119
33. Finger/foot guards 2010-02-17
34. P0036120
35. Finger/foot guards 2010-02-17
36. P0036121
37. Finger/foot guards 2010-02-17
38. P0036122
39. Finger/foot guards 2010-02-17
40. P0032727
41. Signs, warnings, decals 2010-01-19
42. P0033994
43. Electric pump motor 2010-01-25
44. P0034035
45. Electric drive motor 2010-01-25
46. P0032717
47. Mechanical drive gear unit 2010-01-19
48. P0030567
49. Electrically controlled travel brake 2010-01-25
50. P0032718
51. Drive wheel 2010-01-19
52. P0028572
53. Fork/support arm wheels 2010-01-19
54. P0031396
55. Steering arm/wheel/lever 2010-01-25
56. P0031397
57. Steering arm/wheel/lever 2010-01-25
58. P0031406
59. Steering arm/wheel/lever 2010-01-25
60. P0031407
61. Steering arm/wheel/lever 2010-01-25
62. P0032117
63. Steering arm/wheel/lever 2010-01-25
64. P0032963
65. Steering arm/wheel/lever 2010-01-25
66. P0032411
67. General alarm signals (audible/visual) 2010-01-25
68. P0030586
69. Battery cut out connector/contactor 2010-01-25
70. P0030580
71. Driving function harnesses/fuse 2010-01-25
72. P0032964
73. Driving function harnesses/fuse 2010-01-25
74. P0032393
75. Transistor panel 2010-01-25
76. P0034046
77. Work function harnesses/fuse 2010-01-19
78. P0034082
79. Battery/motor cables, fuse 2010-01-25
80. P0030669
81. Drive/multi-function PCBs 2010-01-25
82. P0036126
83. Lift/lowering/reach movement probes/sensors 2010-02-17
84. P0036127
85. Lift/lowering/reach movement probes/sensors 2010-02-17
86. P0036128
87. Lift/lowering/reach movement probes/sensors 2010-02-17
88. P0036129
89. Lift/lowering/reach movement probes/sensors 2010-02-17
90. P0036130
91. Lift/lowering/reach movement probes/sensors 2010-02-17
92. P0030581
93. Safety probes/sensors 2010-01-25
94. P0032079
95. Safety probes/sensors 2010-01-25
96. P0033995
97. Hydraulic unit 2010-01-25
98. P0031677
99. Hydraulic lines chassis 2010-01-25
100. P0031462
101. Mast hydraulic lines 2010-01-25
102. P0034583
103. Mast hydraulic lines 2010-01-25
104. P0034584
105. Mast hydraulic lines 2010-01-25
106. P0034586
107. Mast hydraulic lines 2010-01-25
108. P0031454
109. Main lift cylinders 2010-03-24
110. P0031455
111. Main lift cylinders 2010-03-24
112. P0031471
113. Main lift cylinders 2010-03-24
114. P0031472
115. Main lift cylinders 2010-03-24
116. P0031475
117. Main lift cylinders 2010-03-24
118. P0031476
119. Main lift cylinders 2010-01-25
120. P0031477
121. Main lift cylinders 2010-01-25
122. P0034977
123. Main lift cylinders 2010-01-25
124. P0036369
125. Main lift cylinders 2010-03-24
126. P0036370
127. Main lift cylinders 2010-03-24
128. P0036372
129. Main lift cylinders 2010-03-24
130. P0036374
131. Main lift cylinders 2010-03-24
132. P0036376
133. Main lift cylinders 2010-03-24
134. P0031463
135. Main lift chain system 2010-03-23
136. P0031485
137. Main lift chain system 2010-01-25
138. P0036124
139. Main lift chain system 2010-03-23
140. P0036353
141. Main lift chain system 2010-03-23
142. P0036355
143. Main lift chain system 2010-03-23
144. P0032780
145. Main mast fork carriage 2010-01-25
146. P0031469
147. Main mast guidance/dampers 2010-01-25
148. P0034582
149. Main mast guidance/dampers 2010-01-25
150. P0034941
151. Main mast guidance/dampers 2010-01-25
152. P0034943
153. Main mast guidance/dampers 2010-01-25
154. P0015872
155. Fork, carpet boom, lift hook 2010-01-25
156. P0035819
157. Charger attachment 2010-01-25
158. P0031234
159. Extra electrical equipment 2010-01-25
160. P0031243
161. Extra electrical equipment 2010-01-25
162. P0034924
163. Extra electrical equipment 2010-02-03
164. P0012396
165. Truck log device, code locking device 2010-01-25
166. P0026077
167. Truck log device, code locking device 2010-01-25
168. P0033140
169. Truck log device, code locking device 2010-01-25
170. P0033141
171. Truck log device, code locking device 2010-01-25
172. P0031110
173. Other extra equipment 2010-01-25
174. P0031111
175. Other extra equipment 2010-01-25
176. P0032686
177. Other extra equipment 2010-01-25
178. P0032782
179. Other extra equipment 2010-01-20
180. P0033429
181. Other extra equipment 2010-01-25
