BT SWE120S Quality Parts 7520684

$30.00

Type Of Manual: Quality Parts
Manual ID: 7520684
: Parts Manual PDF
Number of Pages: 163
Size: 14.2MB
Format: PDF

Category: BT Parts Manual PDF

Model List:
- SWE120S

1. Chassis
1.1. Chassi Chassis Châssis
2. Motors
2.1. Motorer Motoren Moteurs
3. Transmission/Drive gear
3.1. Kraftöverföring/Drivväxel Kraftübertragung/Fahrgetriebe Transmission/Groupe de traction
4. Brake/Wheel/Caterpillar system
4.1. Broms-/Hjul-/Bandsystem Brems-/Rad-/Bandsystem Freins/Roues/ Chenilles
5. Steering system
5.1. Styrsystem Steuer-/Lenksystem Système de direction
6. Electrical system
6.1. Elektriskt system Elektroanlage Système électrique
7. Hydraulic/pneumatic system
7.1. Hydraulik/pneumatik Hydraulikanlage/Pneumatik Système hydraulique/pneumatique
8. Work function – lifting masts
8.1. Arbetsfunktion – lyftstativ Arbeitsfunktion – Hubgerüste Fonction de travail – mâts de levage
9. Options/attachments
9.1. Tillbehör/extrautrustning Zubehör/Zusatzausrüstung Equipement supplémentaire/Options
10. P0032962
11. Inspection covers 2010-05-11
12. P0034945
13. Inspection covers 2010-05-11
14. P0032354
15. Battery compartment parts 2010-03-03
16. P0032355
17. Battery compartment parts 2010-03-03
18. P0034916
19. Battery compartment parts 2010-03-09
20. P0034917
21. Battery compartment parts 2010-03-08
22. P0034918
23. Battery compartment parts 2010-03-04
24. P0036661
25. Battery compartment parts 2010-06-03
26. P0032724
27. Boom/mast fixing points 2010-01-19
28. P0035797
29. Platform incl. fixing points 2010-01-25
30. P0036113
31. Finger/foot guards 2010-02-17
32. P0036119
33. Finger/foot guards 2010-02-17
34. P0036120
35. Finger/foot guards 2010-02-17
36. P0036121
37. Finger/foot guards 2010-02-17
38. P0036122
39. Finger/foot guards 2010-02-17
40. P0036765
41. Finger/foot guards 2010-06-03
42. P0037142
43. Finger/foot guards 2010-06-22
44. P0032727
45. Signs, warnings, decals 2010-03-09
46. P0033994
47. Electric pump motor 2010-01-25
48. P0034035
49. Electric drive motor 2010-01-25
50. P0032717
51. Mechanical drive gear unit 2010-01-19
52. P0030567
53. Electrically controlled travel brake 2010-03-10
54. P0032718
55. Drive wheel 2010-05-11
56. P0028572
57. Fork/support arm wheels 2010-01-19
58. P0031396
59. Steering arm/wheel/lever 2010-05-11
60. P0031397
61. Steering arm/wheel/lever 2010-05-11
62. P0031406
63. Steering arm/wheel/lever 2010-05-11
64. P0031407
65. Steering arm/wheel/lever 2010-05-11
66. P0032117
67. Steering arm/wheel/lever 2010-01-25
68. P0032963
69. Steering arm/wheel/lever 2010-01-25
70. P0036745
71. General alarm signals (audible/visual) 2010-06-01
72. P0030586
73. Battery cut out connector/contactor 2010-01-25
74. P0030580
75. Driving function harnesses/fuse 2010-01-25
76. P0032964
77. Driving function harnesses/fuse 2010-01-25
78. P0032393
79. Transistor panel 2010-05-11

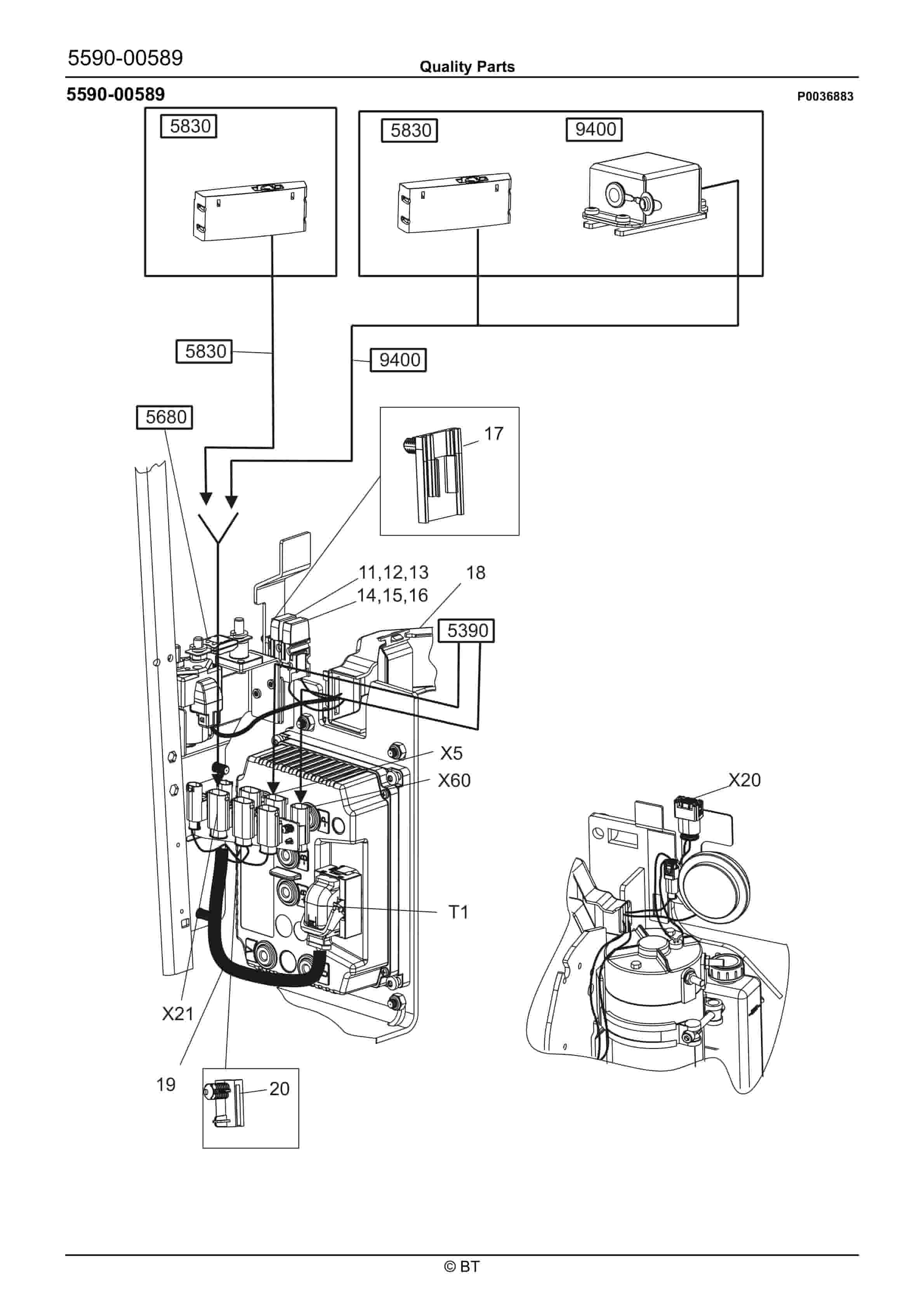

80. P0036883
81. Work function harnesses/fuse 2010-06-01
82. P0034082
83. Battery/motor cables, fuse 2010-01-25
84. P0030669
85. Drive/multi-function PCBs 2010-03-08
86. P0036126
87. Lift/lowering/reach movement probes/sensors 2010-02-17
88. P0036127
89. Lift/lowering/reach movement probes/sensors 2010-02-17
90. P0036128
91. Lift/lowering/reach movement probes/sensors 2010-02-17
92. P0036129
93. Lift/lowering/reach movement probes/sensors 2010-02-17
94. P0036130
95. Lift/lowering/reach movement probes/sensors 2010-02-17
96. P0030581
97. Safety probes/sensors 2010-01-25
98. P0032079
99. Safety probes/sensors 2010-01-25
100. P0033995
101. Hydraulic unit 2010-01-25
102. P0031677
103. Hydraulic lines chassis 2010-01-25
104. P0031462

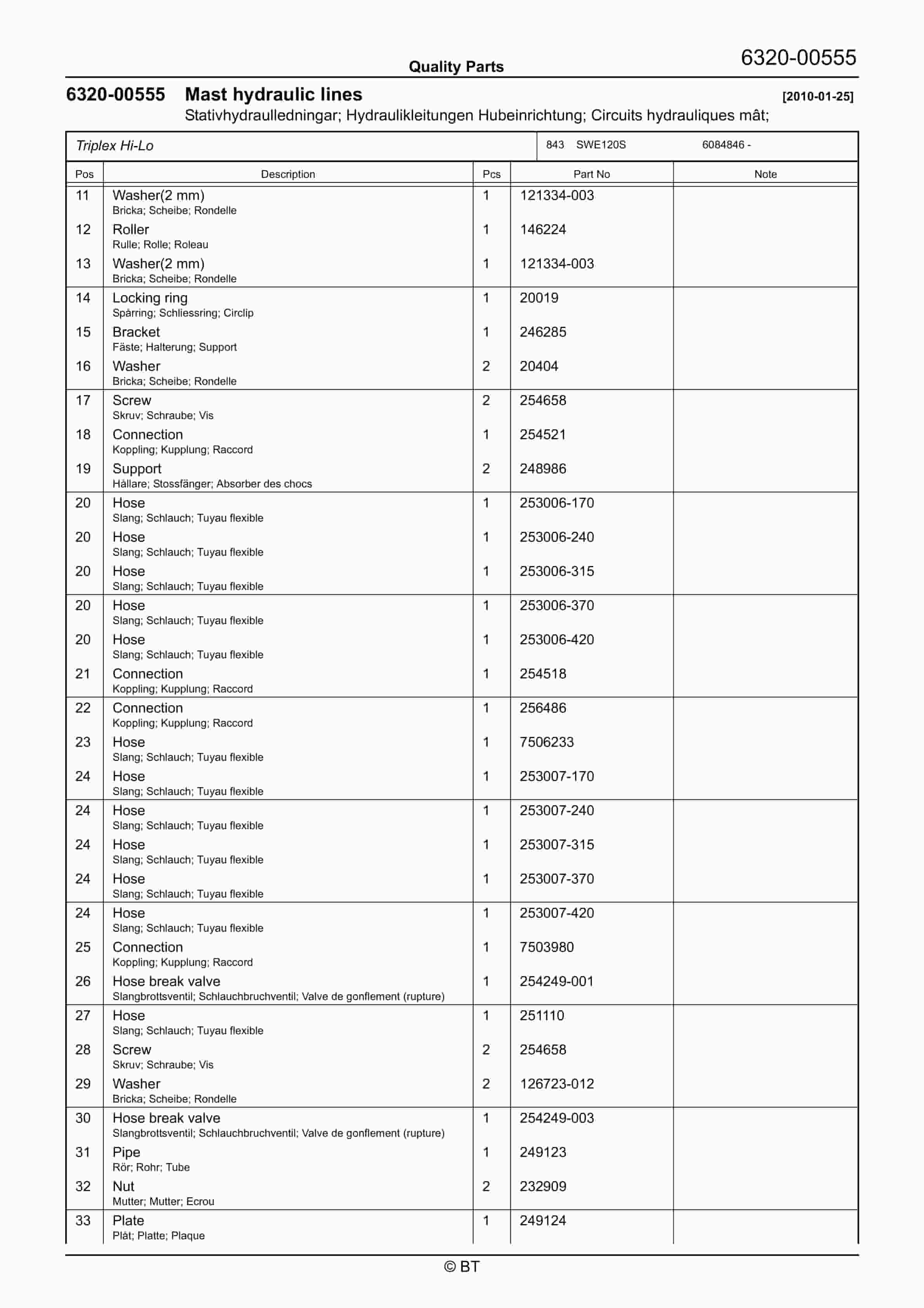

105. Mast hydraulic lines 2010-01-25
106. P0034583
107. Mast hydraulic lines 2010-01-25
108. P0034584
109. Mast hydraulic lines 2010-01-25
110. P0034586
111. Mast hydraulic lines 2010-01-25
112. P0031476

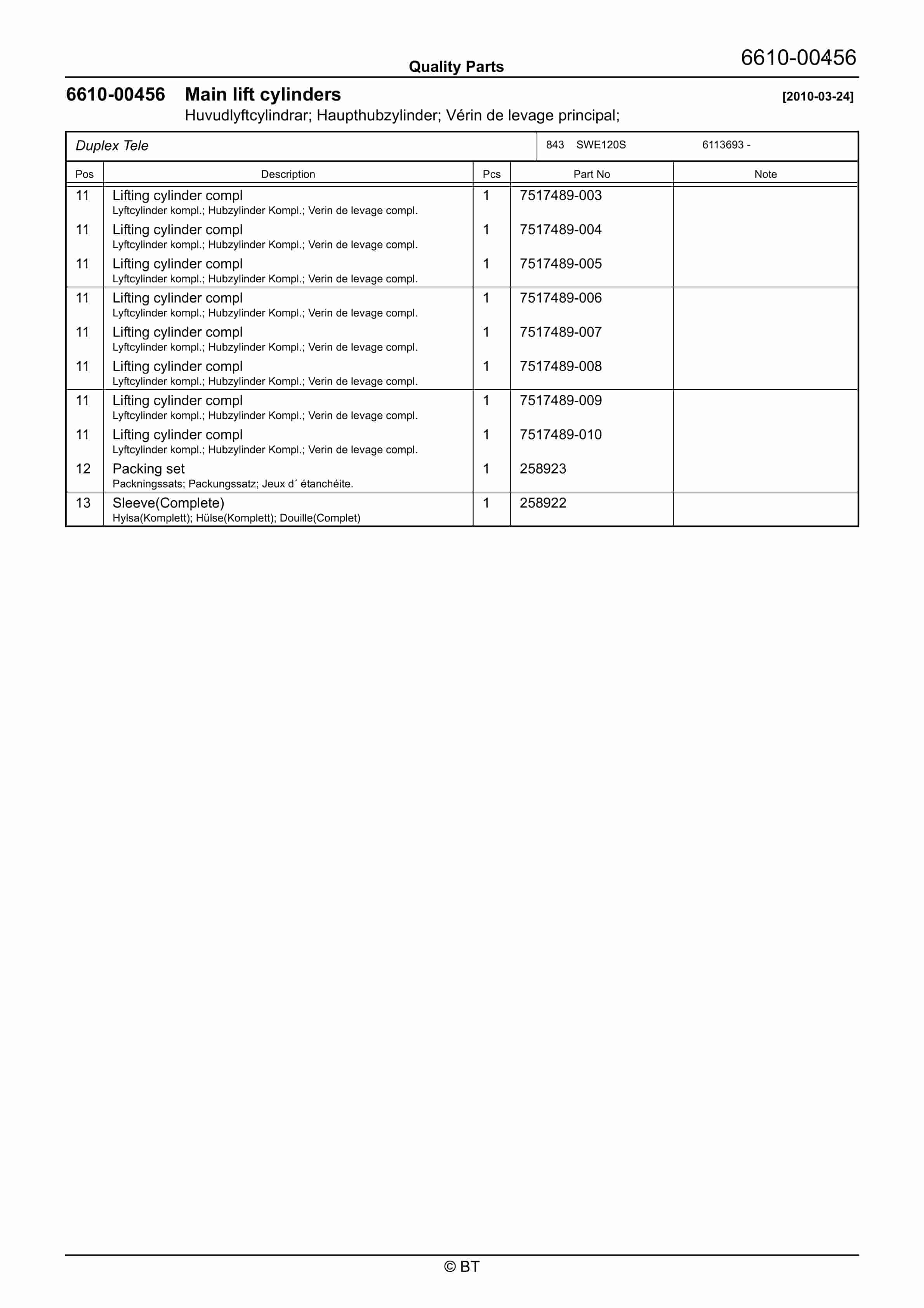

113. Main lift cylinders 2010-01-25
114. P0031477
115. Main lift cylinders 2010-01-25
116. P0034977
117. Main lift cylinders 2010-01-25
118. P0036369
119. Main lift cylinders 2010-03-24
120. P0036370
121. Main lift cylinders 2010-03-24
122. P0036372
123. Main lift cylinders 2010-03-24
124. P0036374
125. Main lift cylinders 2010-03-24
126. P0036376
127. Main lift cylinders 2010-03-24
128. P0031485

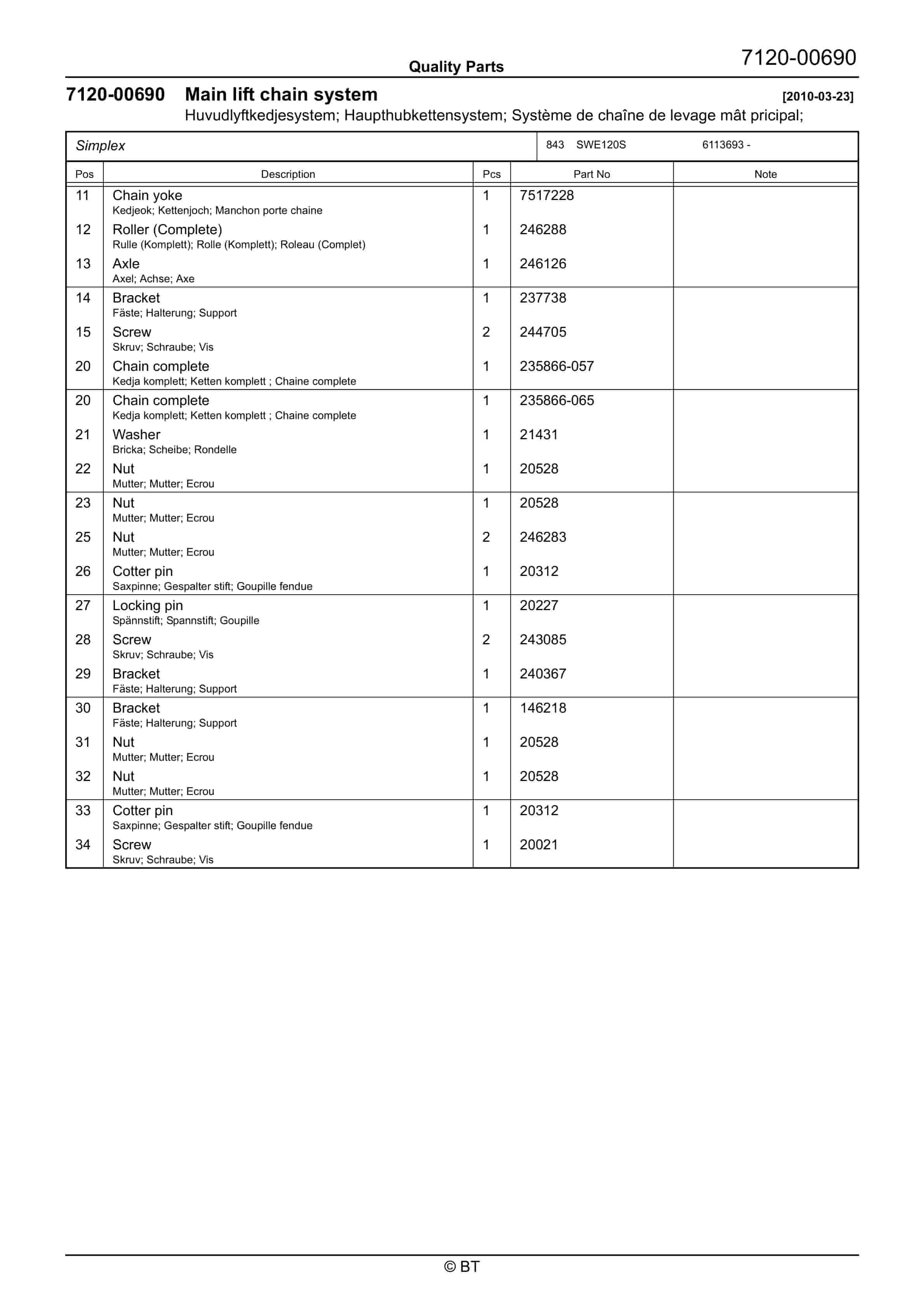

129. Main lift chain system 2010-01-25
130. P0036353
131. Main lift chain system 2010-03-23
132. P0036355
133. Main lift chain system 2010-03-23
134. P0032780
135. Main mast fork carriage 2010-01-25
136. P0031469
137. Main mast guidance/dampers 2010-01-25
138. P0034582
139. Main mast guidance/dampers 2010-01-25
140. P0034941
141. Main mast guidance/dampers 2010-01-25
142. P0034943
143. Main mast guidance/dampers 2010-01-25
144. P0015872
145. Fork, carpet boom, lift hook 2010-01-25
146. P0035819
147. Charger attachment 2010-03-09
148. P0031234
149. Extra electrical equipment 2010-01-25
150. P0031243
151. Extra electrical equipment 2010-03-08
152. P0034924
153. Extra electrical equipment 2010-02-03
154. P0012396
155. Truck log device, code locking device 2010-03-08
156. P0026077
157. Truck log device, code locking device 2010-03-10
158. P0033140
159. Truck log device, code locking device 2010-03-08
160. P0033141
161. Truck log device, code locking device 2010-03-08
162. P0031110
163. Other extra equipment 2010-03-08
164. P0031111
165. Other extra equipment 2010-01-25
166. P0032686
167. Other extra equipment 2010-01-25
168. P0032782
169. Other extra equipment 2010-01-20
170. P0033429
171. Other extra equipment 2010-01-25
