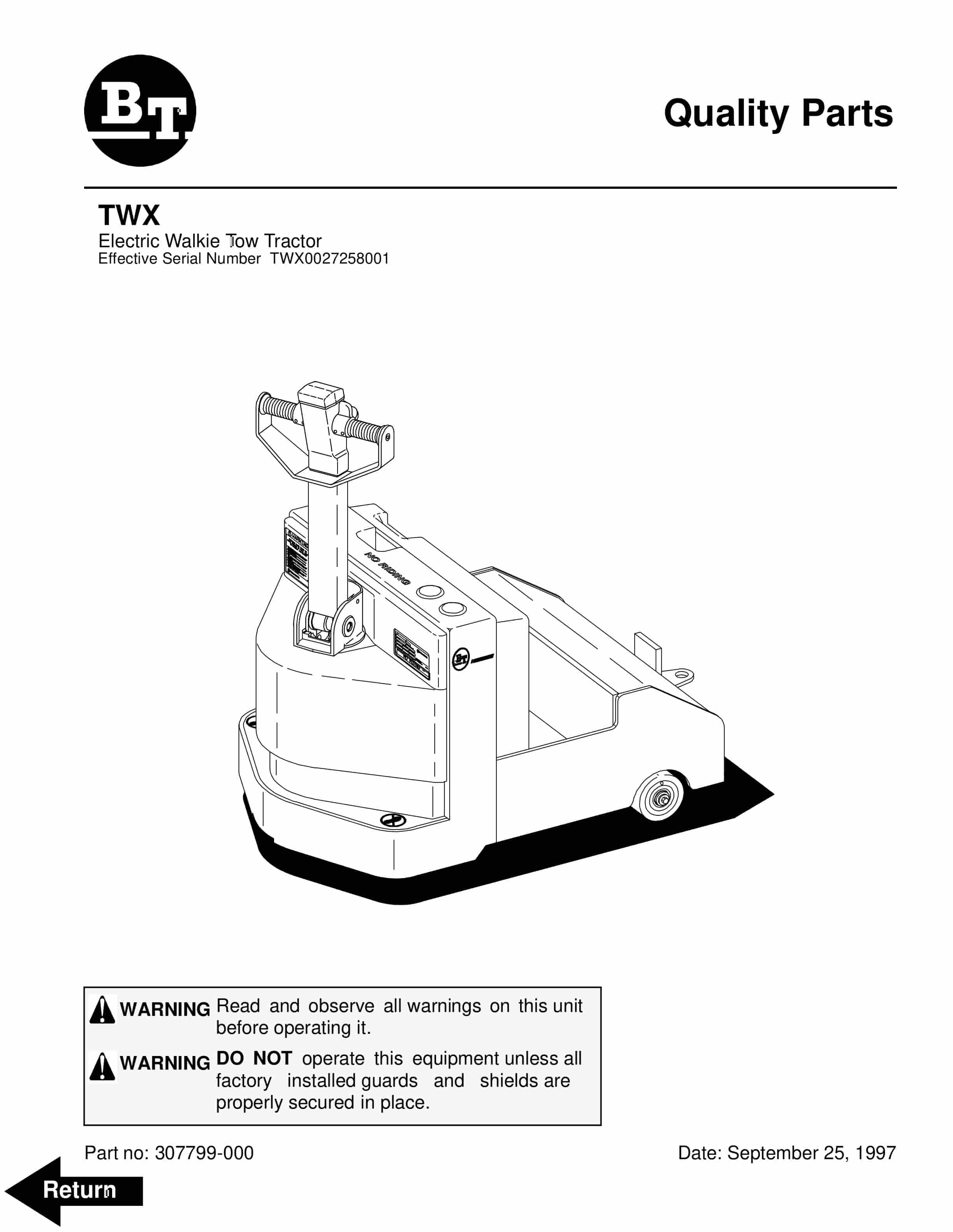

BT TWX Electric Walkie Tow Tractor Parts Manual 307799-000
BT TWX Electric Walkie Tow Tractor Parts Manual 307799-000 - Image 2
BT TWX Electric Walkie Tow Tractor Parts Manual 307799-000 - Image 3
BT TWX Electric Walkie Tow Tractor Parts Manual 307799-000 - Image 4
BT TWX Electric Walkie Tow Tractor Parts Manual 307799-000 - Image 5
bt twx electric walkie tow tractor parts manual 307799 000 2
bt twx electric walkie tow tractor parts manual 307799 000 3
bt twx electric walkie tow tractor parts manual 307799 000 4
bt twx electric walkie tow tractor parts manual 307799 000 5

BT TWX Electric Walkie Tow Tractor Parts Manual 307799-000

$30.00

  • Type Of Manual: Parts Manual
  • Manual ID: 307799-000
  • : Parts Manual PDF
  • Number of Pages: 64
  • Size: 1.4MB
  • Format: PDF
Category:
  • Model List:

    • TWX Electric Walkie Tow Tractor
  • 1. Front Cover
  • 2. Parts Ordering Information
  • 3. General Information
  • 4. Section 0000
  • 4.1. Frame / Chassis
  • 4.2. Inspection covers (Shields guards)
  • 4.3. Counter balance weight
  • 4.4. Drivers controls (Speed direction)
  • 4.5. Driver protection (Reverser)

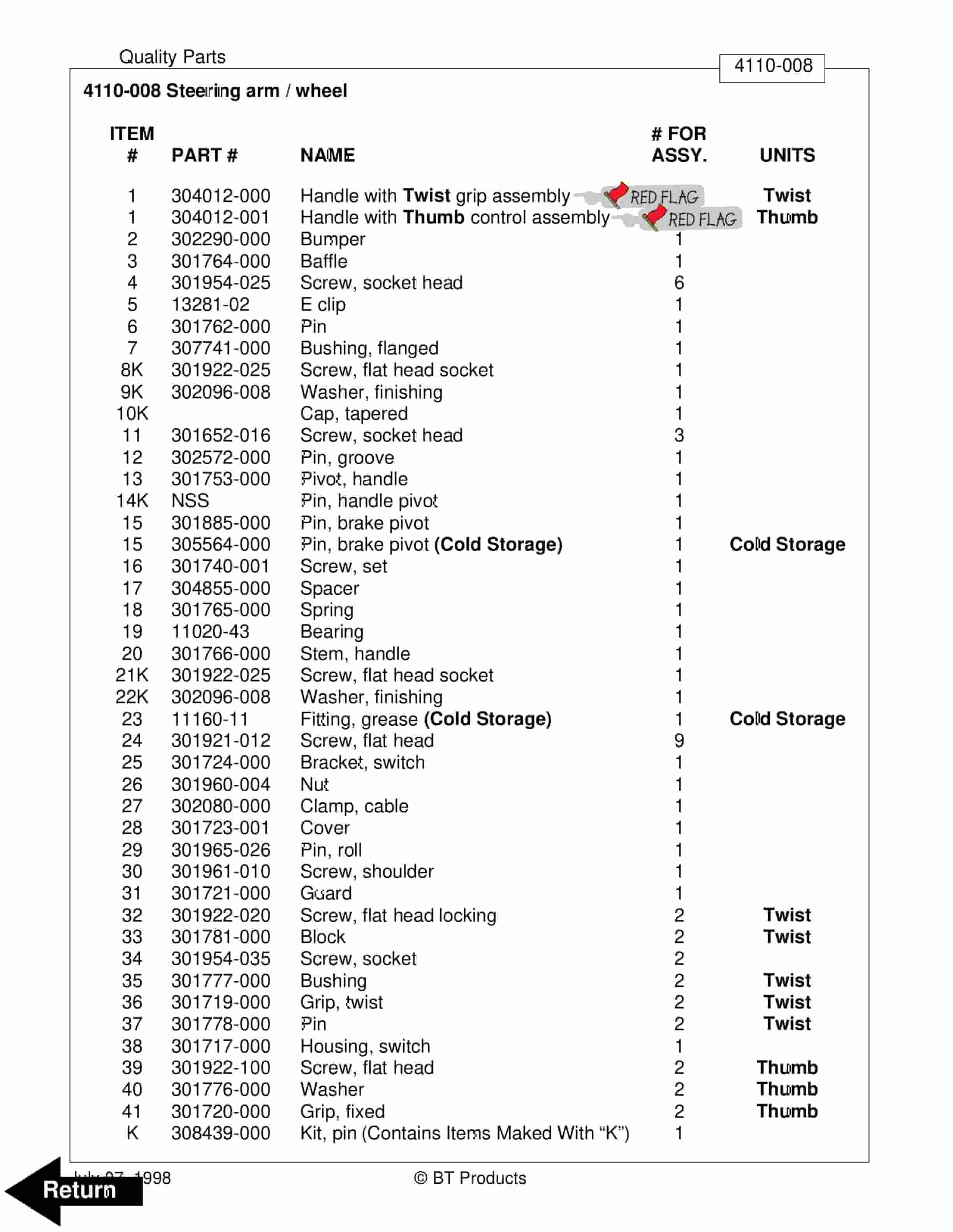

  • 4.6. Decals, Warnings
  • 5. Section 1000
  • 5.1. Electrical drive motor (24 Volt 300/400 AMP traction system)
  • 6. Section 2000
  • 6.1. Mechanical drive gear unit
  • 7. Section 3000
  • 7.1. Parking brake system (300 AMP traction system)
  • 7.2. Brake drum/disc assembly
  • 7.3. Drive wheel
  • 7.4. Fork / support arm / outrigger wheels
  • 8. Section 4000
  • 8.1. Steering arm / wheel
  • 8.2. Steering / radial bearing
  • 9. Section 5000
  • 9.1. General alarm signal
  • 9.2. Battery cut out contactor / plug (Line contactor)
  • 9.3. Battery cut out contactor / plug (battery connector)

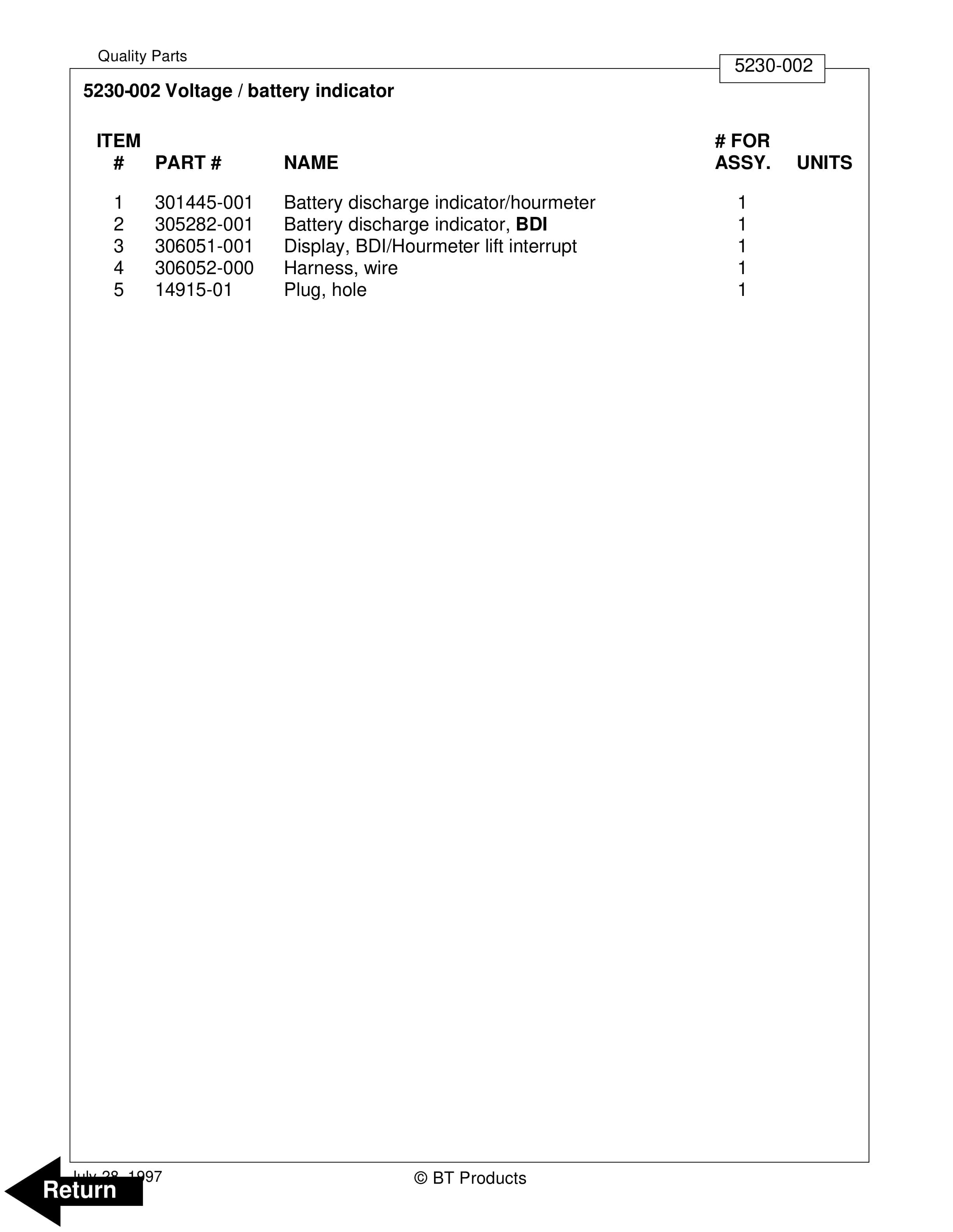

  • 9.4. Voltage / battery indicator
  • 9.5. Hourmeter / speedometer
  • 9.6. Start / stop switch

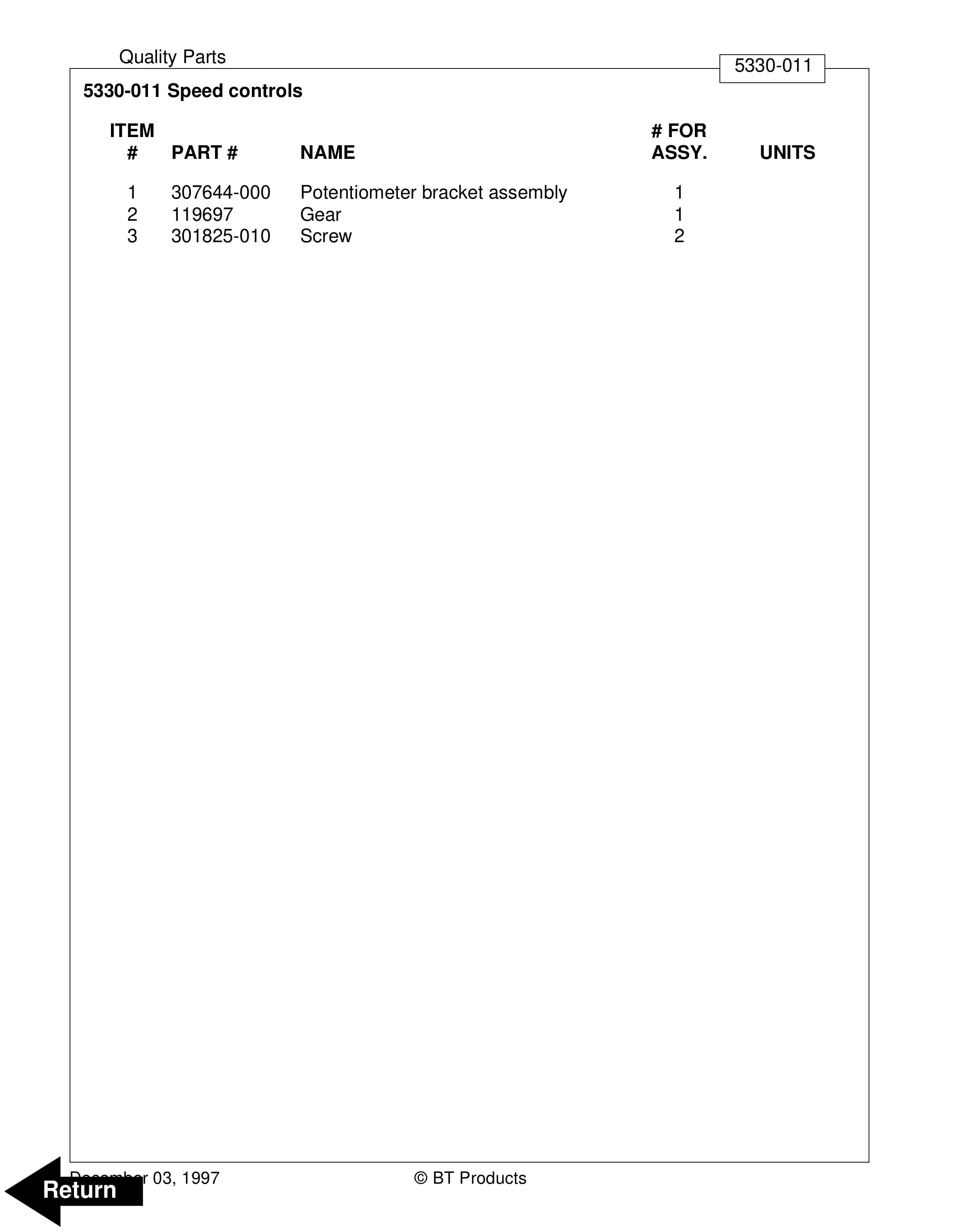

  • 9.7. Speed controls
  • 9.8. Control cables / harnesses

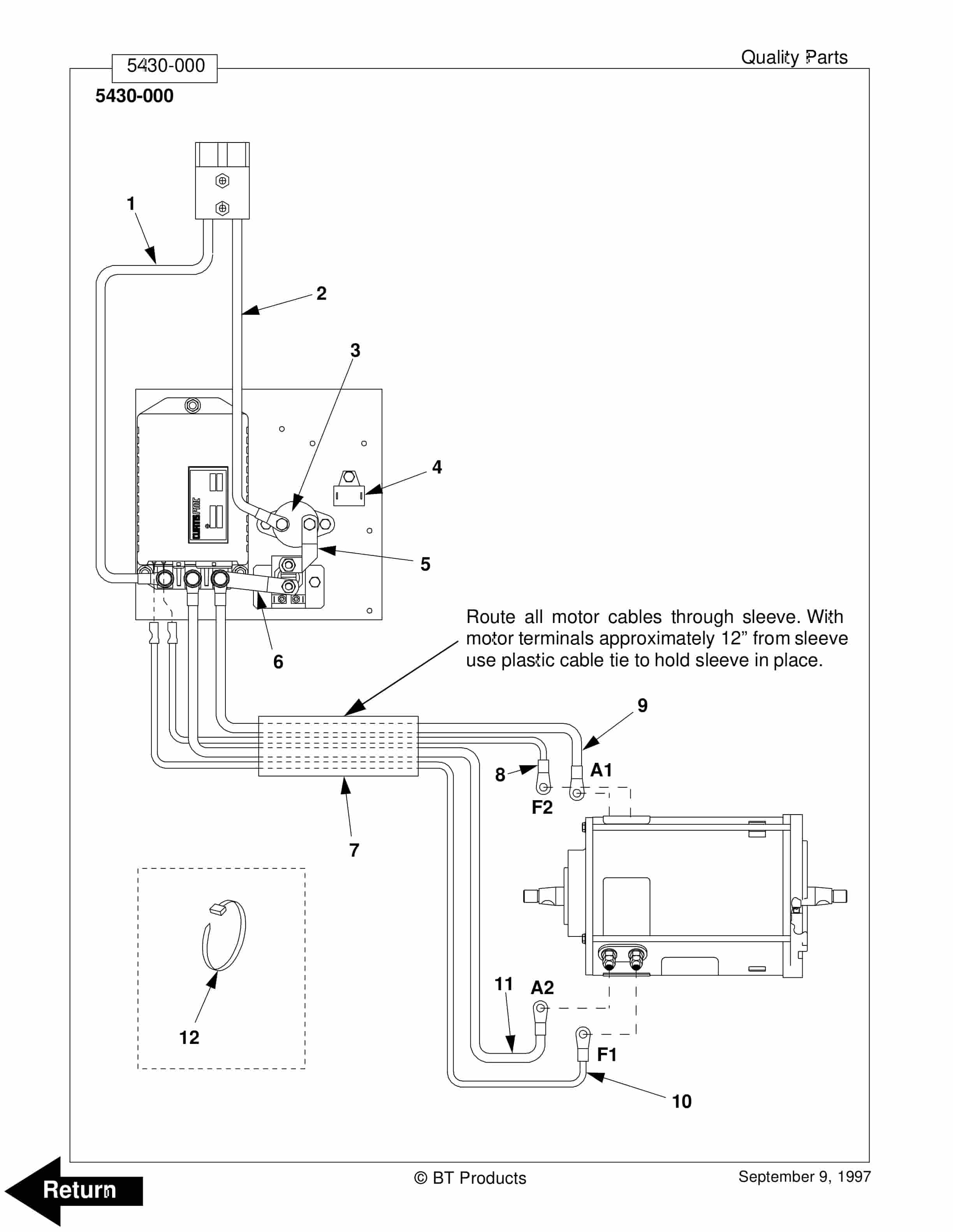

  • 9.9. Motor cables, resistors (300AMP traction system)
  • 9.10. Transistor panel (300 AMP traction system)
  • 9.11. Micro switches
  • 10. Section 9000
  • 10.1. Towing hook
  • 10.2. Electrical controllers (Handset)
  • 10.3. Special tools and lubrications
  • 11. Back Cover
