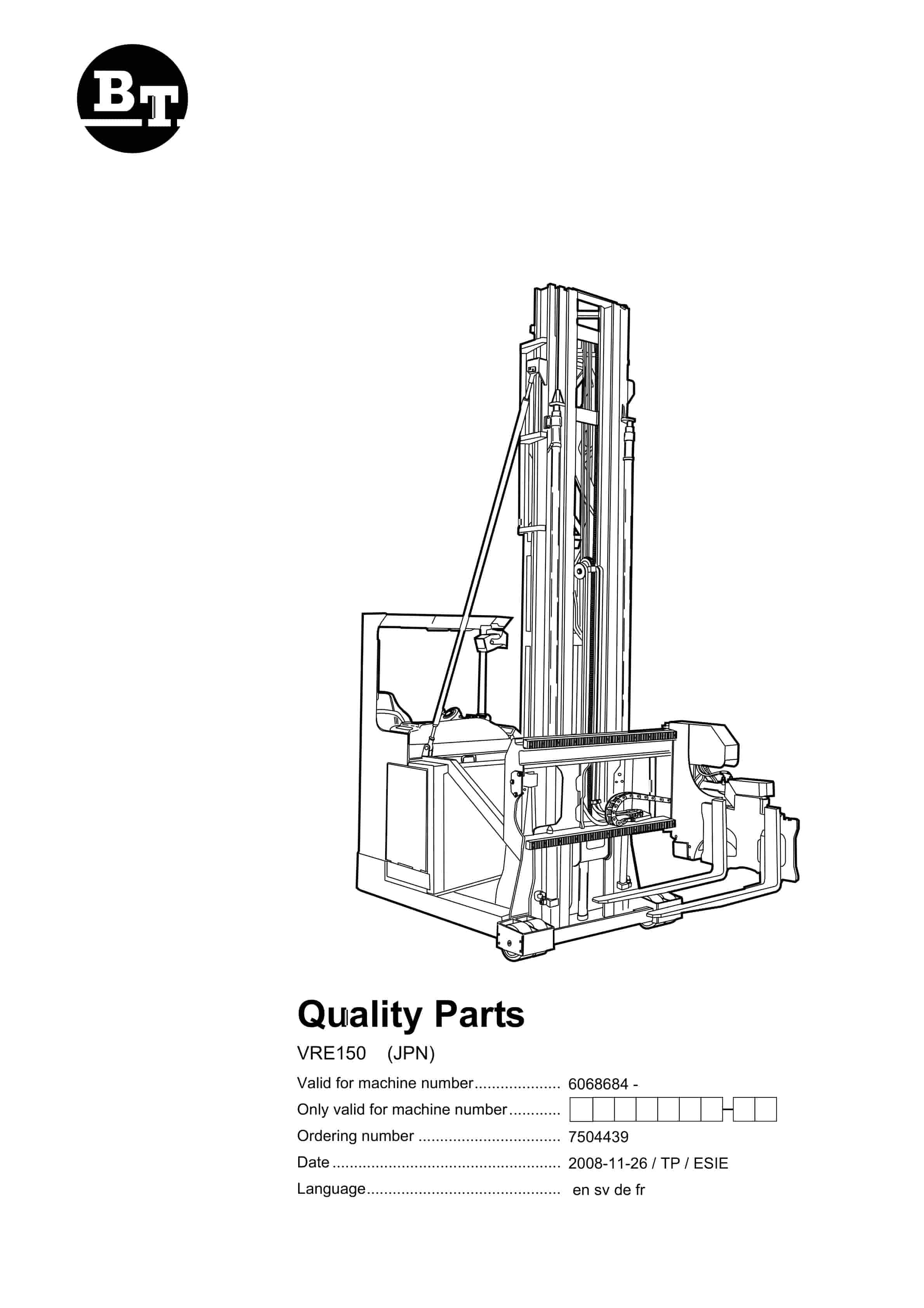

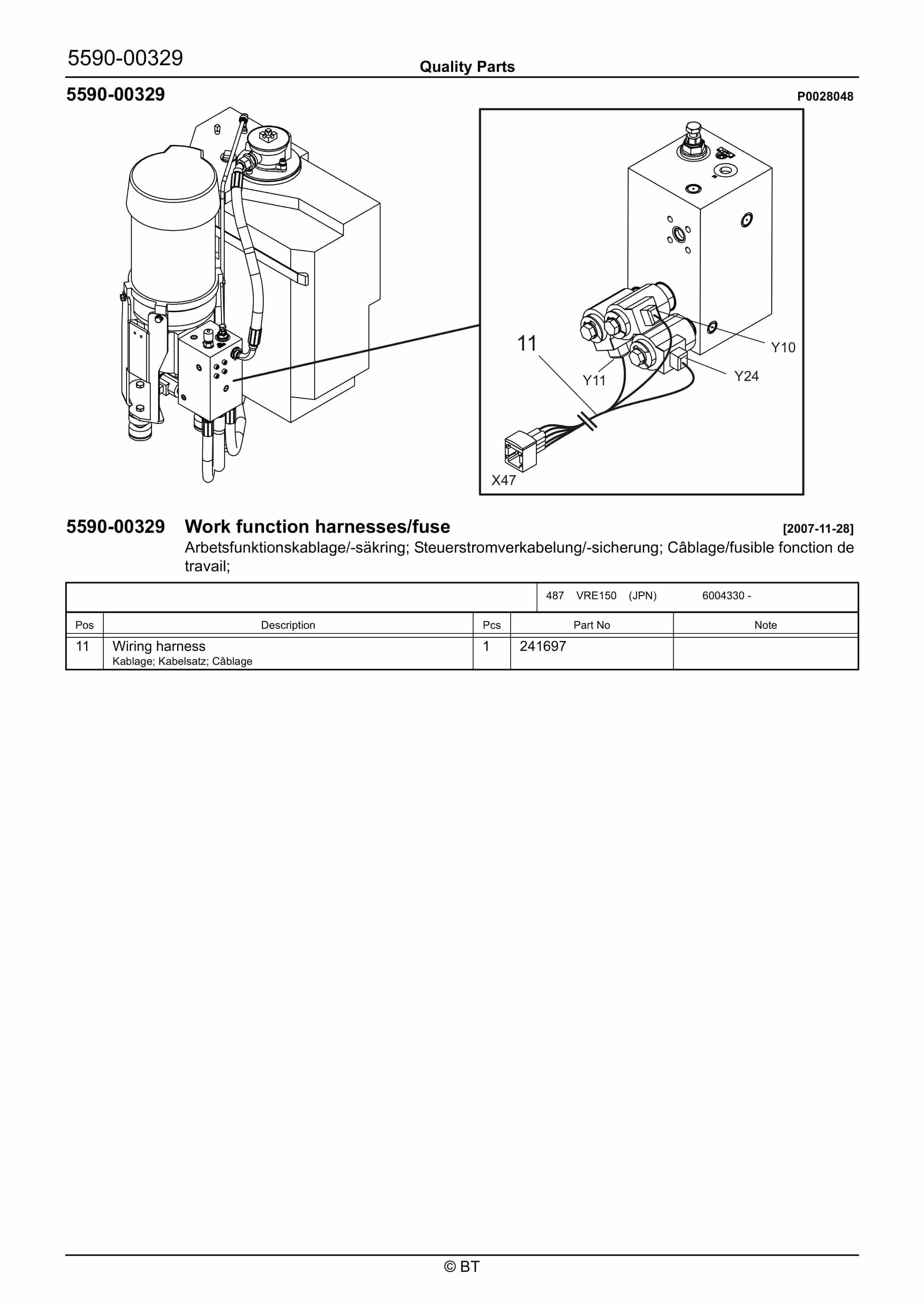

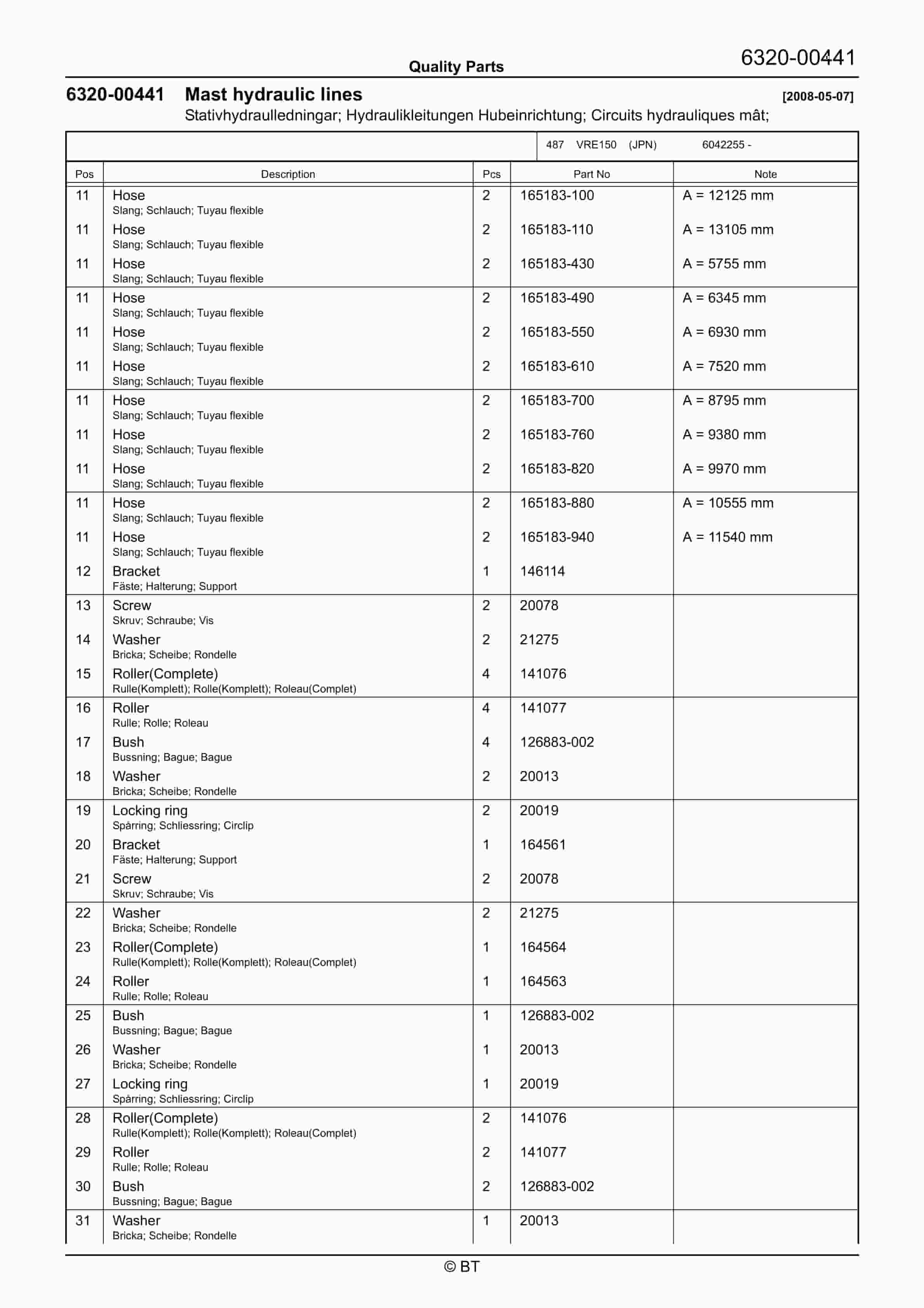

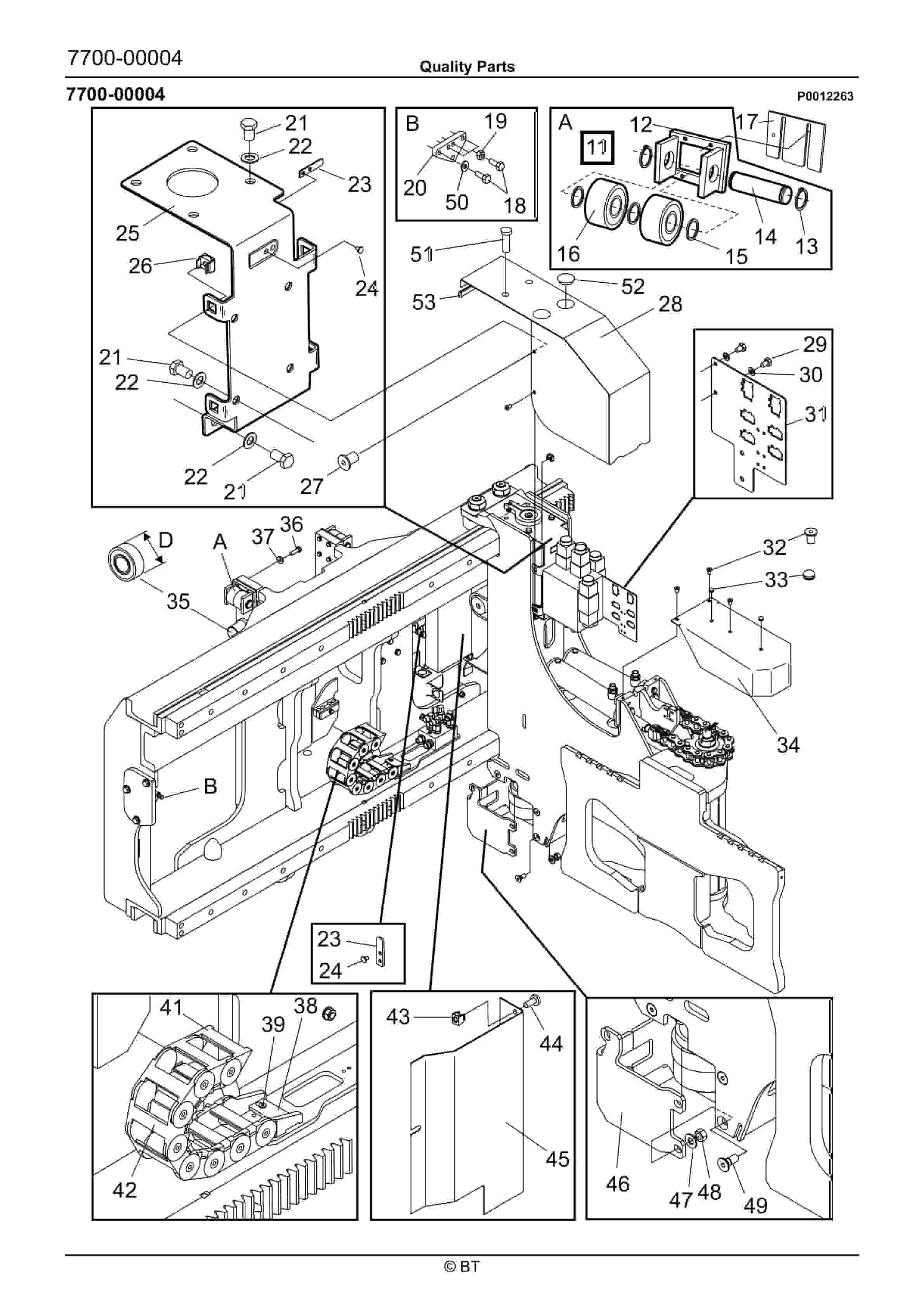

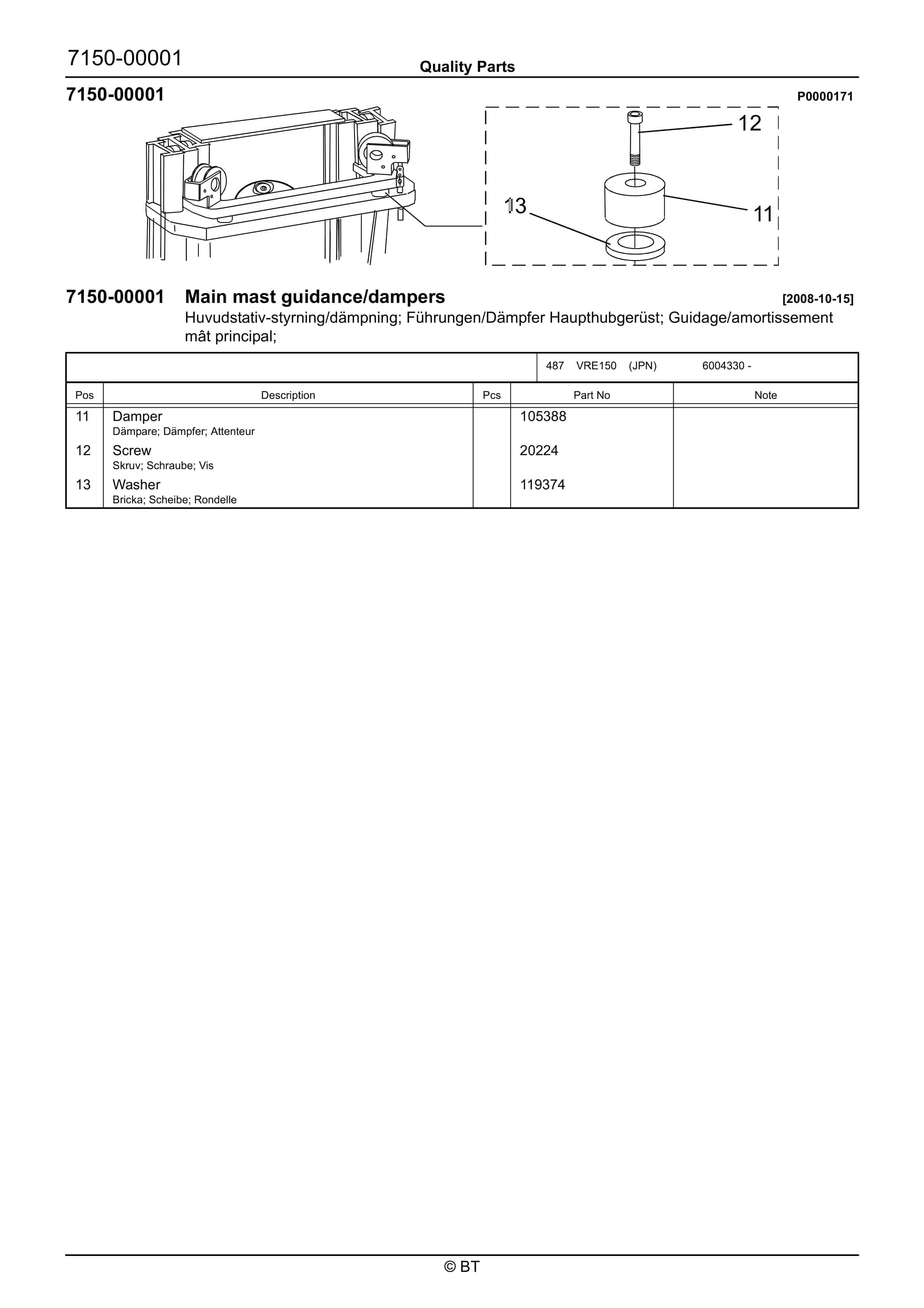

BT VRE150 (JPN) Quality Parts 7504439

$30.00

Type Of Manual: Quality Parts
Manual ID: 7504439
: Parts Manual PDF
Number of Pages: 207
Size: 13.3MB
Format: PDF

Category: BT Parts Manual PDF

Model List:
- VRE150 (JPN)

1. Chassis
1.1. Chassi Chassis Châssis
2. Motors
2.1. Motorer Motoren Moteurs
3. Transmission/Drive gear
3.1. Kraftöverföring/Drivväxel Kraftübertragung/Fahrgetriebe Transmission/Groupe de traction
4. Brake/Wheel/Caterpillar system
4.1. Broms-/Hjul-/Bandsystem Brems-/Rad-/Bandsystem Freins/Roues/ Chenilles
5. Steering system
5.1. Styrsystem Steuer-/Lenksystem Système de direction
6. Electrical system
6.1. Elektriskt system Elektroanlage Système électrique
7. Hydraulic/pneumatic system
7.1. Hydraulik/pneumatik Hydraulikanlage/Pneumatik Système hydraulique/pneumatique
8. Work function – lifting masts
8.1. Arbetsfunktion – lyftstativ Arbeitsfunktion – Hubgerüste Fonction de travail – mâts de levage
9. Options/attachments
9.1. Tillbehör/extrautrustning Zubehör/Zusatzausrüstung Equipement supplémentaire/Options
10. P0033328
11. Inspection covers 2008-11-24
12. P0033344
13. Inspection covers 2008-11-24
14. P0012306
15. Battery compartment parts 2007-11-28
16. P0010055
17. Motor fixing points 2007-11-28
18. P0029600
19. Cabin fixing points 2008-10-14
20. P0021632
21. Seat, cushions 2007-11-28
22. P0019264
23. Driver controls ( mechanical ) 2008-10-14
24. P0029445
25. Internal fittings 2007-09-06
26. P0011267
27. Mirrors 2007-11-28
28. P0029604
29. Mirrors 2008-10-16
30. P0023086
31. Overhead guard/roof 2008-10-14
32. P0023087
33. Overhead guard/roof 2008-10-14
34. P0010303
35. Driver protection 2007-11-28
36. P0010410
37. Driver protection 2007-11-28
38. P0029607
39. Signs, warnings, decals 2007-08-27
40. P0020723
41. Electric pump motor 2008-02-06
42. P0022836
43. Electric steering motor 2008-10-14
44. P0011293
45. Electric fan motor, electric fan 2008-10-14
46. P0033431
47. Electric fan motor, electric fan 2008-11-24
48. P0020721
49. Electric drive motor 2008-10-14
50. P0009744
51. Mechanical drive gear unit 2007-11-28
52. P0007232
53. Travel brake controls 2008-10-14
54. P0012281
55. Electrically controlled travel brake 2007-11-28
56. P0026959
57. Electrically controlled travel brake 2008-10-14
58. P0029608
59. Drive wheel 2007-08-27
60. P0008933
61. Fork/support arm wheels 2007-11-28
62. P0009400
63. Fork/support arm wheels 2007-11-28
64. P0012280
65. Fork/support arm wheels 2007-11-28
66. P0029436
67. Electric steering wheel/lever 2008-03-06
68. P0029444
69. Steering angle sensor 2008-09-17
70. P0016555
71. Steering bearings 2008-10-14
72. P0029613
73. Auto guidance equipment (on board) 2007-08-27
74. P0012914
75. Auto guidance PCBs 2007-11-28
76. P0011336
77. Auto guidance antennas 2007-11-28
78. P0011338
79. Auto guidance harness/cables 2007-11-28
80. P0029485
81. General alarm signals (audible/visual) 2008-10-14
82. P0026037
83. Battery cut out connector/contactor 2007-11-28
84. P0007136
85. Instrument panel, display 2008-10-14
86. P0011914
87. Level/position transducers/lamps 2007-11-28
88. P0011955
89. Level/position transducers/lamps 2007-11-28
90. P0029515
91. Level/position transducers/lamps 2007-08-27
92. P0000257
93. Travel direction switch (separate) 2008-10-14
94. P0007232
95. Speed control 2008-10-14
96. P0012284
97. Driving function harnesses/fuse 2007-11-28
98. P0033426
99. Driving function harnesses/fuse 2008-11-24
100. P0029499
101. Drive motor cables/resistors/fuses 2007-08-27
102. P0029513
103. Transistor panel 2007-08-27
104. P0029438
105. Work function micro switches, potentiometers 2007-08-27
106. P0029514
107. Work function micro switches, potentiometers 2007-08-27
108. P0019389
109. Work function harnesses/fuse 2008-03-09
110. P0028048
111. Work function harnesses/fuse 2007-11-28
112. P0012303
113. Battery/motor cables, fuse 2007-11-28
114. P0029355
115. Drive/multi-function PCBs 2007-08-27
116. P0019388
117. Work function PCBs 2007-11-28
118. P0007058
119. Safety electronics harnesses, fuse 2008-10-20
120. P0029617
121. Lift/lowering/reach movement probes/sensors 2007-08-27
122. P0010378
123. Safety probes/sensors 2007-11-28
124. P0029487
125. Safety probes/sensors 2008-09-18
126. P0029519
127. Safety probes/sensors 2007-08-27
128. P0019390
129. Aisle probes/sensors 2007-11-28
130. P0024602
131. Hydraulic tank 2008-10-15
132. P0010337
133. Hydraulic tank lines 2007-11-28
134. P0010201
135. Filters and housing 2007-11-28
136. P0010610
137. Filters and housing 2008-10-15
138. P0019208
139. Hydraulic pump 2008-10-15
140. P0028043
141. Main valve unit lift/reach/tilt 2009-04-21
142. P0028045
143. Hydraulic lines chassis 2007-11-28
144. P0020809
145. Mast valve units 2008-02-06
146. P0010373
147. Mast hydraulic lines 2007-11-28
148. P0014969
149. Mast hydraulic lines 2007-11-28
150. P0027007
151. Mast hydraulic lines 2007-11-28
152. P0031739
153. Mast hydraulic lines 2008-05-07
154. P0031737
155. Main lift cylinders 2009-10-01
156. P0033476
157. Free lift cylinders 2008-11-24
158. P0012279
159. Tilt cylinders 2007-11-28
160. P0010319
161. Other hydraulic cylinders 2007-11-28
162. P0012321
163. Other hydraulic cylinders 2007-11-28
164. P0010143
165. Main mast 2007-11-28
166. P0019994
167. Main lift chain system 2007-11-28
168. P0000171
169. Main mast guidance/dampers 2008-10-15
170. P0029618
171. Main mast guidance/dampers 2007-11-12
172. P0019219
173. Main mast suspension 2008-03-10
174. P0009796
175. Fork, carpet boom, lift hook 2008-10-15
176. P0011285
177. Fork, carpet boom, lift hook 2007-11-28
178. P0012273
179. Fork, carpet boom, lift hook 2007-11-28
180. P0012263
181. Turret head/three-way fork unit 2007-11-28
182. P0017050
183. Traversing function fork unit 2008-05-06
184. P0012217
185. Swivel/rotation function 2007-11-28
186. P0012266
187. Swivel/rotation function 2007-11-28
188. P0012278
189. Swivel/rotation function 2007-11-28
190. P0012030
191. Extra electrical equipment 2007-11-28
192. P0031353
193. Extra electrical equipment 2008-05-07
194. P0029619
195. Radio/recorder 2007-08-27
196. P0029621
197. Extra lighting 2007-08-27
198. P0014721
199. Extra warning lights/alarm 2007-11-28
200. P0019575
201. Extra warning lights/alarm 2007-11-28
202. P0029517
203. Extra warning lights/alarm 2007-08-27
204. P0011102
205. Charger attachment 2008-10-15
206. P0022832
207. Positioning/TV equip., height preselector 2007-11-28
208. P0022828
209. Positioning/TV equip., height preselector 2007-11-28
210. P0011315
211. Extra electrical equipment 2008-10-15
212. P0022833
213. Extra electrical equipment 2007-11-28
214. P0023037
215. Truck log device, code locking device 2008-10-21
216. P0031748
217. Truck log device, code locking device 2008-10-15
218. P0017246
219. Other extra equipment 2007-11-28
220. P0019916
221. Other extra equipment 2007-11-28
222. P0025939
223. Other extra equipment 2008-10-15
224. P0027008
225. Other extra equipment 2007-11-28
226. P0029625
227. Other extra equipment 2008-09-19
228. P0031496
229. Other extra equipment 2008-10-15
230. P0031498
231. Other extra equipment 2008-10-15
