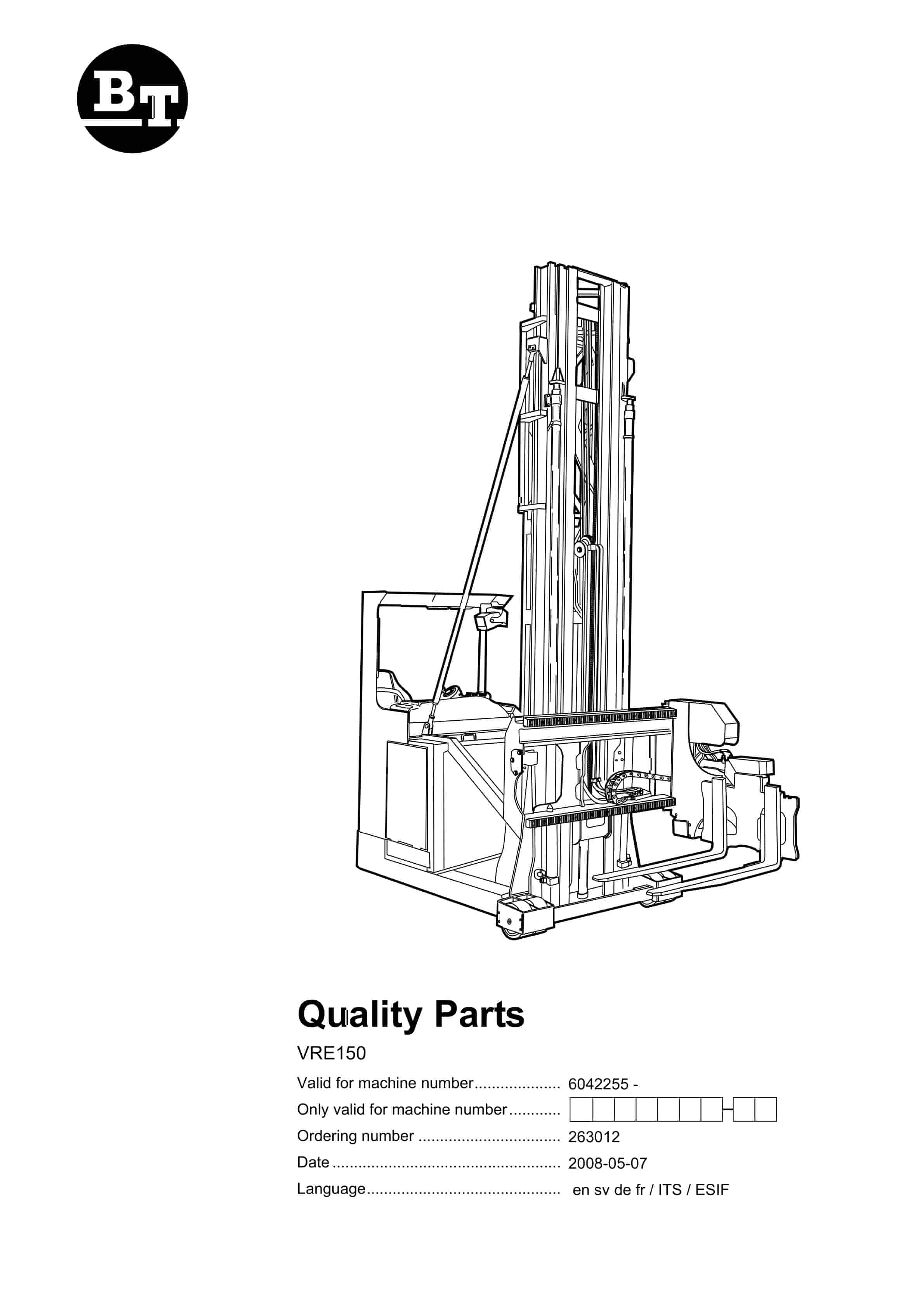

BT VRE150 Quality Parts 263012

$30.00

Type Of Manual: Quality Parts
Manual ID: 263012
: Parts Manual PDF
Number of Pages: 198
Size: 13.1MB
Format: PDF

Category: BT Parts Manual PDF

Model List:
- VRE150

1. Chassis
1.1. Chassi Chassis Châssis
2. Motors
2.1. Motorer Motoren Moteurs
3. Transmission/Drive gear
3.1. Kraftöverföring/Drivväxel Kraftübertragung/Fahrgetriebe Transmission/Groupe de traction
4. Brake/Wheel/Caterpillar system
4.1. Broms-/Hjul-/Bandsystem Brems-/Rad-/Bandsystem Freins/Roues/ Chenilles
5. Steering system
5.1. Styrsystem Steuer-/Lenksystem Système de direction
6. Electrical system
6.1. Elektriskt system Elektroanlage Système électrique
7. Hydraulic/pneumatic system
7.1. Hydraulik/pneumatik Hydraulikanlage/Pneumatik Système hydraulique/pneumatique
8. Work function – lifting masts
8.1. Arbetsfunktion – lyftstativ Arbeitsfunktion – Hubgerüste Fonction de travail – mâts de levage
9. Options/attachments
9.1. Tillbehör/extrautrustning Zubehör/Zusatzausrüstung Equipement supplémentaire/Options
10. P0029590
11. Inspection covers 2007-08-27
12. P0029593
13. Inspection covers 2007-08-27
14. P0012306
15. Battery compartment parts 2007-11-28

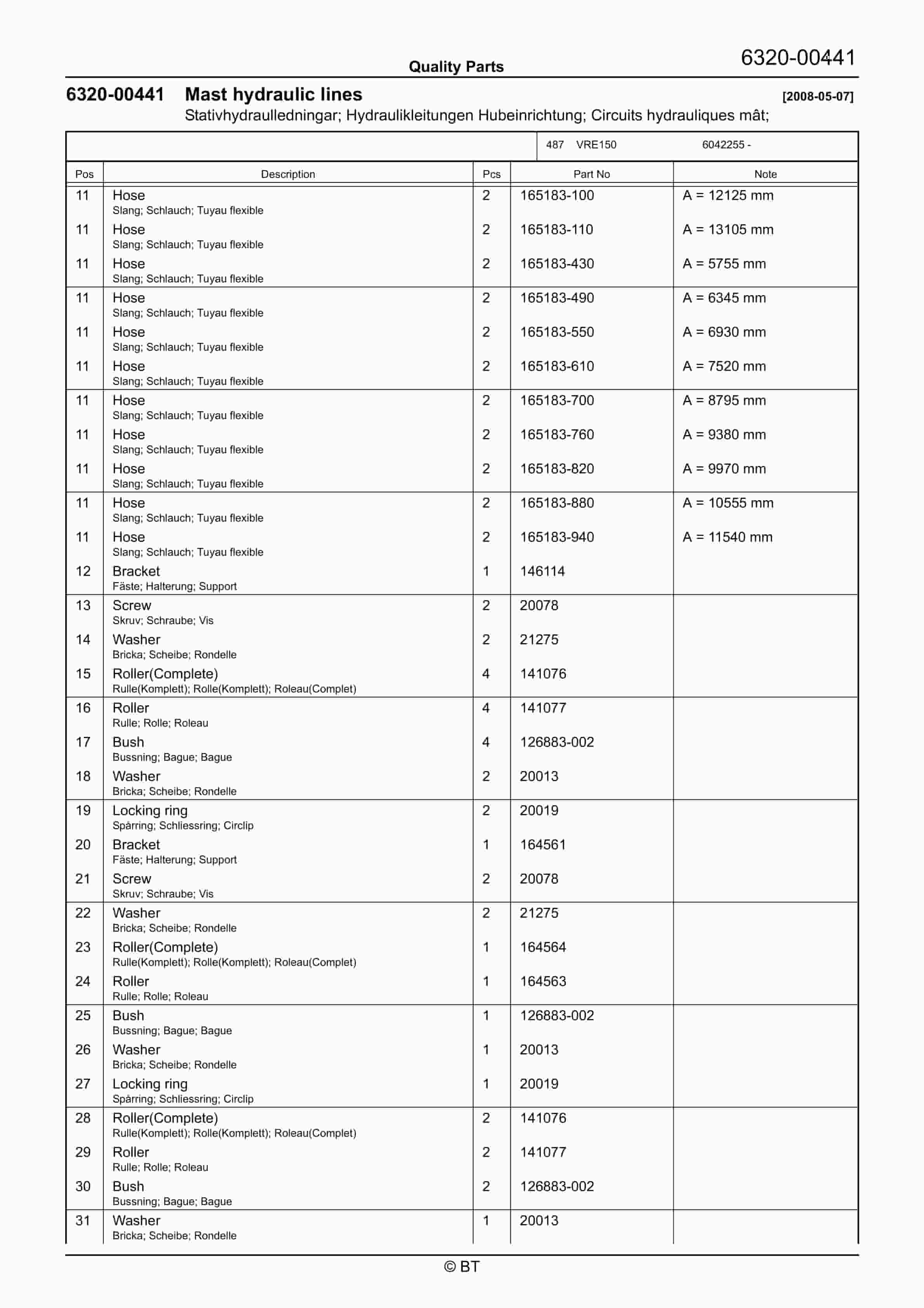

16. P0010055
17. Motor fixing points 2007-11-28
18. P0029600
19. Cabin fixing points 2008-03-04
20. P0021632
21. Seat, cushions 2007-11-28
22. P0019264
23. Driver controls ( mechanical ) 2008-03-04
24. P0029445
25. Internal fittings 2007-09-06
26. P0011267
27. Mirrors 2007-11-28
28. P0029604
29. Mirrors 2008-03-04
30. P0023086
31. Overhead guard/roof 2008-03-04
32. P0023087
33. Overhead guard/roof 2008-03-04
34. P0010303
35. Driver protection 2007-11-28
36. P0010410
37. Driver protection 2007-11-28
38. P0029606
39. Signs, warnings, decals 2007-08-27
40. P0020723
41. Electric pump motor 2008-02-06
42. P0022836
43. Electric steering motor 2008-03-04
44. P0011293
45. Electric fan motor, electric fan 2008-03-04
46. P0020721
47. Electric drive motor 2008-04-11
48. P0009744
49. Mechanical drive gear unit 2007-11-28
50. P0007232
51. Travel brake controls 2008-03-04
52. P0012281
53. Electrically controlled travel brake 2007-11-28
54. P0026959
55. Electrically controlled travel brake 2008-03-04
56. P0029608
57. Drive wheel 2007-08-27
58. P0008933
59. Fork/support arm wheels 2007-11-28
60. P0009400
61. Fork/support arm wheels 2007-11-28
62. P0012280
63. Fork/support arm wheels 2007-11-28
64. P0029435
65. Electric steering wheel/lever 2008-03-06
66. P0029444
67. Steering angle sensor 2007-08-27
68. P0016555
69. Steering bearings 2008-03-04
70. P0029613
71. Auto guidance equipment (on board) 2007-08-27
72. P0012914
73. Auto guidance PCBs 2007-11-28
74. P0011336
75. Auto guidance antennas 2007-11-28
76. P0011338
77. Auto guidance harness/cables 2007-11-28
78. P0029485
79. General alarm signals (audible/visual) 2008-03-04
80. P0026037
81. Battery cut out connector/contactor 2007-11-28
82. P0007136
83. Instrument panel, display 2008-03-04
84. P0011914
85. Level/position transducers/lamps 2007-11-28

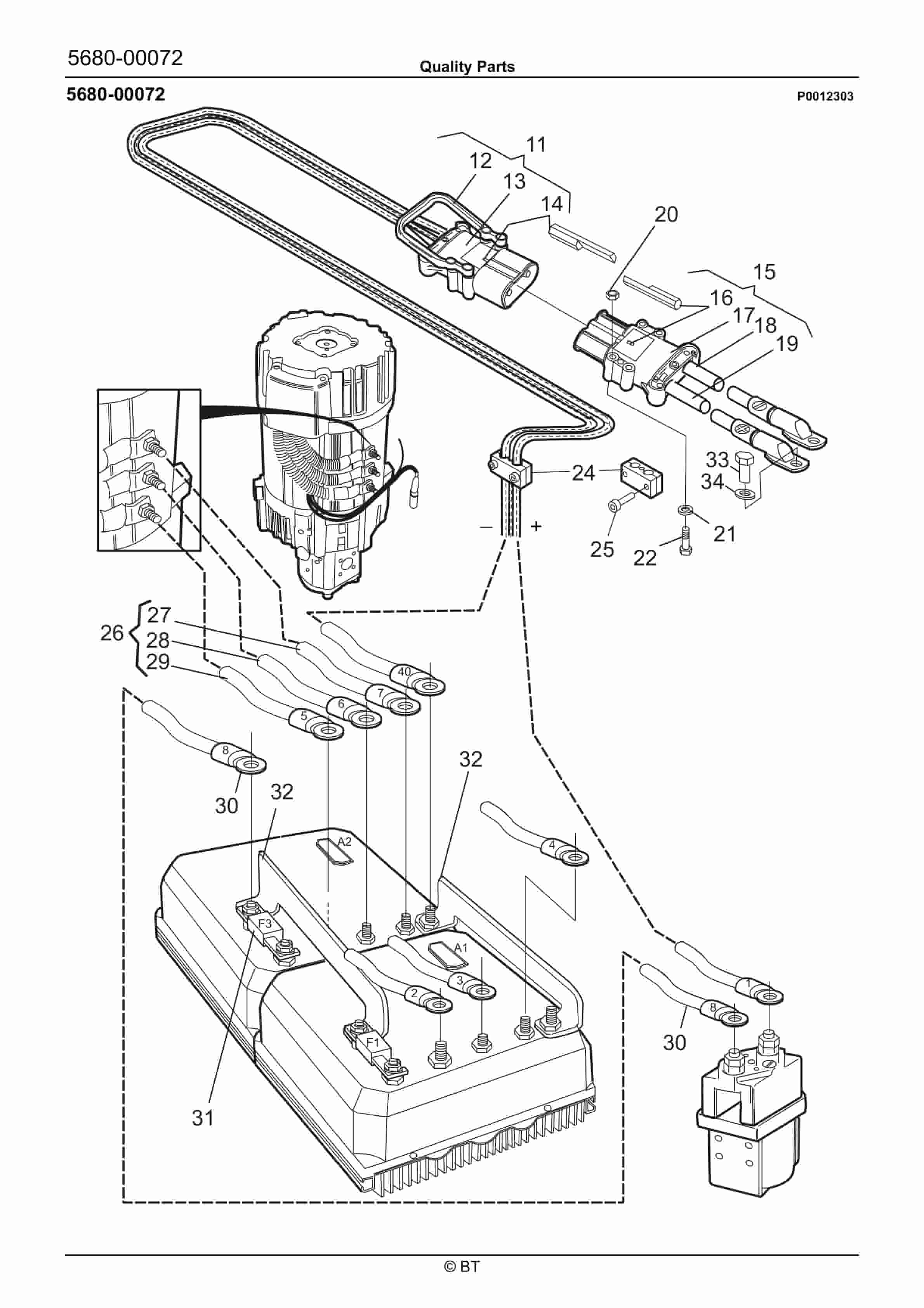

86. P0011955
87. Level/position transducers/lamps 2007-11-28
88. P0029515
89. Level/position transducers/lamps 2007-08-27
90. P0000257
91. Travel direction switch (separate) 2008-03-04
92. P0007232
93. Speed control 2008-03-04
94. P0012284
95. Driving function harnesses/fuse 2007-11-28
96. P0029359
97. Driving function harnesses/fuse 2007-08-27
98. P0029499
99. Drive motor cables/resistors/fuses 2007-08-27
100. P0029513
101. Transistor panel 2007-08-27
102. P0029438
103. Work function micro switches, potentiometers 2007-08-27
104. P0029514
105. Work function micro switches, potentiometers 2007-08-27
106. P0019389
107. Work function harnesses/fuse 2008-03-09
108. P0028048
109. Work function harnesses/fuse 2007-11-28
110. P0012303
111. Battery/motor cables, fuse 2007-11-28
112. P0029355
113. Drive/multi-function PCBs 2007-08-27
114. P0019388
115. Work function PCBs 2007-11-28
116. P0007058
117. Safety electronics harnesses, fuse 2008-01-17
118. P0029617
119. Lift/lowering/reach movement probes/sensors 2007-08-27
120. P0010378
121. Safety probes/sensors 2007-11-28
122. P0029487
123. Safety probes/sensors 2007-12-12
124. P0029519
125. Safety probes/sensors 2007-08-27
126. P0019390
127. Aisle probes/sensors 2007-11-28
128. P0024602
129. Hydraulic tank 2008-03-04
130. P0010337
131. Hydraulic tank lines 2007-11-28
132. P0010201
133. Filters and housing 2007-11-28
134. P0010610
135. Filters and housing 2008-03-04
136. P0019208
137. Hydraulic pump 2008-03-04
138. P0028043
139. Main valve unit lift/reach/tilt 2007-11-28
140. P0028045
141. Hydraulic lines chassis 2007-11-28
142. P0020809
143. Mast valve units 2008-02-06
144. P0010373
145. Mast hydraulic lines 2007-11-28
146. P0014969
147. Mast hydraulic lines 2007-11-28
148. P0027007
149. Mast hydraulic lines 2007-11-28
150. P0031739
151. Mast hydraulic lines 2008-05-07
152. P0031737
153. Main lift cylinders 2008-05-07
154. P0010096
155. Free lift cylinders 2007-11-28
156. P0012279
157. Tilt cylinders 2007-11-28
158. P0010319
159. Other hydraulic cylinders 2007-11-28
160. P0012321
161. Other hydraulic cylinders 2007-11-28
162. P0010143
163. Main mast 2007-11-28
164. P0019994
165. Main lift chain system 2007-11-28
166. P0000171

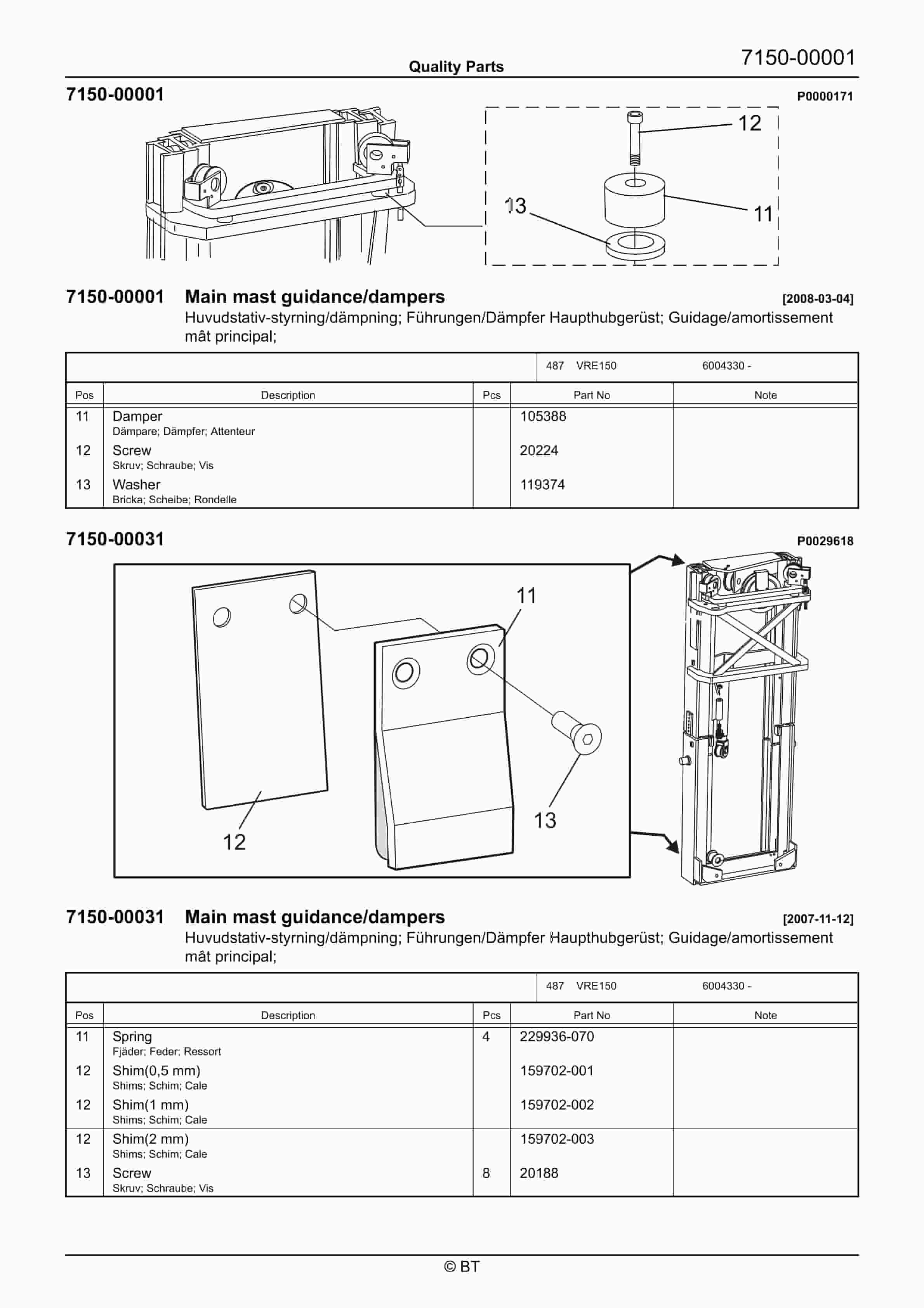

167. Main mast guidance/dampers 2008-03-04
168. P0029618
169. Main mast guidance/dampers 2007-11-12
170. P0019219
171. Main mast suspension 2008-03-10
172. P0009796
173. Fork, carpet boom, lift hook 2007-11-28
174. P0011285
175. Fork, carpet boom, lift hook 2007-11-28
176. P0012273
177. Fork, carpet boom, lift hook 2007-11-28
178. P0012263

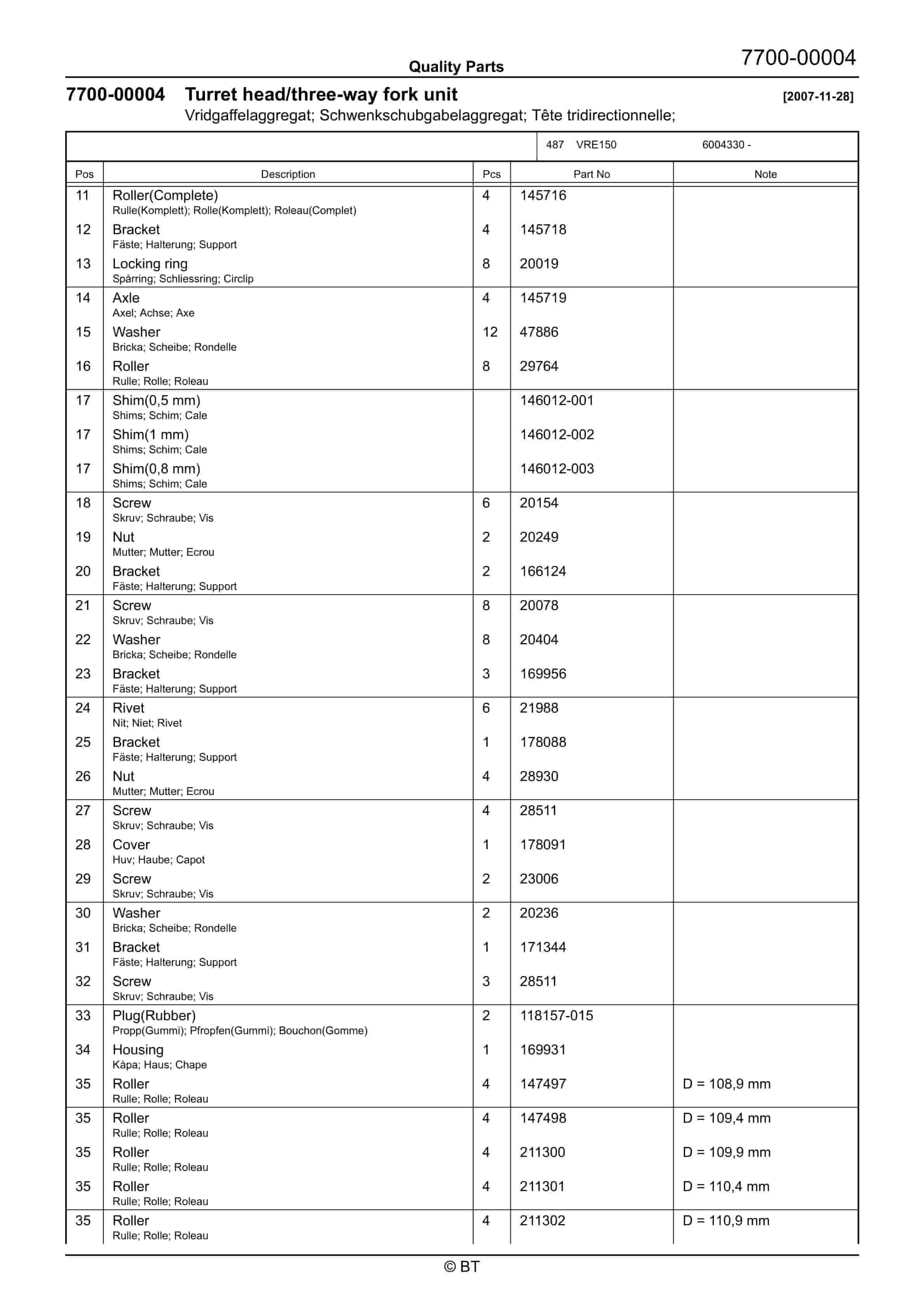

179. Turret head/three-way fork unit 2007-11-28
180. P0017050
181. Traversing function fork unit 2008-05-06
182. P0012217
183. Swivel/rotation function 2007-11-28
184. P0012266
185. Swivel/rotation function 2007-11-28
186. P0012278
187. Swivel/rotation function 2007-11-28
188. P0012030
189. Extra electrical equipment 2007-11-28
190. P0031353
191. Extra electrical equipment 2008-05-07
192. P0029619
193. Radio/recorder 2007-08-27
194. P0029621
195. Extra lighting 2007-08-27
196. P0014721
197. Extra warning lights/alarm 2007-11-28
198. P0019575
199. Extra warning lights/alarm 2007-11-28
200. P0011102
201. Charger attachment 2008-03-04
202. P0022832
203. Positioning/TV equip., height preselector 2007-11-28
204. P0022828
205. Positioning/TV equip., height preselector 2007-11-28
206. P0011315
207. Extra electrical equipment 2008-03-04
208. P0022833
209. Extra electrical equipment 2007-11-28
210. P0023037
211. Truck log device, code locking device 2008-03-04
212. P0031748
213. Truck log device, code locking device 2008-05-07
214. P0017246
215. Other extra equipment 2007-11-28
216. P0019916
217. Other extra equipment 2007-11-28
218. P0025939
219. Other extra equipment 2008-03-04
220. P0027008
221. Other extra equipment 2007-11-28
222. P0029625
223. Other extra equipment 2007-12-12
224. P0031496
225. Other extra equipment 2008-05-07
226. P0031498
227. Other extra equipment 2008-05-07
