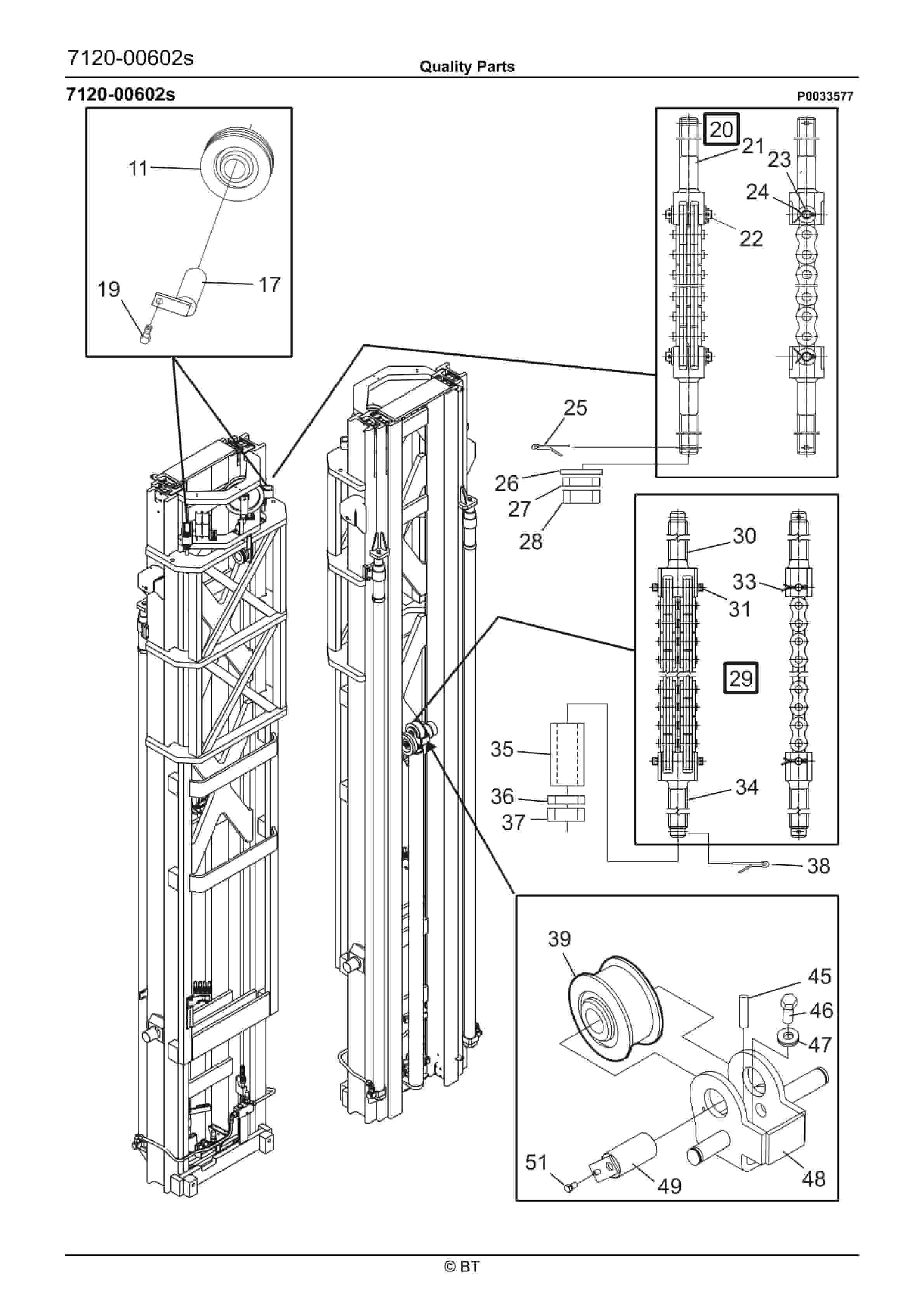

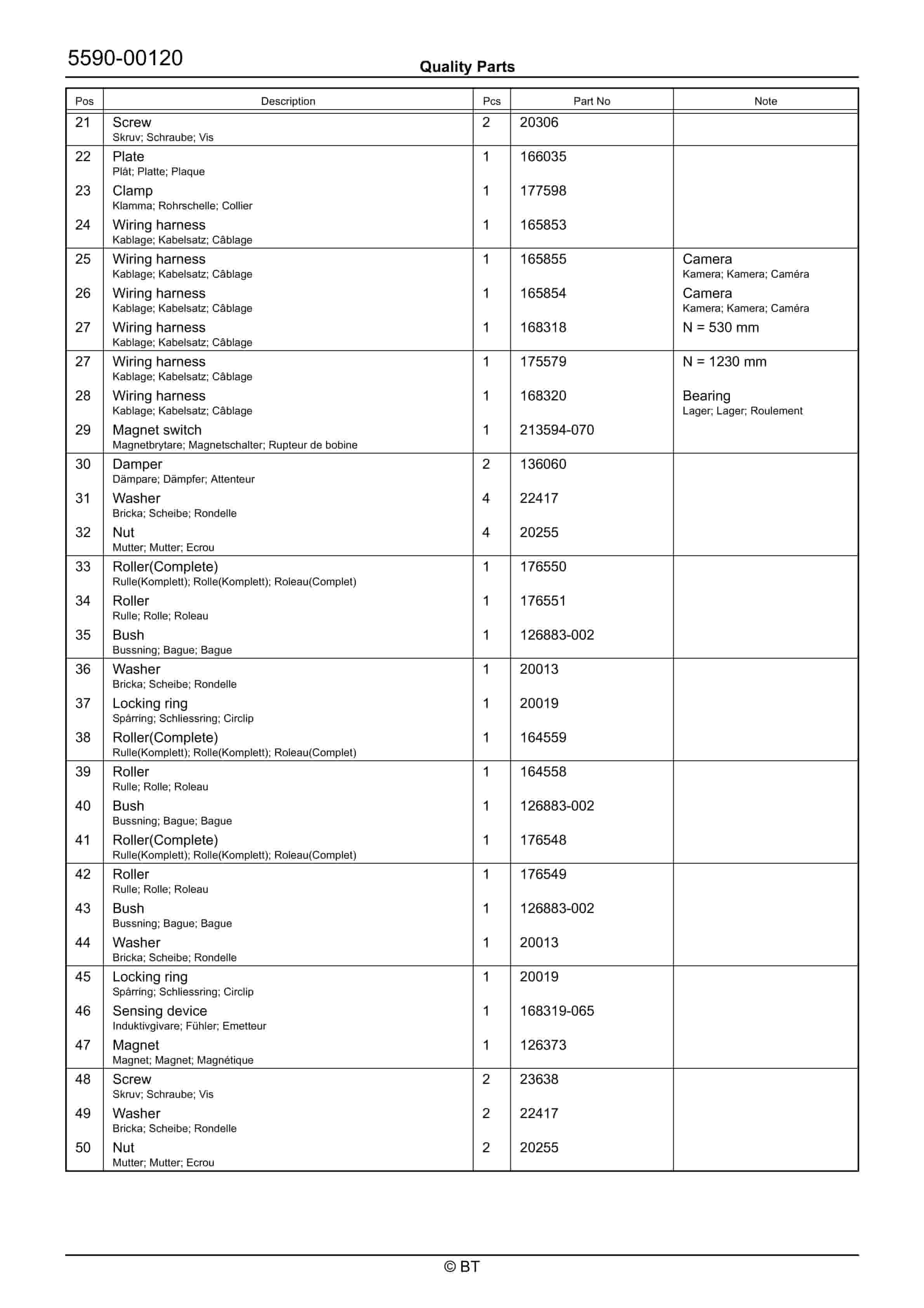

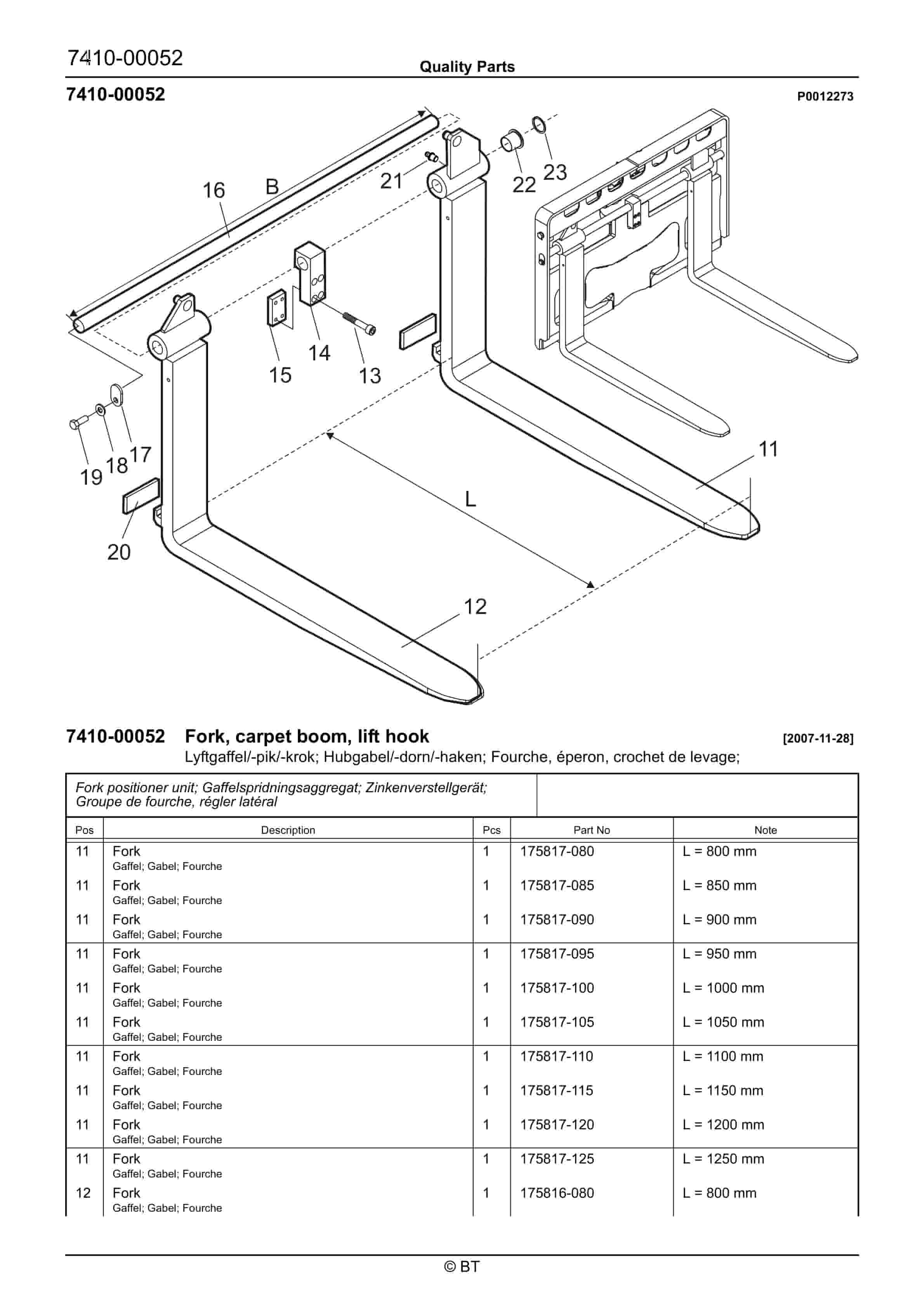

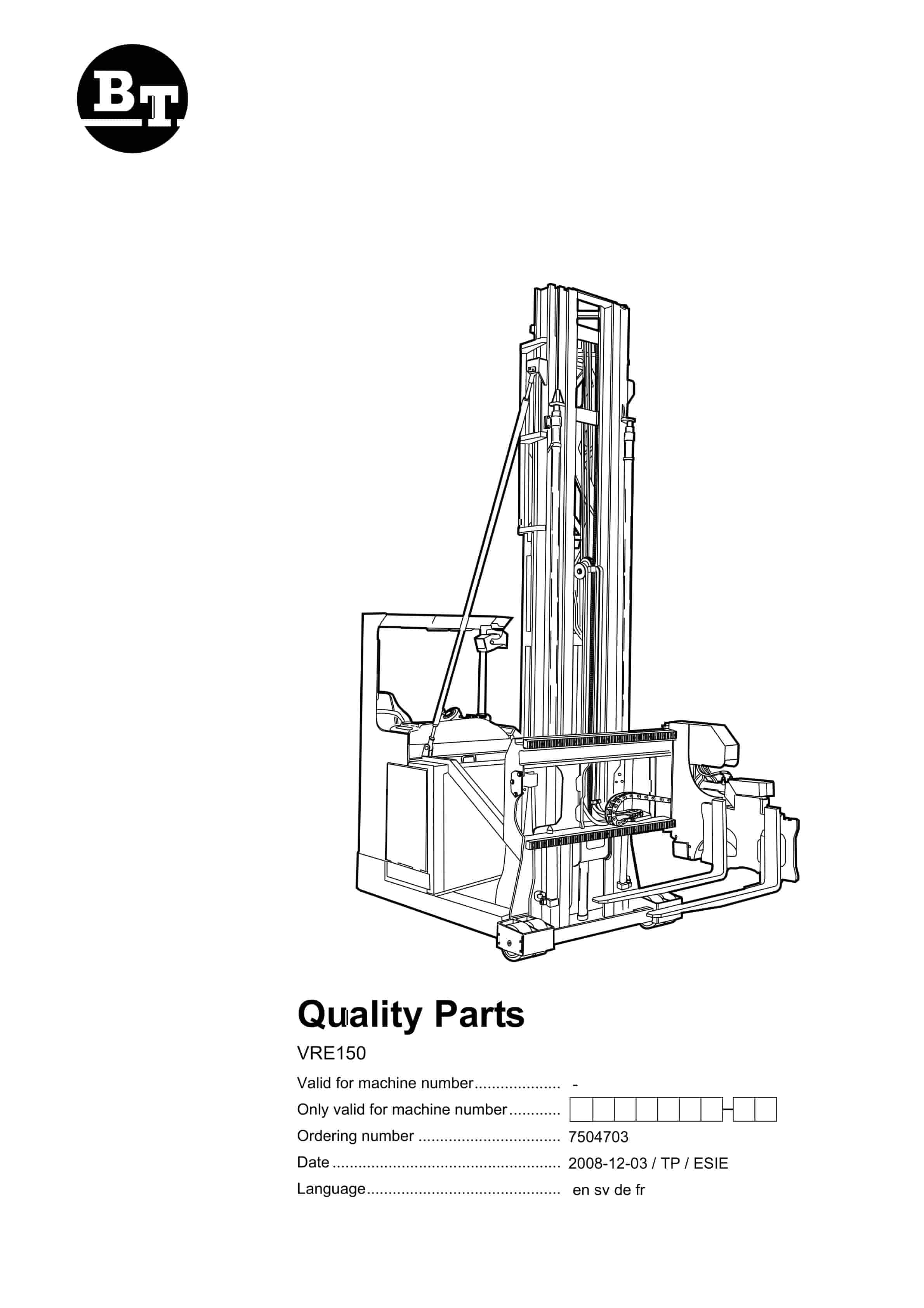

BT VRE150 Quality Parts 7504703

$30.00

Type Of Manual: Quality Parts
Manual ID: 7504703
: Parts Manual PDF
Number of Pages: 207
Size: 13.1MB
Format: PDF

Category: BT Parts Manual PDF

Model List:
- VRE150

1. Chassis
1.1. Chassi Chassis Châssis
2. Motors
2.1. Motorer Motoren Moteurs
3. Transmission/Drive gear
3.1. Kraftöverföring/Drivväxel Kraftübertragung/Fahrgetriebe Transmission/Groupe de traction
4. Brake/Wheel/Caterpillar system
4.1. Broms-/Hjul-/Bandsystem Brems-/Rad-/Bandsystem Freins/Roues/ Chenilles
5. Steering system
5.1. Styrsystem Steuer-/Lenksystem Système de direction
6. Electrical system
6.1. Elektriskt system Elektroanlage Système électrique
7. Hydraulic/pneumatic system
7.1. Hydraulik/pneumatik Hydraulikanlage/Pneumatik Système hydraulique/pneumatique
8. Work function – lifting masts
8.1. Arbetsfunktion – lyftstativ Arbeitsfunktion – Hubgerüste Fonction de travail – mâts de levage
9. Options/attachments
9.1. Tillbehör/extrautrustning Zubehör/Zusatzausrüstung Equipement supplémentaire/Options
10. P0033328
11. Inspection covers 2008-11-24
12. P0033344
13. Inspection covers 2008-11-24
14. P0012306
15. Battery compartment parts 2007-11-28
16. P0010055
17. Motor fixing points 2007-11-28
18. P0029600
19. Cabin fixing points 2008-10-14
20. P0021632
21. Seat, cushions 2007-11-28
22. P0033565
23. Seat, cushions 2008-12-01
24. P0019264
25. Driver controls ( mechanical ) 2008-10-14
26. P0029445
27. Internal fittings 2007-09-06
28. P0011267
29. Mirrors 2007-11-28
30. P0029604
31. Mirrors 2008-10-16
32. P0023086
33. Overhead guard/roof 2008-10-14
34. P0023087
35. Overhead guard/roof 2008-10-14
36. P0010303
37. Driver protection 2007-11-28
38. P0010410
39. Driver protection 2007-11-28
40. P0029606
41. Signs, warnings, decals 2007-08-27
42. P0020723
43. Electric pump motor 2008-02-06
44. P0022836
45. Electric steering motor 2008-10-14
46. P0011293
47. Electric fan motor, electric fan 2008-10-14
48. P0033431
49. Electric fan motor, electric fan 2008-11-24
50. P0020721
51. Electric drive motor 2008-10-14
52. P0009744
53. Mechanical drive gear unit 2007-11-28
54. P0007232
55. Travel brake controls 2008-10-14
56. P0012281
57. Electrically controlled travel brake 2007-11-28
58. P0026959
59. Electrically controlled travel brake 2008-10-14
60. P0029608
61. Drive wheel 2007-08-27
62. P0008933
63. Fork/support arm wheels 2007-11-28
64. P0009400
65. Fork/support arm wheels 2007-11-28
66. P0012280
67. Fork/support arm wheels 2007-11-28
68. P0029435
69. Electric steering wheel/lever 2008-03-06
70. P0029444
71. Steering angle sensor 2008-09-17
72. P0016555
73. Steering bearings 2008-10-14
74. P0029613
75. Auto guidance equipment (on board) 2007-08-27
76. P0012914
77. Auto guidance PCBs 2007-11-28
78. P0011336
79. Auto guidance antennas 2007-11-28
80. P0011338
81. Auto guidance harness/cables 2007-11-28
82. P0029485
83. General alarm signals (audible/visual) 2008-10-14
84. P0026037
85. Battery cut out connector/contactor 2007-11-28
86. P0007136
87. Instrument panel, display 2008-10-14
88. P0011914
89. Level/position transducers/lamps 2007-11-28
90. P0011955
91. Level/position transducers/lamps 2007-11-28
92. P0029515
93. Level/position transducers/lamps 2007-08-27
94. P0000257
95. Travel direction switch (separate) 2008-10-14
96. P0007232
97. Speed control 2008-10-14
98. P0012284
99. Driving function harnesses/fuse 2007-11-28
100. P0033427
101. Driving function harnesses/fuse 2008-11-24
102. P0029499
103. Drive motor cables/resistors/fuses 2007-08-27
104. P0029513
105. Transistor panel 2007-08-27
106. P0029438
107. Work function micro switches, potentiometers 2007-08-27
108. P0029514
109. Work function micro switches, potentiometers 2007-08-27
110. P0019389
111. Work function harnesses/fuse 2008-03-09
112. P0028048
113. Work function harnesses/fuse 2007-11-28
114. P0012303
115. Battery/motor cables, fuse 2007-11-28
116. P0029355
117. Drive/multi-function PCBs 2007-08-27
118. P0019388
119. Work function PCBs 2007-11-28
120. P0007058
121. Safety electronics harnesses, fuse 2008-10-20
122. P0029617
123. Lift/lowering/reach movement probes/sensors 2007-08-27
124. P0010378
125. Safety probes/sensors 2007-11-28
126. P0029487
127. Safety probes/sensors 2008-09-18
128. P0029519
129. Safety probes/sensors 2007-08-27
130. P0019390
131. Aisle probes/sensors 2007-11-28
132. P0033570
133. Aisle probes/sensors 2008-12-02
134. P0024602
135. Hydraulic tank 2008-10-15
136. P0010337
137. Hydraulic tank lines 2007-11-28
138. P0010201
139. Filters and housing 2007-11-28
140. P0010610
141. Filters and housing 2008-10-15
142. P0019208
143. Hydraulic pump 2008-10-15
144. P0028043
145. Main valve unit lift/reach/tilt 2007-11-28
146. P0028045
147. Hydraulic lines chassis 2007-11-28
148. P0020809
149. Mast valve units 2008-02-06
150. P0010373
151. Mast hydraulic lines 2007-11-28
152. P0014969
153. Mast hydraulic lines 2007-11-28
154. P0027007
155. Mast hydraulic lines 2007-11-28
156. P0033573
157. Mast hydraulic lines 2008-12-03
158. P0033574
159. Main lift cylinders 2008-12-03
160. P0033575
161. Free lift cylinders 2008-12-03
162. P0012279
163. Tilt cylinders 2007-11-28
164. P0010319
165. Other hydraulic cylinders 2007-11-28
166. P0012321
167. Other hydraulic cylinders 2007-11-28
168. P0010143
169. Main mast 2007-11-28
170. P0033577
171. Main lift chain system 2008-12-03
172. P0000171
173. Main mast guidance/dampers 2008-10-15
174. P0029618
175. Main mast guidance/dampers 2007-11-12
176. P0019219
177. Main mast suspension 2008-03-10
178. P0009796
179. Fork, carpet boom, lift hook 2008-10-15
180. P0011285
181. Fork, carpet boom, lift hook 2007-11-28
182. P0012273
183. Fork, carpet boom, lift hook 2007-11-28
184. P0012263
185. Turret head/three-way fork unit 2007-11-28
186. P0017050
187. Traversing function fork unit 2008-05-06
188. P0012217
189. Swivel/rotation function 2007-11-28
190. P0012266
191. Swivel/rotation function 2007-11-28
192. P0012278
193. Swivel/rotation function 2007-11-28
194. P0012030
195. Extra electrical equipment 2007-11-28
196. P0031353
197. Extra electrical equipment 2008-05-07
198. P0029619
199. Radio/recorder 2008-12-02
200. P0029621
201. Extra lighting 2007-08-27
202. P0014721
203. Extra warning lights/alarm 2007-11-28
204. P0019575
205. Extra warning lights/alarm 2007-11-28
206. P0011102
207. Charger attachment 2008-10-15
208. P0022832
209. Positioning/TV equip., height preselector 2007-11-28
210. P0022828
211. Positioning/TV equip., height preselector 2007-11-28
212. P0011315
213. Extra electrical equipment 2008-10-15
214. P0022833
215. Extra electrical equipment 2007-11-28
216. P0023037
217. Truck log device, code locking device 2008-10-21
218. P0031748
219. Truck log device, code locking device 2008-10-15
220. P0017246
221. Other extra equipment 2007-11-28
222. P0019916
223. Other extra equipment 2007-11-28
224. P0025939
225. Other extra equipment 2008-10-15
226. P0027008
227. Other extra equipment 2007-11-28
228. P0029625
229. Other extra equipment 2008-09-19
230. P0031496
231. Other extra equipment 2008-10-15
232. P0031498
233. Other extra equipment 2008-10-15
