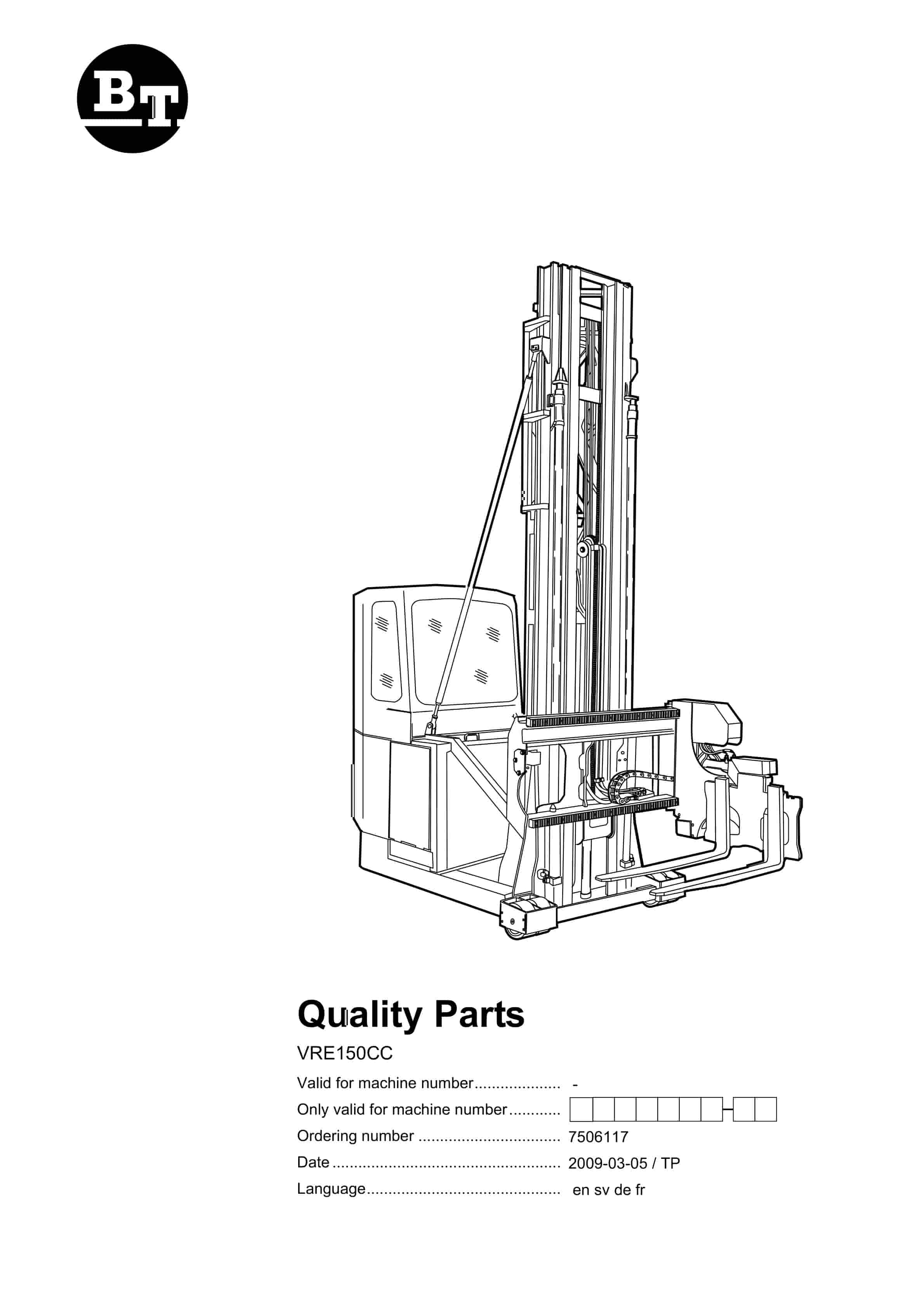

BT VRE150CC Quality Parts 7506117

$30.00

Type Of Manual: Quality Parts
Manual ID: 7506117
: Parts Manual PDF
Number of Pages: 211
Size: 11.8MB
Format: PDF

Category: BT Parts Manual PDF

Model List:
- VRE150CC

1. Chassis
1.1. Chassi Chassis Châssis
2. Motors
2.1. Motorer Motoren Moteurs
3. Transmission/Drive gear
3.1. Kraftöverföring/Drivväxel Kraftübertragung/Fahrgetriebe Transmission/Groupe de traction
4. Brake/Wheel/Caterpillar system
4.1. Broms-/Hjul-/Bandsystem Brems-/Rad-/Bandsystem Freins/Roues/ Chenilles
5. Steering system
5.1. Styrsystem Steuer-/Lenksystem Système de direction
6. Electrical system
6.1. Elektriskt system Elektroanlage Système électrique
7. Hydraulic/pneumatic system
7.1. Hydraulik/pneumatik Hydraulikanlage/Pneumatik Système hydraulique/pneumatique
8. Work function – lifting masts
8.1. Arbetsfunktion – lyftstativ Arbeitsfunktion – Hubgerüste Fonction de travail – mâts de levage
9. Options/attachments
9.1. Tillbehör/extrautrustning Zubehör/Zusatzausrüstung Equipement supplémentaire/Options
10. P0033334
11. Inspection covers 2008-11-24
12. P0033344
13. Inspection covers 2008-11-24

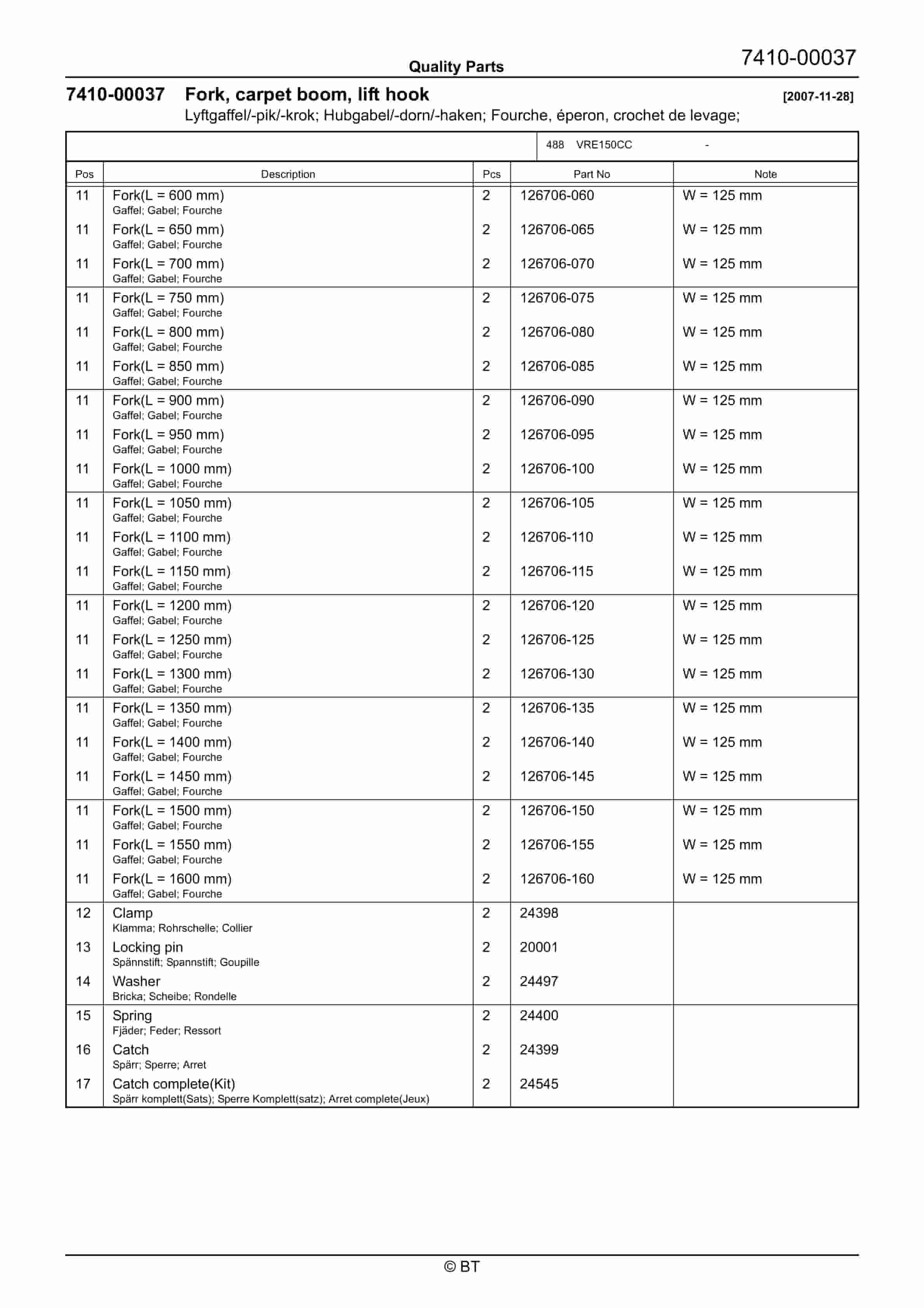

14. P0012306
15. Battery compartment parts 2007-11-28
16. P0010055
17. Motor fixing points 2007-11-28
18. P0033335
19. Cabin fixing points 2008-12-03
20. P0033392
21. Cabin windows 2008-12-03
22. P0033398
23. Cabin door 2008-12-03
24. P0021641
25. Seat, cushions 2007-11-28
26. P0027061
27. Cabin heating/ventilation 2007-11-28
28. P0019264
29. Driver controls ( mechanical ) 2008-10-14
30. P0033332
31. Internal fittings 2008-11-24
32. P0011267
33. Mirrors 2007-11-28
34. P0029605
35. Collision bumper/guards 2007-08-27
36. P0010303
37. Driver protection 2007-11-28
38. P0010410
39. Driver protection 2007-11-28
40. P0019590
41. Signs, warnings, decals 2007-11-28
42. P0020723
43. Electric pump motor 2008-02-06
44. P0022836
45. Electric steering motor 2008-10-14
46. P0011293
47. Electric fan motor, electric fan 2008-10-14
48. P0033431
49. Electric fan motor, electric fan 2008-11-24
50. P0020721
51. Electric drive motor 2008-10-14
52. P0009744
53. Mechanical drive gear unit 2007-11-28
54. P0007232
55. Travel brake controls 2008-10-14
56. P0012281
57. Electrically controlled travel brake 2007-11-28
58. P0026959
59. Electrically controlled travel brake 2008-10-14
60. P0029608
61. Drive wheel 2007-08-27
62. P0008933
63. Fork/support arm wheels 2007-11-28
64. P0009400
65. Fork/support arm wheels 2007-11-28
66. P0012280
67. Fork/support arm wheels 2007-11-28
68. P0029437
69. Electric steering wheel/lever 2007-08-27
70. P0029444
71. Steering angle sensor 2008-09-17
72. P0016555
73. Steering bearings 2008-10-14
74. P0011344
75. Auto guidance equipment (on board) 2007-11-28
76. P0012927
77. Auto guidance PCBs 2007-11-28
78. P0011352
79. Auto guidance antennas 2007-11-28
80. P0011353
81. Auto guidance harness/cables 2007-11-28
82. P0007932
83. Lighting 2007-11-28
84. P0029486
85. General alarm signals (audible/visual) 2007-09-10
86. P0026037
87. Battery cut out connector/contactor 2007-11-28
88. P0007136
89. Instrument panel, display 2008-10-14
90. P0010296
91. Level/position transducers/lamps 2007-11-28
92. P0011914
93. Level/position transducers/lamps 2007-11-28
94. P0011955
95. Level/position transducers/lamps 2007-11-28
96. P0000257
97. Travel direction switch (separate) 2008-10-14
98. P0007232
99. Speed control 2008-10-14
100. P0012284
101. Driving function harnesses/fuse 2007-11-28
102. P0033430
103. Driving function harnesses/fuse 2008-11-24
104. P0029499
105. Drive motor cables/resistors/fuses 2007-08-27
106. P0029513
107. Transistor panel 2007-08-27
108. P0010293
109. Work function micro switches, potentiometers 2007-11-28
110. P0025292
111. Work function micro switches, potentiometers 2007-11-28
112. P0011463
113. Work function harnesses/fuse 2007-11-28
114. P0019389
115. Work function harnesses/fuse 2008-03-09
116. P0028048
117. Work function harnesses/fuse 2007-11-28

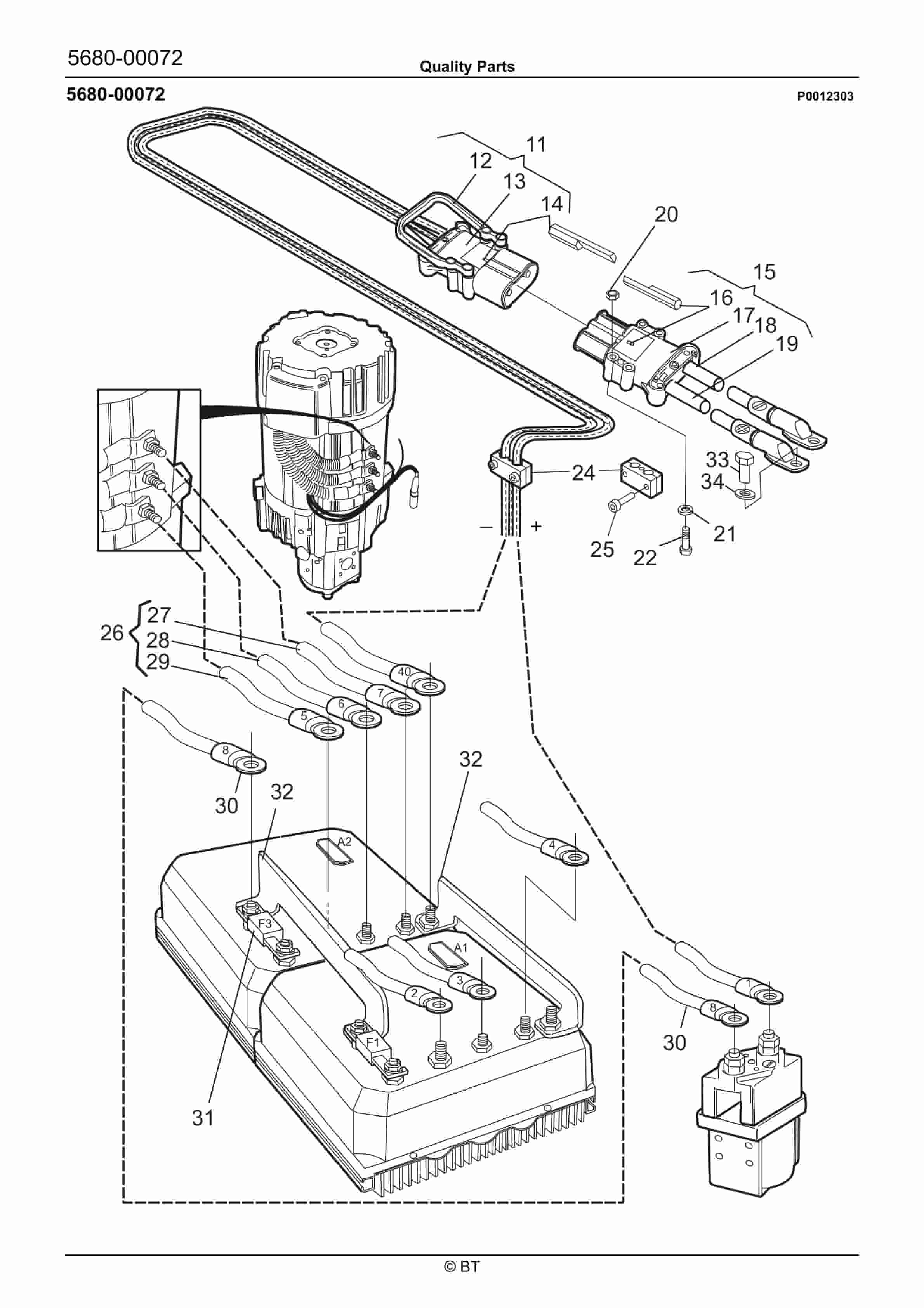

118. P0012303
119. Battery/motor cables, fuse 2007-11-28
120. P0029355
121. Drive/multi-function PCBs 2007-08-27
122. P0019388
123. Work function PCBs 2007-11-28
124. P0003334
125. Safety electronics harnesses, fuse 2007-11-28
126. P0010298
127. Lift/lowering/reach movement probes/sensors 2007-11-28
128. P0010378
129. Safety probes/sensors 2007-11-28
130. P0029487
131. Safety probes/sensors 2008-09-18
132. P0029518
133. Safety probes/sensors 2007-08-27
134. P0019390
135. Aisle probes/sensors 2007-11-28
136. P0024602
137. Hydraulic tank 2008-10-15
138. P0010337
139. Hydraulic tank lines 2007-11-28
140. P0031481
141. Hydraulic tank lines 2008-10-15
142. P0010201
143. Filters and housing 2007-11-28
144. P0010610
145. Filters and housing 2008-10-15
146. P0019208
147. Hydraulic pump 2008-10-15
148. P0028043
149. Main valve unit lift/reach/tilt 2007-11-28
150. P0030419
151. Main valve unit lift/reach/tilt 2007-12-05
152. P0011467
153. Hydraulic lines chassis 2007-11-28
154. P0028045
155. Hydraulic lines chassis 2007-11-28
156. P0020809
157. Mast valve units 2008-02-06
158. P0014969
159. Mast hydraulic lines 2007-11-28
160. P0027007
161. Mast hydraulic lines 2007-11-28
162. P0029364
163. Mast hydraulic lines 2007-05-30
164. P0031739
165. Mast hydraulic lines 2008-05-07
166. P0031737
167. Main lift cylinders 2008-05-07
168. P0033476
169. Free lift cylinders 2008-11-24
170. P0009657
171. Tilt cylinders 2008-10-15
172. P0012279
173. Tilt cylinders 2007-11-28
174. P0010319
175. Other hydraulic cylinders 2007-11-28
176. P0012321
177. Other hydraulic cylinders 2007-11-28
178. P0010143
179. Main mast 2007-11-28

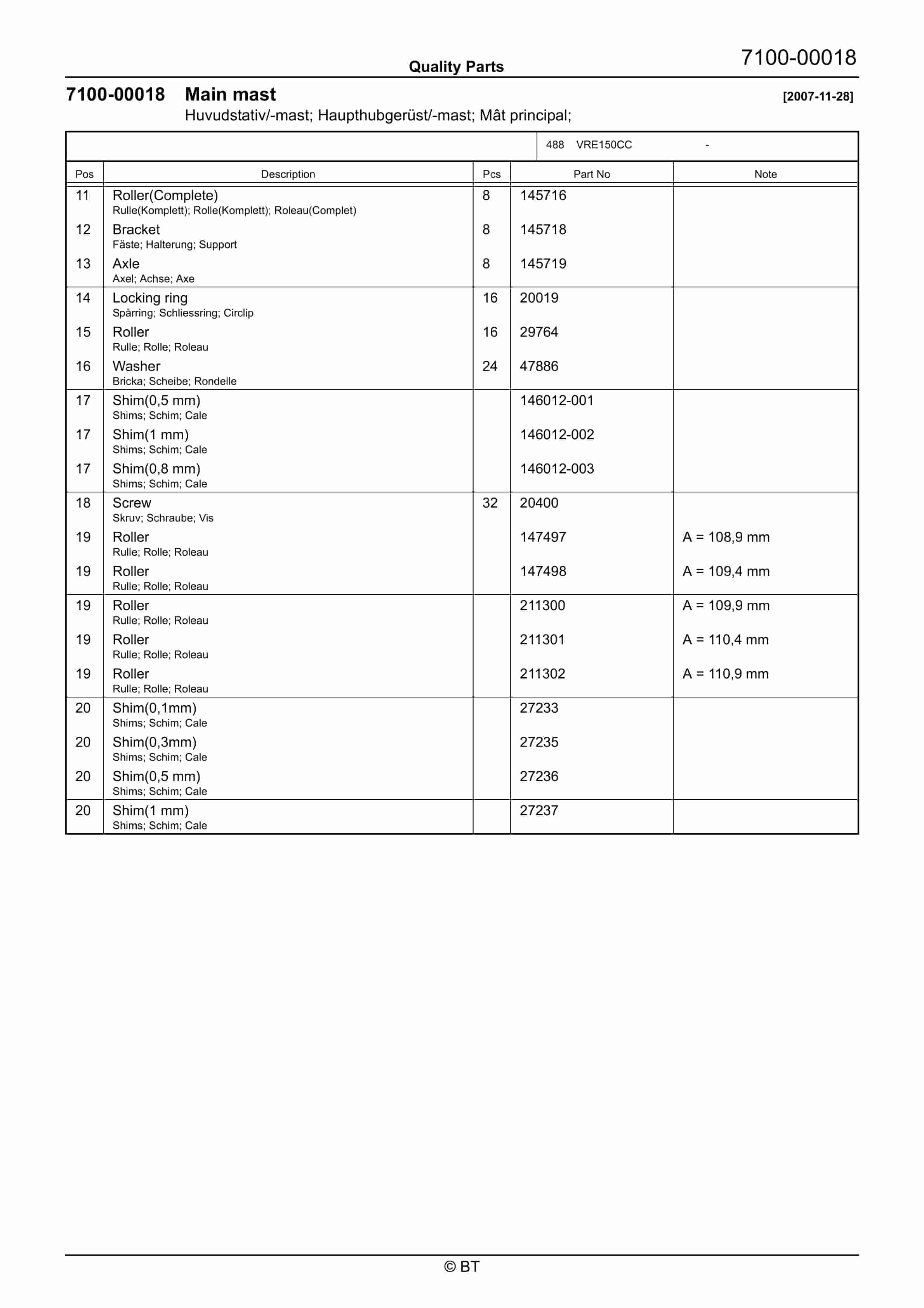

180. P0019994
181. Main lift chain system 2007-11-28
182. P0000171
183. Main mast guidance/dampers 2008-10-15
184. P0029618
185. Main mast guidance/dampers 2007-11-12
186. P0019219
187. Main mast suspension 2008-03-10
188. P0009796
189. Fork, carpet boom, lift hook 2009-02-12
190. P0011285
191. Fork, carpet boom, lift hook 2007-11-28
192. P0012273
193. Fork, carpet boom, lift hook 2007-11-28
194. P0012263
195. Turret head/three-way fork unit 2007-11-28
196. P0029365
197. Traversing function fork unit 2007-05-30
198. P0012217
199. Swivel/rotation function 2007-11-28
200. P0012266
201. Swivel/rotation function 2007-11-28
202. P0012278
203. Swivel/rotation function 2007-11-28
204. P0012046
205. Extra electrical equipment 2007-11-28
206. P0031353
207. Extra electrical equipment 2008-05-07
208. P0029620
209. Radio/recorder 2008-12-02
210. P0029623
211. Extra lighting 2007-08-27
212. P0014721
213. Extra warning lights/alarm 2007-11-28
214. P0019576
215. Extra warning lights/alarm 2007-11-28
216. P0011102
217. Charger attachment 2008-10-15
218. P0022832
219. Positioning/TV equip., height preselector 2007-11-28
220. P0022831
221. Positioning/TV equip., height preselector 2007-11-28
222. P0011315
223. Extra electrical equipment 2008-10-15
224. P0022833
225. Extra electrical equipment 2007-11-28
226. P0023037
227. Truck log device, code locking device 2008-12-03
228. P0031749
229. Truck log device, code locking device 2008-05-07
230. P0017246
231. Other extra equipment 2007-11-28
232. P0019916
233. Other extra equipment 2007-11-28
234. P0027008
235. Other extra equipment 2007-11-28
236. P0029625
237. Other extra equipment 2008-09-19
238. P0031352
239. Other extra equipment 2008-05-07
240. P0034203
241. Other extra equipment 2009-03-05
