BT VRE150CC Quality Parts 7515500

$30.00

Type Of Manual: Quality Parts
Manual ID: 7515500
: Parts Manual PDF
Number of Pages: 174
Size: 11.8MB
Format: PDF

Category: BT Parts Manual PDF

Model List:
- VRE150CC

1. Chassis
1.1. Chassi Chassis Châssis
2. Motors
2.1. Motorer Motoren Moteurs
3. Transmission/Drive gear
3.1. Kraftöverföring/Drivväxel Kraftübertragung/Fahrgetriebe Transmission/Groupe de traction
4. Brake/Wheel/Caterpillar system
4.1. Broms-/Hjul-/Bandsystem Brems-/Rad-/Bandsystem Freins/Roues/ Chenilles
5. Steering system
5.1. Styrsystem Steuer-/Lenksystem Système de direction
6. Electrical system
6.1. Elektriskt system Elektroanlage Système électrique
7. Hydraulic/pneumatic system
7.1. Hydraulik/pneumatik Hydraulikanlage/Pneumatik Système hydraulique/pneumatique
8. Work function – lifting masts
8.1. Arbetsfunktion – lyftstativ Arbeitsfunktion – Hubgerüste Fonction de travail – mâts de levage
9. Options/attachments
9.1. Tillbehör/extrautrustning Zubehör/Zusatzausrüstung Equipement supplémentaire/Options
10. P0033344
11. Inspection covers 2008-11-24
12. P0036013
13. Inspection covers 2010-01-12
14. P0012306
15. Battery compartment parts 2007-11-28
16. P0010055
17. Motor fixing points 2009-11-19
18. P0036014
19. Cabin fixing points 2010-01-12
20. P0021641
21. Seat, cushions 2007-11-28
22. P0036015
23. Internal fittings 2010-01-12
24. P0011267
25. Mirrors 2007-11-28
26. P0036016
27. Mirrors 2010-01-12
28. P0010303
29. Driver protection 2009-11-19
30. P0010410
31. Driver protection 2009-11-19
32. P0036017
33. Signs, warnings, decals 2010-01-12
34. P0020723
35. Electric pump motor 2009-11-19
36. P0022836
37. Electric steering motor 2009-11-19
38. P0011293
39. Electric fan motor, electric fan 2009-11-19
40. P0033431
41. Electric fan motor, electric fan 2009-11-19
42. P0020721
43. Electric drive motor 2009-11-19
44. P0009744
45. Mechanical drive gear unit 2009-11-19
46. P0007232
47. Travel brake controls 2009-11-19
48. P0012281
49. Electrically controlled travel brake 2009-11-19
50. P0026959
51. Electrically controlled travel brake 2009-11-19
52. P0029608
53. Drive wheel 2009-11-19
54. P0008933
55. Fork/support arm wheels 2009-11-19
56. P0009400
57. Fork/support arm wheels 2009-11-19
58. P0012280
59. Fork/support arm wheels 2009-11-19
60. P0036004
61. Electric steering wheel/lever 2010-01-12
62. P0029444
63. Steering angle sensor 2009-11-19
64. P0016555
65. Steering bearings 2009-11-19
66. P0036018
67. General alarm signals (audible/visual) 2010-01-12
68. P0026037
69. Battery cut out connector/contactor 2009-11-24
70. P0007136
71. Instrument panel, display 2009-11-24
72. P0011914
73. Level/position transducers/lamps 2007-11-28
74. P0011955
75. Level/position transducers/lamps 2009-11-24
76. P0036019
77. Level/position transducers/lamps 2010-01-12
78. P0000257
79. Travel direction switch (separate) 2009-11-24
80. P0007232
81. Speed control 2009-11-24
82. P0012284
83. Driving function harnesses/fuse 2007-11-28
84. P0036020
85. Driving function harnesses/fuse 2010-01-12
86. P0029499
87. Drive motor cables/resistors/fuses 2009-11-24
88. P0029513
89. Transistor panel 2009-11-24
90. P0036021
91. Work function micro switches, potentiometers 2010-01-12
92. P0036023
93. Work function micro switches, potentiometers 2010-01-12
94. P0028048
95. Work function harnesses/fuse 2009-11-24
96. P0036008
97. Work function harnesses/fuse 2010-01-12
98. P0012303

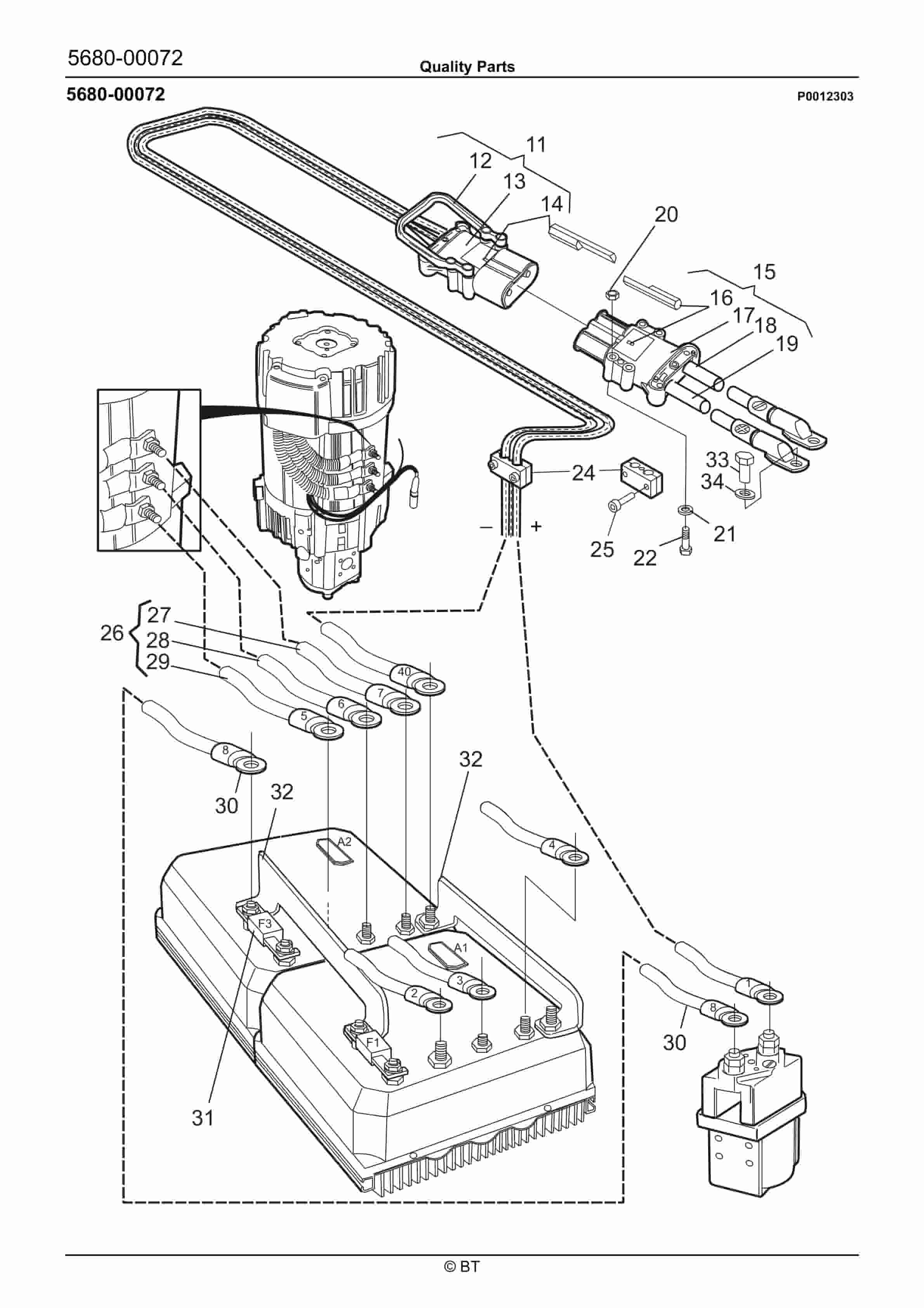

99. Battery/motor cables, fuse 2009-11-24
100. P0029355
101. Drive/multi-function PCBs 2009-11-24
102. P0019388
103. Work function PCBs 2007-11-28
104. P0036024
105. Lift/lowering/reach movement probes/sensors 2010-01-12
106. P0010378
107. Safety probes/sensors 2009-11-24
108. P0029487
109. Safety probes/sensors 2009-11-24
110. P0029518
111. Safety probes/sensors 2007-08-27
112. P0019390
113. Aisle probes/sensors 2007-11-28
114. P0024602
115. Hydraulic tank 2009-11-24
116. P0010337
117. Hydraulic tank lines 2009-11-24
118. P0031481
119. Hydraulic tank lines 2008-10-15
120. P0010201
121. Filters and housing 2007-11-28
122. P0010610
123. Filters and housing 2009-11-24
124. P0019208
125. Hydraulic pump 2009-11-24
126. P0028043
127. Main valve unit lift/reach/tilt 2009-11-24
128. P0028045
129. Hydraulic lines chassis 2007-11-28
130. P0020809
131. Mast valve units 2008-02-06
132. P0010373
133. Mast hydraulic lines 2007-11-28
134. P0014969
135. Mast hydraulic lines 2007-11-28
136. P0027007
137. Mast hydraulic lines 2007-11-28
138. P0036007

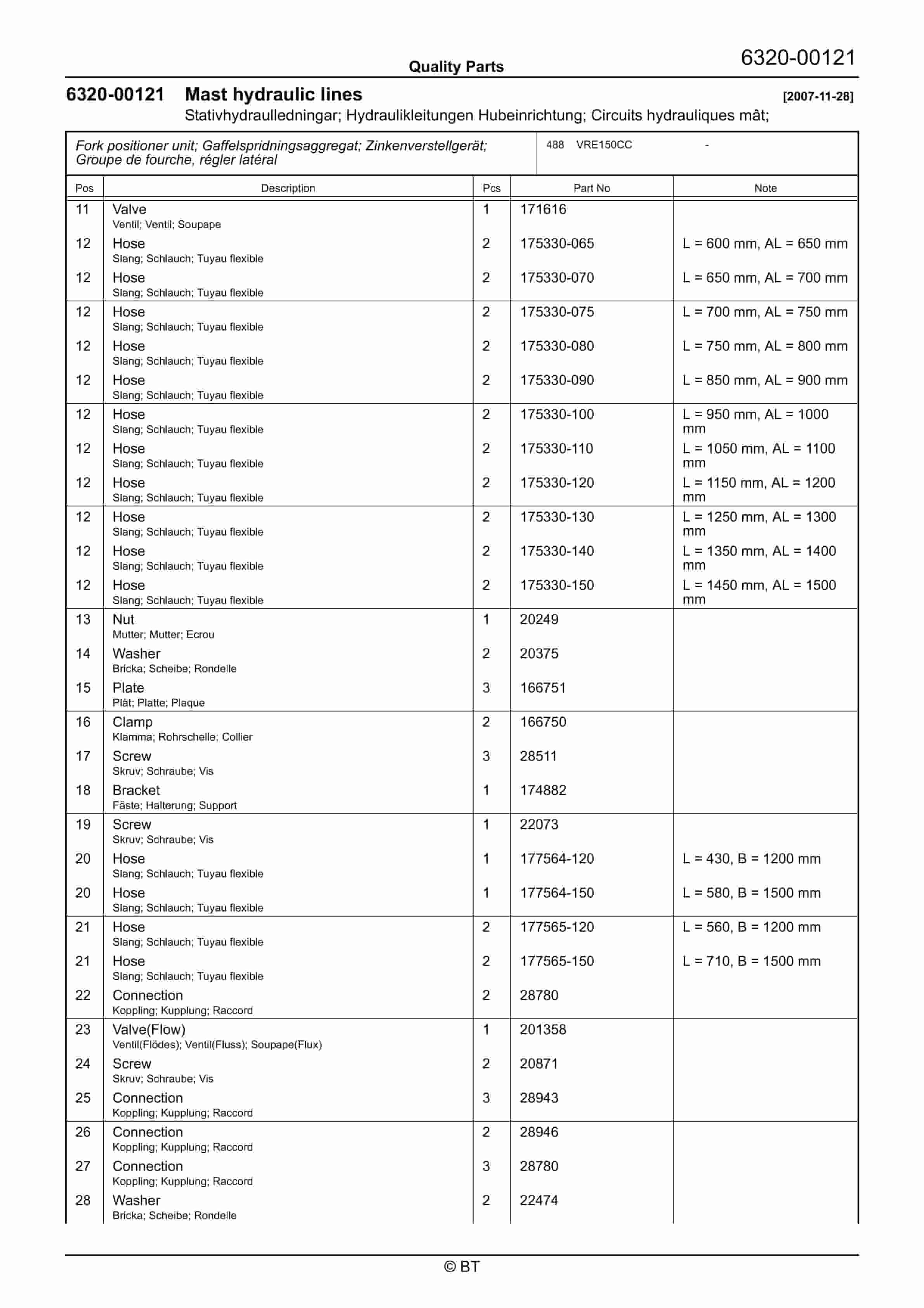

139. Mast hydraulic lines 2010-01-12
140. P0036012
141. Main lift cylinders 2010-01-12
142. P0012279
143. Tilt cylinders 2007-11-28
144. P0010319
145. Other hydraulic cylinders 2007-11-28
146. P0012321
147. Other hydraulic cylinders 2007-11-28
148. P0010143
149. Main mast 2009-11-24
150. P0036011
151. Main lift chain system 2010-01-12
152. P0000171
153. Main mast guidance/dampers 2009-11-24
154. P0029618
155. Main mast guidance/dampers 2009-11-24
156. P0019219
157. Main mast suspension 2008-03-10
158. P0009796

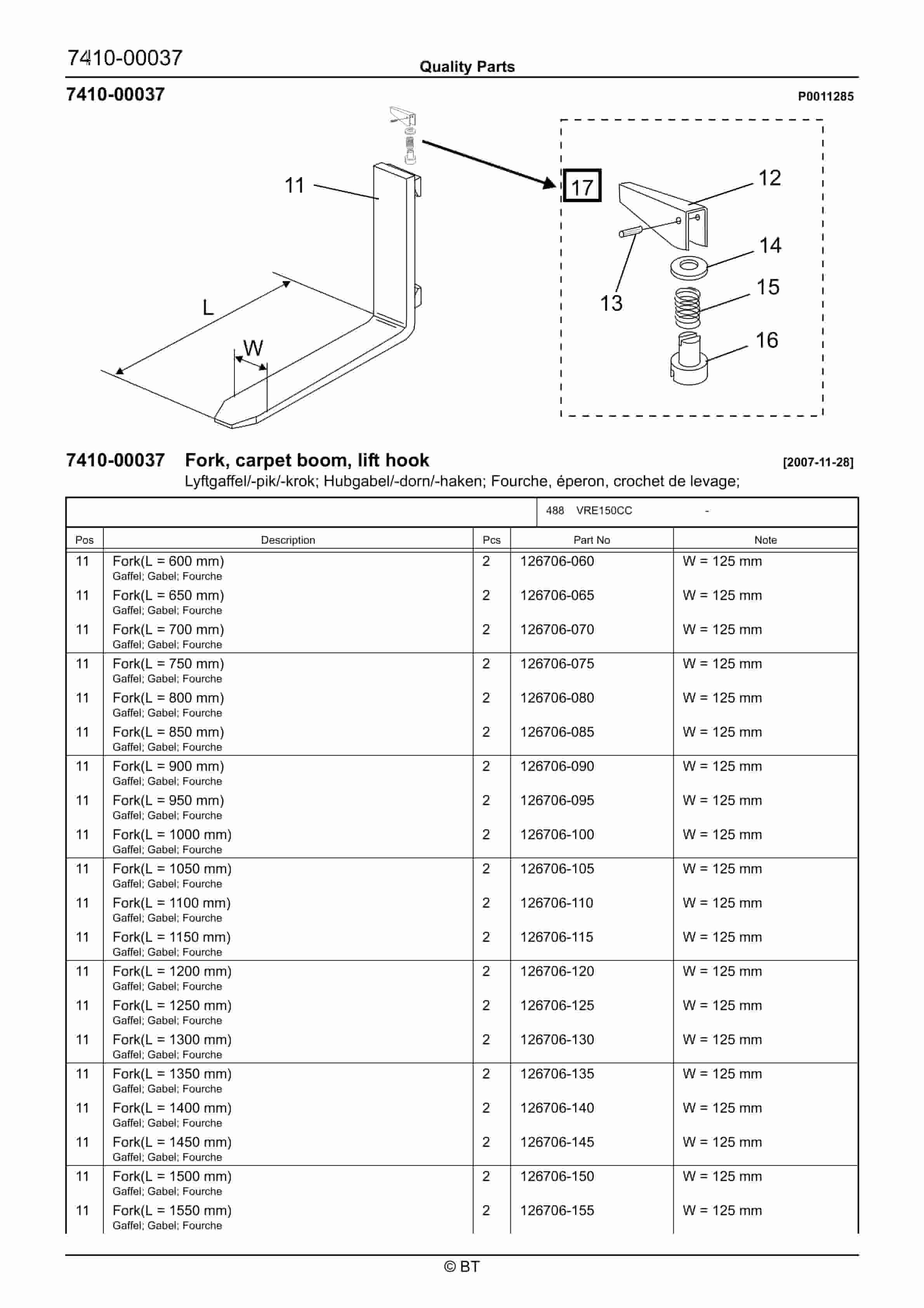

159. Fork, carpet boom, lift hook 2009-10-15
160. P0011285
161. Fork, carpet boom, lift hook 2007-11-28
162. P0012273
163. Fork, carpet boom, lift hook 2007-11-28
164. P0012263
165. Turret head/three-way fork unit 2007-11-28
166. P0017050
167. Traversing function fork unit 2008-05-06
168. P0035611
169. Swivel/rotation function 2009-11-17
170. P0035612
171. Swivel/rotation function 2009-11-17
172. P0035613
173. Swivel/rotation function 2009-11-17
174. P0031353
175. Extra electrical equipment 2009-11-24
176. P0014721
177. Extra warning lights/alarm 2009-11-24
178. P0011102
179. Charger attachment 2009-11-24
180. P0011315
181. Extra electrical equipment 2009-11-24
182. P0022833
183. Extra electrical equipment 2009-11-24
184. P0023037
185. Truck log device, code locking device 2009-11-24
186. P0035066
187. Truck log device, code locking device 2009-12-15
188. P0036025
189. Truck log device, code locking device 2010-01-12
190. P0017246
191. Other extra equipment 2007-11-28
192. P0019916
193. Other extra equipment 2007-11-28
194. P0027008
195. Other extra equipment 2007-11-28
196. P0029625
197. Other extra equipment 2009-11-24
