Caterpillar DP20 Parts Manual 98725-24940

Caterpillar DP20 Parts Manual 98725-24940 - Image 2

Caterpillar DP20 Parts Manual 98725-24940 - Image 3

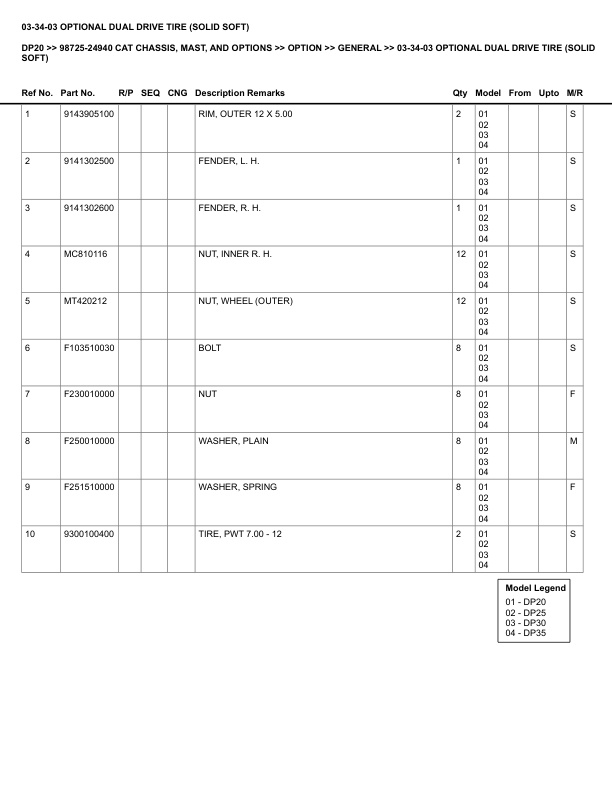

Caterpillar DP20 Parts Manual 98725-24940 - Image 4

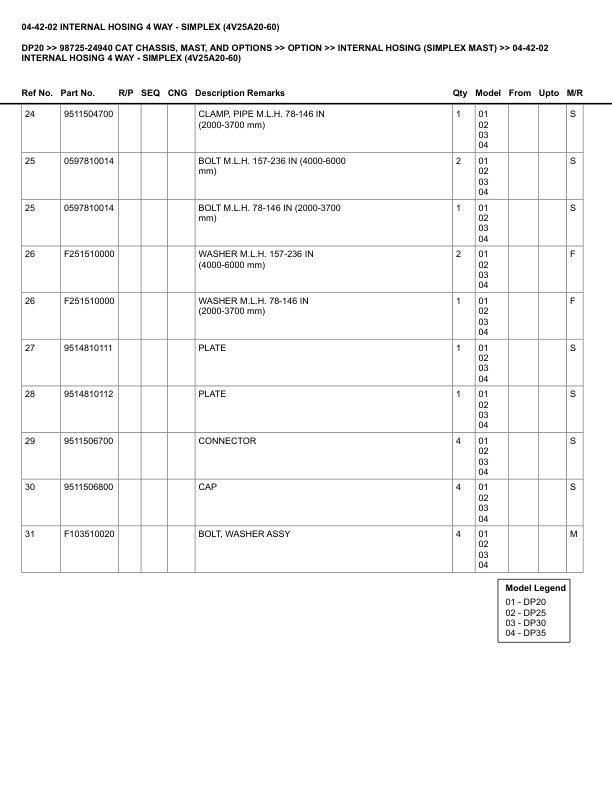

Caterpillar DP20 Parts Manual 98725-24940 - Image 5

caterpillar dp20 parts manual 98725 24940 2

caterpillar dp20 parts manual 98725 24940 3

Caterpillar DP20 Parts Manual 98725-24940

$50.00

Type Of Manual: Parts Manual
Book Number: 98725-24940
Information: CAT CHASSIS, MAST, AND OPTIONS
Number of Pages: 797
Size: 307.5MB
Format: PDF

Category: Caterpillar Part Manual PDF

Model List:
- DP20

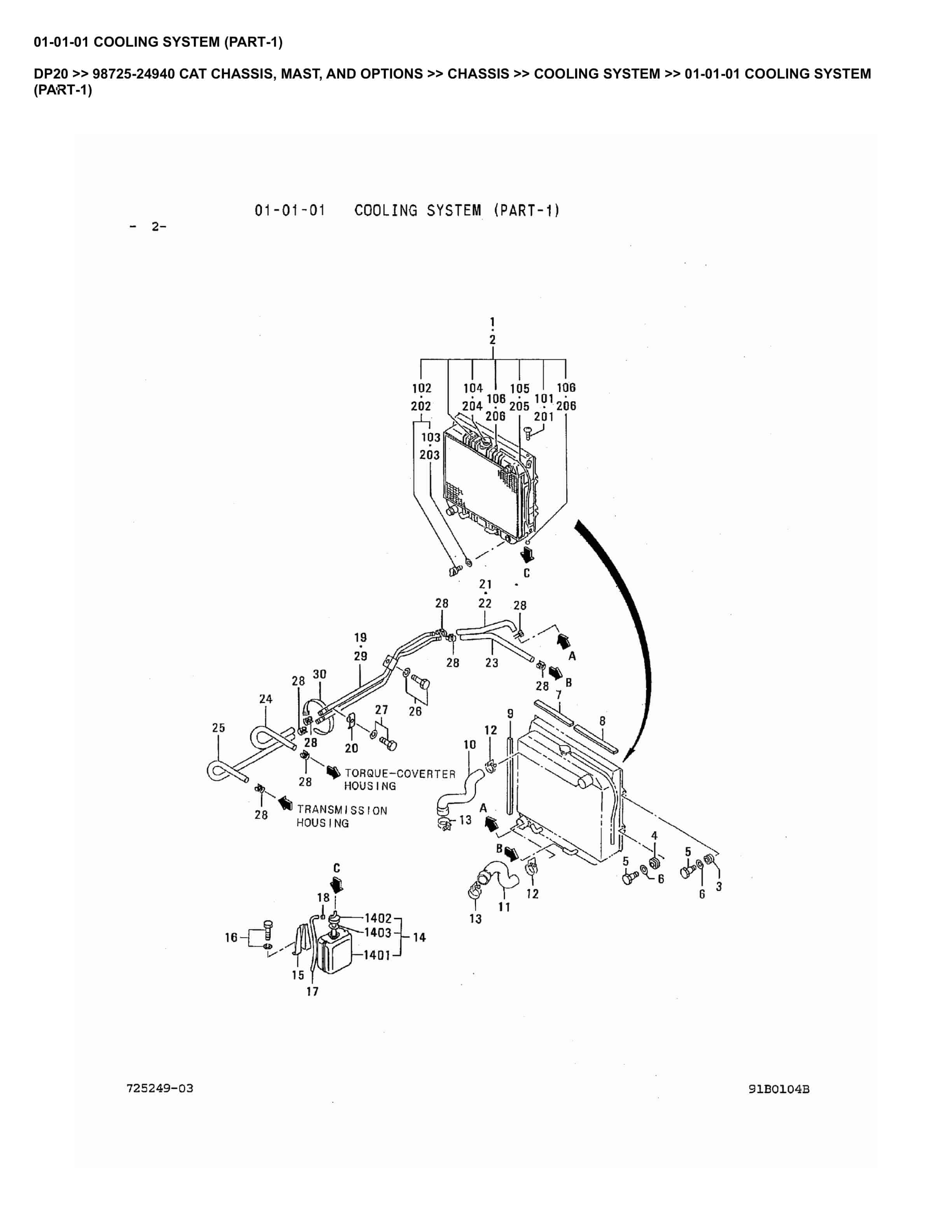

1. _01-01-01 COOLING SYSTEM (PART-1) Spare Parts Catalog.pdf
2. _01-01-02 COOLING SYSTEM (PART-2) Spare Parts Catalog.pdf
3. _01-04-01 ELECTRIC EQUIPMENT Spare Parts Catalog.pdf
4. _01-04-02 CONSOLE BOX (PART-1) (UP TO 1996-07) Spare Parts Catalog.pdf
5. _01-04-03 CONSOLE BOX (PART-2) (UP TO 1996-07) Spare Parts Catalog.pdf
6. _01-04-04 ELECTRIC WIRING Spare Parts Catalog.pdf
7. _01-04-05 CONSOLE BOX (PART-1) (FROM 1996-08) Spare Parts Catalog.pdf
8. _01-04-06 CONSOLE BOX (PART-2) (FROM 1996-08) Spare Parts Catalog.pdf
9. _01-11-01 FRAME Spare Parts Catalog.pdf
10. _01-11-02 BODY (PART-1) Spare Parts Catalog.pdf
11. _01-11-03 BODY (PART-2) Spare Parts Catalog.pdf
12. _01-11-04 SEAT (UP TO 1993-08) Spare Parts Catalog.pdf
13. _01-11-05 SEAT (FROM 1993-09) Spare Parts Catalog.pdf
14. _01-15-01 HEAD GUARD Spare Parts Catalog.pdf
15. _01-23-01 TORQUE-CONVERTER ASSEMBLY Spare Parts Catalog.pdf
16. _01-24-01 TRANSMISSION (PART-1) Spare Parts Catalog.pdf
17. _01-24-02 TRANSMISSION (PART-2) Spare Parts Catalog.pdf
18. _01-24-03 TRANSMISSION (PART-3) Spare Parts Catalog.pdf
19. _01-28-01 CONTROL VALVE Spare Parts Catalog.pdf
20. _01-31-01 REDUCTION AND DIFFERENTIAL Spare Parts Catalog.pdf
21. _01-33-01 FRONT AXLE Spare Parts Catalog.pdf
22. _01-43-01 REAR AXLE (PART-1) Spare Parts Catalog.pdf
23. _01-43-02 REAR AXLE (PART-2) Spare Parts Catalog.pdf
24. _01-46-01 WHEEL BRAKE PIPING Spare Parts Catalog.pdf
25. _01-46-02 WHEEL BRAKE ASSEMBLY (LEFT-HAND) (UP TO 1994-04) (FOR DP20_25_30_35) Spare Parts Catalog.pdf
26. _01-46-03 WHEEL BRAKE ASSEMBLY (RIGHT-HAND) (UP TO 1994-04) (FOR DP20_25_30_35) Spare Parts Catalog.pdf
27. _01-46-04 WHEEL BRAKE ASSEMBLY (LEFT-HAND) (FROM 1994-05) (FOR DP20 AND DP25) Spare Parts Catalog.pdf
28. _01-46-05 WHEEL BRAKE ASSEMBLY (RIGHT-HAND) (FROM 1994-05) (FOR DP20 AND DP25) Spare Parts Catalog.pdf
29. _01-46-06 WHEEL BRAKE ASSEMBLY (LEFT-HAND) (FROM 1996-01) (FOR DP30 AND DP35) Spare Parts Catalog.pdf
30. _01-46-07 WHEEL BRAKE ASSEMBLY (RIGHT-HAND) (FROM 1996-01) (FOR DP30 AND DP35) Spare Parts Catalog.pdf
31. _01-51-01 PEDAL ASSEMBLY Spare Parts Catalog.pdf
32. _01-51-02 HAND BRAKE Spare Parts Catalog.pdf
33. _01-51-03 ACCEL PEDAL Spare Parts Catalog.pdf
34. _01-51-04 DRIVING CONTROL Spare Parts Catalog.pdf
35. _01-54-01 STEERING LINK (PART-1) Spare Parts Catalog.pdf
36. _01-54-02 STEERING LINK (PART-2) Spare Parts Catalog.pdf
37. _01-54-03 STEERING GEAR Spare Parts Catalog.pdf
38. _01-54-04 STEERING WHEEL Spare Parts Catalog.pdf
39. _01-61-01 AIR INTAKE SYSTEM Spare Parts Catalog.pdf
40. _01-62-01 EXHAUST SYSTEM Spare Parts Catalog.pdf
41. _01-64-01 FUEL SYSTEM Spare Parts Catalog.pdf
42. _01-71-01 PUMP AND JOINT Spare Parts Catalog.pdf
43. _01-72-01 HYDRAULIC CONTROL Spare Parts Catalog.pdf
44. _01-72-02 CONTROL VALVE (3 VALVES) (UP TO 1997-06) (FOR DP20, DP25, AND DP30) Spare Parts Catalog.pdf
45. _01-72-03 CONTROL VALVE (3 VALVES) (UP TO 1994-09) (FOR DP35 ONLY) Spare Parts Catalog.pdf
46. _01-72-04 CONTROL VALVE (3 VALVES) (FROM 1997-07) (FOR DP20, DP25, AND DP30) Spare Parts Catalog.pdf
47. _01-72-05 CONTROL VALVE (3 VALVES) (FROM 1994-10) (FOR DP35 ONLY) Spare Parts Catalog.pdf
48. _01-75-01 HYDRAULIC LINE (PART-1) Spare Parts Catalog.pdf
49. _01-75-02 HYDRAULIC LINE (PART-2) Spare Parts Catalog.pdf
50. _01-75-03 HYDRAULIC LINE (PART-3) Spare Parts Catalog.pdf
51. _01-81-01 NAMEPLATE Spare Parts Catalog.pdf
52. _02-00-01 BACKREST Spare Parts Catalog.pdf
53. _02-01-01 LIFT BRACKET (FOR DP20 AND DP25) Spare Parts Catalog.pdf
54. _02-01-02 LIFT BRACKET COMMON PARTS (FOR DP30 AND DP35) Spare Parts Catalog.pdf
55. _02-01-03 LIFT BRACKET (FOR DP30 AND DP35) Spare Parts Catalog.pdf
56. _02-04-01 TILT CYLINDER (FOR DP20 AND DP25) Spare Parts Catalog.pdf
57. _02-04-02 TILT CYLINDER (FOR DP30 AND DP35) Spare Parts Catalog.pdf
58. _02-06-01 FORK (FOR DP20 AND DP25) Spare Parts Catalog.pdf
59. _02-06-02 FORK (FOR DP30 AND DP35) Spare Parts Catalog.pdf
60. _02-10-01 MAST COMMON PARTS (FOR 4V25A20-60) Spare Parts Catalog.pdf
61. _02-10-02 MAST COMMON PARTS (PART-1) (UP TO 1995-12) (FOR 4M25A37-70) Spare Parts Catalog.pdf
62. _02-10-03 MAST COMMON PARTS (PART-2) (UP TO 1995-12) (FOR 4M25A37-70) Spare Parts Catalog.pdf
63. _02-10-04 MAST COMMON PARTS (PART-3) (UP TO 1995-12) (FOR 4M25A37-70) Spare Parts Catalog.pdf
64. _02-10-05 MAST COMMON PARTS (PART-1) (FOR 4F25A27-40) Spare Parts Catalog.pdf
65. _02-10-06 MAST COMMON PARTS (PART-2) (FOR 4F25A27-40) Spare Parts Catalog.pdf
66. _02-10-07 MAST COMMON PARTS (FOR 4V30A AND 4V35A) Spare Parts Catalog.pdf
67. _02-10-08 MAST COMMON PARTS (PART-1) (UP TO 1995-12) (FOR 4M30A AND 4M35A) Spare Parts Catalog.pdf
68. _02-10-09 MAST COMMON PARTS (PART-2) (UP TO 1995-12) (FOR 4M30A AND 4M35A) Spare Parts Catalog.pdf
69. _02-10-10 MAST COMMON PARTS (PART-3) (UP TO 1995-12) (FOR 4M30A AND 4M35A) Spare Parts Catalog.pdf
70. _02-10-11 MAST COMMON PARTS (PART-1) (FOR 4F30A AND 4F35A) Spare Parts Catalog.pdf
71. _02-10-12 MAST COMMON PARTS (PART-2) (FOR 4F30A AND 4F35A) Spare Parts Catalog.pdf
72. _02-10-13 MAST COMMON PARTS (PART-1) (FROM 1996-01) (FOR 4M25B_30B_35B) Spare Parts Catalog.pdf
73. _02-10-14 MAST COMMON PARTS (PART-2) (FROM 1996-01) (FOR 4M25B_30B_35B) Spare Parts Catalog.pdf
74. _02-10-15 MAST COMMON PARTS (PART-3) (FROM 1996-01) (FOR 4M25B_30B_35B) Spare Parts Catalog.pdf
75. _02-10-16 MAST COMMON PARTS (PART-4) (FROM 1996-01) (FOR 4M25B_30B_35B) Spare Parts Catalog.pdf
76. _02-18-01 DUPLEX MAST MODEL 4F25A27-40 Spare Parts Catalog.pdf
77. _02-18-02 LIFT CYLINDER (1ST) (FOR 4F25A27-40) Spare Parts Catalog.pdf
78. _02-18-03 LIFT CYLINDER (2ND) (FOR 4F25A27-40) Spare Parts Catalog.pdf

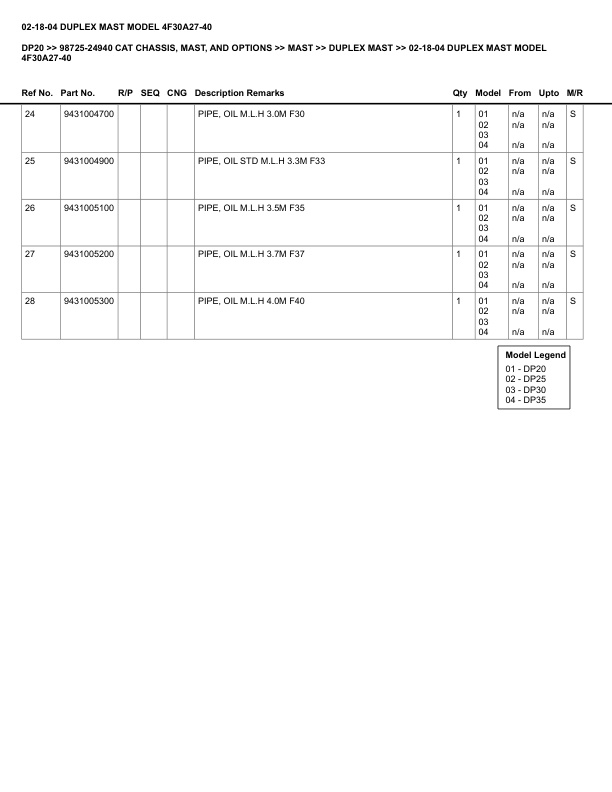

79. _02-18-04 DUPLEX MAST MODEL 4F30A27-40 Spare Parts Catalog.pdf
80. _02-18-05 LIFT CYLINDER (1ST) (FOR 4F30A27-40) Spare Parts Catalog.pdf
81. _02-18-06 LIFT CYLINDER (2ND) (FOR 4F30A27-40) Spare Parts Catalog.pdf
82. _02-18-07 DUPLEX MAST MODEL 4F35A27-40 Spare Parts Catalog.pdf
83. _02-18-08 LIFT CYLINDER (1ST) (FOR 4F35A27-40) Spare Parts Catalog.pdf
84. _02-18-09 LIFT CYLINDER (2ND) (FOR 4F35A27-40) Spare Parts Catalog.pdf
85. _02-20-01 TRIPLEX MAST (UP TO 1995-12) MODEL 4M25A37-70 Spare Parts Catalog.pdf
86. _02-20-02 LIFT CYLINDER (1ST) (UP TO 1995-12) (FOR 4M25A37-70) Spare Parts Catalog.pdf
87. _02-20-03 LIFT CYLINDER (2ND) (UP TO 1995-12) (FOR 4M25A37-70) Spare Parts Catalog.pdf
88. _02-20-04 TRIPLEX MAST (UP TO 1995-12) MODEL 4M30A37-70 Spare Parts Catalog.pdf
89. _02-20-05 LIFT CYLINDER (1ST) (UP TO 1995-12) (FOR 4M30A37-70) Spare Parts Catalog.pdf
90. _02-20-06 LIFT CYLINDER (2ND) (UP TO 1995-12) (FOR 4M30A37-70) Spare Parts Catalog.pdf
91. _02-20-07 TRIPLEX MAST (UP TO 1995-12) MODEL 4M35A37-70 Spare Parts Catalog.pdf
92. _02-20-08 LIFT CYLINDER (1ST) (UP TO 1995-12) (FOR 4M35A37-70) Spare Parts Catalog.pdf
93. _02-20-09 LIFT CYLINDER (2ND) (UP TO 1995-12) (FOR 4M35A37-70) Spare Parts Catalog.pdf
94. _02-20-10 TRIPLEX MAST (FROM 1996-01) MODEL 4M25B37-70 Spare Parts Catalog.pdf
95. _02-20-11 LIFT CYLINDER (1ST) (FROM 1996-01) (FOR 4M25B37-70) Spare Parts Catalog.pdf
96. _02-20-12 LIFT CYLINDER (2ND) (FROM 1996-01) (FOR 4M25B37-70) Spare Parts Catalog.pdf
97. _02-20-13 TRIPLEX MAST (FROM 1996-01) MODEL 4M30B37-70 Spare Parts Catalog.pdf
98. _02-20-14 LIFT CYLINDER (1ST) (FROM 1996-01) (FOR 4M30B37-70) Spare Parts Catalog.pdf
99. _02-20-15 LIFT CYLINDER (2ND) (FROM 1996-01) (FOR 4M30B37-70) Spare Parts Catalog.pdf
100. _02-20-16 TRIPLEX MAST (FROM 1996-01) MODEL 4M35B37-70 Spare Parts Catalog.pdf
101. _02-20-17 LIFT CYLINDER (1ST) (FROM 1996-01) (FOR 4M35B37-70) Spare Parts Catalog.pdf
102. _02-20-18 LIFT CYLINDER (2ND) (FROM 1996-01) (FOR 4M35B37-70) Spare Parts Catalog.pdf
103. _02-60-01 SIMPLEX MAST MODEL 4V25A20-60 Spare Parts Catalog.pdf
104. _02-60-02 LIFT CYLINDER (FOR 4V25A20-60) Spare Parts Catalog.pdf
105. _02-60-03 SIMPLEX MAST MODEL 4V30A20-60 Spare Parts Catalog.pdf
106. _02-60-04 LIFT CYLINDER (FOR 4V30A20-60) Spare Parts Catalog.pdf
107. _02-60-05 SIMPLEX MAST MODEL 4V35A20-60 Spare Parts Catalog.pdf
108. _02-60-06 LIFT CYLINDER (FOR 4V35A20-60) Spare Parts Catalog.pdf
109. _03-02-01 RADIATOR KIT PLATE FIN TYPE Spare Parts Catalog.pdf
110. _03-02-02 DUST-PROOF RADIATOR KIT Spare Parts Catalog.pdf
111. _03-02-03 RAD. FLUID PILOT KIT Spare Parts Catalog.pdf
112. _03-02-04 HIGH SPEED FAN, 1.2 RATIO Spare Parts Catalog.pdf
113. _03-05-01 RADIATOR KIT FLUID WARNING LIGHT Spare Parts Catalog.pdf
114. _03-05-02 DUST INDICATOR KIT WARNING LIGHT Spare Parts Catalog.pdf
115. _03-05-03 FRONT TURN SIGNAL KIT Spare Parts Catalog.pdf
116. _03-05-04 REAR WORKING LIGHT KIT Spare Parts Catalog.pdf
117. _03-05-05 WARNING LAMP KIT Spare Parts Catalog.pdf
118. _03-05-06 AMBER STROBE LIGHT KIT Spare Parts Catalog.pdf
119. _03-05-07 BACK-UP BUZZER KIT Spare Parts Catalog.pdf
120. _03-05-08 ALTERNATOR KIT Spare Parts Catalog.pdf
121. _03-11-01 LIFTING EYE KIT Spare Parts Catalog.pdf
122. _03-11-02 HOOK KIT Spare Parts Catalog.pdf
