Caterpillar DP40K Parts Manual 98733-05040

$50.00

Type Of Manual: Parts Manual
Book Number: 98733-05040
Information: CAT CHASSIS, MAST, OPTIONS – INTERNAL HOSING
Number of Pages: 1126
Size: 73.8MB
Format: PDF

Category: Caterpillar Part Manual PDF

Model List:
- DP40K

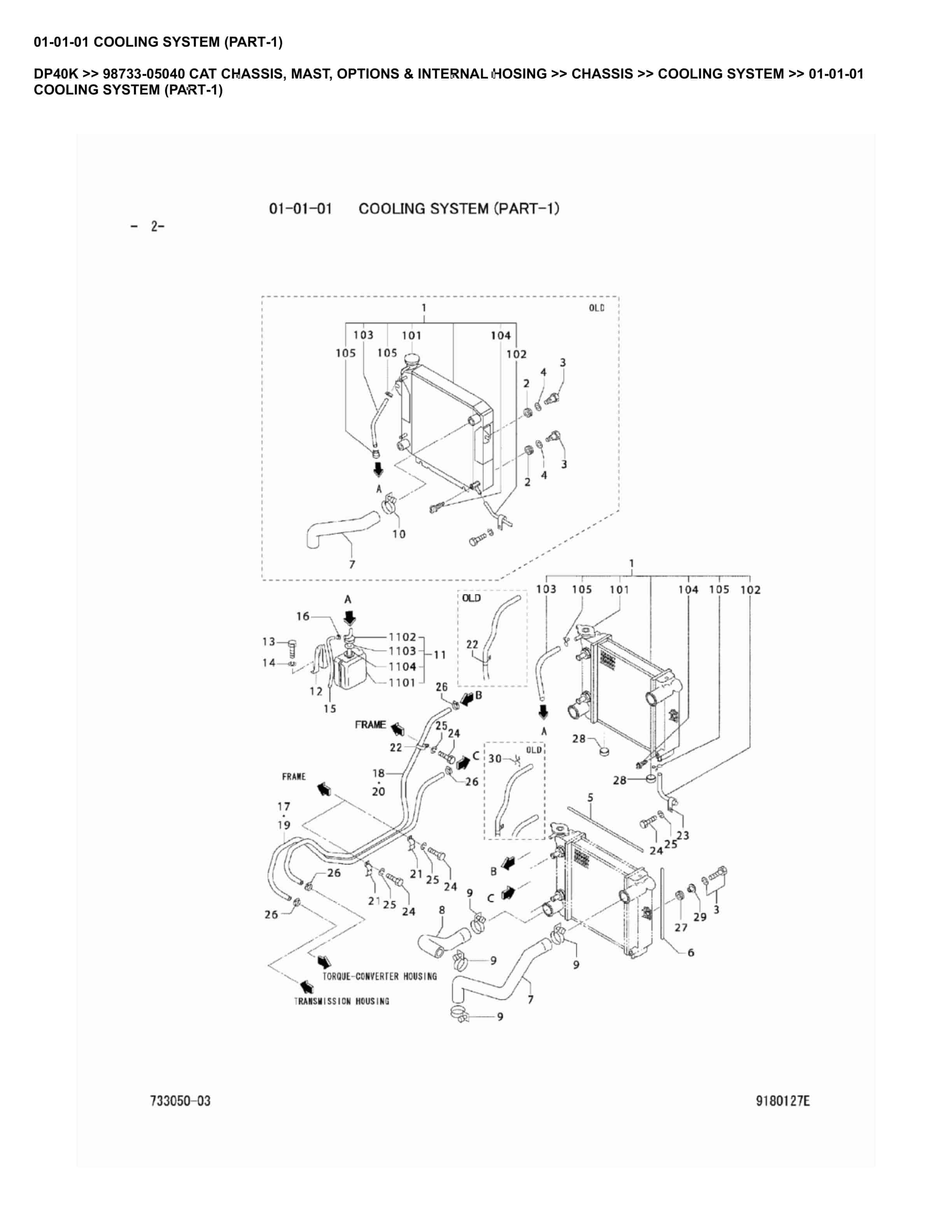

1. _01-01-01 COOLING SYSTEM (PART-1) Spare Parts Catalog.pdf
2. _01-01-02 COOLING SYSTEM (PART-2) Spare Parts Catalog.pdf
3. _01-04-01 ELECTRIC WIRING Spare Parts Catalog.pdf
4. _01-04-02 BATTERY SWITCH (OLD TYPE) Spare Parts Catalog.pdf
5. _01-04-03 CONSOLE BOX (PART 1) (FOR FC MODEL) Spare Parts Catalog.pdf
6. _01-04-04 CONSOLE BOX (PART 2) (FOR FC MODEL) Spare Parts Catalog.pdf
7. _01-04-05 CONSOLE BOX (PART 1) (FOR MC MODEL) Spare Parts Catalog.pdf
8. _01-04-06 CONSOLE BOX (PART 2) (FOR MC MODEL) Spare Parts Catalog.pdf
9. _01-04-07 ELECTRIC EQUIPMENT PART 1 Spare Parts Catalog.pdf
10. _01-04-08 ELECTRIC EQUIPMENT (PART 2) Spare Parts Catalog.pdf
11. _01-04-09 ADJUSTER ASSY (FOR FC MODEL) Spare Parts Catalog.pdf
12. _01-04-10 LEVEL (FOR FC MODEL) Spare Parts Catalog.pdf
13. _01-11-01 FRAME Spare Parts Catalog.pdf
14. _01-11-02 BODY (PART-1) Spare Parts Catalog.pdf
15. _01-11-03 BODY (PART-2) Spare Parts Catalog.pdf
16. _01-12-01 COUNTER WEIGHT Spare Parts Catalog.pdf
17. _01-14-01A SEAT (FOR FC MODEL) (OLD TYPE) (2002-07) Spare Parts Catalog.pdf
18. _01-14-01B SEAT (FOR FC MODEL) (NEW TYPE) (2002-08 2008-01) Spare Parts Catalog.pdf
19. _01-14-01C SEAT (FOR FC MODEL) (NEW TYPE) (2008-02) Spare Parts Catalog.pdf
20. _01-14-02A SEAT (FOR MC MODEL) (OLD TYPE) Spare Parts Catalog.pdf
21. _01-14-02B SEAT (FOR MC MODEL) (NEW TYPE) Spare Parts Catalog.pdf
22. _01-15-01 HEAD GUARD Spare Parts Catalog.pdf
23. _01-23-01 TORQUE CONVERTER ASSY Spare Parts Catalog.pdf
24. _01-24-01 TRANSMISSION (PART 1) (FOR 1-SPEED) Spare Parts Catalog.pdf
25. _01-24-02 TRANSMISSION (PART 2) (FOR 1-SPEED) Spare Parts Catalog.pdf
26. _01-24-03 TRANSMISSION (PART 3 (FOR 1-SPEED) Spare Parts Catalog.pdf
27. _01-24-04 TRANSMISSION (PART 1) (FOR 2-SPEED) Spare Parts Catalog.pdf
28. _01-24-05 TRANSMISSION (PART 2) (FOR 2-SPEED) Spare Parts Catalog.pdf
29. _01-24-06 TRANSMISSION (PART 3) (FOR 2-SPEED) Spare Parts Catalog.pdf
30. _01-24-07 TRANSMISSION (PART-4) (FOR 2-SPEED) Spare Parts Catalog.pdf
31. _01-28-01 CONTROL VALVE (PART 1) (FOR 1-SPEED) Spare Parts Catalog.pdf
32. _01-28-02 CONTROL VALVE (PART 2) (FOR 1-SPEED) Spare Parts Catalog.pdf
33. _01-28-03 CONTROL VALVE (PART 1) (FOR 2-SPEED) Spare Parts Catalog.pdf
34. _01-28-04 CONTROL VALVE (PART 2) (FOR 2-SPEED) Spare Parts Catalog.pdf
35. _01-28-05 SELECTOR VALVE (FOR 2-SPEED) Spare Parts Catalog.pdf
36. _01-31-01 REDUCTION DIFFERENTIAL Spare Parts Catalog.pdf
37. _01-33-01 FRONT AXLE Spare Parts Catalog.pdf
38. _01-43-01 REAR AXLE (PART-1) Spare Parts Catalog.pdf
39. _01-43-02 REAR AXLE (PART-2) Spare Parts Catalog.pdf
40. _01-43-03 STEERING CYLINDER Spare Parts Catalog.pdf
41. _01-46-01 WHEEL BRAKE ASSY (L.H.) (FOR DP40K,DP40KL) Spare Parts Catalog.pdf
42. _01-46-02 WHEEL BRAKE ASSY (R.H.) (FOR DP40K,DP40KL) Spare Parts Catalog.pdf
43. _01-46-03 WHEEL BRAKE ASSY (L.H.) (FOR DP45K,DP50K) Spare Parts Catalog.pdf
44. _01-46-04 WHEEL BRAKE ASSY (R.H.) (FOR DP45K,DP50K) Spare Parts Catalog.pdf
45. _01-47-01 WHEEL BRAKE PIPING Spare Parts Catalog.pdf
46. _01-51-01 PEDAL ASSY (FOR DP40K,DP40KL) Spare Parts Catalog.pdf
47. _01-51-02 MASTER CYLINDER (FOR DP40K,DP40KL) Spare Parts Catalog.pdf
48. _01-51-03 PEDAL ASSY (FOR DP45K,DP50K) Spare Parts Catalog.pdf
49. _01-51-04 MASTER CYLINDER (FOR DP45K,DP50K) Spare Parts Catalog.pdf
50. _01-51-05 HAND BRAKE Spare Parts Catalog.pdf
51. _01-51-06 ACCEL PEDAL Spare Parts Catalog.pdf
52. _01-51-07 DRIVING CONTROL (PART 1) Spare Parts Catalog.pdf
53. _01-51-08 DRIVING CONTROLS (PART 2) Spare Parts Catalog.pdf
54. _01-54-01 TILT STEERING Spare Parts Catalog.pdf
55. _01-54-02 TILT STEERING ASSY Spare Parts Catalog.pdf
56. _01-54-01A STEERING VALVE (OLD TYPE) Spare Parts Catalog.pdf
57. _01-54-01B STEERING VALVE (NEW TYPE) Spare Parts Catalog.pdf
58. _01-54-03 STEERING WHEEL Spare Parts Catalog.pdf
59. _01-61-01 AIR INTAKE SYSTEM Spare Parts Catalog.pdf
60. _01-62-01 EXHAUST SYSTEM Spare Parts Catalog.pdf
61. _01-64-01A FUEL SYSTEM (OLD TYPE) Spare Parts Catalog.pdf
62. _01-64-01B FUEL SYSTEM (NEW TYPE) Spare Parts Catalog.pdf
63. _01-71-01 PUMP JOINT Spare Parts Catalog.pdf
64. _01-72-01 CONTROL VALVE (3 VALVES)PART-1 (FOR FC MODEL) Spare Parts Catalog.pdf
65. _01-72-02 CONTROL VALVE (3 VALVES)PART-2 (FOR FC MODEL) Spare Parts Catalog.pdf
66. _01-72-03 CONTROL VALVE (3 VALVES)PART-3 (FOR FC MODEL) Spare Parts Catalog.pdf
67. _01-72-04 CONTROL VALVE (4 VALVES) (FOR FC MODEL) Spare Parts Catalog.pdf
68. _01-72-06 CONTROL VALVE (3 VALVES)PART-1 (FOR MC MODEL) Spare Parts Catalog.pdf
69. _01-72-07 CONTROL VALVE (3 VALVES)PART-2 (FOR MC MODEL) Spare Parts Catalog.pdf
70. _01-72-08 CONTROL VALVE (4 VALVES)PART-1 (FOR MC MODEL) Spare Parts Catalog.pdf
71. _01-72-09 CONTROL VALVE (4 VALVES)PART-2 (FOR MC MODEL) Spare Parts Catalog.pdf
72. _01-75-01 HYDRAULIC LINE (PART-1) Spare Parts Catalog.pdf
73. _01-75-02 HYDRAULIC LINE (PART-2) Spare Parts Catalog.pdf
74. _01-75-03 FLOW REGULATOR VALVE (FOR DP40K, DP40KL) Spare Parts Catalog.pdf
75. _01-75-04 FLOW REGULATOR VALVE (FOR DP45K, DP50K) Spare Parts Catalog.pdf
76. _01-81-01 NAME-PLATE Spare Parts Catalog.pdf
77. _02-01-01 LIFT BRACKET COMMON PARTS Spare Parts Catalog.pdf
78. _02-01-02 LIFT BRACKET (FOR 4V40A, 4M40A, 4F40A) Spare Parts Catalog.pdf
79. _02-01-03 LIFT BRACKET (FOR 4V45A, 4M45A, 4F45A) Spare Parts Catalog.pdf
80. _02-01-04 LIFT BRACKET (FOR 4V50A, 4M50A, 4F50A) Spare Parts Catalog.pdf
81. _02-01-05 BACKREST Spare Parts Catalog.pdf
82. _02-04-01A TILT CYLINDER (L.H.)(OLD TYPE)(FOR DP40K, DP40KL) Spare Parts Catalog.pdf
83. _02-04-01B TILT CYLINDER (L.H.)(NEW TYPE) (FOR DP40K, DP40KL) Spare Parts Catalog.pdf
84. _02-04-02A TILT CYLINDER (R.H.)(OLD TYPE) (FOR DP40K,DP40KL) Spare Parts Catalog.pdf
85. _02-04-02B TILT CYLINDER (R.H.)(NEW TYPE)(FOR DP40K,DP40KL) Spare Parts Catalog.pdf
86. _02-04-03A TILT CYLINDER (L.H.)(OLD TYPE)(FOR DP45K,DP50K) Spare Parts Catalog.pdf
87. _02-04-03B TILT CYLINDER (L.H.)(NEW TYPE)(FOR DP45K,DP50K) Spare Parts Catalog.pdf
88. _02-04-04A TILT CYLINDER (R.H.)(OLD TYPE)(FOR DP45K,DP50K) Spare Parts Catalog.pdf
89. _02-04-04B TILT CYLINDER (R.H.)(NEW TYPE)(FOR DP45K,DP50K) Spare Parts Catalog.pdf
90. _02-06-01A FORK(OLD TYPE)(FOR DP40K, DP40KL,DP45K) Spare Parts Catalog.pdf
91. _02-06-01B FORK(NEW TYPE)(FOR DP40K, DP40KL,DP45K) Spare Parts Catalog.pdf
92. _02-06-02A FORK(OLD TYPE)(FOR DP50K) Spare Parts Catalog.pdf
93. _02-06-02B FORK(NEW TYPE)(FOR DP50K) Spare Parts Catalog.pdf
94. _02-10-01 MAST COMMON PARTS (PART-1) (FOR SIMPLEX MAST) Spare Parts Catalog.pdf
95. _02-10-02 MAST COMMON PARTS (PART-2) (FOR SIMPLEX MAST) Spare Parts Catalog.pdf
96. _02-10-03 MAST COMMON PARTS (PART-1) (FOR TRIPLEX MAST) Spare Parts Catalog.pdf
97. _02-10-04 MAST COMMON PARTS (PART-2) (FOR TRIPLEX MAST) Spare Parts Catalog.pdf
98. _02-10-05 MAST COMMON PARTS (PART-3) (FOR TRIPLEX MAST) Spare Parts Catalog.pdf
99. _02-10-06 MAST COMMON PARTS (PART-4) (FOR TRIPLEX MAST) Spare Parts Catalog.pdf
100. _02-10-07 MAST COMMON PARTS (PART-1) (FOR DUPLEX MAST) Spare Parts Catalog.pdf
101. _02-10-08 MAST COMMON PARTS (PART-2) (FOR DUPLEX MAST) Spare Parts Catalog.pdf
102. _02-10-09 MAST COMMON PARTS (PART-3) (FOR DUPLEX MAST) Spare Parts Catalog.pdf
103. _02-18-01 DUPLEX MAST MODEL 4F40A29-41 Spare Parts Catalog.pdf
104. _02-18-01A LIFT CYLINDER (1ST) (OLD TYPE) (FOR 4F40A29-41) Spare Parts Catalog.pdf
105. _02-18-01B LIFT CYLINDER (1ST) (NEW TYPE) (FOR 4F40A29-41) Spare Parts Catalog.pdf
106. _02-18-02A LIFT CYLINDER (2ND) (FOR 4F40A29-41) (OLD TYPE) Spare Parts Catalog.pdf
107. _02-18-02B LIFT CYLINDER (2ND) (FOR 4F40A29-41) (NEW TYPE) Spare Parts Catalog.pdf
108. _02-18-02 DUPLEX MAST MODEL 4F45A27-41 Spare Parts Catalog.pdf
109. _02-18-03A LIFT CYLINDER (1ST) (OLD TYPE) (FOR 4F45A27-41) Spare Parts Catalog.pdf
110. _02-18-03B LIFT CYLINDER (1ST) (NEW TYPE) (FOR 4F45A27-41) Spare Parts Catalog.pdf
111. _02-18-04A LIFT CYLINDER (2ND) (FOR 4F45A27-41) Spare Parts Catalog.pdf
112. _02-18-04B LIFT CYLINDER (2ND) (FOR 4F45A27-41) (NEW TYPE) Spare Parts Catalog.pdf
113. _02-18-03 DUPLEX MAST MODEL 4F50A27-41 Spare Parts Catalog.pdf
114. _02-18-05A LIFT CYLINDER (1ST) (OLD TYPE) (FOR 4F50A27-41) Spare Parts Catalog.pdf
115. _02-18-05B LIFT CYLINDER (1ST) (NEW TYPE) (FOR 4F50A27-41) Spare Parts Catalog.pdf
116. _02-18-06A LIFT CYLINDER (2ND) (FOR 4F50A27-41) (OLD TYPE) Spare Parts Catalog.pdf
117. _02-18-06B LIFT CYLINDER (2ND) (FOR 4F50A27-41) (NEW TYPE) Spare Parts Catalog.pdf
118. _02-20-01 TRIPLEX MAST MODEL 4M40A37-70 Spare Parts Catalog.pdf
119. _02-20-01A LIFT CYLINDER (1ST) (OLD TYPE) (FOR 4M40A37-70) Spare Parts Catalog.pdf
120. _02-20-01B LIFT CYLINDER (1ST) (NEW TYPE) (FOR 4M40A37-70) Spare Parts Catalog.pdf

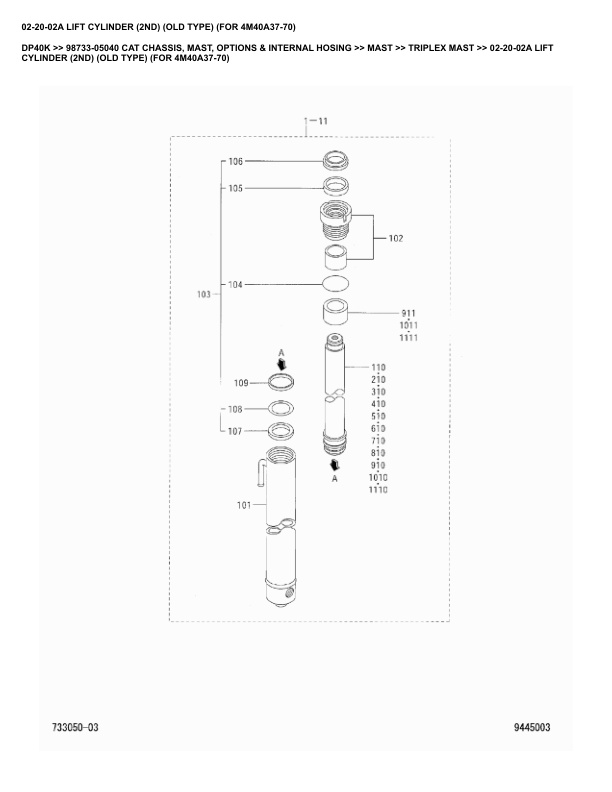

121. _02-20-02A LIFT CYLINDER (2ND) (OLD TYPE) (FOR 4M40A37-70) Spare Parts Catalog.pdf
122. _02-20-02B LIFT CYLINDER (2ND) (OLD TYPE) (FOR 4M40A37-70) (2001-09 2009-02) Spare Parts Catalog.pdf
123. _02-20-01C LIFT CYLINDER (2ND) (NEW TYPE) (FOR 4M40A37-70) (2009-03) Spare Parts Catalog.pdf
