Caterpillar DP50 Parts Manual 98735-71920

Caterpillar DP50 Parts Manual 98735-71920 - Image 2

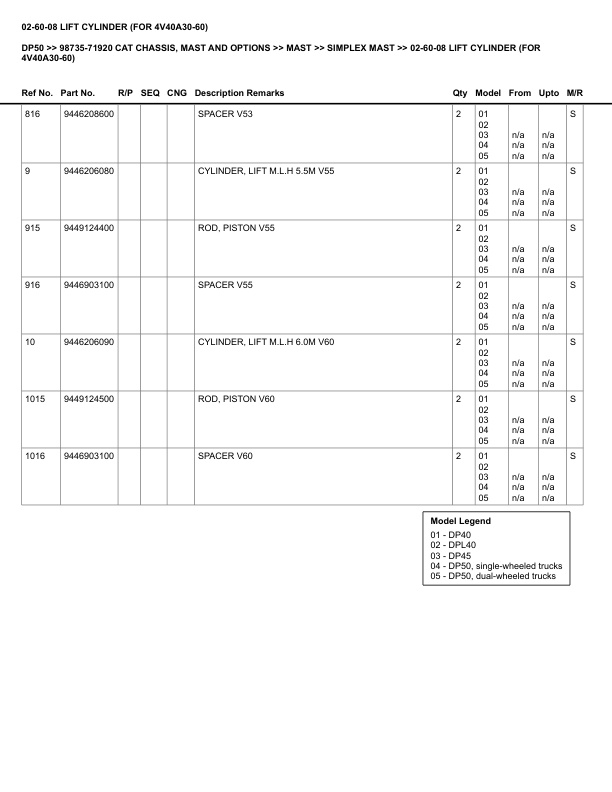

Caterpillar DP50 Parts Manual 98735-71920 - Image 3

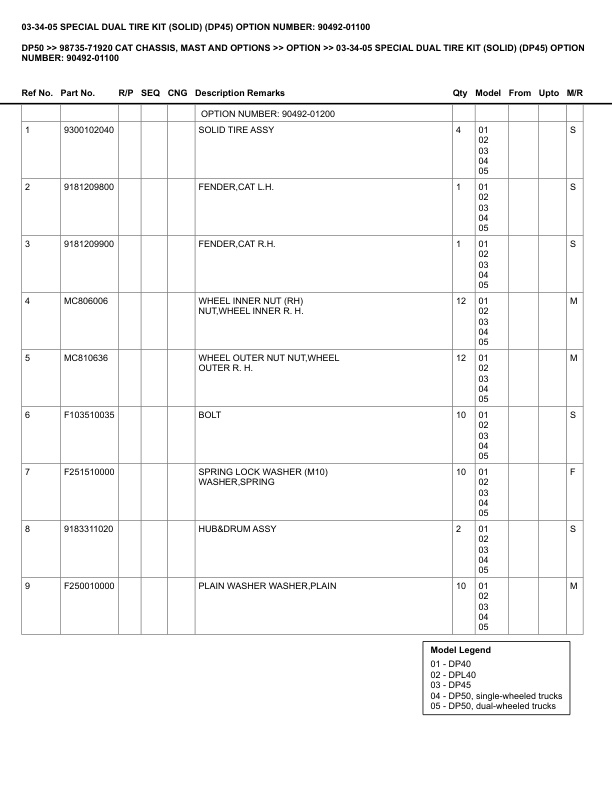

Caterpillar DP50 Parts Manual 98735-71920 - Image 4

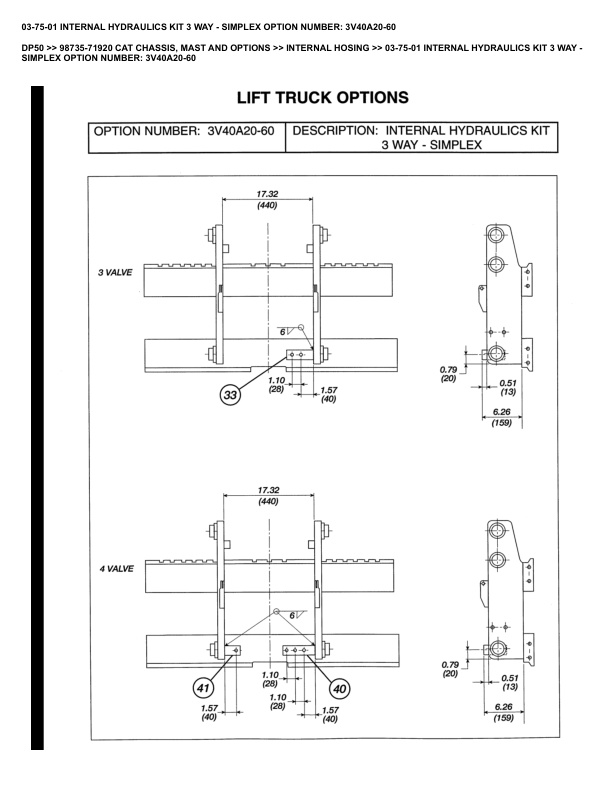

Caterpillar DP50 Parts Manual 98735-71920 - Image 5

caterpillar dp50 parts manual 98735 71920 2

caterpillar dp50 parts manual 98735 71920 3

Caterpillar DP50 Parts Manual 98735-71920

$50.00

Type Of Manual: Parts Manual
Book Number: 98735-71920
Information: CAT CHASSIS, MAST AND OPTIONS
Number of Pages: 878
Size: 108.1MB
Format: PDF

Category: Caterpillar Part Manual PDF

Model List:
- DP50

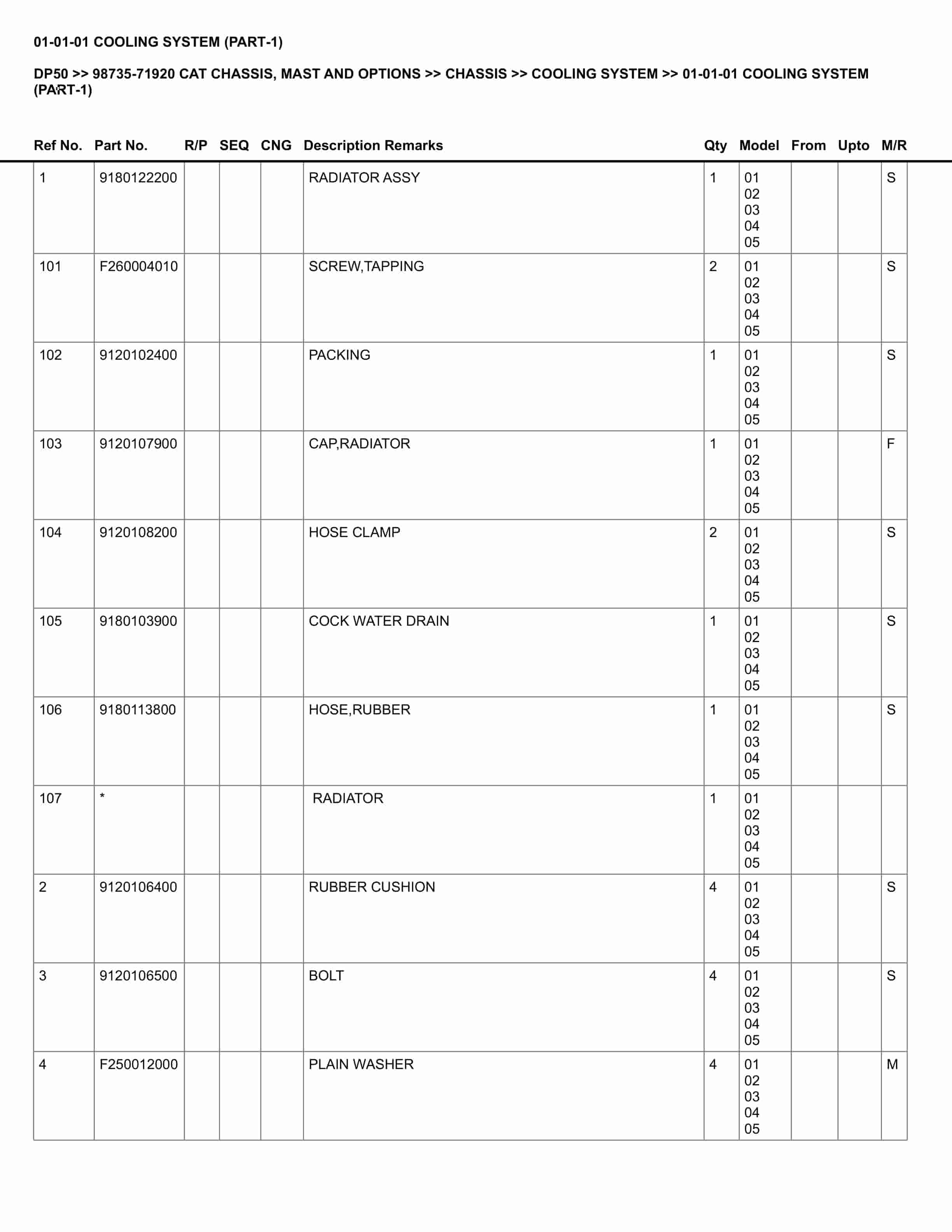

1. _01-01-01 COOLING SYSTEM (PART-1) Spare Parts Catalog.pdf
2. _01-01-02 COOLING SYSTEM (PART-2) Spare Parts Catalog.pdf
3. _01-04-01 ELECTRIC WIRING Spare Parts Catalog.pdf
4. _01-04-02 CONSOLE BOX (PART-1) (OLD) (FOR DP40-DP45) (UPTO 1996-11) Spare Parts Catalog.pdf
5. _01-04-03 CONSOLE BOX (PART-2) (OLD) (FOR DP40-DP45) (UPTO 1996-11) Spare Parts Catalog.pdf
6. _01-04-04 CONSOLE BOX (PART-1) OLD (DP40-DP45 W_2-SPEED T_M) (UPTO 1996-11) Spare Parts Catalog.pdf
7. _01-04-05 CONSOLE BOX (PART-2) OLD (DP40-DP45 W_2-SPEED T_M) (UPTO 1996-11) Spare Parts Catalog.pdf
8. _01-04-06 CONSOLE BOX (PART-1) (OLD) (FOR DP50-1, DP50-2) (UPTO 1996-11) Spare Parts Catalog.pdf
9. _01-04-07 CONSOLE BOX (PART-2) (OLD) (FOR DP50-1, DP50-2) (UPTO 1996-11) Spare Parts Catalog.pdf
10. _01-04-08 ELECTRIC EQUIPMENT Spare Parts Catalog.pdf
11. _01-04-09 CONSOLE BOX (PART-1) (NEW) (FOR DP40-DP45) (FROM 1996-12) Spare Parts Catalog.pdf
12. _01-04-10 CONSOLE BOX (PART-2) (NEW) (FOR DP40-DP45) (FROM 1996-12) Spare Parts Catalog.pdf
13. _01-04-11 CONSOLE BOX (PART-1) NEW (DP40-DP45 W_2-SPEED T_M) (FROM 1996-12) Spare Parts Catalog.pdf
14. _01-04-12 CONSOLE BOX (PART-2) NEW (DP40-DP45 W_2-SPEED T_M) (FROM 1996-12) Spare Parts Catalog.pdf
15. _01-04-13 CONSOLE BOX (PART-1) NEW (FOR DP50-1, DP50-2) (FROM 1996-12) Spare Parts Catalog.pdf
16. _01-04-14 CONSOLE BOX (PART-2) NEW (FOR DP50-1, DP50-2) (FROM 1996-12) Spare Parts Catalog.pdf
17. _01-11-01 FRAME Spare Parts Catalog.pdf
18. _01-11-02 BODY Spare Parts Catalog.pdf
19. _01-14-01 SEAT Spare Parts Catalog.pdf
20. _01-15-01 HEAD GUARD Spare Parts Catalog.pdf
21. _01-23-01 TORQUE-CONVERTER ASSY Spare Parts Catalog.pdf
22. _01-24-01 TRANSMISSION (1-SPEED) (PART-1) (FOR DP40-DP45) Spare Parts Catalog.pdf
23. _01-24-02 TRANSMISSION (1-SPEED) (PART-2) (FOR DP40-DP45) Spare Parts Catalog.pdf
24. _01-24-03 TRANSMISSION (1-SPEED) (PART-3) (FOR DP40-DP45) Spare Parts Catalog.pdf
25. _01-24-04 TRANSMISSION (2-SPEED) (PART-1) Spare Parts Catalog.pdf
26. _01-24-05 TRANSMISSION (2-SPEED) (PART-2) Spare Parts Catalog.pdf
27. _01-24-06 TRANSMISSION (2-SPEED) (PART-3) Spare Parts Catalog.pdf
28. _01-28-01 CONTROL VALVE (PART-1) (FOR TRANSMISSION) Spare Parts Catalog.pdf
29. _01-28-02 CONTROL VALVE (PART-2) (FOR TRANSMISSION) Spare Parts Catalog.pdf
30. _01-28-03 SELECTOR VALVE (FOR 2-SPEED T_M) Spare Parts Catalog.pdf
31. _01-31-01 REDUCTION AND DIFFERENTIAL Spare Parts Catalog.pdf
32. _01-33-01 FRONT AXLE Spare Parts Catalog.pdf
33. _01-43-01 REAR AXLE Spare Parts Catalog.pdf
34. _01-46-01 WHEEL BRAKE PIPING Spare Parts Catalog.pdf
35. _01-46-02 WHEEL BRAKE ASSY (FOR 1-SPEED) (FOR DP40-DP45) Spare Parts Catalog.pdf
36. _01-46-03 WHEEL BRAKE ASSY (FOR 2-SPEED) (UPTO 2000-04) Spare Parts Catalog.pdf
37. _01-46-04 MASTER CYLINDER (FOR DP40-DP45) (UPTO 1998-04) Spare Parts Catalog.pdf
38. _01-46-05 MASTER CYLINDER (FOR DP40-DP45 (FROM 1998-05) Spare Parts Catalog.pdf
39. _01-46-06 MASTER CYLINDER (FOR DP40-DP45 W_2-SPEED T_M) Spare Parts Catalog.pdf
40. _01-46-07 MASTER CYLINDER (FOR DP50-1, DP50-2) Spare Parts Catalog.pdf
41. _01-46-08 WHEEL BRAKE ASSY (L.H.) (FOR 2-SPEED) (FROM 2000-05) Spare Parts Catalog.pdf
42. _01-46-09 WHEEL BRAKE ASSY (R.H.) (FOR 2-SPEED) (FROM 2000-05) Spare Parts Catalog.pdf
43. _01-51-01 TORQUE-CONVERTER DRIVE CONTROL Spare Parts Catalog.pdf
44. _01-51-02 HAND BRAKE Spare Parts Catalog.pdf
45. _01-51-03 ACCEL PEDAL AND ENGINE CONTROL Spare Parts Catalog.pdf
46. _01-54-01 STEERING LINK (PART-1) Spare Parts Catalog.pdf
47. _01-54-02 STEERING LINK (PART-2) Spare Parts Catalog.pdf
48. _01-54-03 STEERING GEAR Spare Parts Catalog.pdf
49. _01-54-04 STEERING WHEEL Spare Parts Catalog.pdf
50. _01-61-01 AIR INTAKE SYSTEM Spare Parts Catalog.pdf
51. _01-62-01 EXHAUST SYSTEM Spare Parts Catalog.pdf
52. _01-64-01 FUEL SYSTEM Spare Parts Catalog.pdf
53. _01-71-01 PUMP AND JOINT Spare Parts Catalog.pdf
54. _01-72-01 HYDRAULIC CONTROL Spare Parts Catalog.pdf
55. _01-72-02 CONTROL VALVE (3 VALVES) (PART-1) Spare Parts Catalog.pdf
56. _01-72-03 CONTROL VALVE (3 VALVES) (PART-2) Spare Parts Catalog.pdf
57. _01-72-04 CONTROL VALVE (4 VALVES) Spare Parts Catalog.pdf
58. _01-72-05 CONTROL VALVE (5 VALVES) Spare Parts Catalog.pdf
59. _01-75-01 HYDRAULIC LINE (PART-1) Spare Parts Catalog.pdf
60. _01-75-02 HYDRAULIC LINE (PART-2) Spare Parts Catalog.pdf
61. _01-75-03 FLOW REGULATOR VALVE (FOR DP40-DP45) (UPTO 2000-03) Spare Parts Catalog.pdf
62. _01-75-04 FLOW REGULATOR VALVE (FOR DP50-1, DP50-2) (UPTO 2000-03) Spare Parts Catalog.pdf
63. _01-75-05 FLOW REGULATOR VALVE (FROM 2000-04) Spare Parts Catalog.pdf
64. _01-75-01 NAME-PLATE Spare Parts Catalog.pdf
65. _02-01-01 LIFT BRACKET COMMON PARTS (UP TO 2000-03) Spare Parts Catalog.pdf
66. _02-01-02 LIFT BRACKET (UP TO 2000-03) Spare Parts Catalog.pdf
67. _02-01-03 BACKREST (UP TO 2000-03) Spare Parts Catalog.pdf
68. _02-01-04 LIFT BRACKET COMMON PARTS (FROM 2000-04) Spare Parts Catalog.pdf
69. _02-01-05 LIFT BRACKET (FROM 2000-04) Spare Parts Catalog.pdf
70. _02-01-06 BACKREST (FROM 2000-04) Spare Parts Catalog.pdf
71. _02-04-01 TILT CYLINDER (UP TO 2000-03) Spare Parts Catalog.pdf
72. _02-04-02 TILT CYLINDER (L.H.) (FROM 2000-04) (FOR DP40, DPL40) Spare Parts Catalog.pdf
73. _02-04-03 TILT CYLINDER (R.H.) (FROM 2000-04) (FOR DP40, DPL40) Spare Parts Catalog.pdf
74. _02-04-04 TILT CYLINDER (L.H.) (FROM 2000-04) (FOR DP45, DP50) Spare Parts Catalog.pdf
75. _02-04-05 TILT CYLINDER (R.H.) (FROM 2000-04) (FOR DP45, DP50) Spare Parts Catalog.pdf
76. _02-06-01 FORK (LEVER TYPE) Spare Parts Catalog.pdf
77. _02-06-02 FORK (KNOB TYPE) (UP TO 2000-03) Spare Parts Catalog.pdf
78. _02-10-01 MAST COMMON PARTS (UP TO 2000-03) (FOR 3V40A, 45A, 50A) Spare Parts Catalog.pdf
79. _02-10-02 MAST COMMON PARTS (PART-1) UP TO 2000-03 (FOR 3M40A, 45A, 50A) Spare Parts Catalog.pdf
80. _02-10-03 MAST COMMON PARTS (PART-2) UP TO 2000-03 (FOR 3M40A, 45A, 50A) Spare Parts Catalog.pdf
81. _02-10-04 MAST COMMON PARTS (PART-3) UP TO 2000-03 (FOR 3M40A, 45A, 50A) Spare Parts Catalog.pdf
82. _02-10-05 MAST COMMON PARTS (PART-1) UP TO 2000-03 (FOR 3F40A, 45A, 50A) Spare Parts Catalog.pdf
83. _02-10-06 MAST COMMON PARTS (PART-2) UP TO 2000-03 (FOR 3F40A, 45A, 50A) Spare Parts Catalog.pdf
84. _02-10-07 MAST COMMON PARTS (PART-1) FROM 2000-04 (FOR 4V40A, 45A, 50A) Spare Parts Catalog.pdf
85. _02-10-08 MAST COMMON PARTS (PART-2) FROM 2000-04 (FOR 4V40A, 45A, 50A) Spare Parts Catalog.pdf
86. _02-10-09 MAST COMMON PARTS (PART-1) FROM 2000-04 (FOR 4M40A, 45A, 50A) Spare Parts Catalog.pdf
87. _02-00-01 MAST COMMON PARTS (PART-2) FROM 2000-04 (FOR 4M40A, 45A, 50A) Spare Parts Catalog.pdf
88. _02-10-10 MAST COMMON PARTS (PART-3) FROM 2000-04 (FOR 4M40A, 45A, 50A) Spare Parts Catalog.pdf
89. _02-10-11 MAST COMMON PARTS (PART-4) FROM 2000-04 (FOR 4M40A, 45A, 50A) Spare Parts Catalog.pdf
90. _02-10-12 MAST COMMON PARTS (PART-1) FROM 2000-04 (FOR 4F40A, 45A, 50A) Spare Parts Catalog.pdf
91. _02-10-13 MAST COMMON PARTS (PART-2) FROM 2000-04 (FOR 4F40A, 45A, 50A) Spare Parts Catalog.pdf
92. _02-10-14 MAST COMMON PARTS (PART-3) FROM 2000-04 (FOR 4F40A, 45A, 50A) Spare Parts Catalog.pdf
93. _02-18-01 DUPLEX MAST (UP TO 2000-03) MODEL 3F40A30-50 Spare Parts Catalog.pdf
94. _02-18-02 LIFT CYLINDER (1ST) (UP TO 2000-03) (FOR 3F40A30-50) Spare Parts Catalog.pdf
95. _02-18-03 LIFT CYLINDER (2ND) (UP TO 2000-03) (FOR 3F40A30-50) Spare Parts Catalog.pdf

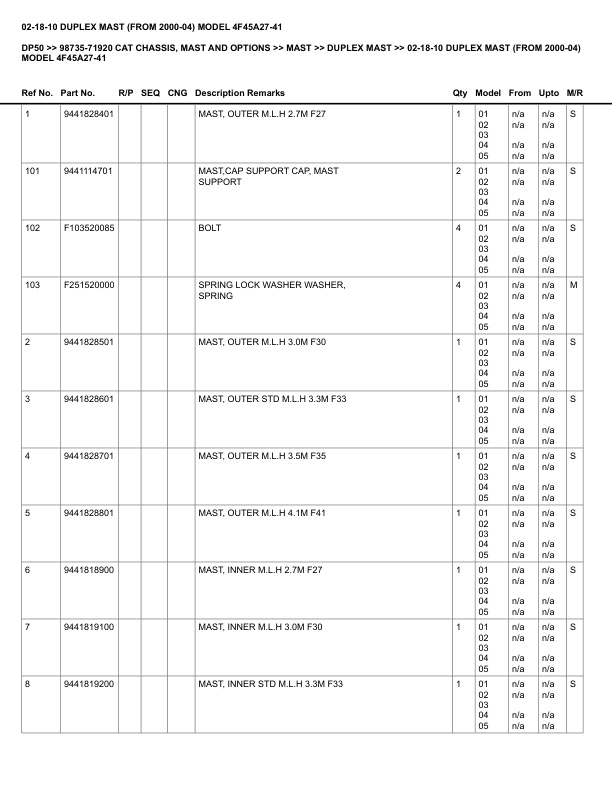

96. _02-18-04 DUPLEX MAST (UP TO 2000-03) MODEL 3F45A, 50A26-50 Spare Parts Catalog.pdf
97. _02-18-05 LIFT CYLINDER (1ST) (UP TO 2000-03) (FOR 3F45A, 50A26-50) Spare Parts Catalog.pdf
98. _02-18-06 LIFT CYLINDER (2ND) (UP TO 2000-03) (FOR 3F45A, 50A26-50) Spare Parts Catalog.pdf
99. _02-18-07 DUPLEX MAST (FROM 2000-04) MODEL 4F40A29-41 Spare Parts Catalog.pdf
100. _02-18-08 LIFT CYLINDER (1ST) (FROM 2000-04) (FOR 4F40A29-41) Spare Parts Catalog.pdf
101. _02-18-09 LIFT CYLINDER (2ND) (FROM 2000-04) (FOR 4F40A29-41) Spare Parts Catalog.pdf
102. _02-18-10 DUPLEX MAST (FROM 2000-04) MODEL 4F45A27-41 Spare Parts Catalog.pdf
103. _02-18-11 LIFT CYLINDER (1ST) (FROM 2000-04) (FOR 4F25A27-41) Spare Parts Catalog.pdf
104. _02-18-12 LIFT CYLINDER (2ND) (FROM 2000-04) (FOR 4F45A27-41) Spare Parts Catalog.pdf
105. _02-18-13 DUPLEX MAST (FROM 2000-04) MODEL 4F50A27-41 Spare Parts Catalog.pdf
106. _02-18-14 LIFT CYLINDER (1ST) (FROM 2000-04) (FOR 4F50A27-41) Spare Parts Catalog.pdf
107. _02-18-15 LIFT CYLINDER (2ND) (FROM 2000-04) (FOR 4F50A27-41) Spare Parts Catalog.pdf
108. _02-20-01 TRIPLEX MAST (UP TO 2000-03) MODEL 3M40A37-70 Spare Parts Catalog.pdf
109. _02-20-02 LIFT CYLINDER (1ST) (UP TO 2000-03) (FOR 3M40A37-70) Spare Parts Catalog.pdf
110. _02-20-03 LIFT CYLINDER (2ND) (UP TO 2000-03) (FOR 3M40A37-70) Spare Parts Catalog.pdf
111. _02-20-04 TRIPLEX MAST (UP TO 2000-03) MODEL 3M45A, 50A37-70 Spare Parts Catalog.pdf
112. _02-20-05 LIFT CYLINDER (1ST) (UP TO 2000-03) (FOR 3M45A, 50A37-70) Spare Parts Catalog.pdf
113. _02-20-06 LIFT CYLINDER (2ND) (UP TO 2000-03) (FOR 3M45A, 50A37-70) Spare Parts Catalog.pdf
