Caterpillar DP50NM1 Parts Manual 98735-09200

Caterpillar DP50NM1 Parts Manual 98735-09200 - Image 2

Caterpillar DP50NM1 Parts Manual 98735-09200 - Image 3

Caterpillar DP50NM1 Parts Manual 98735-09200 - Image 4

Caterpillar DP50NM1 Parts Manual 98735-09200 - Image 5

caterpillar dp50nm1 parts manual 98735 09200 2

caterpillar dp50nm1 parts manual 98735 09200 3

Caterpillar DP50NM1 Parts Manual 98735-09200

$50.00

Type Of Manual: Parts Manual
Book Number: 98735-09200

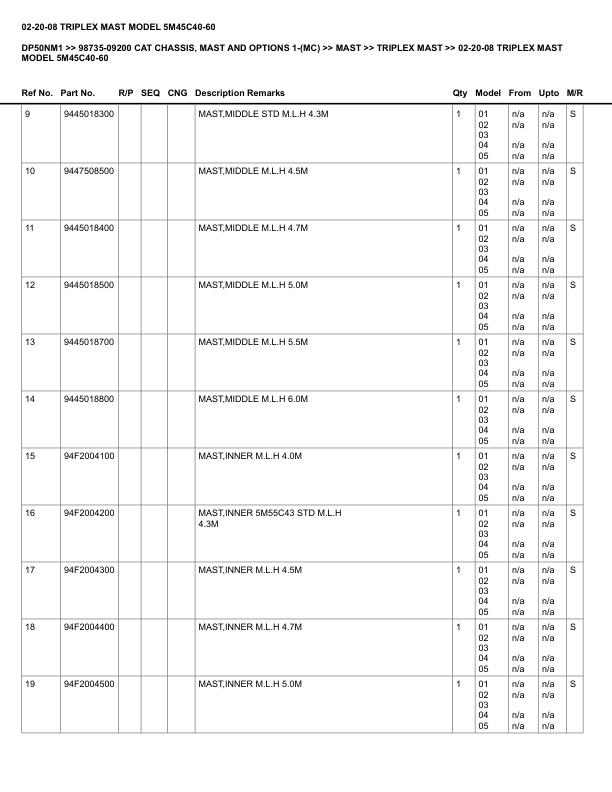

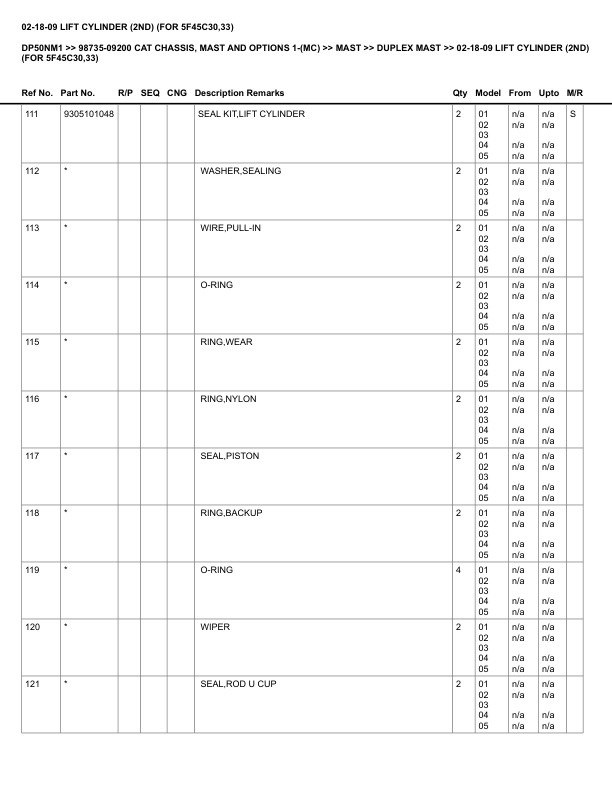

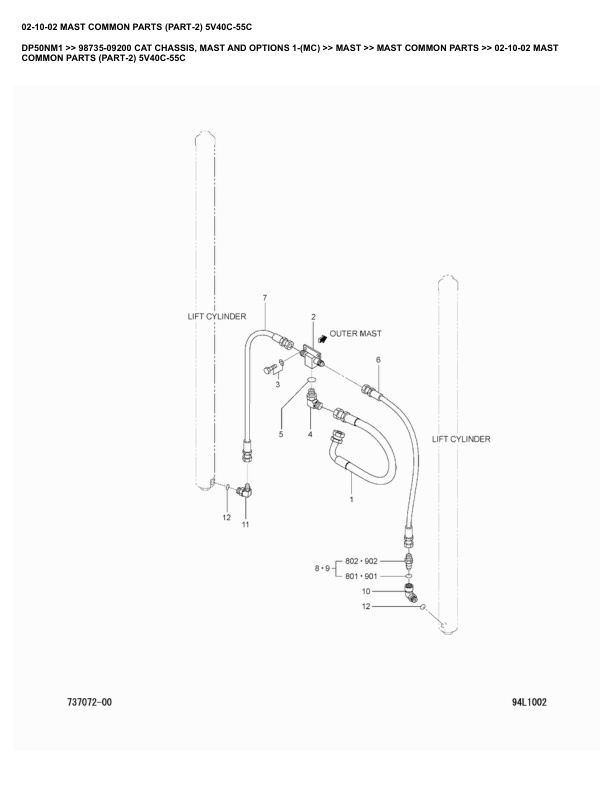

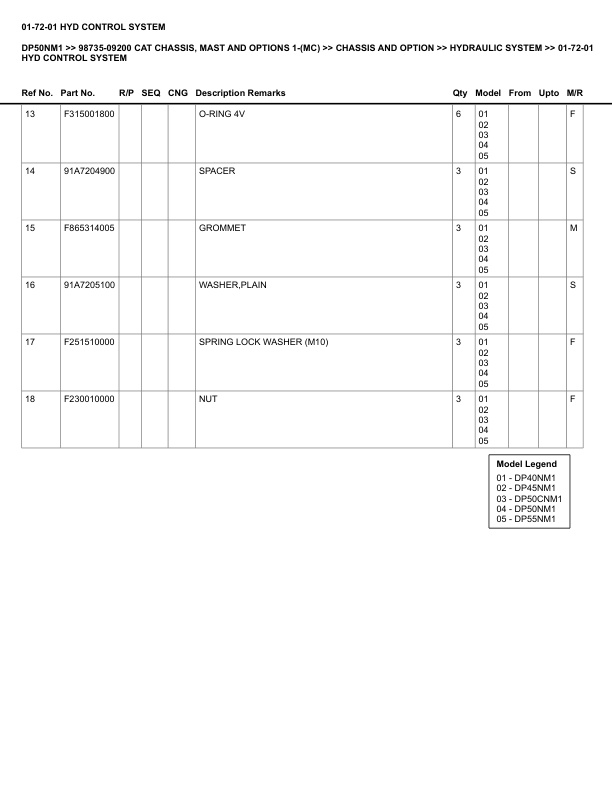

Information: CAT CHASSIS, MAST AND OPTIONS 1-(MC)
Number of Pages: 774
Size: 291.9MB
Format: PDF

Category: Caterpillar Part Manual PDF

Model List:
- DP50NM1

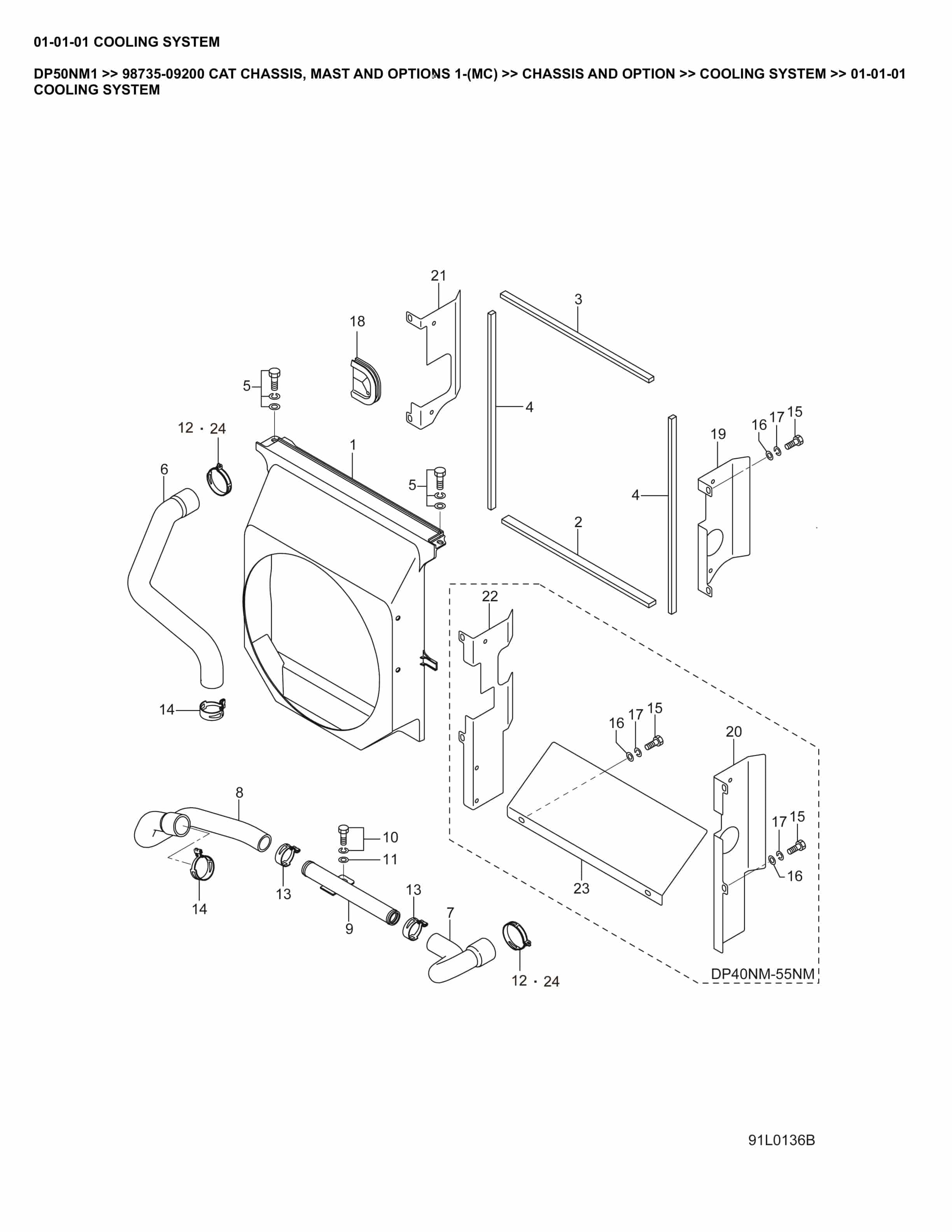

1. _01-01-01 COOLING SYSTEM Spare Parts Catalog.pdf
2. _01-01-02 RADIATOR Spare Parts Catalog.pdf
3. _01-01-03 RESERVOIR TANK Spare Parts Catalog.pdf
4. _01-01-04 T_C OIL COOLER PIPING Spare Parts Catalog.pdf
5. _01-01-05 RADIATOR SCREEN KIT – OPTION Spare Parts Catalog.pdf
6. _01-01-06 RADIATOR SCREEN KIT – OPTION (ELEVATED EXHAUST) Spare Parts Catalog.pdf
7. _01-01-07 SEMI UNDER NET KIT – OPTION Spare Parts Catalog.pdf
8. _01-01-08 PLATE FIN RADIATOR KIT – OPTION Spare Parts Catalog.pdf
9. _01-01-09 INDICATOR KIT – OPTION Spare Parts Catalog.pdf
10. _01-01-10 T_C OIL FILTER KIT – OPTION Spare Parts Catalog.pdf
11. _01-04-01 ELECTRIC SYSTEM (PART-1) Spare Parts Catalog.pdf
12. _01-04-02 ELECTRIC SYSTEM (PART-2) Spare Parts Catalog.pdf
13. _01-04-03 HEAD GUARD CIRCUIT Spare Parts Catalog.pdf
14. _01-04-04 BATTERY Spare Parts Catalog.pdf
15. _01-04-05 BATTERY CABLE Spare Parts Catalog.pdf
16. _01-04-06 COMBINATION SWITCH Spare Parts Catalog.pdf
17. _01-04-07 BACKUP HANDLE KIT – OPTION (OLD) (UPTO 2020-10) Spare Parts Catalog.pdf
18. _01-04-08 BACKUP HANDLE KIT – OPTION (NEW) (FROM 2020-11) Spare Parts Catalog.pdf
19. _01-04-09 EXTINGUISHER KIT – OPTION Spare Parts Catalog.pdf
20. _01-04-10 REAR WORKING LAMP KIT – OPTION Spare Parts Catalog.pdf
21. _01-04-11 STROBE LIGHT KIT – OPTION (BELOW) Spare Parts Catalog.pdf
22. _01-04-12 STROBE LIGHT KIT – OPTION (ABOVE) Spare Parts Catalog.pdf
23. _01-04-13 MAST LED HEAD LAMP KIT – OPTION Spare Parts Catalog.pdf
24. _01-04-14 TURN SIGNAL KIT – OPTION Spare Parts Catalog.pdf
25. _01-04-15 BATTERY D KIT – OPTION Spare Parts Catalog.pdf
26. _01-04-16 ARMREST FNR CONTROL KIT – OPTION Spare Parts Catalog.pdf
27. _01-04-17 KIT,M12 TELEM ENG – OPTION Spare Parts Catalog.pdf
28. _01-04-18 KIT,M12 TELEM FRE – OPTION Spare Parts Catalog.pdf
29. _01-04-19 THIRD-PARTY TELEMATICS HARNESS (MC MODEL) (PART-1) Spare Parts Catalog.pdf
30. _01-04-20 THIRD-PARTY TELEMATICS HARNESS – SCHEMATIC (MC MODEL) (PART-2) Spare Parts Catalog.pdf
31. _01-04-21 THIRD-PARTY TELEMATICS HARNESS (FC MODEL) (PART-1) Spare Parts Catalog.pdf
32. _01-04-22 THIRD-PARTY TELEMATICS HARNESS – SCHEMATIC (FC MODEL) (PART-2) Spare Parts Catalog.pdf
33. _01-05-01 TC2020 – OPTION IGNITION INTERLOCK SEAT AND SEATBELT W_PARK BRAKE OVERRIDE 9040112964 Spare Parts Catalog.pdf
34. _01-11-01 FRAME SYSTEM Spare Parts Catalog.pdf
35. _01-11-02 FRAME Spare Parts Catalog.pdf
36. _01-11-03 UPPER FRAME SYSTEM Spare Parts Catalog.pdf
37. _01-11-04 RADIATOR COVER Spare Parts Catalog.pdf
38. _01-11-05 ENGINE COVER Spare Parts Catalog.pdf
39. _01-11-06 SIDE COVER Spare Parts Catalog.pdf
40. _01-11-07 DASHBOARD COVER Spare Parts Catalog.pdf
41. _01-11-08 COUNTER WEIGHT Spare Parts Catalog.pdf
42. _01-11-09 MAST HOOK KIT – OPTION Spare Parts Catalog.pdf
43. _01-12-01 CWT HOOK KIT – OPTION Spare Parts Catalog.pdf
44. _01-13-01 DRAWBAR PIN CAT KIT – OPTION Spare Parts Catalog.pdf
45. _01-14-01 SEAT SUSPENSION VINYL (OLD) Spare Parts Catalog.pdf
46. _01-14-02 SEAT ASSY – OPTION (SUSPENSION CLOTH) (OLD) Spare Parts Catalog.pdf
47. _01-14-03 SEAT SUSPENSION VINYL (NEW) Spare Parts Catalog.pdf
48. _01-14-04 SEAT SUSPENSION CLOTH (NEW) Spare Parts Catalog.pdf
49. _01-14-05 SEAT STATIC VINYL (NEW) Spare Parts Catalog.pdf
50. _01-14-06 SEAT STATIC CLOTH (NEW) Spare Parts Catalog.pdf
51. _01-15-01 HEAD GUARD Spare Parts Catalog.pdf
52. _01-15-02 HEAD GUARD COMMON PARTS Spare Parts Catalog.pdf
53. _01-15-03 LOW HEAD GUARD KIT – OPTION Spare Parts Catalog.pdf
54. _01-15-04 HIGHT HEAD GUARD KIT – OPTION Spare Parts Catalog.pdf
55. _01-15-05 REAR VIEW MIRROR (H_G) KIT Spare Parts Catalog.pdf
56. _01-17-01 CAB PACKEGE 1 Spare Parts Catalog.pdf
57. _01-17-02 CAB PACKEGE 2 Spare Parts Catalog.pdf
58. _01-17-03 CAB PACKEGE 3 Spare Parts Catalog.pdf
59. _01-20-01 ENGINE Spare Parts Catalog.pdf
60. _01-20-02 LARGE CAPACITY ALTERNATOR KIT – OPTION Spare Parts Catalog.pdf
61. _01-23-01 TRANSMISSION ASSY TORQUE-CONVERTER Spare Parts Catalog.pdf
62. _01-24-01 TRANSMISSION (HOUSING PTO CASE) Spare Parts Catalog.pdf
63. _01-24-02 TRANSMISSION (PTO) Spare Parts Catalog.pdf
64. _01-24-03 TRANSMISSION (R1 CLUTCH PACK) Spare Parts Catalog.pdf
65. _01-24-04 TRANSMISSION (F1 CLUTCH PACK) Spare Parts Catalog.pdf
66. _01-24-05 TRANSMISSION (F2 CLUTCH PACK) Spare Parts Catalog.pdf
67. _01-24-06 TRANSMISSION (PARKING BRAKE) Spare Parts Catalog.pdf
68. _01-24-07 TRANSMISSION (OUTPUT GEAR) Spare Parts Catalog.pdf
69. _01-28-01 CONTROL VALVE (MAIN VALVE ASSY) Spare Parts Catalog.pdf
70. _01-28-02 CONTROL VALVE (SHIFT VALVE ASSY) Spare Parts Catalog.pdf
71. _01-28-03 CONTROL VALVE (HARNESS GASKET) Spare Parts Catalog.pdf
72. _01-28-04 REGULATOR VALVE Spare Parts Catalog.pdf
73. _01-32-01 FRONT AXLE GENERAL Spare Parts Catalog.pdf
74. _01-32-02 REDUCTION DIFFERENTIAL Spare Parts Catalog.pdf
75. _01-32-05 BRAKE L.H. (FOR DP40NM1,45NM1) Spare Parts Catalog.pdf
76. _01-32-06 BRAKE R.H. (FOR DP40NM1,45NM1) Spare Parts Catalog.pdf
77. _01-32-07 BRAKE L.H. (FOR DP50CNM1-55NM1) Spare Parts Catalog.pdf
78. _01-32-08 BRAKE R.H. (FOR DP50CNM1-55NM1) Spare Parts Catalog.pdf
79. _01-32-09 POWER LINE MOUNT BRACKET Spare Parts Catalog.pdf
80. _01-32-10 UNIVERSAL JOINT COVER KIT – OPTION Spare Parts Catalog.pdf
81. _01-34-01 FRONT AXLE SYSTEM Spare Parts Catalog.pdf
82. _01-34-02 FENDER Spare Parts Catalog.pdf
83. _01-34-03 FRONT TIRE Spare Parts Catalog.pdf
84. _01-34-04 F_A DUST PROOF BREATHER KIT – OPTION Spare Parts Catalog.pdf
85. _01-34-05 SPEC DUAL TIRE KIT TRELLEBORG – OPTION J-LUG 8.25-15 Spare Parts Catalog.pdf
86. _01-43-02 STEERING CYLINDER (OLD_ 2022-12) Spare Parts Catalog.pdf
87. _01-43-03 STEERING CYLINDER (NEW_ 2023-01) Spare Parts Catalog.pdf
88. _01-43-04 REAR TIRE Spare Parts Catalog.pdf
89. _01-46-02 PARKING BRAKE VALVE Spare Parts Catalog.pdf
90. _01-46-03 PUMP, GEAR 3.5S Spare Parts Catalog.pdf
91. _01-46-04 OIL COOLED WDB KIT PART-1 – OPTION OIL COOLED WEB KIT Spare Parts Catalog.pdf
92. _01-46-05 OIL COOLED WDB KIT PART-2 – OPTION Spare Parts Catalog.pdf
93. _01-46-06 OIL COOLED WDB KIT PART-1 – OPTION AUTO-DECCONT-BRAKE Spare Parts Catalog.pdf
94. _01-46-07 OIL COOLED WDB KIT PART-2 – OPTION AUTO-DECCONT-BRAKE Spare Parts Catalog.pdf
95. _01-46-08 OIL COOLED WDB KIT PART-1 – OPTION (FOR PRO-SAUTO-DEC) Spare Parts Catalog.pdf
96. _01-46-09 OIL COOLED WDB KIT PART-2 – OPTION (FOR PRO-SAUTO-DEC) Spare Parts Catalog.pdf
97. _01-46-11 OIL COOLED WET DISC BRAKE KIT – OPTION (FRONT AXLE R.H.) Spare Parts Catalog.pdf
98. _01-46-12 OIL COOLED WET DISC BRAKE KIT – OPTION (WET BRAKE L.H.) Spare Parts Catalog.pdf
99. _01-46-13 OIL COOLED WET DISC BRAKE KIT – OPTION (WET BRAKE R.H.) Spare Parts Catalog.pdf
100. _01-46-14 OIL COOLED WDB PARKING BRAKE VALVE Spare Parts Catalog.pdf
101. _01-51-02 ACCEL CONTROL Spare Parts Catalog.pdf
102. _01-51-03 ELEC CONT FOR DIESEL KIT – OPTION (PART-1) Spare Parts Catalog.pdf
103. _01-51-04 ELEC CONT FOR DIESEL KIT – OPTION (PART-2) Spare Parts Catalog.pdf
104. _01-54-01 STEERING SYSTEM Spare Parts Catalog.pdf
105. _01-54-02 STEERING WHEEL Spare Parts Catalog.pdf
106. _01-54-03 STEERING WHEEL – OPTION Spare Parts Catalog.pdf
107. _01-54-04 STEERING WHEEL KNOB KIT – OPTION Spare Parts Catalog.pdf
108. _01-61-01 INTAKE SYSTEM Spare Parts Catalog.pdf
109. _01-61-02 AIR CLEANER Spare Parts Catalog.pdf
110. _01-61-03 PRE-CLEANER KIT – OPTION Spare Parts Catalog.pdf
111. _01-61-04 DUAL ELEMENT AIR CLEANER KIT – OPTION Spare Parts Catalog.pdf
112. _01-62-01 EXHAUST SYSTEM Spare Parts Catalog.pdf
113. _01-62-02 MUFFLER Spare Parts Catalog.pdf
114. _01-62-03 TAIL PIPE Spare Parts Catalog.pdf
115. _01-62-04 ELEVATED EXHAUST KIT – OPTION Spare Parts Catalog.pdf
116. _01-64-01 FUEL SYSTEM Spare Parts Catalog.pdf
117. _01-64-02 TANK CAP Spare Parts Catalog.pdf
118. _01-71-01 HYD DELIVERY CIRCUIT Spare Parts Catalog.pdf
119. _01-71-02 SUCTION CIRCUIT Spare Parts Catalog.pdf
120. _01-71-03 GEAR PUMP Spare Parts Catalog.pdf
121. _01-71-04 LOW NOISE KIT (PART-1) – OPTION Spare Parts Catalog.pdf
122. _01-71-05 LOW NOISE KIT (PART-2) – OPTION Spare Parts Catalog.pdf
123. _01-72-01 HYD CONTROL SYSTEM Spare Parts Catalog.pdf
124. _01-72-02 HYD CONTROL SYSTEM (3 VALVES) Spare Parts Catalog.pdf
125. _01-72-04 CONTROL VALVE (3 VALVES) Spare Parts Catalog.pdf
126. _01-72-05 CONTROL VALVE (4 VALVES) Spare Parts Catalog.pdf
127. _01-72-06 ATT PIPING (3 VALVES) Spare Parts Catalog.pdf
128. _01-72-07 ATT PIPING (4 VALVES) Spare Parts Catalog.pdf
129. _01-72-08 LIFT VALVE ASSEMBLY Spare Parts Catalog.pdf
130. _01-72-09 ATT VALVE ASSEMBLY Spare Parts Catalog.pdf
131. _01-72-10 TILT VALVE ASSEMBLY Spare Parts Catalog.pdf
132. _01-75-01 HYD PS CIRCUIT Spare Parts Catalog.pdf
133. _01-75-02 HYD TILT CIRCUIT Spare Parts Catalog.pdf
134. _01-75-03 HYD LIFT CIRCUIT Spare Parts Catalog.pdf
135. _01-75-04 HYD TANK CIRCUIT Spare Parts Catalog.pdf
