Caterpillar DP70E Parts Manual 98703-01000

Caterpillar DP70E Parts Manual 98703-01000 - Image 2

Caterpillar DP70E Parts Manual 98703-01000 - Image 3

Caterpillar DP70E Parts Manual 98703-01000 - Image 4

Caterpillar DP70E Parts Manual 98703-01000 - Image 5

caterpillar dp70e parts manual 98703 01000 2

caterpillar dp70e parts manual 98703 01000 3

Caterpillar DP70E Parts Manual 98703-01000

$50.00

Type Of Manual: Parts Manual
Book Number: 98703-01000
Information: CAT CHASSIS, MAST, ATTACHMENT AND OPTIONS
Number of Pages: 357
Size: 65.3MB
Format: PDF

Category: Caterpillar Part Manual PDF

Model List:
- DP70E

1. _01-01-01 COOLING SYSTEM (PART-1) Spare Parts Catalog.pdf
2. _01-01-02 COOLING SYSTEM (PART-2) Spare Parts Catalog.pdf
3. _01-01-03 COOLING SYSTEM (PART-3) Spare Parts Catalog.pdf
4. _01-04-01 ELECTRIC SYSTEM Spare Parts Catalog.pdf
5. _01-04-02 CONSOLE BOX (PART-1) Spare Parts Catalog.pdf
6. _01-04-03 CONSOLE BOX (PART-2) Spare Parts Catalog.pdf
7. _01-04-04 CONSOLE BOX (PART-3) Spare Parts Catalog.pdf
8. _01-04-05 HARNESS Spare Parts Catalog.pdf
9. _01-04-05 HARNESS_1 Spare Parts Catalog.pdf
10. _01-04-06 BATTERY CABLE Spare Parts Catalog.pdf
11. _01-04-07 COMBINATION LAMP Spare Parts Catalog.pdf
12. _01-04-08 FNR TURN SIGNAL SWITCH Spare Parts Catalog.pdf
13. _01-11-02 FRAME BODY (PART-2) Spare Parts Catalog.pdf
14. _01-11-03 FRAME BODY (PART-3) Spare Parts Catalog.pdf
15. _01-11-04 ENGINE COVER ASSY Spare Parts Catalog.pdf
16. _01-14-01 SEAT ASSY Spare Parts Catalog.pdf
17. _01-15-01 HEAD GUARD Spare Parts Catalog.pdf
18. _01-23-01 TORQUE-CONVERTER ASSY Spare Parts Catalog.pdf
19. _01-24-01 TRANSMISSION ASSY (PART-1) Spare Parts Catalog.pdf
20. _01-24-02 TRANSMISSION ASSY (PART-2) Spare Parts Catalog.pdf
21. _01-24-03 TRANSMISSION ASSY (PART-3) Spare Parts Catalog.pdf
22. _01-24-04 TRANSMISSION ASSY (PART-4) Spare Parts Catalog.pdf
23. _01-24-05 TRANSMISSION ASSY (PART-5) Spare Parts Catalog.pdf
24. _01-28-01 CONTROL VALVE ASSY Spare Parts Catalog.pdf
25. _01-28-02 REGULATOR VALVE ASSY Spare Parts Catalog.pdf
26. _01-29-01 UNIVERSAL JOINT ASSY Spare Parts Catalog.pdf
27. _01-31-01 REDUCTION DIFFERENTIAL (PART-1) Spare Parts Catalog.pdf
28. _01-31-02 REDUCTION DIFFERENTIAL (PART-2) Spare Parts Catalog.pdf
29. _01-32-01 PNEUMATIC REAR TIRE Spare Parts Catalog.pdf
30. _01-33-01 FRONT AXLE COMMON Spare Parts Catalog.pdf
31. _01-33-01 FRONT AXLE COMMON_1 Spare Parts Catalog.pdf
32. _01-33-02 PNEUMATIC FRONT TIRE Spare Parts Catalog.pdf
33. _01-33-03 SOLID FRONT TIRE Spare Parts Catalog.pdf
34. _01-33-04 SOLID REAR TIRE Spare Parts Catalog.pdf
35. _01-34-01 FRONT AXLE Spare Parts Catalog.pdf
36. _01-43-01 REAR AXLE Spare Parts Catalog.pdf
37. _01-43-02 POWER CYLINDER Spare Parts Catalog.pdf
38. _01-43-02 POWER CYLINDER_1 Spare Parts Catalog.pdf
39. _01-46-01 WHEEL BRAKE Spare Parts Catalog.pdf
40. _01-46-02 WHEEL BRAKE ASSY (L.H.) Spare Parts Catalog.pdf
41. _01-46-03 WHEEL BRAKE ASSY (R.H.) Spare Parts Catalog.pdf
42. _01-46-03 WHEEL BRAKE ASSY (R.H.)_1 Spare Parts Catalog.pdf
43. _01-46-04 MASTER CYLINDER Spare Parts Catalog.pdf
44. _01-51-01 HAND BRAKE LEVER Spare Parts Catalog.pdf
45. _01-51-02 ACCEL PEDAL ENGINE CONTROL Spare Parts Catalog.pdf
46. _01-51-04 STEERING LINK Spare Parts Catalog.pdf
47. _01-54-01 TILT STEERING ASSY Spare Parts Catalog.pdf
48. _01-54-02 STEERING GEAR ASSY Spare Parts Catalog.pdf
49. _01-54-03 STEERING WHEEL ASSY Spare Parts Catalog.pdf
50. _01-61-01 INTAKE SYSTEM COMMON Spare Parts Catalog.pdf
51. _01-61-02 INTAKE SYSTEM Spare Parts Catalog.pdf
52. _01-64-01 FUEL SYSTEM Spare Parts Catalog.pdf
53. _01-67-01 TOOL Spare Parts Catalog.pdf
54. _01-71-01 GEAR PUMP Spare Parts Catalog.pdf
55. _01-72-03 CONTROL VALVE (4 VALVES) Spare Parts Catalog.pdf
56. _01-72-05 INLET VALVE ASSY (PART-1) Spare Parts Catalog.pdf
57. _01-72-07 INLET VALVE ASSY (PART-3) Spare Parts Catalog.pdf
58. _01-73-01 FC LEVER COMMON (PART-1) Spare Parts Catalog.pdf
59. _01-73-03 FC LEVER Spare Parts Catalog.pdf
60. _01-74-01 LC LEVER COMMON Spare Parts Catalog.pdf
61. _01-74-03 LC LEVER (4 VALVES) Spare Parts Catalog.pdf
62. _01-75-01 HYDRAULIC LINE (PART-1) Spare Parts Catalog.pdf
63. _01-75-03 HYDRAULIC LINE (PART-3) Spare Parts Catalog.pdf

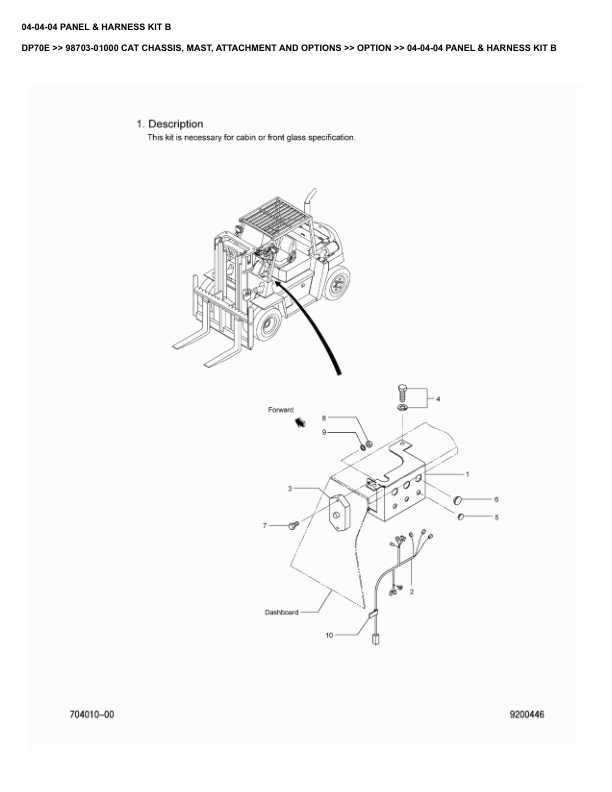

64. _02-01-02 LIFT BRACKET (HOOK TYPE) 4M70B37-80 Spare Parts Catalog.pdf
65. _02-01-03 LIFT BRACKET (BAR TYPE) 4M70B37-80 Spare Parts Catalog.pdf
66. _02-01-05 LIFT BRACKET (HOOK TYPE) 4P70C25-70 Spare Parts Catalog.pdf
67. _02-01-06 LIFT BRACKET (BAR TYPE) 4P70C25-70 Spare Parts Catalog.pdf
68. _02-04-01 TILT CYLINDER Spare Parts Catalog.pdf
69. _02-06-01 FORK (HOOK TYPE) Spare Parts Catalog.pdf
70. _02-06-02 FORK (BAR TYPE) Spare Parts Catalog.pdf
71. _02-10-01 MAST COMMON PARTS 4P70C25-70 Spare Parts Catalog.pdf
72. _02-10-02 FLOW REGULATOR VALVE Spare Parts Catalog.pdf
73. _02-10-04 MAST COMMON PARTS (PART-2) 4M70B37-80 Spare Parts Catalog.pdf

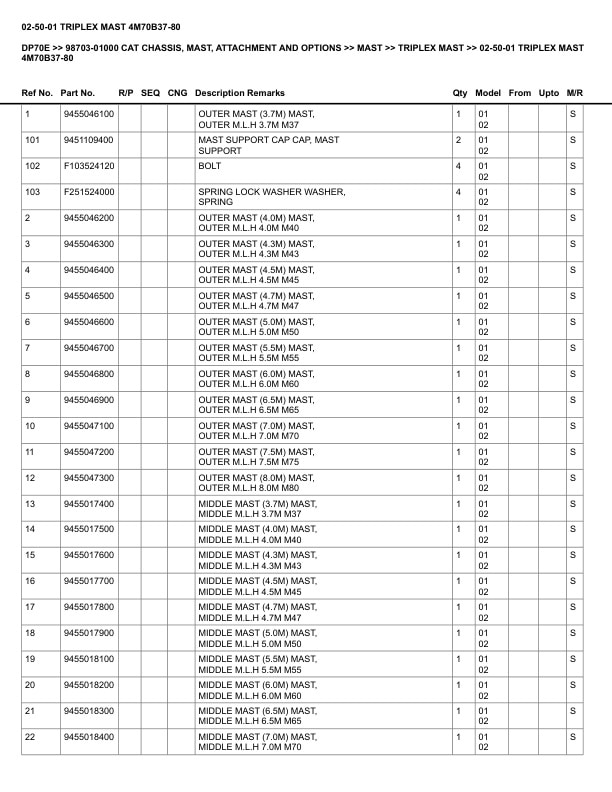

74. _02-50-01 TRIPLEX MAST 4M70B37-80 Spare Parts Catalog.pdf
75. _02-50-02 LIFT CYLINDER (1ST) 4M70B37-80 Spare Parts Catalog.pdf
76. _02-60-01 SIMPLEX MAST 4P70C25-70 Spare Parts Catalog.pdf
77. _02-60-03 LIFT CYLINDER 4P70C65-70 Spare Parts Catalog.pdf
78. _03-20-01 PULLEY (3 VALVES) 4P70C25-70 Spare Parts Catalog.pdf
79. _03-20-02 MAST PIPING (3 VALVES) 4P70C25-70 Spare Parts Catalog.pdf
80. _03-21-02 MAST PIPING (4 VALVES) 4P70C25-70 Spare Parts Catalog.pdf
81. _03-23-01 PULLEY (3 VALVES) 4M70B37-80 Spare Parts Catalog.pdf
82. _03-24-02 MAST PIPING (PART-1)(4 VALVES) 4M70B37-75 Spare Parts Catalog.pdf
83. _03-24-03 MAST PIPING (PART-2)(4 VALVES) 4M70B37-75 Spare Parts Catalog.pdf
84. _03-25-02 MAST PIPING (PART-1)(5 VALVES) 4M70B37-75 Spare Parts Catalog.pdf
85. _03-25-04 MAST PIPING (PART-3) (5 VALVES) 4M70B37-75 Spare Parts Catalog.pdf
86. _03-40-01 FORK CARRIAGE 4SS70BVH (HOOK TYPE) Spare Parts Catalog.pdf
87. _03-40-02 LIFT BRACKET COMMON PARTS 4SS70BVH (HOOK TYPE) Spare Parts Catalog.pdf
88. _03-40-04 SIDE SHIFTER (PART-2) 4SS70BVH (HOOK TYPE) Spare Parts Catalog.pdf
89. _03-40-05 CYLINDER ASSY 4SS70BVH (HOOK TYPE) Spare Parts Catalog.pdf
90. _03-40-06 FORK CARRIAGE 4SS70AMH (HOOK TYPE) Spare Parts Catalog.pdf
91. _03-40-08 SIDE SHIFTER (PART-1) 4SS70AMH (HOOK TYPE) Spare Parts Catalog.pdf
92. _03-40-10 CYLINDER ASSY 4SS70AMH (HOOK TYPE) Spare Parts Catalog.pdf
93. _03-46-01 LIFT BRACKET COMMON PARTS 4HP70BVH (HOOK TYPE) Spare Parts Catalog.pdf
94. _03-46-02 FORK POSITIONER (PART-1) 4HP70BVH (HOOK TYPE) Spare Parts Catalog.pdf

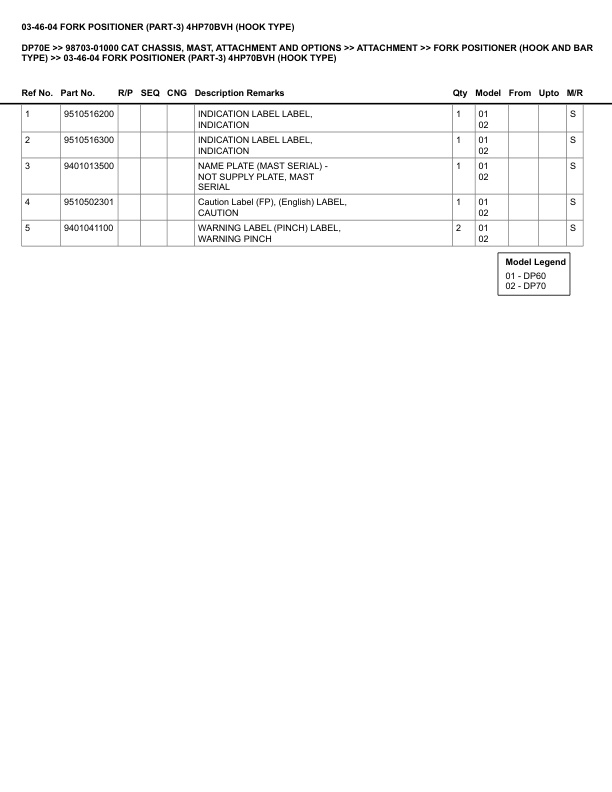

95. _03-46-04 FORK POSITIONER (PART-3) 4HP70BVH (HOOK TYPE) Spare Parts Catalog.pdf
96. _03-46-06 LIFT BRACKET COMMON PARTS 4HP70CVB (BAR TYPE) Spare Parts Catalog.pdf
97. _03-46-08 FORK POSITIONER (PART-2) 4HP70CVB (BAR TYPE) Spare Parts Catalog.pdf
98. _03-46-09 FORK POSITIONER (PART-3) 4HP70CVB (BAR TYPE) Spare Parts Catalog.pdf
99. _03-46-10 CYLINDER ASSY 4HP70CVB (BAR TYPE) Spare Parts Catalog.pdf
100. _03-46-11 LIFT BRACKET COMMON PARTS 4HP70CMB (BAR TYPE) Spare Parts Catalog.pdf
101. _03-46-13 FORK POSITIONER (PART-2) 4HP70CMB (BAR TYPE) Spare Parts Catalog.pdf
102. _03-46-14 FORK POSITIONER (PART-3) 4HP70CMB (BAR TYPE) Spare Parts Catalog.pdf
103. _03-46-16 LIFT BRACKET COMMON PARTS 4HP70AMH (HOOK TYPE) Spare Parts Catalog.pdf
104. _03-46-17 FORK POSITIONER (PART-1) 4HP70AMH (HOOK TYPE) Spare Parts Catalog.pdf
105. _03-46-19 FORK POSITIONER (PART-3) 4HP70AMH (HOOK TYPE) Spare Parts Catalog.pdf
106. _03-46-20 CYLINDER ASSY 4HP70AMH (HOOK TYPE) Spare Parts Catalog.pdf
107. _03-47-02 FORK POSITIONER 4MP70BVH (HOOK TYPE) Spare Parts Catalog.pdf
108. _03-52-01 LIFT BRACKET COMMON PARTS 4SF70BVB (BAR TYPE) Spare Parts Catalog.pdf
109. _03-52-02 LIFT BRACKET FORK CARRIAGE 4SF70BVB (BAR TYPE) Spare Parts Catalog.pdf
110. _03-52-03 SIDE SHIFTER W_FORK POSITIONER (PART-1) 4SF70BVB Spare Parts Catalog.pdf
111. _03-52-04 SIDE SHIFTER W_FORK POSITIONER (PART-2) 4SF70BVB Spare Parts Catalog.pdf
112. _03-52-05 SIDE SHIFTER W_FORK POSITIONER (PART-3) 4SF70BVB Spare Parts Catalog.pdf
113. _03-52-06 SIDE SHIFTER W_FORK POSITIONER (PART-4) 4SF70BVB Spare Parts Catalog.pdf
114. _03-52-08 CYLINDER ASSY (FOR FORK) 4SF70BVB (BAR TYPE) Spare Parts Catalog.pdf
115. _04-04-01 WORKING LAMP FRONT Spare Parts Catalog.pdf
116. _04-04-03 REVOLVING LAMP (FOR HEAD GUARD) Spare Parts Catalog.pdf
117. _04-04-04 PANEL HARNESS KIT B Spare Parts Catalog.pdf
118. _04-04-05 CENTER MIRROR Spare Parts Catalog.pdf
119. _04-04-06 REAR VIEW MIRROR (FENDER TYPE) Spare Parts Catalog.pdf
120. _04-04-08 EXTINGUISHER Spare Parts Catalog.pdf
121. _04-11-01 MAST HOOK (FOR SIMPLEX MAST) Spare Parts Catalog.pdf
122. _04-11-02 MAST HOOK (FOR TRIPLEX MAST) Spare Parts Catalog.pdf
123. _04-11-03 WEIGHT HOOK Spare Parts Catalog.pdf
124. _04-17 REVOLVING LAMP (FOR CAB) Spare Parts Catalog.pdf
125. _04-33 FR. AXLE BREATHER Spare Parts Catalog.pdf
126. _04-61-01 DUAL ELEMENT A_CLNR Spare Parts Catalog.pdf
127. _04-61-02 DUST INDICATOR Spare Parts Catalog.pdf
128. _04-61-03 ELEVATED AIR INTAKE Spare Parts Catalog.pdf
129. _04-67-01 TOOL (WITH GREASE PUMP) Spare Parts Catalog.pdf
130. _04-67-02 TOOL (WITHOUT GREASE PUMP) Spare Parts Catalog.pdf
131. _04-72 CONT. VAL. PLUG Spare Parts Catalog.pdf
132. _04-75 TILT CYLINDER BOOT Spare Parts Catalog.pdf
133. _04-81-02 LABEL GERMAN Spare Parts Catalog.pdf
134. _04-81-04 LABEL ITALIAN Spare Parts Catalog.pdf
135. _04-81-05 LABEL SPANISH Spare Parts Catalog.pdf
136. _04-81-06 LABEL GREEK Spare Parts Catalog.pdf
