Caterpillar EC25N Parts Manual 98753-32210

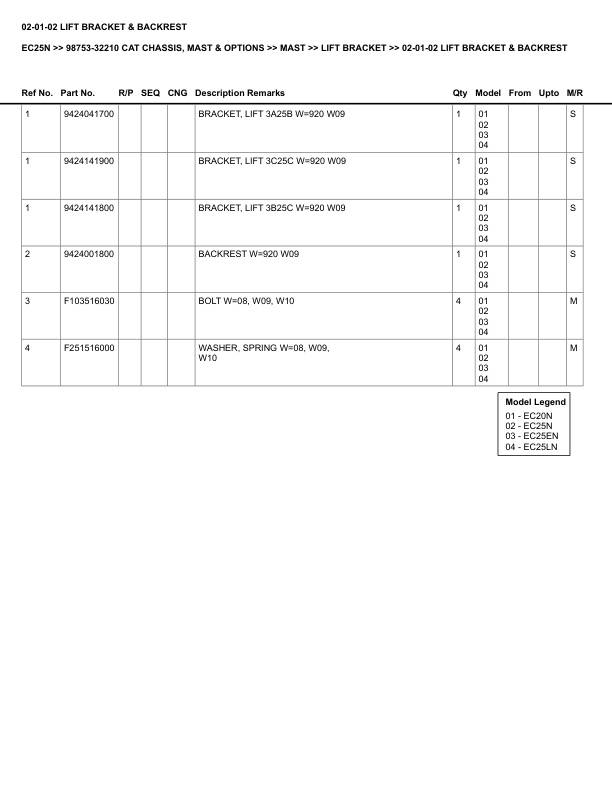

Caterpillar EC25N Parts Manual 98753-32210 - Image 2

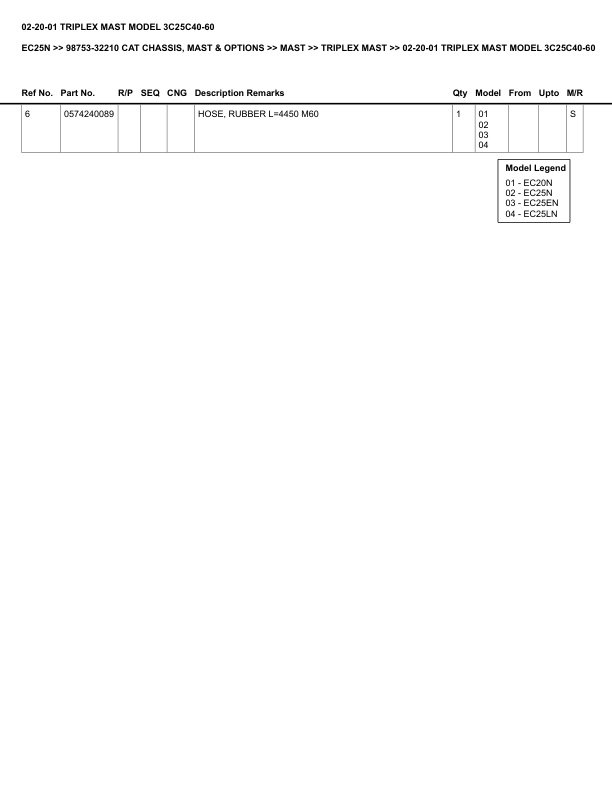

Caterpillar EC25N Parts Manual 98753-32210 - Image 3

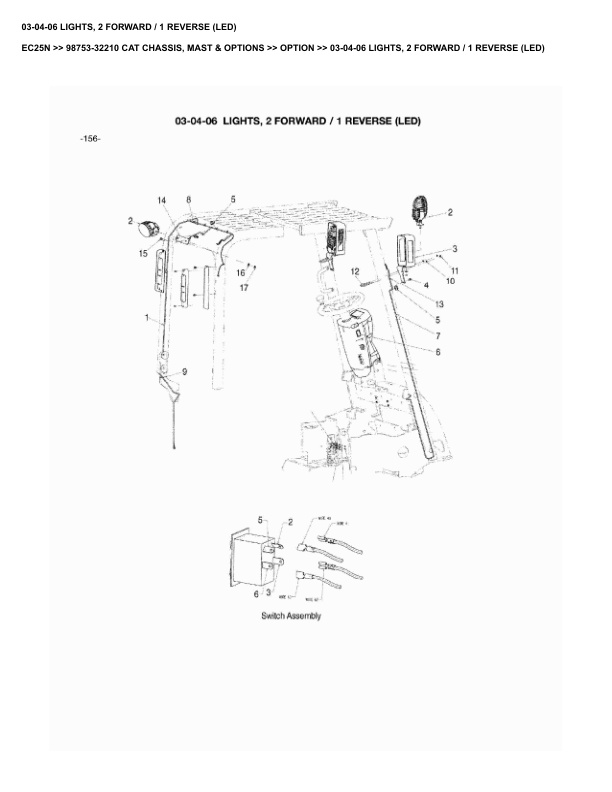

Caterpillar EC25N Parts Manual 98753-32210 - Image 4

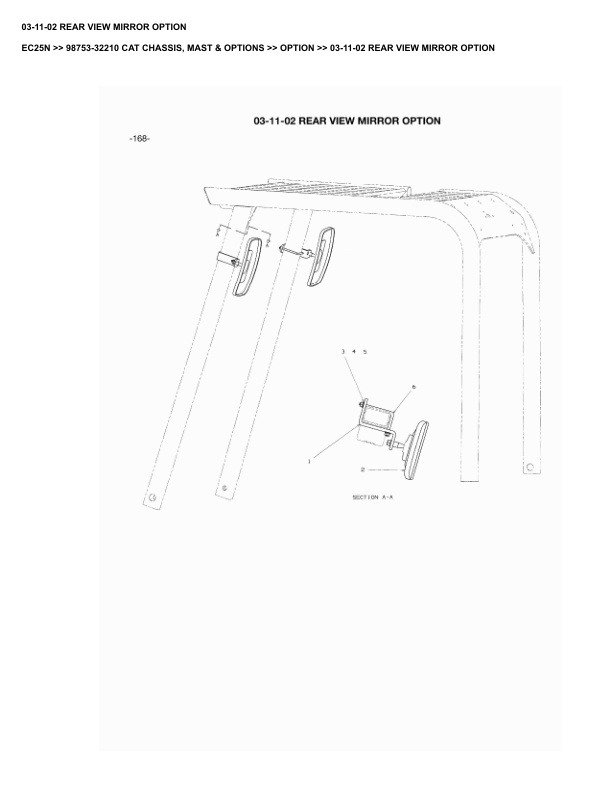

Caterpillar EC25N Parts Manual 98753-32210 - Image 5

caterpillar ec25n parts manual 98753 32210 2

caterpillar ec25n parts manual 98753 32210 3

Caterpillar EC25N Parts Manual 98753-32210

$50.00

Type Of Manual: Parts Manual
Book Number: 98753-32210
Information: CAT CHASSIS, MAST – OPTIONS
Number of Pages: 324
Size: 158.7MB
Format: PDF

Category: Caterpillar Part Manual PDF

Model List:
- EC25N

1. _01-04-01 ELECTRICAL SYSTEM 36_48V Spare Parts Catalog.pdf
2. _01-04-02 OPERATOR DISPLAY Spare Parts Catalog.pdf
3. _01-04-03 POWER CABLES Spare Parts Catalog.pdf
4. _01-11-01 FRAME BODY (PART-1) Spare Parts Catalog.pdf
5. _01-11-02 FRAME BODY (PART-2) Spare Parts Catalog.pdf
6. _01-11-03 FRAME BODY (PART-3) Spare Parts Catalog.pdf
7. _01-11-04 BATTERY RETAINER Spare Parts Catalog.pdf
8. _01-11-05 DASH COVER Spare Parts Catalog.pdf
9. _01-11-07 BATTERY BOX Spare Parts Catalog.pdf
10. _01-14-01 SEAT ASSEMBLY (PART-1) Spare Parts Catalog.pdf
11. _01-14-02 SEAT ASSEMBLY (PART-2) Spare Parts Catalog.pdf
12. _01-15-01 HEAD GUARD Spare Parts Catalog.pdf
13. _01-20-01 TRACTION MOTOR 11_ (PART-1) Spare Parts Catalog.pdf
14. _01-20-02 TRACTION MOTOR 11_ (PART-2) Spare Parts Catalog.pdf
15. _01-20-03 HYDRAULIC PUMP MOTOR DC (PART-1) (FOR USE WITH CONTACTOR HYDRAULICS) Spare Parts Catalog.pdf
16. _01-20-04 HYDRAULIC PUMP MOTOR DC (PART-2) (FOR USE WITH CONTACTOR HYDRAULICS) Spare Parts Catalog.pdf
17. _01-20-05 HYDRAULIC PUMP MOTOR-AC (PART-1) (FOR USE WITH TRANSISTOR HYDRAULICS) Spare Parts Catalog.pdf
18. _01-20-06 HYDRAULIC PUMP MOTOR-AC (PART-2) (FOR USE WITH TRANSISTOR HYDRAULICS) Spare Parts Catalog.pdf
19. _01-20-07 POWER STEERING MOTOR (PART-1) Spare Parts Catalog.pdf
20. _01-20-08 POWER STEERING MOTOR (PART-2) Spare Parts Catalog.pdf
21. _01-22-01 TRACTION INVERTER (PART-1) Spare Parts Catalog.pdf
22. _01-22-02 TRACTION INVERTER (PART-2) Spare Parts Catalog.pdf
23. _01-22-03 PUMP INVERTER (PART-1) (FOR USE WITH TRANSISTOR HYDRAULICS) Spare Parts Catalog.pdf
24. _01-22-04 PUMP INVERTER (PART-2) (FOR USE WITH TRANSISTOR HYDRAULICS) Spare Parts Catalog.pdf
25. _01-22-05 LOGICS UNIT Spare Parts Catalog.pdf
26. _01-22-06 CONTACTOR PANEL (PART-1) (FOR USE WITH CONTACTOR HYDRAULICS) Spare Parts Catalog.pdf
27. _01-22-07 CONTACTOR PANEL (PART-2) (FOR USE WITH CONTACTOR HYDRAULICS) Spare Parts Catalog.pdf
28. _01-22-08 CONTACTOR PANELS (PART-1) (FOR USE WITH TRANSISTOR HYDRAULICS) Spare Parts Catalog.pdf
29. _01-22-09 CONTACTOR PANEL (PART-2) (FOR USE WITH TRANSISTOR HYDRAULICS) Spare Parts Catalog.pdf
30. _01-22-10 STEERING CONTACTOR (FOR USE WITH CONTACTOR AND TRANSISTOR HYDRAULICS) Spare Parts Catalog.pdf
31. _01-22-11 LINE CONTACTOR (FOR USE WITH CONTACTOR AND TRANSISTOR HYDRAULICS) Spare Parts Catalog.pdf
32. _01-22-12 PUMP CONTACTOR (FOR USE WITH CONTACTOR HYDRAULICS) Spare Parts Catalog.pdf
33. _01-32-01 TRANSFER ASSY Spare Parts Catalog.pdf
34. _01-32-02 REDUCTION DIFFERENTIAL Spare Parts Catalog.pdf
35. _01-32-03 FRONT AXLE (PART-1) Spare Parts Catalog.pdf
36. _01-32-04 FRONT AXLE (PART 2) Spare Parts Catalog.pdf
37. _01-43-01 REAR AXLE Spare Parts Catalog.pdf
38. _01-43-02 STEERING CYLINDER Spare Parts Catalog.pdf
39. _01-45-01 REAR TIRE Spare Parts Catalog.pdf
40. _01-47-01 WHEEL BRAKE PIPING Spare Parts Catalog.pdf
41. _01-47-02 WHEEL BRAKE ASSEMBLY Spare Parts Catalog.pdf
42. _01-47-03 MASTER CYLINDER Spare Parts Catalog.pdf
43. _01-51-01 PARKING BRAKE Spare Parts Catalog.pdf
44. _01-52-01 ACCELERATOR PEDAL Spare Parts Catalog.pdf
45. _01-54-01 STEERING CONTROL Spare Parts Catalog.pdf
46. _01-54-02 STEERING WHEEL ASSY Spare Parts Catalog.pdf
47. _01-71-01 HYDRAULIC PUMPS Spare Parts Catalog.pdf
48. _01-72-01 HYDRAULIC CONTROL – 3V Spare Parts Catalog.pdf
49. _01-72-02 HYDRAULIC CONTROL VALVE-3V Spare Parts Catalog.pdf
50. _01-72-03 HYDRAULIC LEVER ASSY -3V Spare Parts Catalog.pdf
51. _01-74-01 HYDRAULIC TANK Spare Parts Catalog.pdf
52. _01-75-01 HYDRAULIC LINES (PART-1) Spare Parts Catalog.pdf
53. _01-75-02 HYDRAULIC LINES (PART-2) Spare Parts Catalog.pdf
54. _01-75-03 HYDRAULIC LINES (PART-3) Spare Parts Catalog.pdf
55. _01-81-01 NAME PLATE Spare Parts Catalog.pdf
56. _02-01-01 LIFT BRACKET COMMON PARTS Spare Parts Catalog.pdf
57. _02-01-02 LIFT BRACKET BACKREST Spare Parts Catalog.pdf
58. _02-04-01 TILT CYLINDER (L.H.) Spare Parts Catalog.pdf
59. _02-04-02 TILT CYLINDER (R.H.) Spare Parts Catalog.pdf
60. _02-06-01 FORK Spare Parts Catalog.pdf
61. _02-10-01 MAST COMMON PARTS (PART-1) (FOR SIMPLEX MAST) Spare Parts Catalog.pdf
62. _02-10-02 MAST COMMON PARTS (PART-2) (FOR SIMPLEX MAST) Spare Parts Catalog.pdf
63. _02-10-03 MAST COMMON PARTS (PART-1) (FOR TRIPLEX MAST) Spare Parts Catalog.pdf
64. _02-10-04 MAST COMMON PARTS (PART-2) (FOR TRIPLEX MAST) Spare Parts Catalog.pdf
65. _02-10-05 MAST COMMON PARTS (PART-3) (FOR TRIPLEX MAST) Spare Parts Catalog.pdf
66. _02-10-06 MAST COMMON PARTS (PART-4) (FOR TRIPLEX MAST) Spare Parts Catalog.pdf
67. _02-10-07 MAST COMMON PARTS (PART-1) (FOR DUPLEX MAST) Spare Parts Catalog.pdf
68. _02-10-08 MAST COMMON PARTS (PART-2) (FOR DUPLEX MAST) Spare Parts Catalog.pdf
69. _02-10-09 MAST COMMON PARTS (PART-3) (FOR DUPLEX MAST) Spare Parts Catalog.pdf
70. _02-18-01 DUPLEX MAST MODEL 3B30C28-40 Spare Parts Catalog.pdf
71. _02-18-02 LIFT CYLINDER (1ST) (FOR 3B30C28-40) Spare Parts Catalog.pdf
72. _02-18-03 LIFT CYLINDER (2ND) (FOR 3B25C28-40) Spare Parts Catalog.pdf
73. _02-20-01 TRIPLEX MAST MODEL 3C25C40-60 Spare Parts Catalog.pdf
74. _02-20-02 LIFT CYLINDER (1ST) (FOR 3C25C40-60) Spare Parts Catalog.pdf
75. _02-20-03 LIFT CYLINDER (2ND) (FOR 3C25C40-60) Spare Parts Catalog.pdf
76. _02-60-01 SIMPLEX MAST MODEL 3A25B20-41 Spare Parts Catalog.pdf
77. _02-60-02 LIFT CYLINDER (FOR 3A25B20-41) Spare Parts Catalog.pdf
78. _03-04-01 HEADLIGHTS, 2 FWD (HALOGEN) Spare Parts Catalog.pdf
79. _03-04-02 HEADLIGHTS, 2 FWD 1 REV (HALOGEN) Spare Parts Catalog.pdf
80. _03-04-03 2 FWD_1 REAR LIGHTS WITH TAIL LIGHTS (HALOGEN) Spare Parts Catalog.pdf
81. _03-04-04 12V LAMP Spare Parts Catalog.pdf
82. _03-04-05 LIGHTS, 2 FORWARD (LED) Spare Parts Catalog.pdf
83. _03-04-06 LIGHTS, 2 FORWARD _ 1 REVERSE (LED) Spare Parts Catalog.pdf
84. _03-04-07 LIGHTS, 2 FORWARD _ 1 REVERSE TAILLIGHTS (LED) Spare Parts Catalog.pdf
85. _03-04-08 STROBE LAMPS Spare Parts Catalog.pdf
86. _03-04-09 BACKUP BUZZER OPTION Spare Parts Catalog.pdf
87. _03-04-10 DC_DC CONVERTER HI-OUTPUT (200 AMP) Spare Parts Catalog.pdf
88. _03-11-01 BATTERY SLIDE OPTION Spare Parts Catalog.pdf
89. _03-11-02 REAR VIEW MIRROR OPTION Spare Parts Catalog.pdf
90. _03-11-03 DRAW BAR PIN OPTION Spare Parts Catalog.pdf
91. _03-11-04 FIRE EXTINGUISHER OPTION Spare Parts Catalog.pdf
92. _03-14-01 OPTIONAL SEATS Spare Parts Catalog.pdf
93. _03-14-02 SEMI-SUSPENSION SEAT Spare Parts Catalog.pdf
94. _03-15-01 CLIPBOARD HOLDER Spare Parts Catalog.pdf
95. _03-20-01 COVERED MOTOR OPTION Spare Parts Catalog.pdf
96. _03-20-02 SEAT OPERATED PARK BRAKE (SOPB) Spare Parts Catalog.pdf
97. _03-20-03 TRACTION MOTOR 11_ (FOR USE WITH SEAT OPERATED PARK BRAKE) Spare Parts Catalog.pdf
98. _03-20-04 ELECTRO MAGNETIC BRAKE Spare Parts Catalog.pdf
99. _03-33-01 WIDE AXLE OPTION Spare Parts Catalog.pdf
100. _03-33-02 SEMI-WIDE AXLE OPTION OPTIONAL DRIVE TIRES Spare Parts Catalog.pdf
101. _03-45-01 OPTIONAL STEER TIRES Spare Parts Catalog.pdf
102. _03-51-01 FOOT DIRECTIONAL CONTROL Spare Parts Catalog.pdf
103. _03-72-01 HYDRAULIC CONTROL VALVE-4V (CONVERSION KIT, 3V TO 4V) Spare Parts Catalog.pdf
104. _03-72-02 HYDRAULIC CONTROL VALVE-4V Spare Parts Catalog.pdf
105. _03-72-03 HYDRAULIC CONTROL VALVE-4V (CONVERSION KIT, 3V TO 4V) Spare Parts Catalog.pdf
106. _03-76-01 TC1510 INSTALLATION GROUP – 1 FUNCTION CASCADE MAST 9040105013 Spare Parts Catalog.pdf
107. _03-76-02 TC1510 INSTALLATION GROUP – 2 FUNCTION MAST 9040105014 Spare Parts Catalog.pdf
108. _03-76-03 TC1520 INSTALLATION GROUP – 1 FUNCTION CASCADE MAST 9040105013 Spare Parts Catalog.pdf
109. _03-76-04 TC1520 INSTALLATION GROUP – 2 FUNCTION MAST 9040105014 Spare Parts Catalog.pdf
110. _03-76-05 TC1530 INSTALLATION GROUP – 1 FUNCTION CASCADE MAST 9040105013 Spare Parts Catalog.pdf
111. _03-76-06 TC1530 INSTALLATION GROUP – 2 FUNCTION MAST 9040105014 Spare Parts Catalog.pdf
112. _03-81-01 SPANISH LANGUAGE LABELS Spare Parts Catalog.pdf
113. _03-81-02 FRENCH LANGUAGE LABELS Spare Parts Catalog.pdf
114. _03-81-03 PORTUGUESE LANGUAGE LABELS Spare Parts Catalog.pdf
