Caterpillar GPE15ZN Parts Manual 98717-87110

Caterpillar GPE15ZN Parts Manual 98717-87110 - Image 2

Caterpillar GPE15ZN Parts Manual 98717-87110 - Image 3

Caterpillar GPE15ZN Parts Manual 98717-87110 - Image 4

Caterpillar GPE15ZN Parts Manual 98717-87110 - Image 5

caterpillar gpe15zn parts manual 98717 87110 2

caterpillar gpe15zn parts manual 98717 87110 3

Caterpillar GPE15ZN Parts Manual 98717-87110

$50.00

Type Of Manual: Parts Manual
Book Number: 98717-87110
Information: CAT ATTACHMENT (D-MAST) (2008-)
Number of Pages: 432
Size: 143.5MB
Format: PDF

Category: Caterpillar Part Manual PDF

All Product (4091)
- CAT (4091)
  - Articulated Dump Truck (55)
    - Articulated Dump Truck (55)
    - CAT (55)
  - Asphalt (93)
    - Asphalt (93)
    - CAT (93)
  - Compactor (20)
    - CAT (20)
    - Compactor (20)
  - Dozer (712)
    - Articulated Dump Truck (1)
    - CAT (712)
    - Dozer (709)
    - Engine (2)
  - Engine (873)
    - CAT (873)
    - Engine (873)
  - Excavator (1203)
    - CAT (1203)
    - Excavator (1203)
  - Forklift (11)
    - CAT (11)
    - Forklift (11)
  - Loader (654)
    - CAT (654)
    - Loader (654)
      - CAT (0)
      - Loader (0)
  - Motor Grader (228)
    - CAT (228)
    - Motor Grader (228)
  - Scraper (90)
    - CAT (90)
    - Scraper (90)
  - Skidder (17)
    - CAT (17)
    - Skidder (10)
    - Skidsteer (7)
  - Skidsteer (106)
    - CAT (106)
    - Skidsteer (106)
  - Telehandler (29)
    - CAT (29)
    - Telehandler (29)
Caterpillar (568)
- Caterpillar Part Manual PDF (568)
Linkbelt (17)
- Linkbelt (17)
Toro (17)
- Toro (17)

Model List:
- GPE15ZN

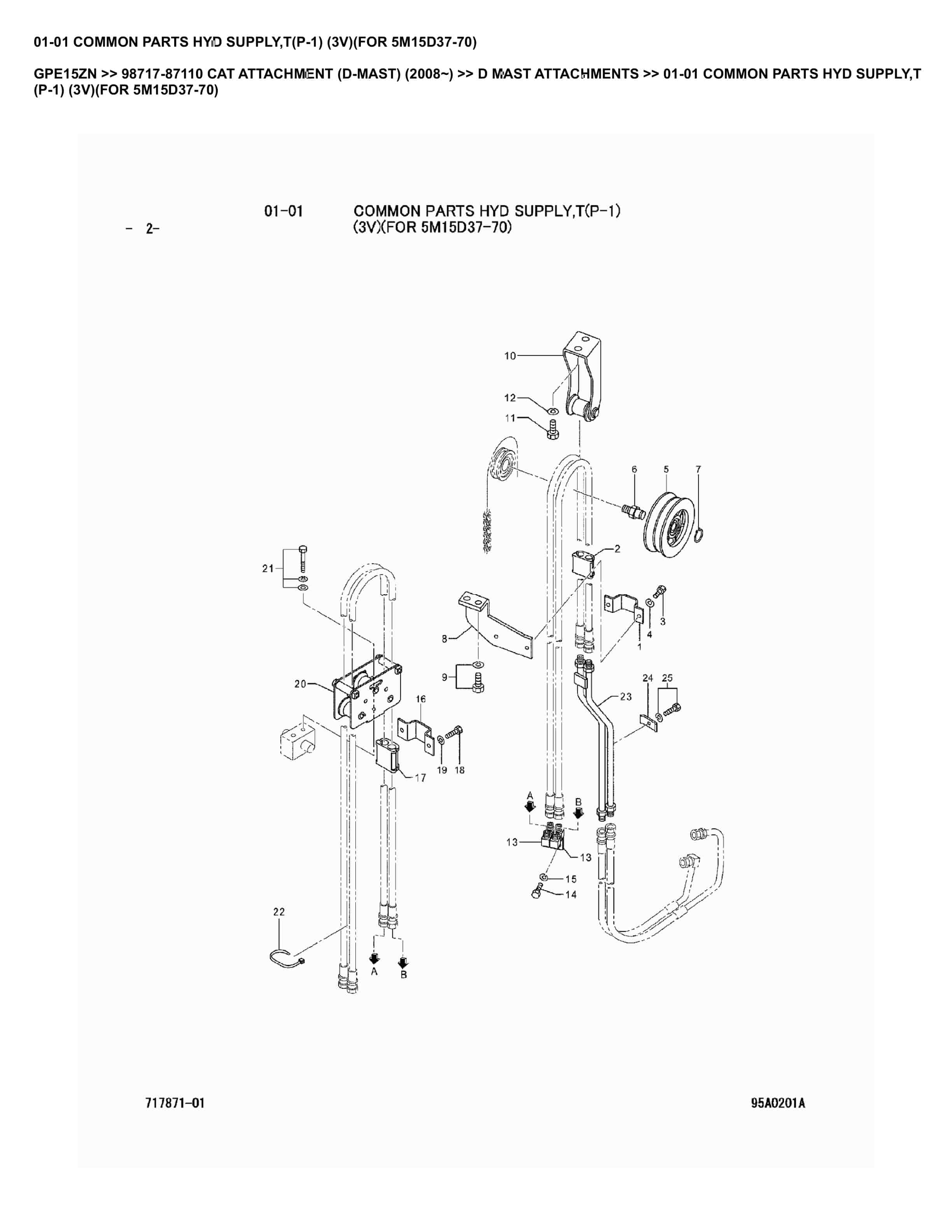

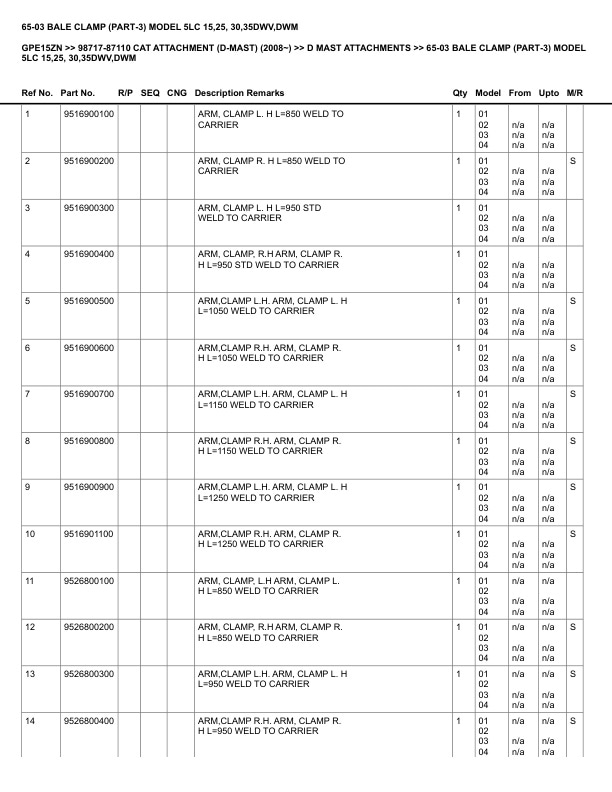

1. _01-01 COMMON PARTS HYD SUPPLY,T(P-1) (3V)(FOR 5M15D37-70) Spare Parts Catalog.pdf
2. _01-02 COMMON PARTS HYD SUPPLY,T(P-2) (3V)(5M25D-35D37-70) Spare Parts Catalog.pdf
3. _01-03 HOSE INTERNAL HOSING (PART-1) (3V)(FOR 5M15D37-70) Spare Parts Catalog.pdf
4. _01-04 HOSE INTERNAL HOSING (PART-2) (3V)(FOR 5M25D37-70) Spare Parts Catalog.pdf
5. _01-05 HOSE INTERNAL HOSING (PART-3) (3V)(FOR 5M30D37-70) Spare Parts Catalog.pdf
6. _01-06 HOSE INTERNAL HOSING (PART-4) (3V)(FOR 5M35D37-70) Spare Parts Catalog.pdf
7. _01-07 HOSE FROM C_V (3 VALVES) (FOR 5M15D-35D37-70) Spare Parts Catalog.pdf
8. _01-08 CONNECTOR (3 VALVES) (FOR 5M15D-35D37-70) Spare Parts Catalog.pdf
9. _01-09 COMMON PARTS HYD SUPPLY, T(P-1) (4V)(FOR 5M15D37-70) Spare Parts Catalog.pdf
10. _01-10 COMMON PARTS HYD SUPPLY,T(P-2) (4V)(5M25D-35D37-70) Spare Parts Catalog.pdf
11. _01-11 HOSE INTERNAL HOSING (PART-1) (4V)(FOR 5M15D37-70) Spare Parts Catalog.pdf
12. _01-12 HOSE INTERNAL HOSING (PART-2) (4V)(FOR 5M25D37-70) Spare Parts Catalog.pdf
13. _01-13 HOSE INTERNAL HOSING (PART-3) (4V)(FOR 5M30D37-70) Spare Parts Catalog.pdf
14. _01-14 HOSE INTERNAL HOSING (PART-4) (4V)(FOR 5M35D37-70) Spare Parts Catalog.pdf
15. _01-15 HOSE FROM C_V (4 VALVES) (FOR 5M15D-35D37-70) Spare Parts Catalog.pdf
16. _01-16 CONNECTOR (4 VALVES) (FOR 5M15D-35D37-70) Spare Parts Catalog.pdf
17. _01-17 COMMON PARTS HYD SUPPLY,T(P-1) (5V)(5M25D-35D37-70) Spare Parts Catalog.pdf
18. _01-18 COMMON PARTS HYD SUPPLY,T(P-2) (5V)(FOR 5M25D37-70) Spare Parts Catalog.pdf
19. _01-19 COMMON PARTS HYD SUPPLY,T(P-3) (5V)(5M30D-35D37-70) Spare Parts Catalog.pdf
20. _01-20 HOSE INTERNAL HOSING (PART-1) (5V)(FOR 5M25D37-70) Spare Parts Catalog.pdf
21. _01-21 HOSE INTERNAL HOSING (PART-2) (5V)(FOR 5M30D37-70) Spare Parts Catalog.pdf
22. _01-22 HOSE INTERNAL HOSING (PART-3) (5V)(FOR 5M35D37-70) Spare Parts Catalog.pdf
23. _01-23 HOSE H_R (PART-1) (5 VALVES) (FOR 5M25D37-70) Spare Parts Catalog.pdf
24. _01-24 HOSE H_R (PART-2) (5 VALVES) (FOR 5M30D37-70) Spare Parts Catalog.pdf
25. _01-25 HOSE H_R (PART-3) (5 VALVES) (FOR 5M35D37-70) Spare Parts Catalog.pdf
26. _01-26 HOSE REEL R.H. (5 VALVES) (FOR 5M25D-35D37-70) Spare Parts Catalog.pdf
27. _01-27 HOSE FROM C_V (5 VALVES) (FOR 5M25D-35D37-70) Spare Parts Catalog.pdf
28. _01-28 CONNECTOR (5 VALVES) (FOR 5M25D-35D37-70) Spare Parts Catalog.pdf
29. _02-01 COMMON PARTS HYD SUPPLY, S(P-1)(3V)(FOR 5V15D26-60) Spare Parts Catalog.pdf
30. _02-02 COMMON PARTS HYD SUPPLY, S(P-2)(3V)(5V25D-35D26-60) Spare Parts Catalog.pdf
31. _02-03 HOSE INTERNAL HOSING (PART-1) (3V)(FOR 5V15D26-60) Spare Parts Catalog.pdf
32. _02-04 HOSE INTERNAL HOSING (PART-2) (3V)(FOR 5V25D26-60) Spare Parts Catalog.pdf
33. _02-05 HOSE INTERNAL HOSING (PART-3) (3V)(FOR 5V30D30-60) Spare Parts Catalog.pdf
34. _02-06 HOSE INTERNAL HOSING (PART-4) (3V)(FOR 5V35D30-60) Spare Parts Catalog.pdf
35. _02-07 HOSE FROM C_V (3 VALVES) (FOR 5V15D-35D26-60) Spare Parts Catalog.pdf
36. _02-08 CONNECTOR (3 VALVES) (FOR 5V15D-35D26-60) Spare Parts Catalog.pdf
37. _02-09 COMMON PARTS HYD SUPPLY,S(P-1) (4V)(FOR 5V15D26-60) Spare Parts Catalog.pdf
38. _02-10 COMMON PARTS HYD SUPPLY,S(P-2) (4V)(FOR 5V25D26-60) Spare Parts Catalog.pdf
39. _02-11 COMMON PARTS HYD SUPPLY,S(P-3) (4V)(5V30D-35D30-60) Spare Parts Catalog.pdf
40. _02-12 HOSE INTERNAL HOSING (PART-1) (4V)(FOR 5V15D26-60) Spare Parts Catalog.pdf
41. _02-13 HOSE INTERNAL HOSING (PART-2) (4V)(FOR 5V25D26-60) Spare Parts Catalog.pdf
42. _02-14 HOSE INTERNAL HOSING (PART-3) (4V)(FOR 5V30D30-60) Spare Parts Catalog.pdf
43. _02-15 HOSE INTERNAL HOSING (PART-4) (4V)(FOR 5V35D30-60) Spare Parts Catalog.pdf
44. _02-16 HOSE FROM C_V (4 VALVES) (FOR 5V15D-35D26-60) Spare Parts Catalog.pdf
45. _02-17 CONNECTOR (4 VALVES) (FOR 5V15D-35D26-60) Spare Parts Catalog.pdf
46. _02-18 COMMON PARTS HYD SUPPLY,S(P-1) (5V)(FOR 5V25D26-60) Spare Parts Catalog.pdf
47. _02-19 COMMON PARTS HYD SUPPLY,S(P-2) (5V)(5V30D-35D30-60) Spare Parts Catalog.pdf
48. _02-20 HOSE INTERNAL HOSING (PART-1) (5V)(FOR 5V25D26-60) Spare Parts Catalog.pdf
49. _02-21 HOSE INTERNAL HOSING (PART-2) (5V)(FOR 5V30D30-60) Spare Parts Catalog.pdf
50. _02-22 HOSE INTERNAL HOSING (PART-3) (5V)(FOR 5V35D30-60) Spare Parts Catalog.pdf
51. _02-23 HOSE S_P (PART-1) (5 VALVES) (FOR 5V25D26-60) Spare Parts Catalog.pdf
52. _02-24 HOSE S_P (PART-2) (5 VALVES) (FOR 5V30D30-60) Spare Parts Catalog.pdf
53. _02-25 HOSE S_P (PART-3) (5 VALVES) (FOR 5V35D30-60) Spare Parts Catalog.pdf
54. _02-26 HOSE FROM C_V (5 VALVES) (FOR 5V25D-35D26-60) Spare Parts Catalog.pdf
55. _02-27 CONNECTOR (5 VALVES) (FOR 5V25D-35D26-60) Spare Parts Catalog.pdf
56. _31-01 HINGED FORK(PART-1)MODEL 5HF15 25,30,35DV,DM,DF Spare Parts Catalog.pdf
57. _31-02 HINGED FORK(PART-2)MODEL 5HF15 25,30,35DV,DM,DF Spare Parts Catalog.pdf
58. _31-03 HINGED FORK(PART-3)MODEL 5HF15 25,30,35DV,DM,DF Spare Parts Catalog.pdf
59. _31-04 HINGED FORK CYLINDER (PART-4) 5HF15DV,DM,DF Spare Parts Catalog.pdf
60. _31-05 HINGED FORK CYLINDER (PART-4) 5HF25,30,35DV,DM,DF Spare Parts Catalog.pdf
61. _31-06 HINGED FORK COMMON PARTS 5HF15,25,30,35DV,DM,DF Spare Parts Catalog.pdf
62. _31-07 FORK 5HF15-35DV,DM,DF Spare Parts Catalog.pdf
63. _33-01 PANORAMA HINGED FORK (PART-1) MODEL 5BPHF15-35DV Spare Parts Catalog.pdf
64. _33-02 PANORAMA HINGED FORK (PART-2) MODEL 5BPHF15-35DV Spare Parts Catalog.pdf
65. _33-03 HINGED FORK CYLINDER (PART-3) 5BPHF15-35DV Spare Parts Catalog.pdf
66. _33-04 HINGED FORK C_P 5BPHF15-35DV Spare Parts Catalog.pdf
67. _33-05 FORK 5BPHF15-35DV Spare Parts Catalog.pdf
68. _41-01 SIDE SHIFTER (PART-1) MODEL 5SS15-35DV Spare Parts Catalog.pdf

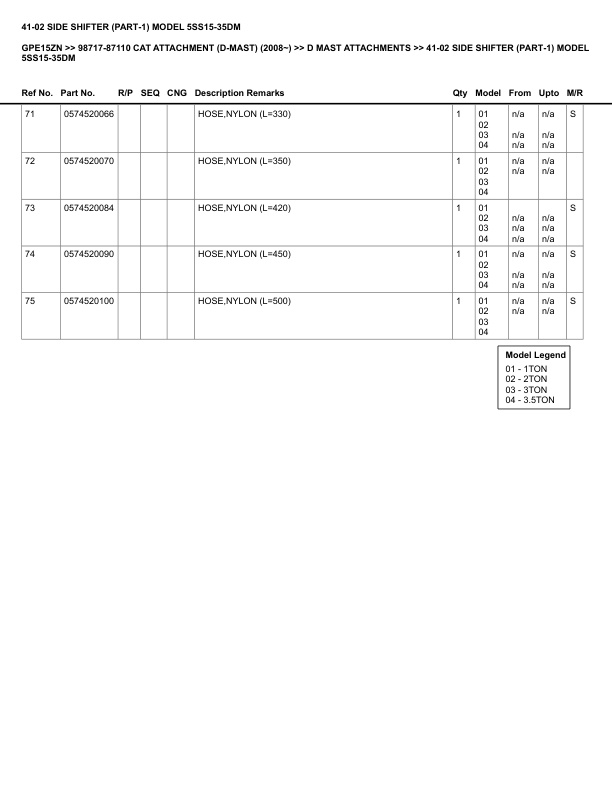

69. _41-02 SIDE SHIFTER (PART-1) MODEL 5SS15-35DM Spare Parts Catalog.pdf
70. _41-03 SIDE SHIFTER (PART-1) MODEL 5SS15-35DF Spare Parts Catalog.pdf
71. _41-04 SIDE SHIFTER CYLINDER (PART-2) 5SS15-35DV,DM,DF Spare Parts Catalog.pdf
72. _41-05 SIDE SHIFTER COMMON PARTS 5SS15-35DV,DM,DF Spare Parts Catalog.pdf
73. _41-06 LIFT BRACKET C_P 5SS15-35DV,DM,DF Spare Parts Catalog.pdf
74. _45-01 FORK POSITIONER (PART-1) MODEL 5HFP15,25,30,35DV Spare Parts Catalog.pdf
75. _45-02 FORK POSITIONER (PART-2) MODEL 5HFP15,25,30,35DV Spare Parts Catalog.pdf
76. _45-03 F_P CYLINDER (PART-3) 5HFP15,25,30,35DV Spare Parts Catalog.pdf
77. _45-04 FORK POSITIONER (PART-1) MODEL 5HFP15,25,30,35DM Spare Parts Catalog.pdf
78. _45-05 FORK POSITIONER (PART-2) MODEL 5HFP15,25,30,35DM Spare Parts Catalog.pdf
79. _45-06 FORK POSITIONER (PART-1) MODEL 5HFP15,25,30,35DF Spare Parts Catalog.pdf
80. _45-07 FORK POSITIONER (PART-2) MODEL 5HFP15,25,30,35DF Spare Parts Catalog.pdf
81. _45-08 F_P CYLINDER (PART-3) 5HFP15,25,30,35DM,DF Spare Parts Catalog.pdf
82. _45-09 FORK POSITIONER C_P 5HFP15-35DV,DM,DF Spare Parts Catalog.pdf
83. _45-10 LIFT BRACKET COMMON PARTS 5HFP15-35DV,DM,DF Spare Parts Catalog.pdf
84. _45-11 FORK 5HFP15-35DV,DM,DF Spare Parts Catalog.pdf
85. _46-01 FORK POSITIONER MODEL 5MFP15,25,30,35DV Spare Parts Catalog.pdf
86. _46-02 FORK POSITIONER C_P 5MFP15,25,30,35DV Spare Parts Catalog.pdf
87. _46-03 LIFT BRACKET COMMON PARTS 5MFP15,25,30,35DV Spare Parts Catalog.pdf
88. _46-04 FORK 5MFP15,25,30,35DV Spare Parts Catalog.pdf

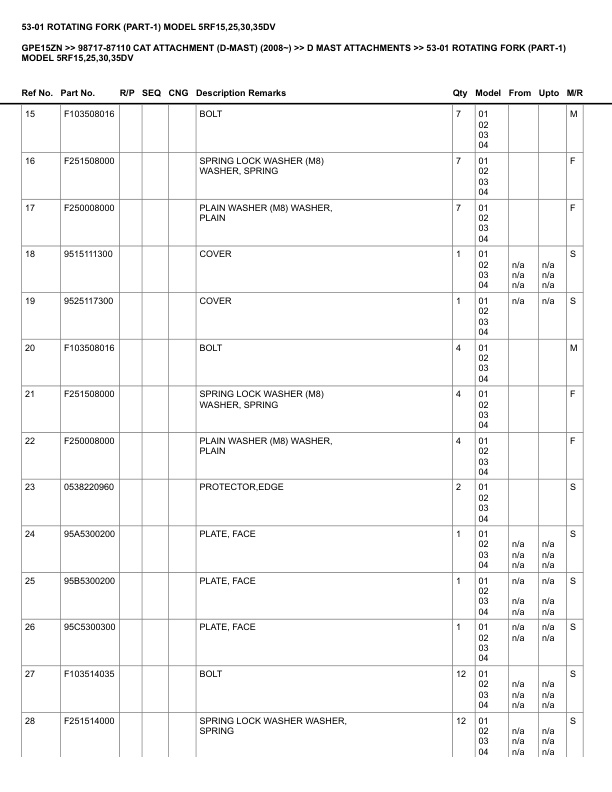

89. _53-01 ROTATING FORK (PART-1) MODEL 5RF15,25,30,35DV Spare Parts Catalog.pdf
90. _53-02 ROTATING FORK (PART-2) MODEL 5RF15,25,30,35DV Spare Parts Catalog.pdf
91. _53-03 ROTATING FORK (PART-3) MODEL 5RF15,25,30,35DV Spare Parts Catalog.pdf
92. _53-04 ROTATING FORK (PART-4) MODEL 5RF15,25,30,35DV Spare Parts Catalog.pdf
93. _53-05 ROTATING FORK COMMON PARTS 5RF15,25,30,35DV Spare Parts Catalog.pdf
94. _53-06 LIFT BRACKET COMMON PARTS 5RF15,25,30,35DV Spare Parts Catalog.pdf
95. _53-07 FORK 5RF15,25,30,35DV Spare Parts Catalog.pdf
96. _65-01 BALE CLAMP (PART-1) MODEL 5LC15,25,30,35DWV,DWM Spare Parts Catalog.pdf
97. _65-02 BALE CLAMP (PART-2) MODEL 5LC 15,25, 30,35DWV,DWM Spare Parts Catalog.pdf
98. _65-03 BALE CLAMP (PART-3) MODEL 5LC 15,25, 30,35DWV,DWM Spare Parts Catalog.pdf
99. _65-04 BALE CLAMP (PART-4) MODEL 5LC 15,25, 30,35DWV,DWM Spare Parts Catalog.pdf
100. _65-05 BALE CLAMP CYLINDER(PART-5)5LC 15,25, 30,35DWV,DWM Spare Parts Catalog.pdf
101. _65-06 BALE CLAMP COMMON PARTS 5LC15, 25,30,35DWV,DWM Spare Parts Catalog.pdf

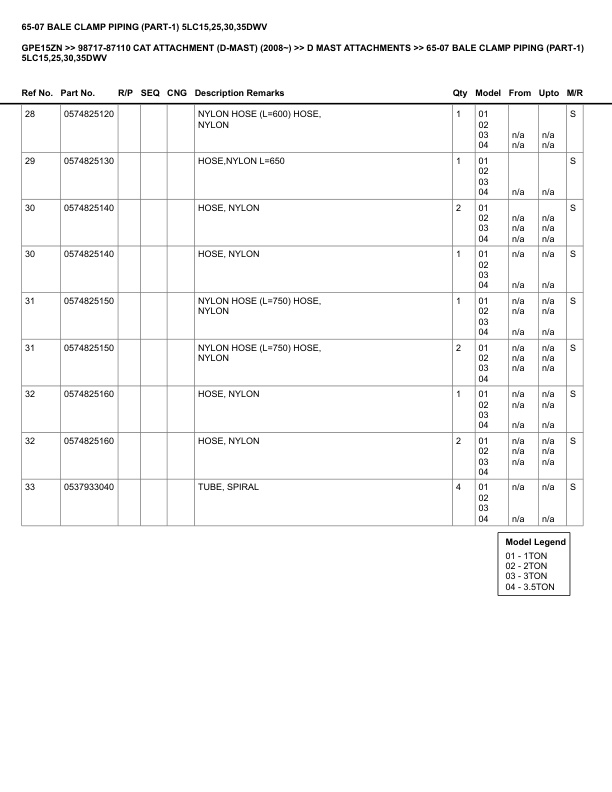

102. _65-07 BALE CLAMP PIPING (PART-1) 5LC15,25,30,35DWV Spare Parts Catalog.pdf
103. _65-08 BALE CLAMP PIPING (PART-1) 5LC15,25,30,35DWM Spare Parts Catalog.pdf
104. _65-09 BALE CLAMP PIPING (PART-2) 5LC15,25,30,35DWV,QC Spare Parts Catalog.pdf
105. _65-10 BALE CLAMP PIPING (PART-2) 5LC15,25,30,35DWM,QC Spare Parts Catalog.pdf
106. _65-11 BALE CLAMP COMMON PARTS 5LC15, 25,30,35DWV,DWM Spare Parts Catalog.pdf
107. _82-01 RAM LIFT MODEL 5RM15,25,30,35DV Spare Parts Catalog.pdf
108. _82-02 RAM LIFT COMMON PARTS 5RM15,25,30,35DV Spare Parts Catalog.pdf
109. _85-01 LOAD STABILIZER (PART-1) MODEL 5LS15,25DVC Spare Parts Catalog.pdf
110. _85-02 LOAD STABILIZER (PART-2) MODEL 5LS15,25DVC Spare Parts Catalog.pdf
111. _85-03 LOAD STABILIZER C_P 5LS15,25DVC Spare Parts Catalog.pdf
112. _85-04 LIFT BRACKET COMMON PARTS 5LS15,25DVC Spare Parts Catalog.pdf
