Caterpillar NPV25NH Parts Manual

$50.00

Type Of Manual: Parts Manual
Number of Pages: 166
Size: 2.4MB
Format: PDF

Category: Caterpillar Parts Manual PDF

Model List:
- NPV25NH

1. NPV25NH
1.1. BATTERY ROLLER
1.2. KEY SWITCH
1.3. C CASTER WHEEL SINGLE
1.4. C BRAKE
1.5. C DRIVE UNIT
1.6. J EL-PANEL STANDARD WITH CHARGER
1.7. C STEERING UNIT
1.8. A STEERING ARM COMPLETE, STANDARD, CAT
1.9. A STEERING ARM STANDARD/ HEAVY DUTY
1.10. B MANIPULATOR STANDARD, CAT
1.11. D PLATFORM COMPLETE
1.12. B CYLINDER
1.13. C CONTROL UNIT HEAVY DUTY
1.14. C LEVER SYSTEM F/L 1150-1599mm, HEAVY DUTY
1.15. C LOCK QUICK-BATTERY BLOCKING
1.16. J EL-PANEL STANDARD/ HEAVY DUTY, WITHOUT CHARGER
1.17. D ROLLBAR COMPLETE
1.18. C ROLLBAR
1.19. C ROLLBAR
1.20. E FAN HEAVY DUTY
1.21. C ROLLBAR ELECTRICAL STEERING
1.22. C ROLLBAR STANDARD PLATFORM
1.23. A ROLL HOLDER
1.24. C DRIVE UNIT 2,0 kW WITH VULKOLLAN DRIVE WHEEL,HEAVY DUTY

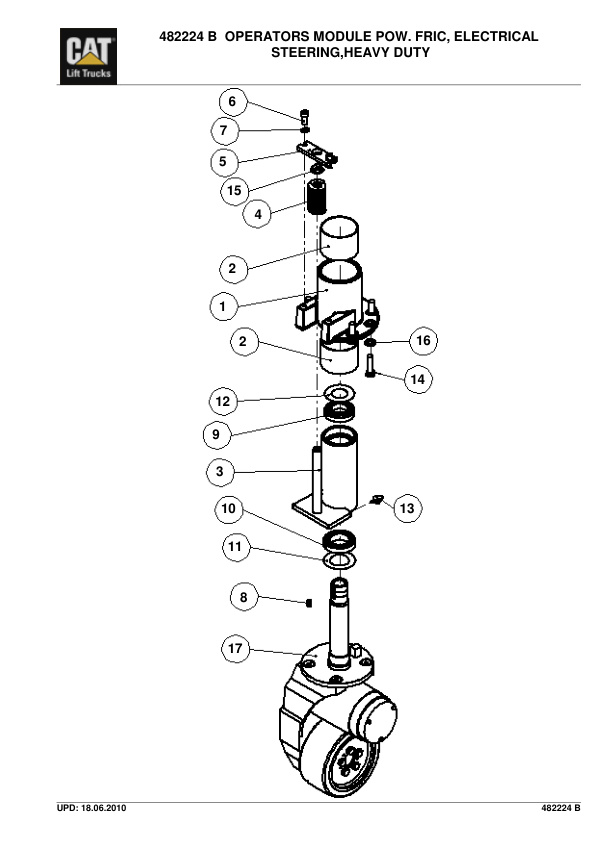

1.25. C OPERATORS MODULE WITH VULKOLLAN DRIVE WHEEL,HEAVY DUTY, CAT
1.26. C PLATFORM WITH SIDE PROTECTIONS
1.27. B HINGE BATTERY COVER, HEAVY DUTY
1.28. C KEY SWITCH COMPLETE
1.29. B CIRCUIT BREAKER COMPLETE, EMERGENCY SWITCH
1.30. E PANEL COMPLETE, CAT

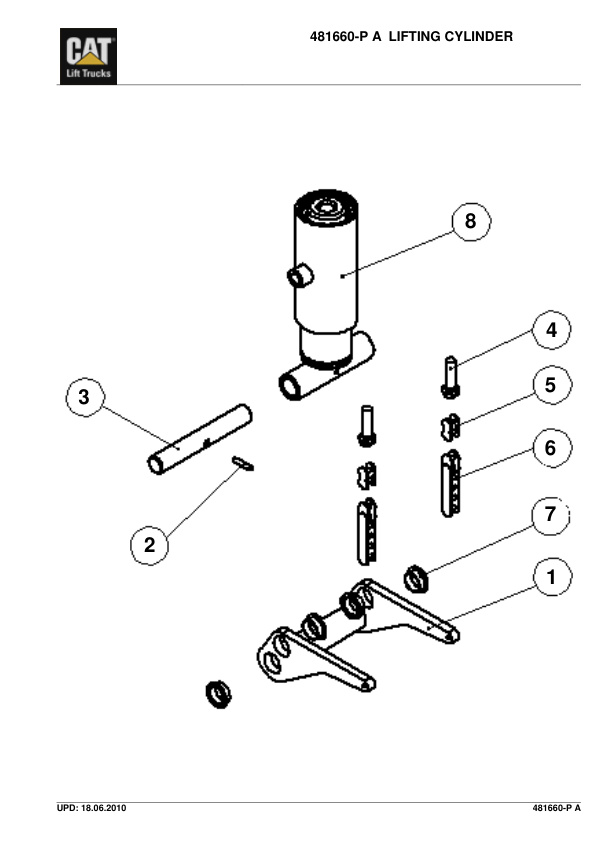

1.31. F LIFTING CYLINDER LOAD SENSOR
1.32. A WIRE SET FOR STEERING ARM
1.33. C BATTERY LATCH QUICK-BATTERY CHANGING
1.34. A FORK CARRIAGE 550X1150mm, COMPLETE, HEAVY DUTY
1.35. C ASSEMBLY BLUETOOTH LOW VOLTAGE
1.36. B ASSEMBLY WITH SIDE PROTECTIONS
1.37. B LOAD SUPPORT HEAVY DUTY
1.38. E CHASSIS HEAVY DUTY, CAT
1.39. B BATTERY COVER HEAVY DUTY, CAT
1.40. B BATTERY COVER SPECIAL COLOUR, HEAVY DUTY
1.41. A ASSEMBLY SPECIAL COLOUR, HEAVY DUTY

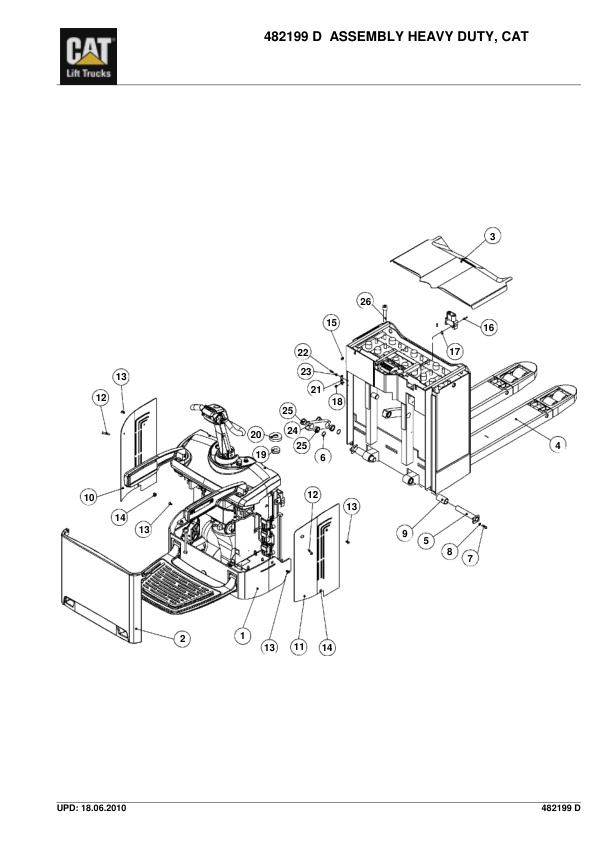

1.42. D ASSEMBLY HEAVY DUTY, CAT
1.43. B DRIVE UNIT VULKOLLAN, ELECTRICAL STEERING
1.44. B OPERATORS MODULE
1.45. C STEERING ARM COMPLETE, ELECTRICAL STEERING, CAT
1.46. A ASSEMBLY ELECTRICAL STEERING, HEAVY DUTY, CAT
1.47. A ASSEMBLY WITH INBUILT CHARGER, EUR
1.48. C PANEL COMPLETE, WITH PIN-CODE UNIT, CAT
1.49. C ACCESSORIES PIN-CODE UNIT, CAT
1.50. A ROLLER CROSS HANDLING, HEAVY DUTY
1.51. B BRACKET COMPLETE BRACKET, RIGHT
1.52. B WARNING LIGHT COMPLETE
1.53. B BRACKET LIST BRACKET
1.54. C ASSEMBLY COMPUTER BRACKET
1.55. B BATTERY CHANGING DEV HEAVY DUTY
1.56. A PRESSURE SWITCH HIGH DRIVING SPEED
1.57. B HYDRAULIC AGGREGATE
1.58. B PUMP
1.59. B LOCK
1.60. B BRACKET
1.61. A STEERING UNIT STEERING ARM MODEL 2007
1.62. A ROLLBAR ASSEMBLY
1.63. TANK
