Caterpillar NSP10N Parts Manual

$50.00

Type Of Manual: Parts Manual
Number of Pages: 96
Size: 1.7MB
Format: PDF

Category: Caterpillar Parts Manual PDF

Model List:
- NSP10N

1. LIFTING CYLINDER 1000kg SIMPLEX MAST
2. B CHAIN YOKE FOR 1000kg DUPLEX MAST
3. A CHAIN YOKE FOR 1000kg SIMPLEX MAST
4. C CASTER WHEEL SINGLE
5. A CIRCUIT BREAKER
6. C BATTERY COVER FOR 1200kg MODEL, CAT
7. C EL-PANEL FOR 1200kg MODEL, STANDARD
8. B BOX FOR INBUILT CHARGER, EL-PANEL
9. A DRIVE UNIT 0,6 kW
10. E HYDRAULIC AGGREGATE FOR 1000kg MODEL
11. B MOTOR 1.5kW, FOR 1000kg MODEL HYDRAULICAGGREGATE
12. B HYDRAULIC AGGREGATE COMPLETE, FOR 1000kgMODEL
13. A MANIPULATOR STANDARD, CAT
14. A DRIVE UNIT 0,6kW, WITH POWER THANE DRIVE TIRE
15. B STEERING ARM STANDARD

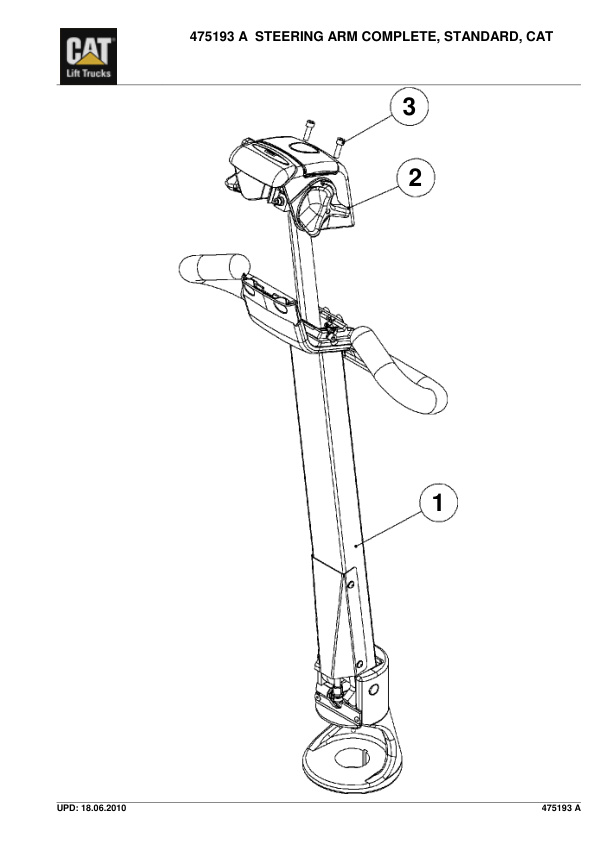

16. A STEERING ARM COMPLETE, STANDARD, CAT
17. A OPERATORS MODULE 1000kg MODEL WITH PWR THANEDRIVE TIRE, CAT
18. C BATTERY CHANGING DEV WITH BRAKE
19. B PANEL STANDARD
20. C ASSEMBLY 1000kg MODEL, CAT
21. A LIFTING CARRIAGE 1000kg MODEL
22. A MAST UNIT 1000kg SIMPLEX

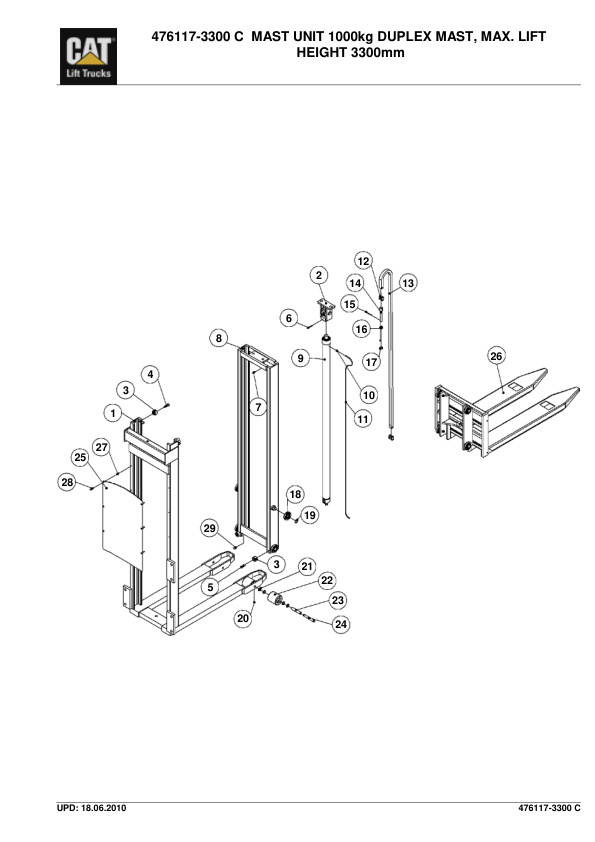

23. C MAST UNIT 1000kg DUPLEX MAST, MAX. LIFTHEIGHT 3300mm

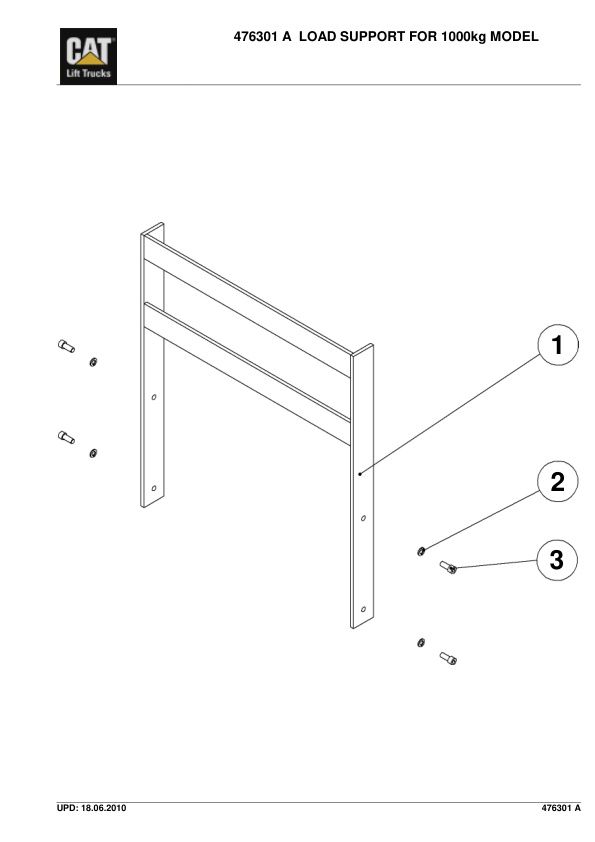

24. A LOAD SUPPORT FOR 1000kg MODEL
25. A LIFTING CYLINDER 1000kg DUPLEX MAST, MAX LIFTHEIGHT 3300mm
26. A LIFTING CARRIAGE
27. A STEERING UNIT STEERING ARM MODEL 2007
28. A PIPE STEERING ARM MODEL 2007, WITHOUT PLATFORM
29. ROLLER
