Caterpillar NSP12N Parts Manual

$50.00

Type Of Manual: Parts Manual
Number of Pages: 84
Size: 1.5MB
Format: PDF

Category: Caterpillar Parts Manual PDF

Model List:
- NSP12N

1. LIFTING CYLINDER 1200/1600kg SIMPLEX MAST
2. LIFTING CYLINDER MIDDLE, DUPLEX SPEC FREELIFT, MLH 4300mm
3. LIFTING CYLINDER DUPLEX MAST, MAX LIFTHEIGHT 4300mm
4. LIFTING CYLINDER SIDE, DUPLEX SPEC FREE LIFT,MLH 4300mm
5. A CHAIN YOKE FOR DUPLEX MAST WITH SIDE SYLINDERS
6. C CASTER WHEEL SINGLE
7. A DRIVE UNIT 0,6kW, WITH VULKOLLAN DRIVE TIRE
8. A CIRCUIT BREAKER
9. A CHAIN YOKE FOR 1200/1600kg SIMPLEX MAST
10. C BATTERY COVER FOR 1200kg MODEL, CAT
11. C EL-PANEL FOR 1200kg MODEL, STANDARD
12. B BOX FOR INBUILT CHARGER, EL-PANEL
13. A DRIVE UNIT 0,6 kW
14. E HYDRAULIC AGGREGATE FOR 1200kg MODEL
15. B MOTOR 2.2kW, FOR 1200kg MODEL HYDRAULICAGGREGATE
16. B HYDRAULIC AGGREGATE COMPLETE, FOR 1200kgMODEL
17. A MANIPULATOR STANDARD, CAT

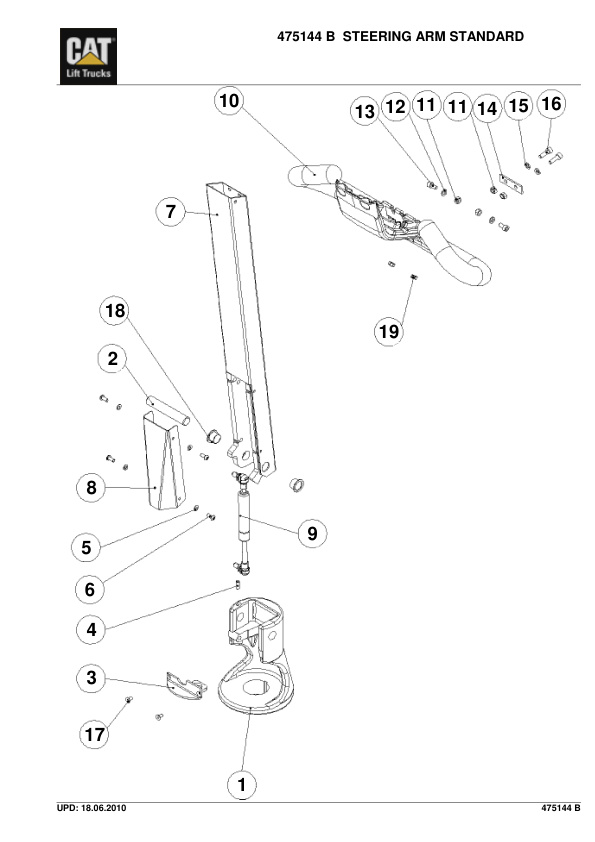

18. B STEERING ARM STANDARD
19. A STEERING ARM COMPLETE, STANDARD, CAT
20. A OPERATORS MODULE 1200kg MODEL WITH VULKOLLANDRIVE TIRE, CAT
21. C BATTERY CHANGING DEV WITH BRAKE
22. A LIFTING CARRIAGE 1200/1600kg SMPLX, 1600kg DPLXMAST, 550X1150mm

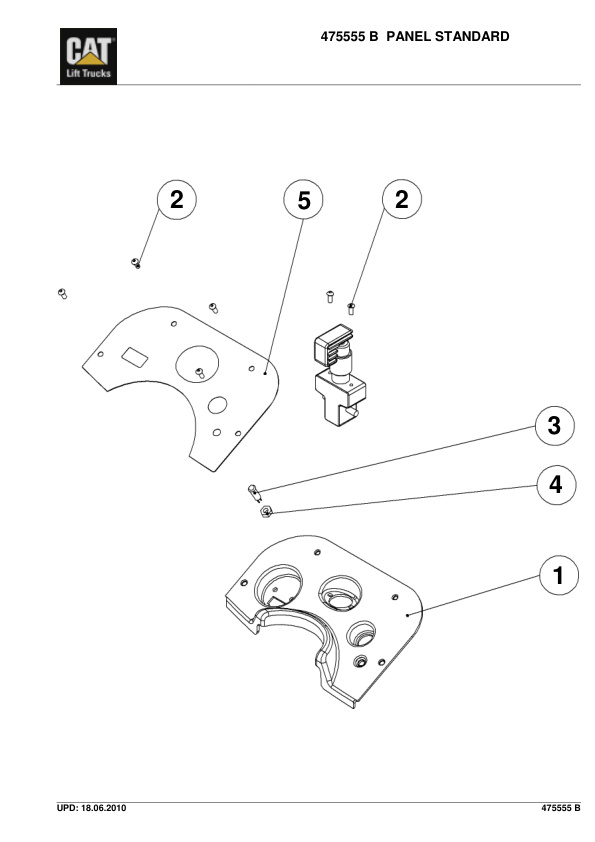

23. B PANEL STANDARD
24. A WHEEL LOAD WHEEL, TANDEM
25. B WHEEL LOAD WHEEL, SINGLE

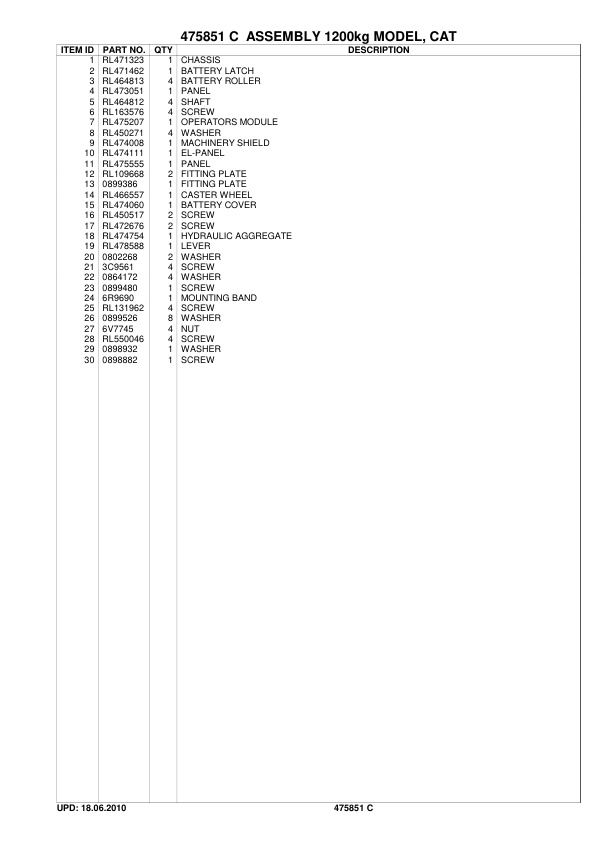

26. C ASSEMBLY 1200kg MODEL, CAT
27. A PLUG ASSY, LEFT SIDE CYLINDER, DUPLEX FREE LIFT

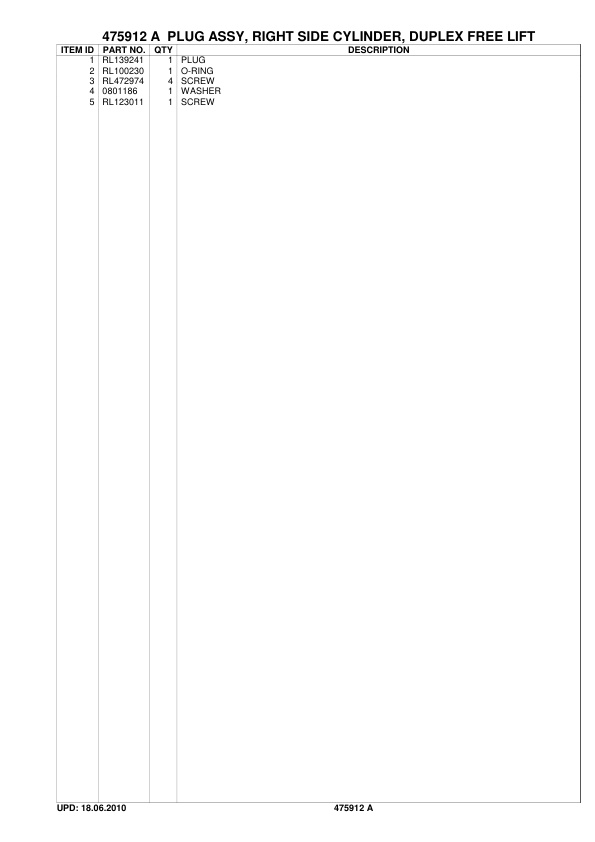

28. A PLUG ASSY, RIGHT SIDE CYLINDER, DUPLEX FREE LIFT
29. B MAST UNIT 1200/1600kg DPLX MLH 4300mm F/D550X1150mm TANDEM
30. A MAST UNIT 1200kg SMPLX, F/D 550X1150mm, SINGLELOAD WHEELS
31. A LOAD SUPPORT FOR 1200kg MODEL
32. B MAST UNIT 1200/1600kg DX SFL MLH 4300mm F/D550X1150mm TNDM
33. A STEERING UNIT STEERING ARM MODEL 2007
34. A PIPE STEERING ARM MODEL 2007, WITHOUT PLATFORM
35. ROLLER
