Caterpillar NSP16N Parts Manual - Image 2

Caterpillar NSP16N Parts Manual - Image 3

Caterpillar NSP16N Parts Manual - Image 4

Caterpillar NSP16N Parts Manual - Image 5

Caterpillar NSP16N Parts Manual

$50.00

Type Of Manual: Parts Manual
Number of Pages: 128
Size: 2.7MB
Format: PDF

Category: Caterpillar Parts Manual PDF

Model List:
- NSP16N

1. LIFTING CYLINDER 1200/1600kg SIMPLEX MAST
2. LIFTING CYLINDER MIDDLE, DUPLEX SPEC FREELIFT, MLH 4300mm
3. LIFTING CYLINDER DUPLEX MAST, MAX LIFTHEIGHT 4300mm
4. LIFTING CYLINDER SIDE, DUPLEX SPEC FREE LIFT,MLH 4300mm
5. LIFTING CYLINDER 1600kg TRIPLEX MAST, MAX LIFTHEIGHT 4100mm
6. LIFTING CYLINDER MIDDLE, 1600kg TRIPLEX SPECFREE LIFT, MLH 4100mm
7. LIFTING CYLINDER LEFT, 1600kg TRIPLEX SPECFREE LIFT, MLH 4100mm
8. LIFTING CYLINDER RIGHT, 1600kg TRIPLEX SPECFREE LIFT, MLH 4100mm
9. A CHAIN YOKE FOR DUPLEX MAST WITH SIDE SYLINDERS
10. C CASTER WHEEL SINGLE
11. C DRIVE UNIT
12. A CIRCUIT BREAKER
13. A DRIVE UNIT VULKOLLAN TIRE
14. E HYDRAULIC AGGREGATE FOR 1600kg MODEL
15. B MOTOR 3kW, FOR 1600kg MODEL HYDRAULICAGGREGATE
16. A CHAIN WHEEL DIAM. 91.5mm
17. A CHAIN WHEEL DIAM. 80mm
18. A CHAIN YOKE FOR 1200/1600kg SIMPLEX MAST
19. C BATTERY COVER FOR 1600kg MODEL, CAT
20. B HYDRAULIC AGGREGATE COMPLETE, FOR 1600kgMODEL
21. C EL-PANEL FOR 1600kg MODEL, STANDARD

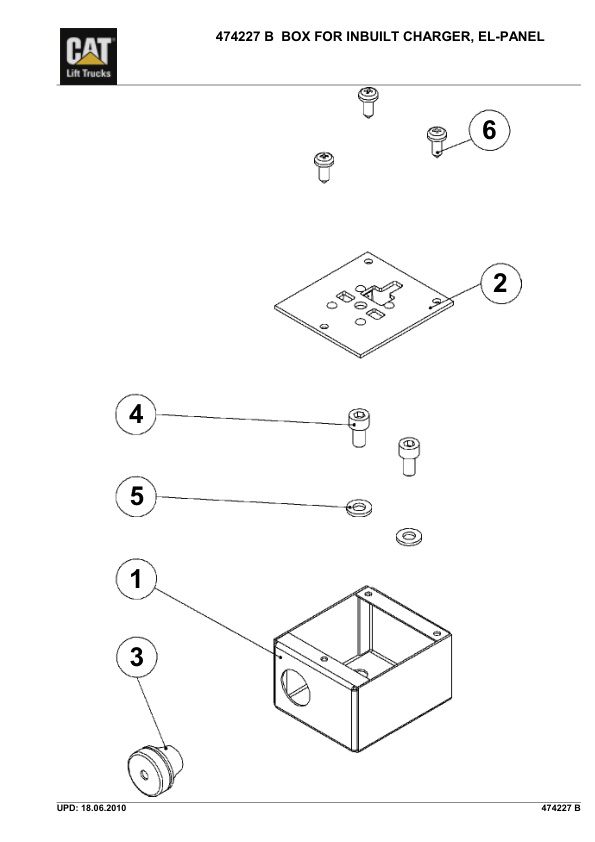

22. B BOX FOR INBUILT CHARGER, EL-PANEL
23. A PANEL FRONT, 1600kg MODEL, CAT
24. A MANIPULATOR WITH STEPLESS LIFT, CAT
25. B STEERING ARM STANDARD
26. B STEERING ARM COMPLETE, WITH STEPLESS LIFT, CAT
27. A OPERATORS MODULE 1600kg MODEL WITH VULKOLLANDRIVE TIRE,
28. C BATTERY CHANGING DEV WITH BRAKE
29. A LIFTING CARRIAGE 1200/1600kg SMPLX, 1600kg DPLXMAST, 550X1150mm
30. B PANEL STANDARD
31. A WHEEL LOAD WHEEL, TANDEM
32. C ASSEMBLY 1600kg MODEL, CAT
33. A PLUG ASSY, LEFT SIDE CYLINDER, DUPLEX FREE LIFT
34. A PLUG ASSY, RIGHT SIDE CYLINDER, DUPLEX FREE LIFT
35. B MAST UNIT 1200/1600kg DPLX MLH 4300mm F/D550X1150mm TANDEM
36. A MAST UNIT 1200/1600kg SMPLX, F/D 550X1150mm,TANDEM L/W
37. A LOAD SUPPORT FOR 1200kg MODEL
38. B MAST UNIT 1200/1600kg DX SFL MLH 4300mm F/D550X1150mm TNDM
39. B MAST UNIT 1600kg TRIPLEX MLH 4100mm, FORK DIM.550X1150mm
40. A LIFTING CARRIAGE 1600kg TRIPLEX MAST, FORK DIM.550X1150mm
41. C MAST UNIT 1600kg TRIPLEX SFL MLH 4100mm, F/D550X1150mm
42. A LIFTING CARRIAGE 1600kg TRIPLEX SPEC FREE, FORKDIM. 550X1150mm
43. A STEERING UNIT STEERING ARM MODEL 2007
44. A PIPE STEERING ARM MODEL 2007, WITHOUT PLATFORM

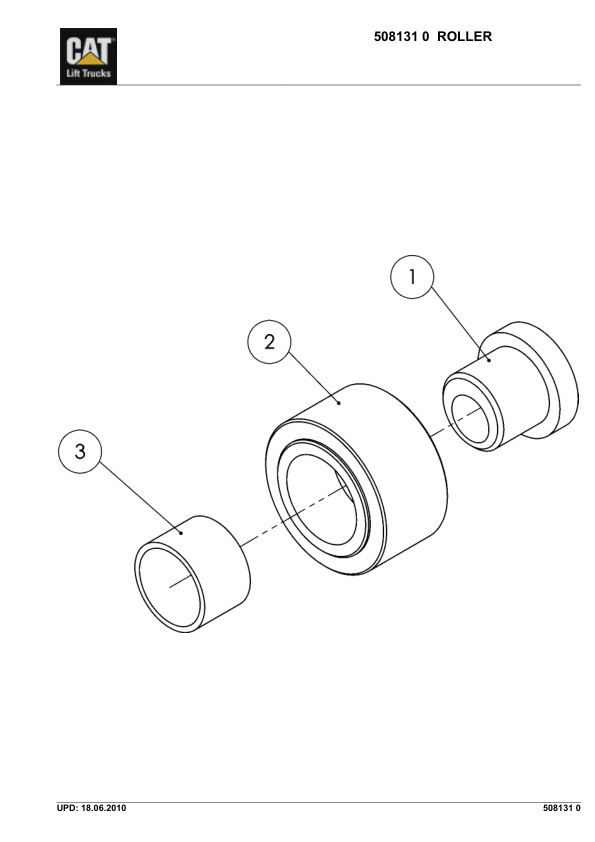

45. ROLLER
