Caterpillar NSP16NS Parts Manual

$50.00

Type Of Manual: Parts Manual
Number of Pages: 100
Size: 2.0MB
Format: PDF

Category: Caterpillar Parts Manual PDF

Model List:
- NSP16NS

1. NSP16NS
1.1. LIFTING CYLINDER 1200/1600kg SIMPLEX MAST
1.2. LIFTING CYLINDER MIDDLE, DUPLEX SPEC FREELIFT, MLH 4300mm
1.3. LIFTING CYLINDER DUPLEX MAST, MAX LIFTHEIGHT 4300mm
1.4. LIFTING CYLINDER SIDE, DUPLEX SPEC FREE LIFT,MLH 4300mm
1.5. LIFTING CYLINDER 1600kg TRIPLEX MAST, MAX LIFTHEIGHT 4100mm
1.6. LIFTING CYLINDER MIDDLE, 1600kg TRIPLEX SPECFREE LIFT, MLH 4100mm
1.7. LIFTING CYLINDER LEFT, 1600kg TRIPLEX SPECFREE LIFT, MLH 4100mm
1.8. LIFTING CYLINDER RIGHT, 1600kg TRIPLEX SPECFREE LIFT, MLH 4100mm
1.9. A CHAIN YOKE FOR DUPLEX MAST WITH SIDE SYLINDERS
1.10. C DRIVE UNIT
1.11. A CIRCUIT BREAKER
1.12. A DRIVE UNIT VULKOLLAN TIRE
1.13. E HYDRAULIC AGGREGATE FOR 1600kg MODEL
1.14. B MOTOR 3kW, FOR 1600kg MODEL HYDRAULICAGGREGATE
1.15. A CHAIN WHEEL DIAM. 91.5mm
1.16. A CHAIN WHEEL DIAM. 80mm
1.17. A CHAIN YOKE FOR 1200/1600kg SIMPLEX MAST
1.18. C BATTERY COVER FOR 1600kg MODEL, CAT
1.19. B HYDRAULIC AGGREGATE COMPLETE, FOR 1600kgMODEL
1.20. C EL-PANEL FOR 1600kg MODEL, STANDARD
1.21. B BOX FOR INBUILT CHARGER, EL-PANEL
1.22. A PANEL FRONT, 1600kg MODEL, CAT
1.23. A MANIPULATOR WITH STEPLESS LIFT, CAT
1.24. B BRACKET CASTER WHEEL, STRADDLE MODEL

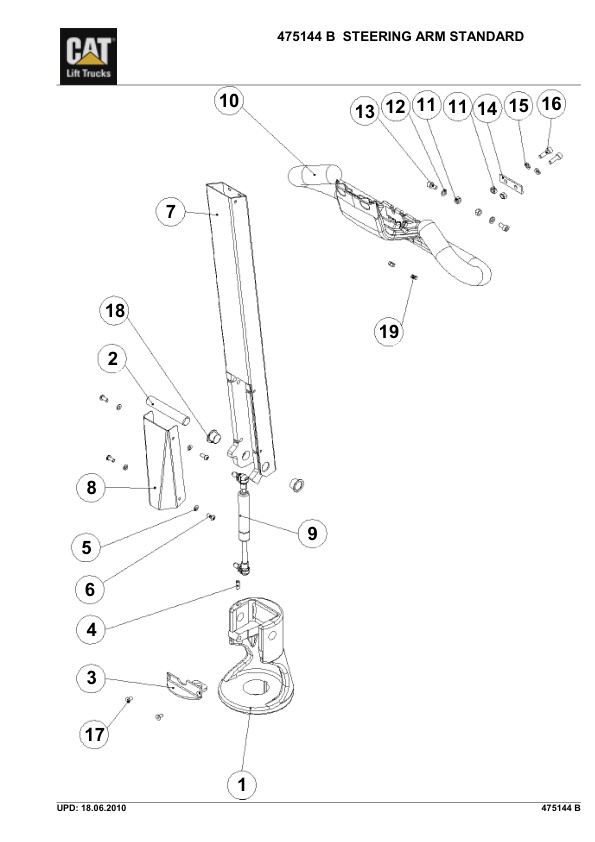

1.25. B STEERING ARM STANDARD
1.26. B STEERING ARM COMPLETE, WITH STEPLESS LIFT, CAT
1.27. A OPERATORS MODULE 1600kg MODEL WITH VULKOLLANDRIVE TIRE,
1.28. B PANEL STANDARD
1.29. A WHEEL LOAD WHEEL, TANDEM

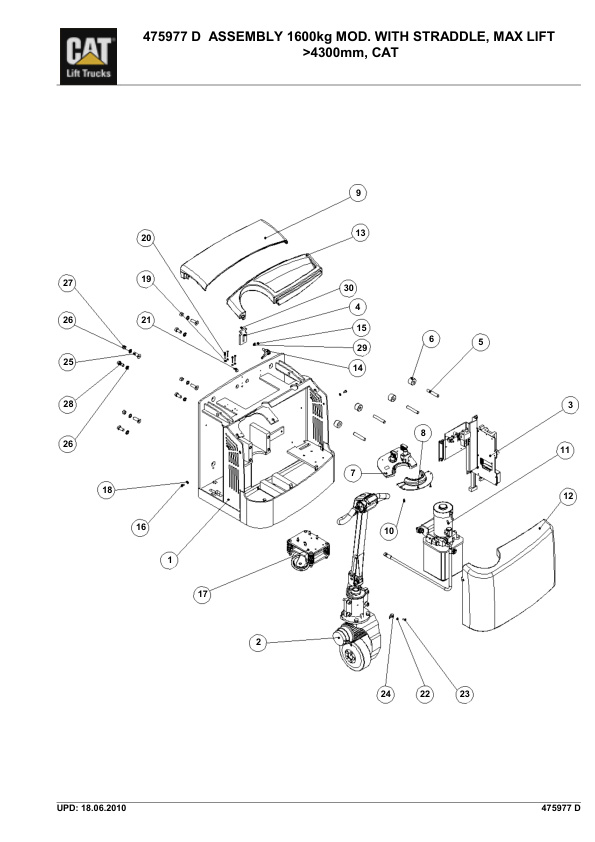

1.30. D ASSEMBLY 1600kg MODEL WITH STRADDLE, CAT
1.31. A PLUG ASSY, LEFT SIDE CYLINDER, DUPLEX FREE LIFT
1.32. A PLUG ASSY, RIGHT SIDE CYLINDER, DUPLEX FREE LIFT
1.33. A LOAD SUPPORT FOR STRADDLE MODEL
1.34. C LIFTING CARRIAGE 1200/1600kg SMPLX/1600kg DPLX,STRADDLE F/L 1150mm

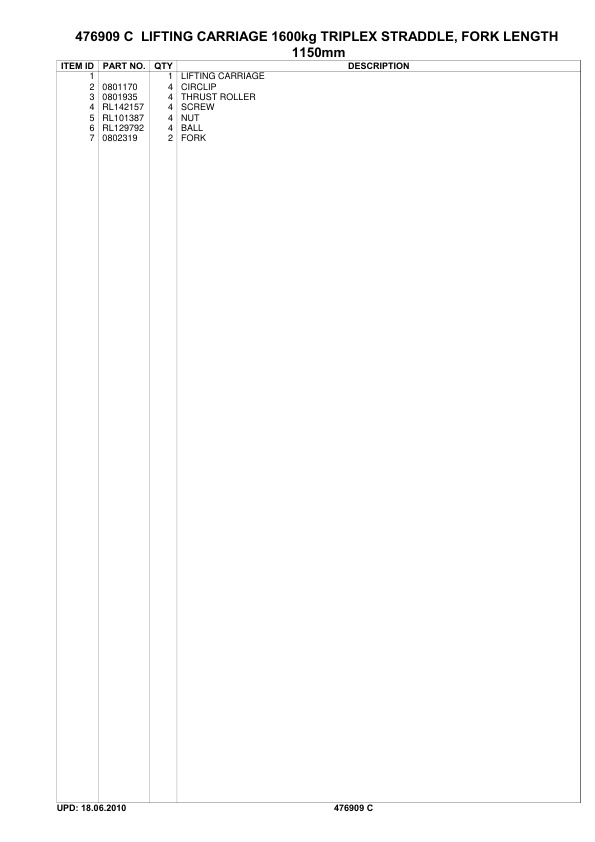

1.35. C LIFTING CARRIAGE 1600kg TRIPLEX STRADDLE, FORKLENGTH 1150mm
1.36. C LIFTING CARRIAGE 1600kg TRIPLEX SPEC FREESTRADDLE, F/L 1150mm
1.37. A MAST UNIT 1200/1600kg SMPLXSTRADDLE, F/L 1150mm, TANDEM L/W

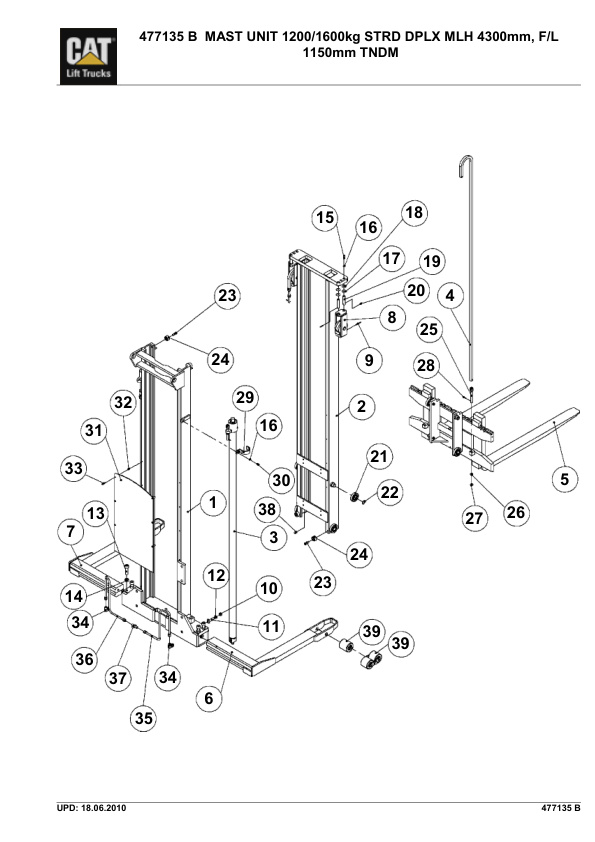

1.38. B MAST UNIT 1200/1600kg STRD DPLX MLH 4300mm, F/L1150mm TNDM
1.39. B MAST UNIT 1200/1600kg STRD DX SFL MLH 4300mm F/L1150mm TNDM
1.40. B MAST UNIT 1600kg STRADDLE TRIPLEX MLH 4100mm, F/L1150mm
1.41. C MAST UNIT 1600kg STRADDLE TRIPLEX SFL MLH4100mm, F/L 1150mm
1.42. B BATTERY CHANGING DEV FOR STRADDLE MODEL
1.43. A STEERING UNIT STEERING ARM MODEL 2007
1.44. A PIPE STEERING ARM MODEL 2007, WITHOUT PLATFORM
1.45. ROLLER
