Caterpillar NSR16N Parts Manual

$50.00

Type Of Manual: Parts Manual
Number of Pages: 192
Size: 3.1MB
Format: PDF

Category: Caterpillar Parts Manual PDF

Model List:
- NSR16N

1. LIFTING CYLINDER 1200/1600kg SIMPLEX MAST
2. LIFTING CYLINDER MIDDLE, DUPLEX SPEC FREELIFT, MLH 2500mm
3. LIFTING CYLINDER DUPLEX MAST, MAX LIFTHEIGHT 2500mm
4. LIFTING CYLINDER SIDE, DUPLEX SPEC FREE LIFT,MLH 2500mm
5. LIFTING CYLINDER 1600kg TRIPLEX, MAX LIFTHEIGHT 5400mm
6. LIFTING CYLINDER MIDDLE, 1600kg TRIPLEX SPECFREE LIFT, MLH 5400mm
7. LIFTING CYLINDER LEFT, 1600kg TRIPLEX SPECFREE LIFT, MLH 5400mm
8. LIFTING CYLINDER RIGHT, 1600kg TRIPLEX SPEC FREE LIFT,MLH 5400mm
9. A CHAIN YOKE FOR DUPLEX MAST WITH SIDE SYLINDERS
10. B CASTER WHEEL STANDARD
11. A BATTERY CHANGING DEVICE HANDLING WITH HANDPALLET TRUCK
12. B SUPPORT
13. B SUPPORT
14. A CHAIN WHEEL DIAM. 91.5mm
15. A CHAIN WHEEL DIAM. 80mm
16. A CHAIN YOKE FOR 1200/1600kg SIMPLEX MAST
17. B OIL TANK
18. A WHEEL LOAD WHEEL, TANDEM
19. A PLUG ASSY, LEFT SIDE CYLINDER, DUPLEX FREE LIFT
20. A PLUG ASSY, RIGHT SIDE CYLINDER, DUPLEX FREE LIFT
21. A LIFTING CARRIAGE SIMPLEX/DUPLEX MAST, FORKWIDTH 550mm
22. A MAST UNIT 1200/1600kg SIMPLEX MAST, FORK WIDTH550mm

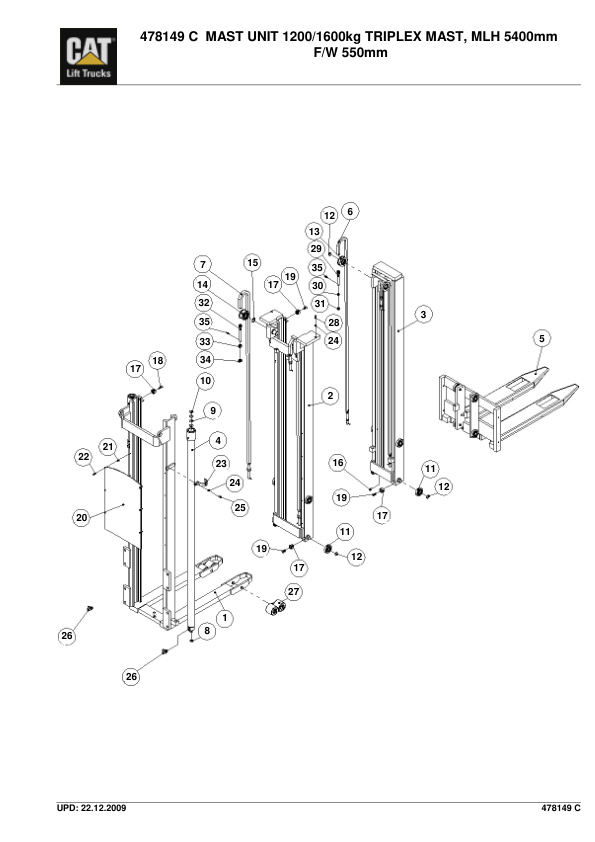

23. B MAST UNIT 1600kg DUPLEX MAST, MLH 2500mm F/W550mm
24. B MAST UNIT 1600kg DUPLEX SFL, MLH 2500mm F/W550mm
25. C MAST UNIT 1200/1600kg TRIPLEX MAST, MLH 5400mmF/W 550mm
26. A LIFTING CARRIAGE FOR TRIPLEX MAST, FORK WIDTH550mm
27. A LIFTING CARRIAGE FOR TRIPLEX SPEC FREE LIFT, FORKWIDTH 550mm
28. B MAST UNIT 1200/1600kg TRIPLEX SFL, MLH 5400mm F/W570mm
29. C ACCESSORIES WORKING LIGHT, COMPLETE
30. C DRIVE UNIT
31. A STEERING WHEEL STEERING HANDLE

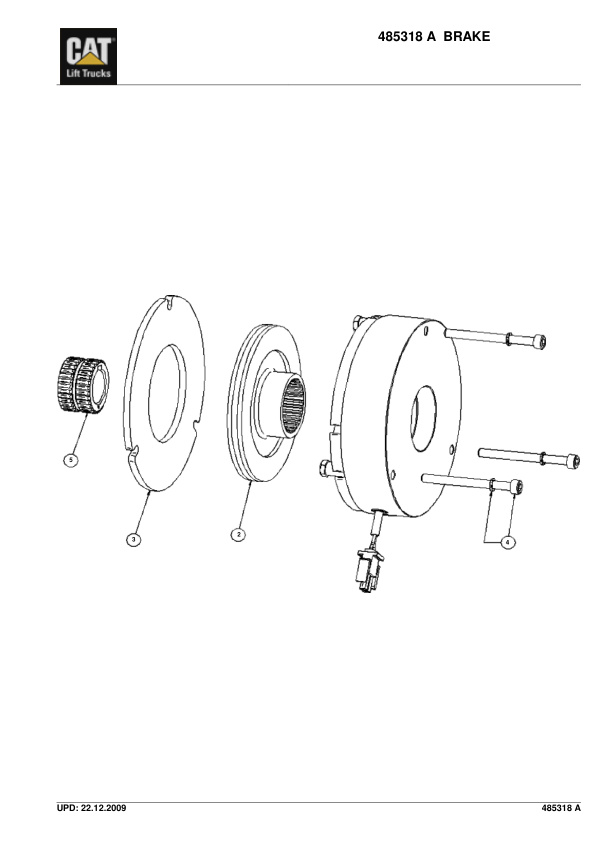

32. A BRAKE
33. A DRIVE WHEEL VULKOLLAN
34. F DISPLAY UNIT WITH PIN-CODE DEVICE
35. C STEERING WHEEL COMPLETE

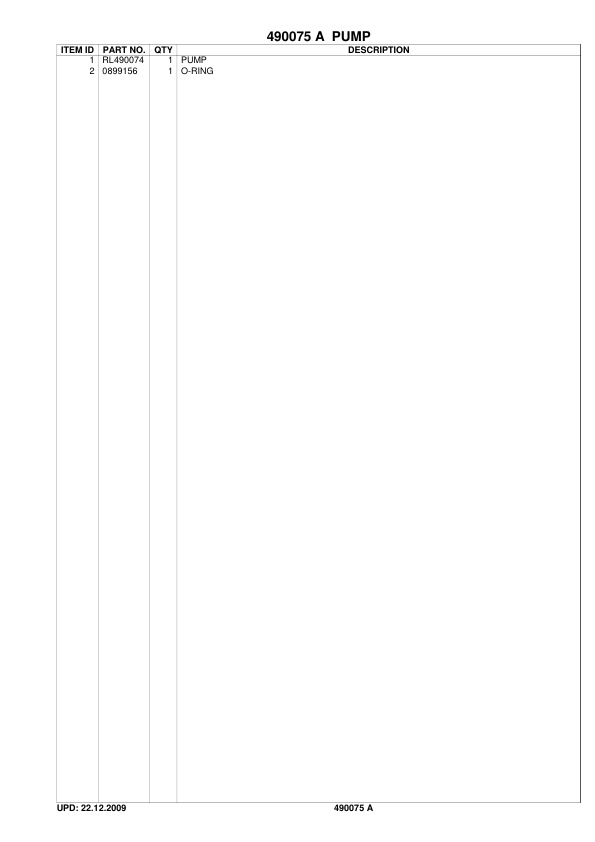

36. A PUMP
37. A SIDEPLATE CAT
38. A ASSEMBLY BATTERY CABLES
39. F PLATFORM
40. B SENSOR SCALE-HYDRAULIC PRESSURE
41. D INSTRUMENT PANEL WITH 2 STEERING HANDLES
42. B ASSEMBLY MAIN ASSEMBLY
43. D EL-PANEL
44. A ASSEMBLY BATTERY LATCH
45. A FIRE EXTINGUISHER
46. A BUZZER
47. A MIRROR
48. A ACCESSORIES WORKING LIGHT
49. A LOAD SUPPORT
50. A ASSEMBLY HYDRAULIC SIDE STABILIZERS
51. A SENSOR AUTOMATIC LIFT CUT
52. A HYDRAULIC SYSTEM DUPLEX MAST
53. A STEERING HANDLE
54. A ASSEMBLY PRESS KEY
55. A PUMP MOTOR STAND-ON MODEL
56. A ACCESSORIES WORKING LIGHT, COMPLETE
57. ROLLER
