Caterpillar NSR20N Parts Manual

$50.00

Type Of Manual: Parts Manual
Number of Pages: 160
Size: 2.4MB
Format: PDF

Category: Caterpillar Parts Manual PDF

Model List:
- NSR20N

1. TANDEM
2. B CASTER WHEEL STANDARD
3. A BATTERY CHANGING DEVICE HANDLING WITH HANDPALLET TRUCK
4. B SUPPORT
5. B SUPPORT
6. B OIL TANK
7. C SIDE GUIDING WHEEL COMPLETE
8. A GASKET HOLDER
9. A GASKET HOLDER FREE LIFT
10. A ASSEMBLING SET SHIMS Q35/50
11. A PISTON FOR 1600kg CAPASITY, L.H. 4800
12. C ACCESSORIES WORKING LIGHT, COMPLETE
13. A CHAIN YOKE COMPLETE
14. A CHAIN WHEEL COMPLETE, FREE LIFT
15. A FREE LIFT CYLINDER FREE LIFT CYLINDER, L.H.4800
16. A CHAIN INTERNAL MAST CHAIN, L.H.4800
17. A CHAIN LIFTING CARRIAGE CHAIN, L.H.4800
18. A CHAIN WHEEL COMPLETE, LIFTING CHAIN
19. A HOSE ROLLER
20. C ASSEMBLY MAIN ASSEMBLY
21. C MAST UNIT
22. C DRIVE UNIT
23. A STEERING WHEEL STEERING HANDLE
24. A BRAKE
25. A CARRIAGE FOR 1600kg CAPASITY, MAST UNITS,L.H.4800
26. A PISTON FOR 1600kg CAPASITY, L.H.4800
27. A DRIVE WHEEL VULKOLLAN
28. B HEIGHT SENSOR

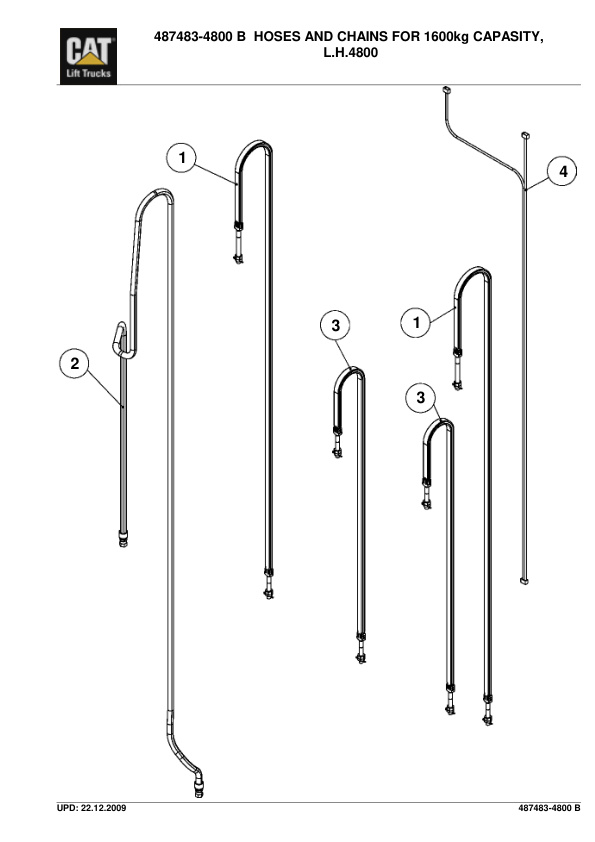

29. B HOSES AND CHAINS FOR 1600kg CAPASITY,L.H.4800
30. F DISPLAY UNIT WITH PIN-CODE DEVICE
31. C STEERING WHEEL COMPLETE

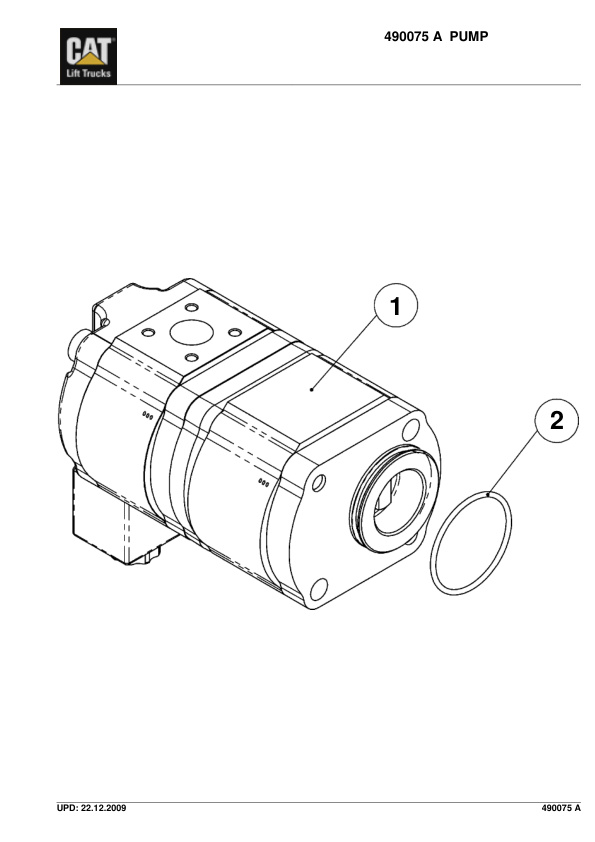

32. A PUMP
33. A SIDEPLATE CAT
34. A ASSEMBLY BATTERY CABLES
35. F PLATFORM

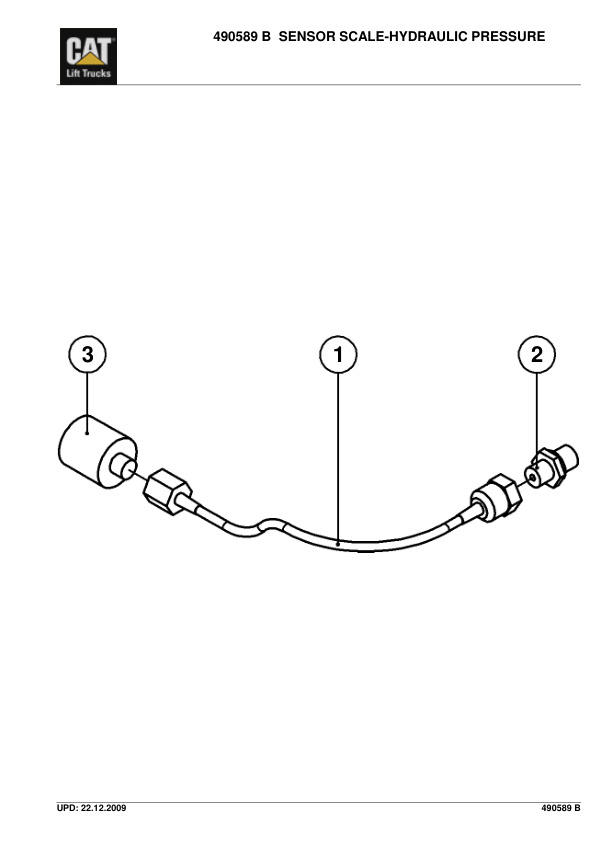

36. B SENSOR SCALE-HYDRAULIC PRESSURE
37. D INSTRUMENT PANEL WITH 2 STEERING HANDLES
38. D EL-PANEL
39. A ASSEMBLY BATTERY LATCH
40. A FIRE EXTINGUISHER
41. A BUZZER
42. A ACCESSORIES WORKING LIGHT
43. A ASSEMBLY PRESS KEY
44. A ASSEMBLY LOAD BACK REST, FW. 570mm
45. A ASSEMBLY HYDRAULIC SIDE STABILIZERS
46. A SENSOR AUTOMATIC LIFT CUT
47. A HYDRAULIC SYSTEM TRIPLEX MAST
48. A STEERING HANDLE
49. A PUMP MOTOR STAND-ON MODEL
50. A ACCESSORIES WORKING LIGHT, COMPLETE
