Caterpillar RC60 Parts Manual SEBN2587-04

Caterpillar RC60 Parts Manual SEBN2587-04 - Image 2

Caterpillar RC60 Parts Manual SEBN2587-04 - Image 3

Caterpillar RC60 Parts Manual SEBN2587-04 - Image 4

Caterpillar RC60 Parts Manual SEBN2587-04 - Image 5

caterpillar rc60 parts manual sebn2587 04 2

caterpillar rc60 parts manual sebn2587 04 3

Caterpillar RC60 Parts Manual SEBN2587-04

$50.00

Type Of Manual: Parts Manual
Book Number: SEBN2587-04
Information: CAT Chassis, Mast – Options
Number of Pages: 1382
Size: 1068.1MB
Format: PDF

Category: Caterpillar Part Manual PDF

All Product (4091)
- CAT (4091)
  - Articulated Dump Truck (55)
    - Articulated Dump Truck (55)
    - CAT (55)
  - Asphalt (93)
    - Asphalt (93)
    - CAT (93)
  - Compactor (20)
    - CAT (20)
    - Compactor (20)
  - Dozer (712)
    - Articulated Dump Truck (1)
    - CAT (712)
    - Dozer (709)
    - Engine (2)
  - Engine (873)
    - CAT (873)
    - Engine (873)
  - Excavator (1203)
    - CAT (1203)
    - Excavator (1203)
  - Forklift (11)
    - CAT (11)
    - Forklift (11)
  - Loader (654)
    - CAT (654)
    - Loader (654)
      - CAT (0)
      - Loader (0)
  - Motor Grader (228)
    - CAT (228)
    - Motor Grader (228)
  - Scraper (90)
    - CAT (90)
    - Scraper (90)
  - Skidder (17)
    - CAT (17)
    - Skidder (10)
    - Skidsteer (7)
  - Skidsteer (106)
    - CAT (106)
    - Skidsteer (106)
  - Telehandler (29)
    - CAT (29)
    - Telehandler (29)
Caterpillar (868)
- Caterpillar Part Manual PDF (868)
Linkbelt (17)
- Linkbelt (17)
Toro (17)
- Toro (17)

Model List:
- RC60

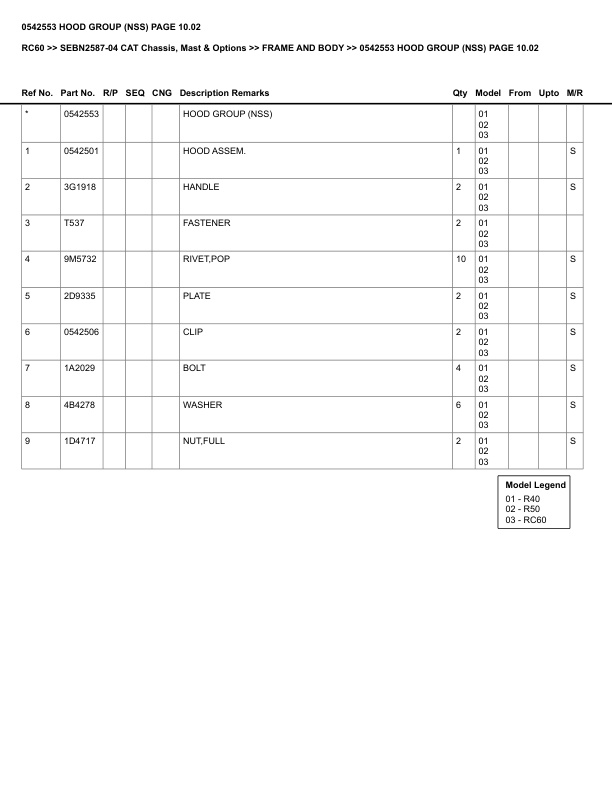

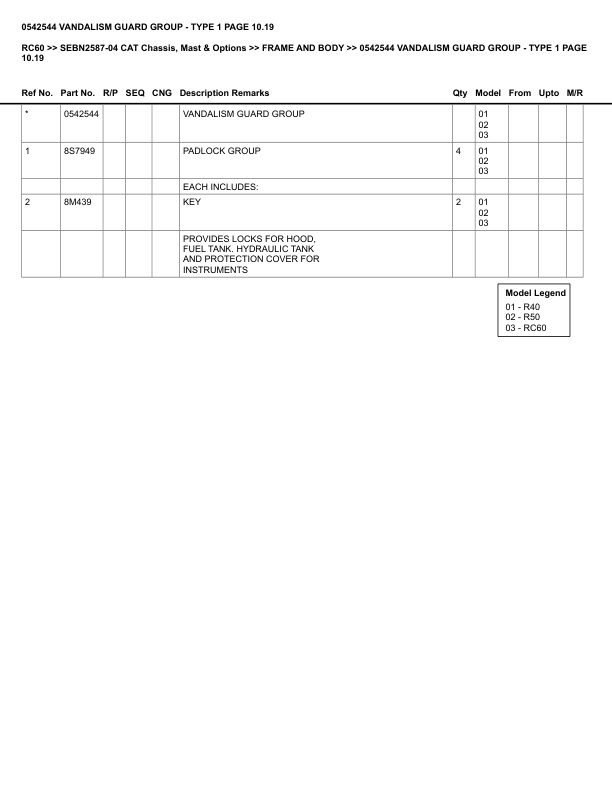

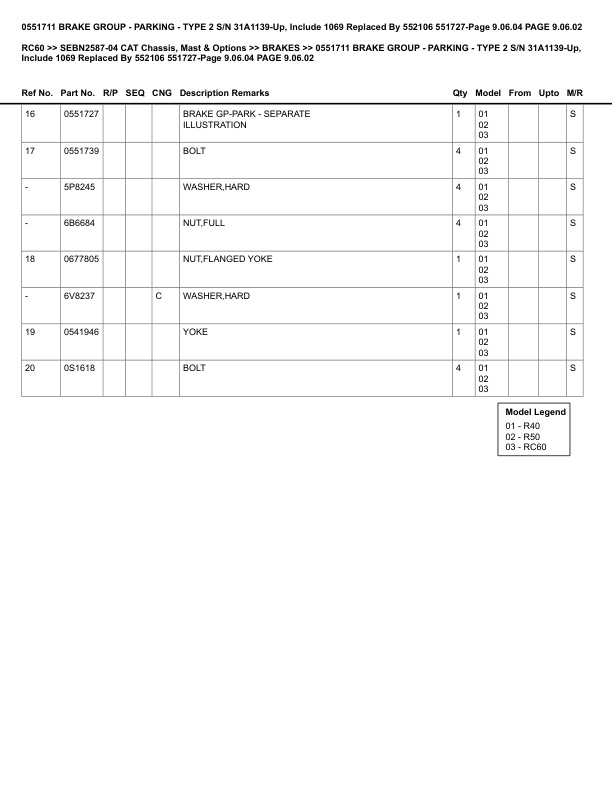

1. _0523838 ENGINE AR-INSTALLATION For Use With Mechanical Transmission PAGE 1.01 Spare Parts Catalog.pdf
2. _0523883 ENGINE AR-INSTALLATION-POWERSHIFT S_N 31A300-1138, Exclude 1069 PAGE 1.01 Spare Parts Catalog.pdf
3. _0551515 ENGINE AR-INSTALLATION S_N 31A1139-Up, Include 1069 For Use With Ford D45 Drive Axle PAGE 1.02 Spare Parts Catalog.pdf
4. _1W7103 ENGINE AR Part Of 523838, 523883 551515 Engines PAGE 1.02 Spare Parts Catalog.pdf
5. _1W7102 ENGINE AR-PRIMARY S_N 21A400-Up, 31A300-1026 Part Of 1W7103 Engine PAGE 1.03 Spare Parts Catalog.pdf
6. _7C2491 ENGINE AR-PRIMARY S_N 31A1027-Up Part Of 1W7103 Engine PAGE 1.04 Spare Parts Catalog.pdf
7. _9Y5047 ENGINE AR-PRIMARY Engine S_N U106654N Part Of 1W7103 Engine PAGE 1.04.01 Spare Parts Catalog.pdf
8. _2W7820 CYLINDER BLOCK GROUP Engine S_N U027772M Below 6N9630-Pages 1.06 1.07 PAGE 1.05 Spare Parts Catalog.pdf
9. _2W7820 CYLINDER BLOCK GROUP Engine S_N U027773M Up 6N9630-Pages 1.06 1.07 PAGE 1.05.01 Spare Parts Catalog.pdf
10. _9Y5018 CYLINDER BLOCK GROUP Engine S_N U106654N 9Y2630-Page 1.07.01 PAGE 1.05.02 Spare Parts Catalog.pdf
11. _6N9630 CYLINDER BLOCK GROUP-PART 1 OF 2 Part Of 2W7820 Cylinder Block Group Shown On Page 1 Spare Parts Catalog.pdf
12. _6N9630 CYLINDER BLOCK GROUP-PART 2 OF 2 Part Of 2W7820 Cylinder Block Group Shown On Page 1 Spare Parts Catalog.pdf
13. _9Y2630 CYLINDER BLOCK GROUP Part Of 9Y5018 Cylinder Block PAGE 1.07.01 Spare Parts Catalog.pdf
14. _7N3472 CYLINDER BLOCK GROUP-SHORT Engine S_N U071167N Below PAGE 1.08 Spare Parts Catalog.pdf
15. _7N3472 CYLINDER BLOCK GROUP Engine S_N U071168N Up PAGE 1.08.01 Spare Parts Catalog.pdf
16. _1N4107 CYLINDER BLOCK GROUP-SHORT For Parts Service Of 9Y5047 Engine PAGE 1.08.02 Spare Parts Catalog.pdf
17. _2W6918 CYLINDER HEAD GROUP-TYPE 1 2W6947-Page 1.09.02 PAGE 1.09 Spare Parts Catalog.pdf
18. _2W6918 CYLINDER HEAD GROUP Type 2 Engine S_N U040235M Below 7W64-Page 1.10 PAGE 1.09.01 Spare Parts Catalog.pdf
19. _7C6480 CYLINDER HEAD GROUP Engine S_N U040236M Up 7C3188-Page 1.10.01 PAGE 1.09.01A Spare Parts Catalog.pdf
20. _2W6947 BASIC CYLINDER HEAD GROUP-TYPE 1 Part Of 2W6918 Cylinder Head PAGE 1.09.02 Spare Parts Catalog.pdf
21. _7W64 BASIC CYLINDER HEAD GROUP Part Of 2W6918 Cylinder Head PAGE 1.10 Spare Parts Catalog.pdf
22. _7C3188 CYLINDER HEAD GROUP Part of 7C6480 Cylinder Head PAGE 1.10.01 Spare Parts Catalog.pdf
23. _7N6407 MECHANISM GROOUP- VALVE TYPE 1 PAGE 1.11 Spare Parts Catalog.pdf
24. _7W6204 VALVE MECHANISM GROUP Engine S_N 948360L Above PAGE 1.11.01 Spare Parts Catalog.pdf
25. _7N6407 MECHANISM GROUP VALVE Type 2 PAGE 1.11.02 Spare Parts Catalog.pdf
26. _1N4277 VALVE MECHANISM COVER GROUP PAGE 1.12 Spare Parts Catalog.pdf
