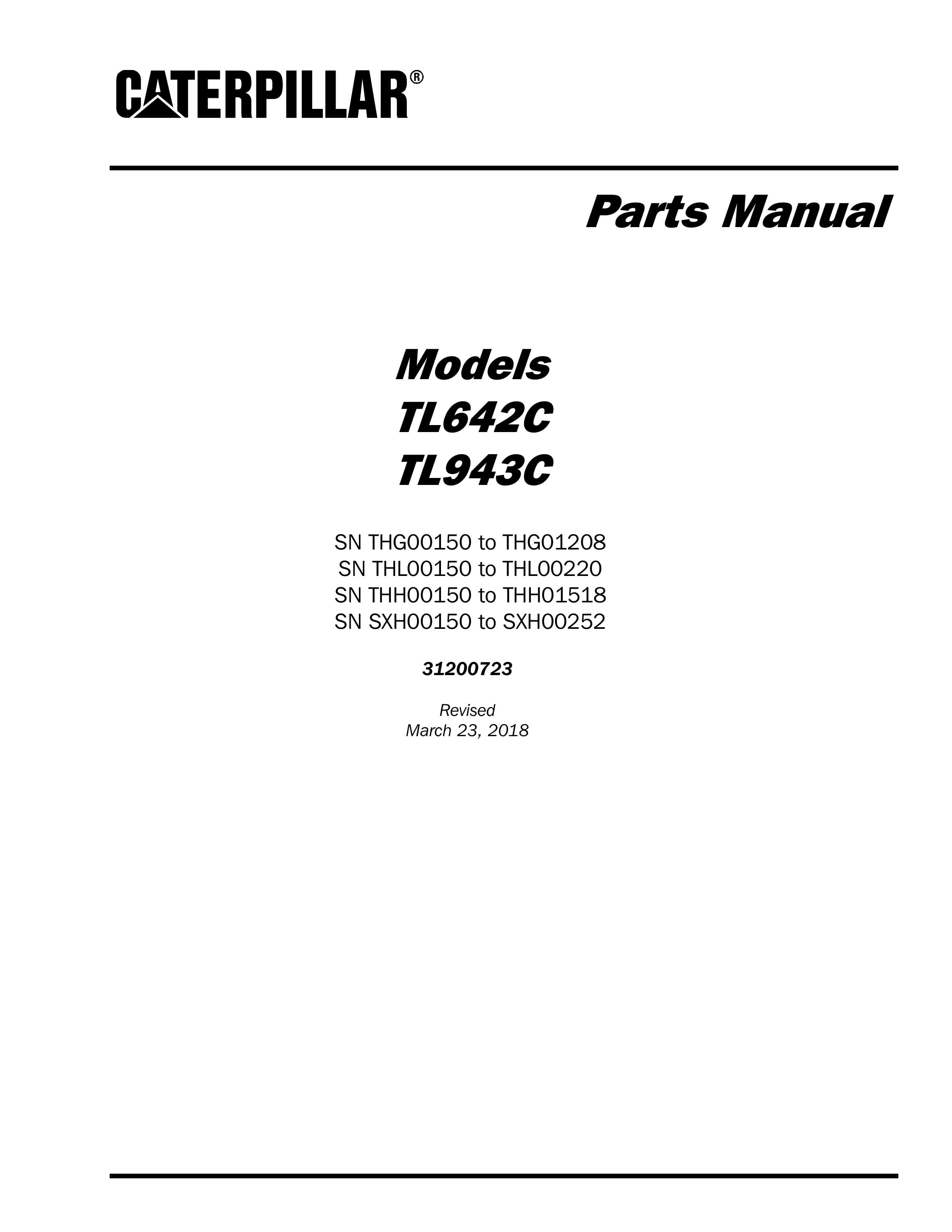

Caterpillar TL642C, TL943C Parts Manual 31200723

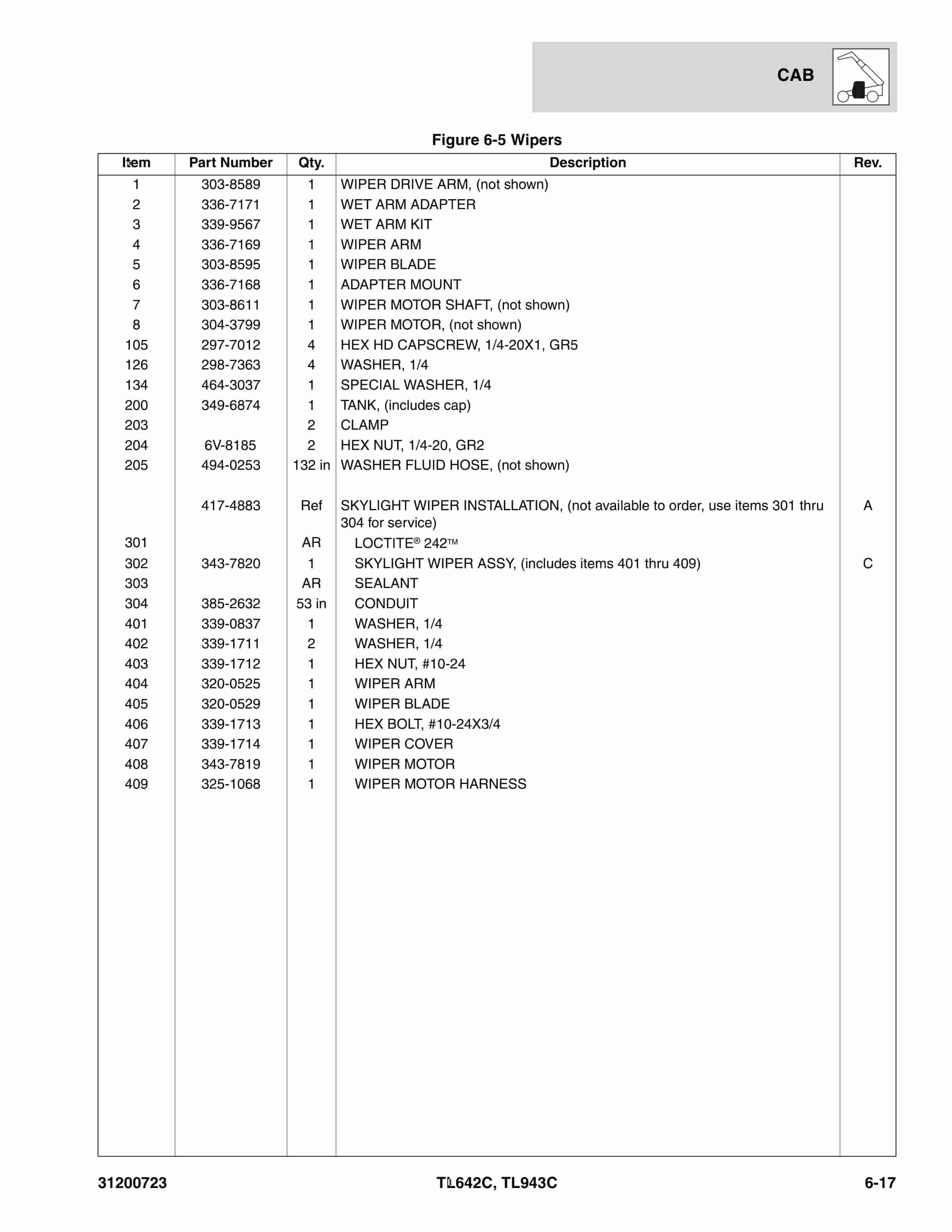

Caterpillar TL642C, TL943C Parts Manual 31200723 - Image 2
Caterpillar TL642C, TL943C Parts Manual 31200723 - Image 3

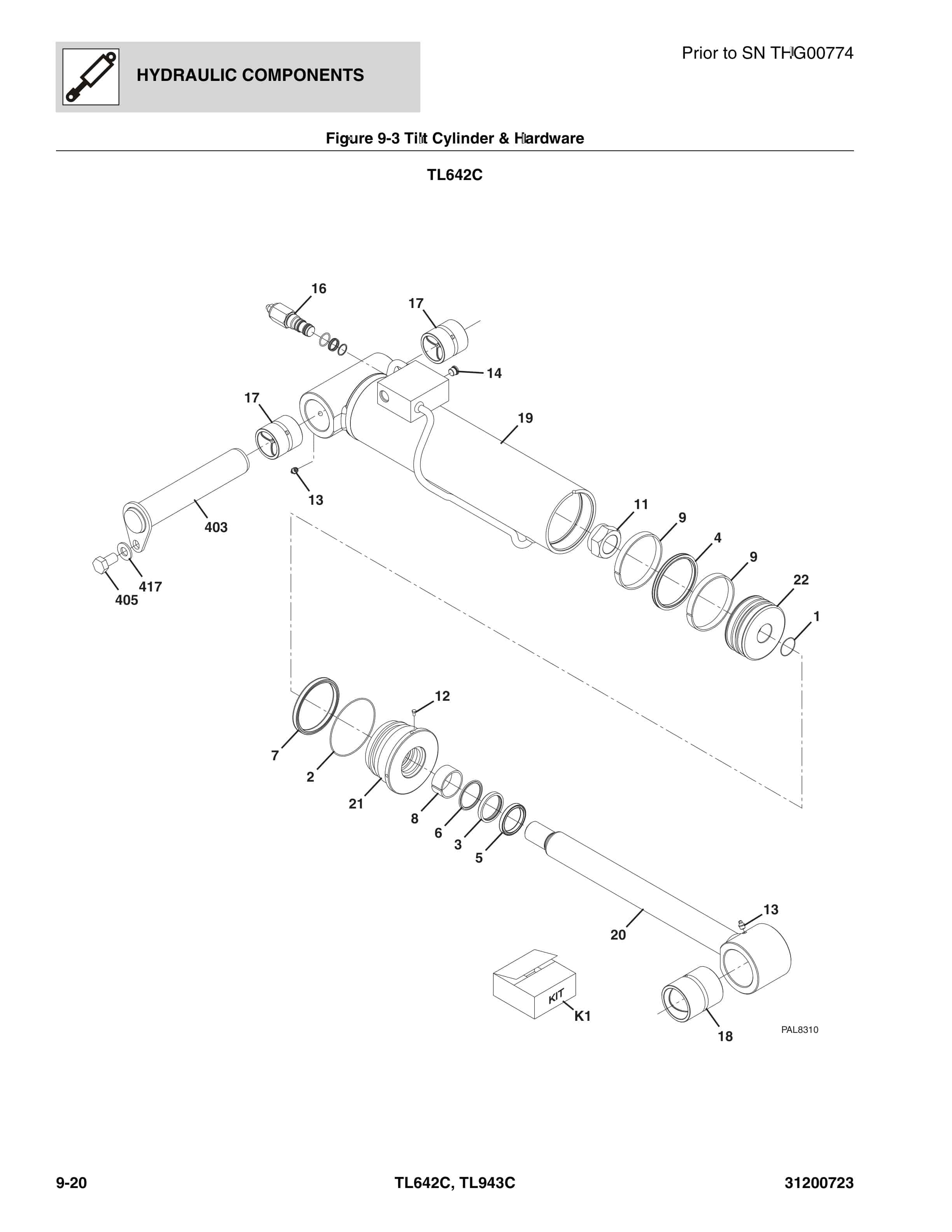

Caterpillar TL642C, TL943C Parts Manual 31200723 - Image 4

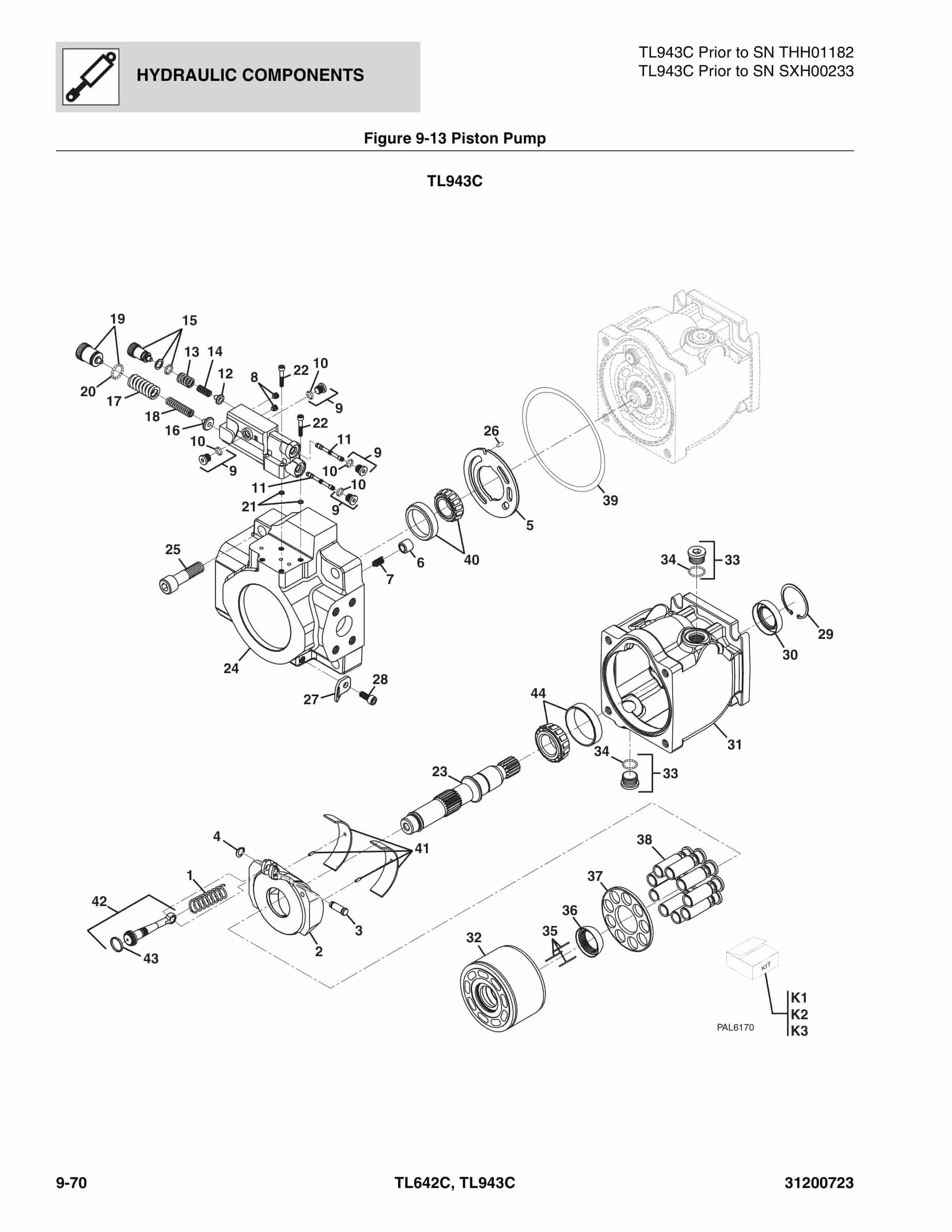

Caterpillar TL642C, TL943C Parts Manual 31200723 - Image 5

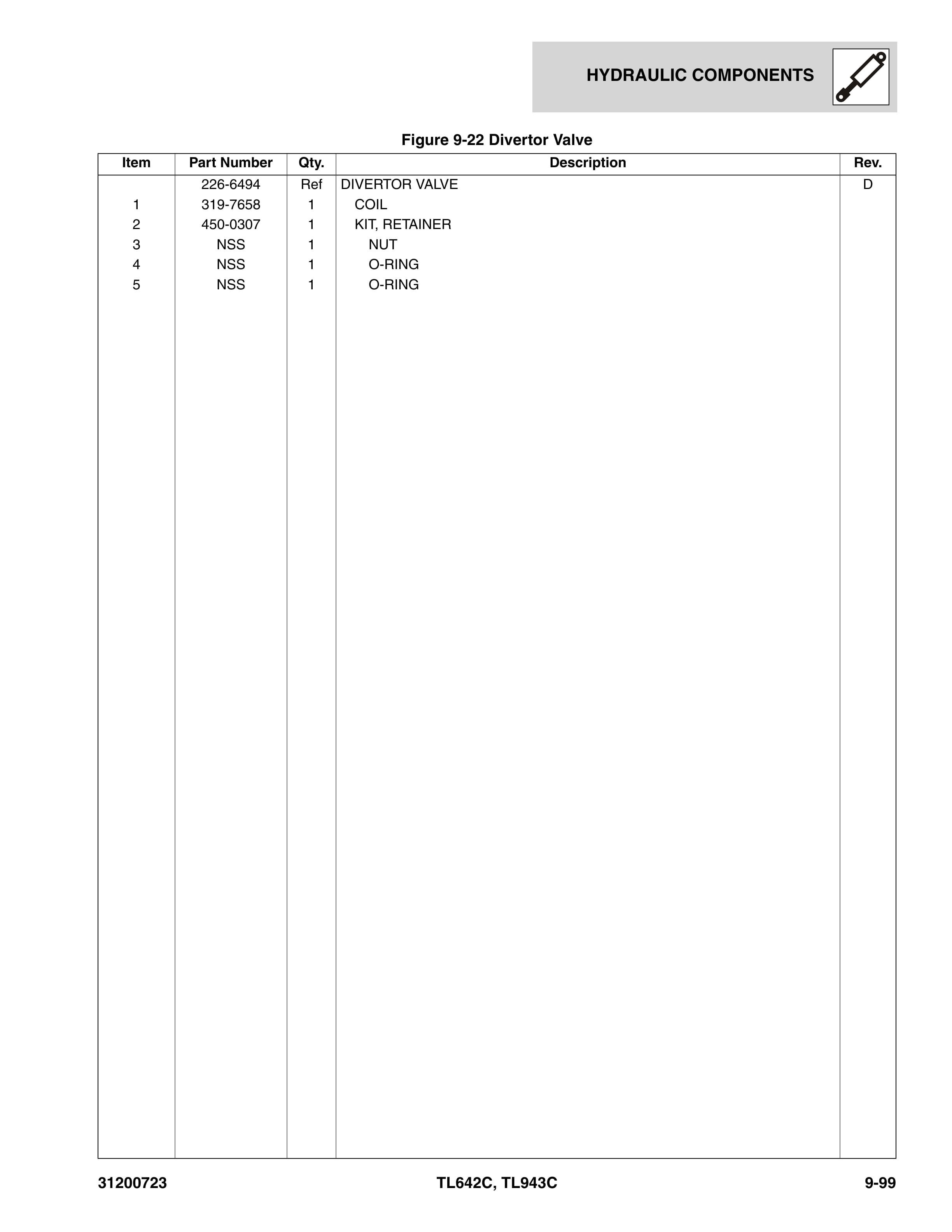

caterpillar tl642c tl943c parts manual 31200723 2
caterpillar tl642c tl943c parts manual 31200723 3
caterpillar tl642c tl943c parts manual 31200723 4
caterpillar tl642c tl943c parts manual 31200723 5

Caterpillar TL642C, TL943C Parts Manual 31200723

$30.00

  • Type Of Manual: Parts Manual
  • Manual ID: 31200723
  • Number of Pages: 596
  • Size: 47.2MB
  • Format: PDF
Category:
  • Model List:

    • TL642C, TL943C
  • 1. _L_TL642C TL943C_CAT_PARTS
  • 1.1. Effectivity Page
  • 1.2. Table of Contents
  • 1.3. SMCS CODES- TELEHANDLER
  • 1.4. Section 1 Frame Attaching Parts
  • 1.4.1. Figure 1-1 Frame Attaching Parts
  • 1.4.2. Figure 1-2 Covers
  • 1.4.3. Figure 1-3 Outrigger Installation, (if equipped)
  • 1.4.4. Figure 1-4 Pintle Hook
  • 1.5. Section 2 Boom
  • 1.5.1. Figure 2-1 Boom Installation
  • 1.5.2. Figure 2-2 First Boom Section
  • 1.5.3. Figure 2-3 Second Boom Section
  • 1.5.4. Figure 2-4 Third Boom Section
  • 1.5.5. Figure 2-5 Push Beam/Extend Chain
  • 1.5.6. Figure 2-6 Retract Chain
  • 1.5.7. Figure 2-7 Manual Quick Coupler
  • 1.5.8. Figure 2-8 Hydraulic Quick Coupler
  • 1.6. Section 3 Attachments
  • 1.6.1. Figure 3-1 Tilt Carriage
  • 1.6.2. Figure 3-2 Side Tilt Carriage
  • 1.6.3. Figure 3-3 48 Inch Side Shift Carriage
  • 1.6.4. Figure 3-4 50 Inch Dual Fork Carriage
  • 1.6.5. Figure 3-5 100 Degree Swing Carriage
  • 1.6.6. Figure 3-6 Forks Attaching Parts
  • 1.6.7. Figure 3-7 Fork Mounted Platform
  • 1.6.8. Figure 3-8 Fork Mounted Hook
  • 1.6.9. Figure 3-9 Winch Installation
  • 1.6.10. Figure 3-10 Winch
  • 1.6.11. Figure 3-11 Winch Motor
  • 1.6.12. Figure 3-12 Truss Boom
  • 1.6.13. Figure 3-13 General Purpose Bucket
  • 1.6.14. Figure 3-14 Lifting Hook
  • 1.6.15. Figure 3-15 Multi Purpose Bucket
  • 1.7. Section 4 Engine Attaching Parts
  • 1.7.1. Figure 4-1 Engine Installation
  • 1.7.2. Figure 4-2 CAT Engine
  • 1.7.3. Figure 4-3 Fuel Tank Lines
  • 1.7.4. Figure 4-4 Radiator Installation
  • 1.7.5. Figure 4-5 Air Cleaner Installation
  • 1.7.6. Figure 4-6 Exhaust Installation
  • 1.7.7. Figure 4-7 Block Heater Installation
  • 1.8. Section 5 Drive Train
  • 1.8.1. Figure 5-1 Drive Train Components
  • 1.8.2. Figure 5-2 Front Axle
  • 1.8.3. Figure 5-3 Central Housing Steering
  • 1.8.4. Figure 5-4 Differential
  • 1.8.5. Figure 5-5 Hub Reduction
  • 1.8.6. Figure 5-6 Brakes
  • 1.8.7. Figure 5-7 Steering
  • 1.8.8. Figure 5-8 Trunion
  • 1.8.9. Figure 5-9 Differential Kit
  • 1.8.10. Figure 5-10 Reduction Bushing
  • 1.8.11. Figure 5-11 Planet Gear Carrier Kit
  • 1.8.12. Figure 5-12 Steering Case Kit LH
  • 1.8.13. Figure 5-13 Steering Case Kit RH
  • 1.8.14. Figure 5-14 Steering Adjust Bolt Kit
  • 1.8.15. Figure 5-15 Ring Gear Support Kit
  • 1.8.16. Figure 5-16 Planet Gear Kit
  • 1.8.17. Figure 5-17 Trunion Kit Rear
  • 1.8.18. Figure 5-18 Trunion Kit Front
  • 1.8.19. Figure 5-19 Rear Axle
  • 1.8.20. Figure 5-20 Central Housing Steering
  • 1.8.21. Figure 5-21 Differential
  • 1.8.22. Figure 5-22 Hub Reduction
  • 1.8.23. Figure 5-23 Brakes
  • 1.8.24. Figure 5-24 Rear Axle
  • 1.8.25. Figure 5-25 Central Housing
  • 1.8.26. Figure 5-26 Differential
  • 1.8.27. Figure 5-27 Hub Reduction
  • 1.8.28. Figure 5-28 Brakes
  • 1.8.29. Figure 5-29 Steering
  • 1.8.30. Figure 5-30 Rear Axle Trunion
  • 1.8.31. Figure 5-31 Rear Axle Differential Assembly
  • 1.8.32. Figure 5-32 Reduction Bushing
  • 1.8.33. Figure 5-33 Planet Gear Carrier Kit
  • 1.8.34. Figure 5-34 Ring Gear Support Kit
  • 1.8.35. Figure 5-35 Steering Case Kit LH
  • 1.8.36. Figure 5-36 Steering Case Kit RH
  • 1.8.37. Figure 5-37 Rear Axle Support Assembly
  • 1.8.38. Figure 5-38 Transmission
  • 1.8.39. Figure 5-39 Fender Installation
  • 1.8.40. Figure 5-40 Wheel Assembly
  • 1.9. Section 6 Cab
  • 1.9.1. Figure 6-1 Cab Assembly
  • 1.9.2. Figure 6-2 Cab
  • 1.9.3. Figure 6-3 Cab Door
  • 1.9.4. Figure 6-4 Cab Interior
  • 1.9.5. Figure 6-5 Wipers
  • 1.9.6. Figure 6-6 Suspension Seat
  • 1.9.7. Figure 6-7 Heater Installation
  • 1.9.8. Figure 6-8 Air Conditioning Installation
  • 1.10. Section 7 Controls
  • 1.10.1. Figure 7-1 Brake
  • 1.10.2. Figure 7-2 Accelerator
  • 1.10.3. Figure 7-3 Steering Column
  • 1.10.4. Figure 7-4 Boom Joystick
  • 1.10.5. Figure 7-5 Outrigger Controller
  • 1.10.6. Figure 7-6 Frame Level Controller Installation
  • 1.10.7. Figure 7-7 Auxiliary Control
  • 1.11. Section 8 Hydraulic Circuits
  • 1.11.1. Figure 8-1 Supply Circuit
  • 1.11.2. Figure 8-2 Dump Circuit
  • 1.11.3. Figure 8-3 Steer Select Circuit
  • 1.11.4. Figure 8-4 Service/Parking
  • 1.11.5. Figure 8-5 Boom Joystick Circuit
  • 1.11.6. Figure 8-6 Outrigger Controller
  • 1.11.7. Figure 8-7 Lift Cylinder Circuit
  • 1.11.8. Figure 8-8 Extend/Retract Cylinder Circuit
  • 1.11.9. Figure 8-9 Tilt Cylinder Compensation Cylinder Circuit
  • 1.11.10. Figure 8-10 Auxiliary Hydraulic Circuit
  • 1.11.11. Figure 8-11 Frame Level Circuit
  • 1.11.12. Figure 8-12 Outrigger Circuit, (if equipped)
  • 1.12. Section 9 Hydraulic Components
  • 1.12.1. Figure 9-1 Lift Cylinder Hardware
  • 1.12.2. Figure 9-2 Extend/Retract Cylinder Hardware
  • 1.12.3. Figure 9-3 Tilt Cylinder Hardware
  • 1.12.4. Figure 9-4 Compensation Cylinder Hardware
  • 1.12.5. Figure 9-5 Frame Level Cylinder Hardware
  • 1.12.6. Figure 9-6 Outrigger Cylinder Hardware
  • 1.12.7. Figure 9-7 Quick Coupler Cylinder
  • 1.12.8. Figure 9-8 Side Shift Carriage Cylinder
  • 1.12.9. Figure 9-9 Fork Positioning Carriage Cylinder
  • 1.12.10. Figure 9-10 Swing Carriage Cylinder
  • 1.12.11. Figure 9-11 Main Control Valve
  • 1.12.12. Figure 9-12 Gear Pump
  • 1.12.13. Figure 9-13 Piston Pump
  • 1.12.14. Figure 9-14 Hydraulic Tank
  • 1.12.15. Figure 9-15 Steer Select Valve
  • 1.12.16. Figure 9-16 Brake Valve
  • 1.12.17. Figure 9-17 Priority Valve
  • 1.12.18. Figure 9-18 Solenoid Valve
  • 1.12.19. Figure 9-19 Hydraulic Manifold Valve
  • 1.12.20. Figure 9-20 Outrigger Valve
  • 1.12.21. Figure 9-21 Pressure Reducer Valve, 1360 PSI
  • 1.12.22. Figure 9-22 Divertor Valve
  • 1.12.23. Figure 9-23 Side Tilt Carriage Cylinder
  • 1.12.24. Figure 9-24 Multi Purpose Bucket Cylinder
  • 1.13. Section 10 Electrical
  • 1.13.1. Figure 10-1 Engine Compartment Electrical Installation
  • 1.13.2. Figure 10-2 Arctic Package Installation
  • 1.13.3. Figure 10-3 Boom Frame Electrical Installation
  • 1.13.4. Figure 10-4 Cab Electrical Installation
  • 1.13.5. Figure 10-5 Cab Switches
  • 1.13.6. Figure 10-6 Work Lights
  • 1.13.7. Figure 10-7 Drive Lights
  • 1.13.8. Figure 10-8 Engine Harness
  • 1.13.9. Figure 10-9 Transmission Harness
  • 1.13.10. Figure 10-10 Frame Harness
  • 1.13.11. Figure 10-11 VEC Options Harness
  • 1.13.12. Figure 10-12 Transmission Relay Harness
  • 1.13.13. Figure 10-13 Enclosed Cab Option Harness
  • 1.13.14. Figure 10-14 Dash Harness
  • 1.13.15. Figure 10-15 Instrument Panel Harness
  • 1.13.16. Figure 10-16 Frame Road Light Harness
  • 1.13.17. Figure 10-17 Boom Work Lights Harness
  • 1.13.18. Figure 10-18 Cab Road Light Harness
  • 1.13.19. Figure 10-19 Cab Work Light Harness
  • 1.13.20. Figure 10-20 A/C Harness
  • 1.13.21. Figure 10-21 VEC Harness
  • 1.13.22. Figure 10-22 Regen Harness
  • 1.13.23. Figure 10-23 Tilt Aux Control Module
  • 1.13.24. Figure 10-24 Accessory Module Harness
  • 1.13.25. Figure 10-25 Product Link Harness
  • 1.14. Section 11 Decals
  • 1.14.1. Figure 11-1 Cab Frame Decals
  • 1.14.2. Figure 11-2 Boom Decals
  • 1.15. Maintenance Parts List
  • 1.16. Part Number Index
