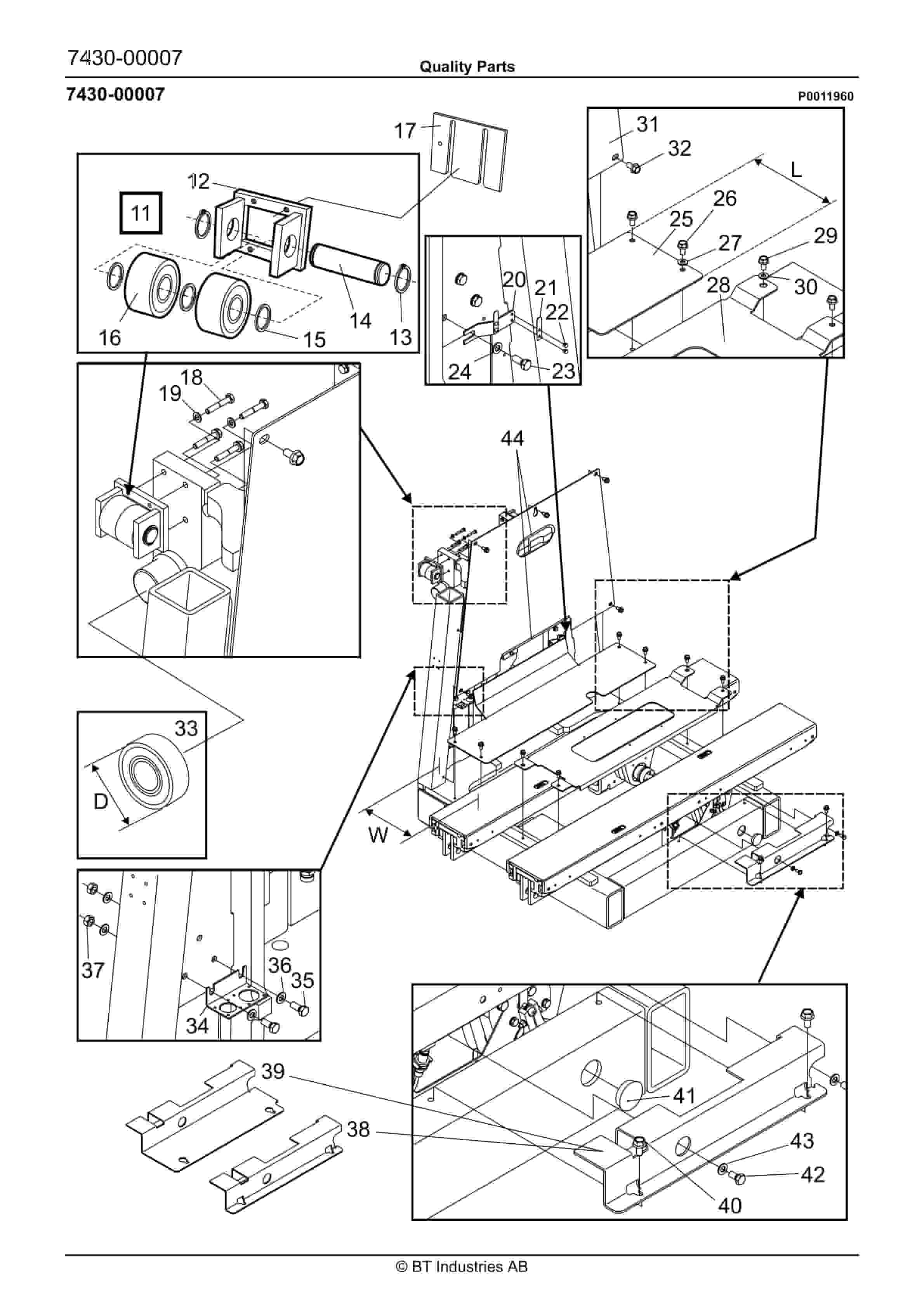

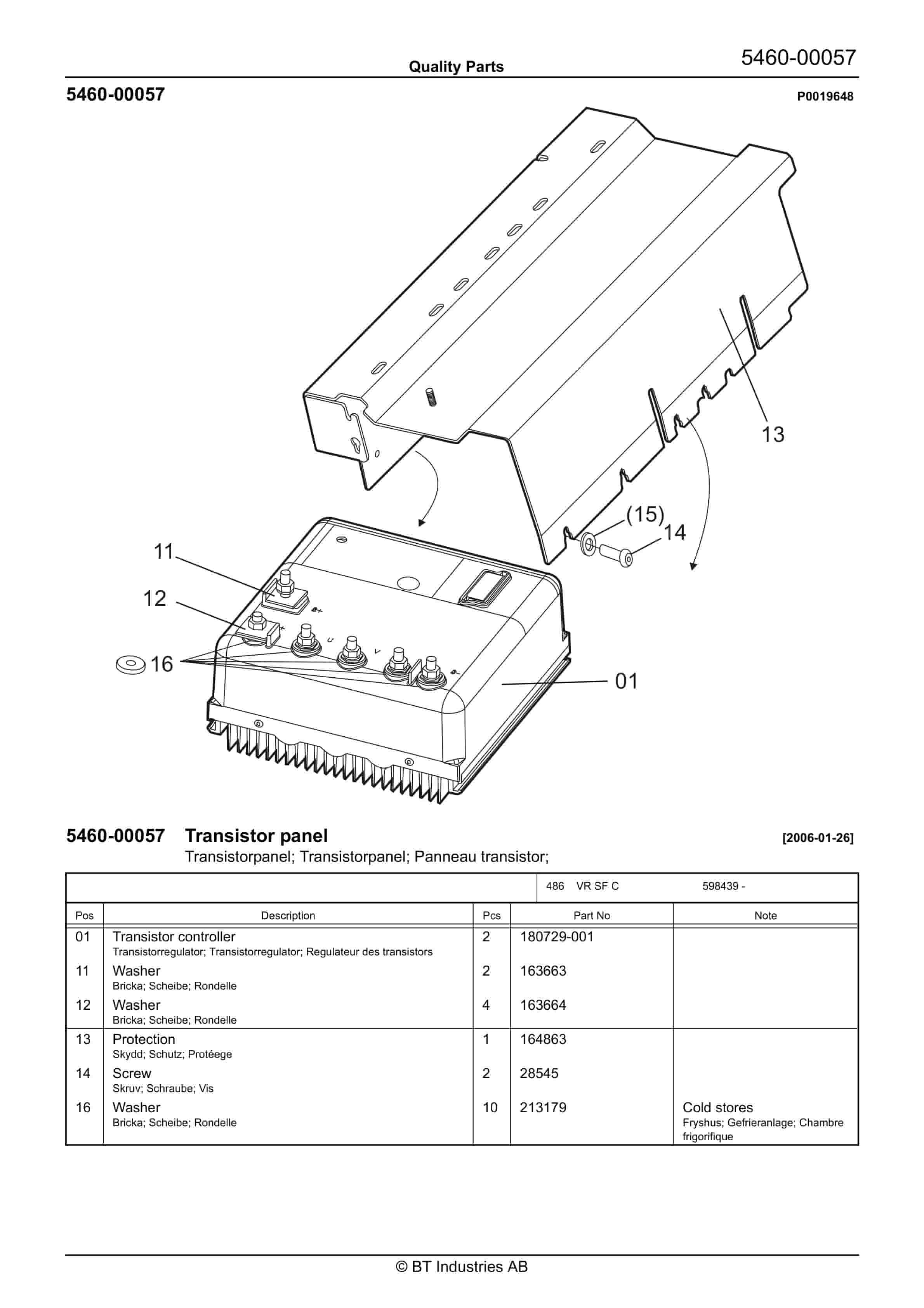

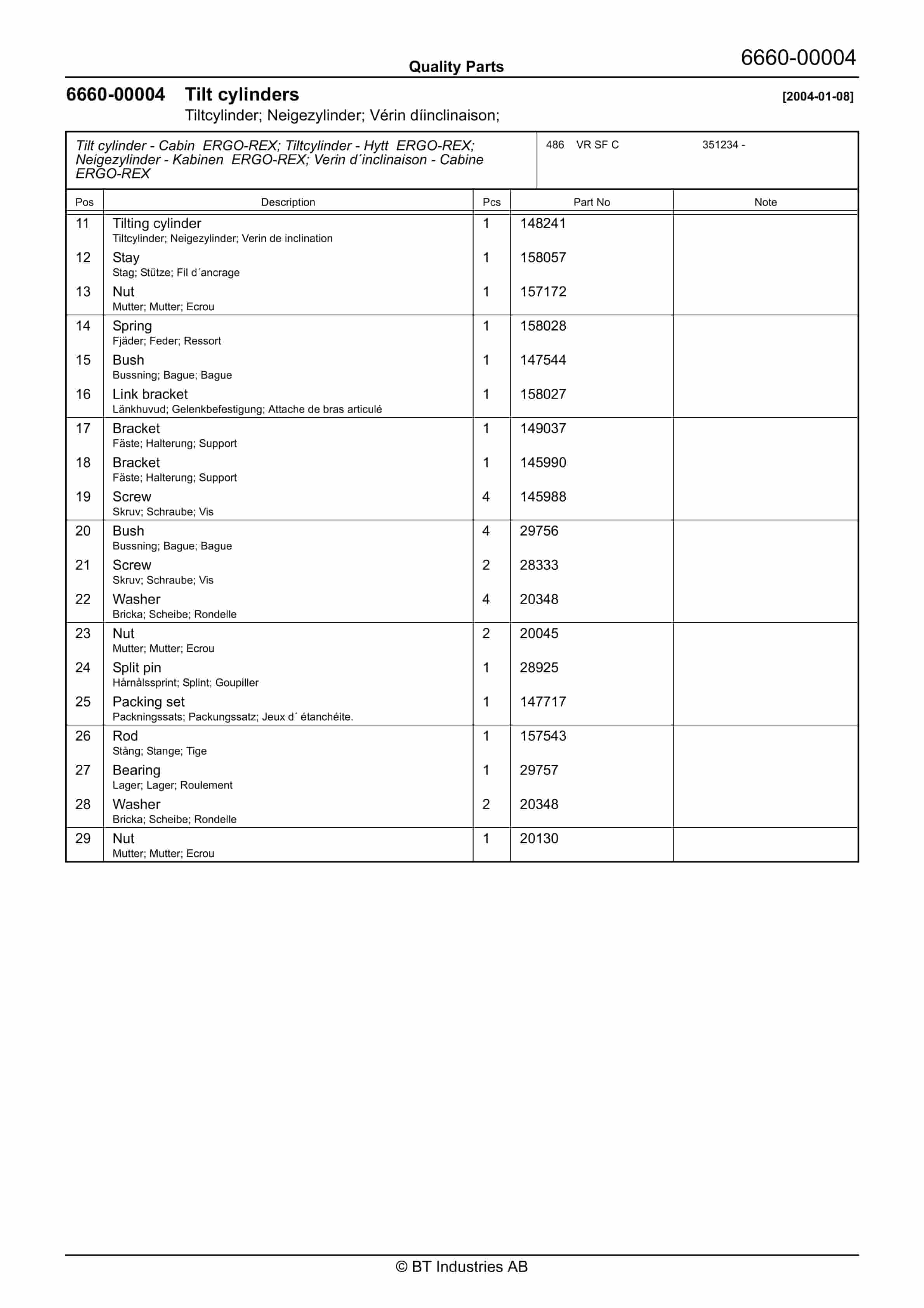

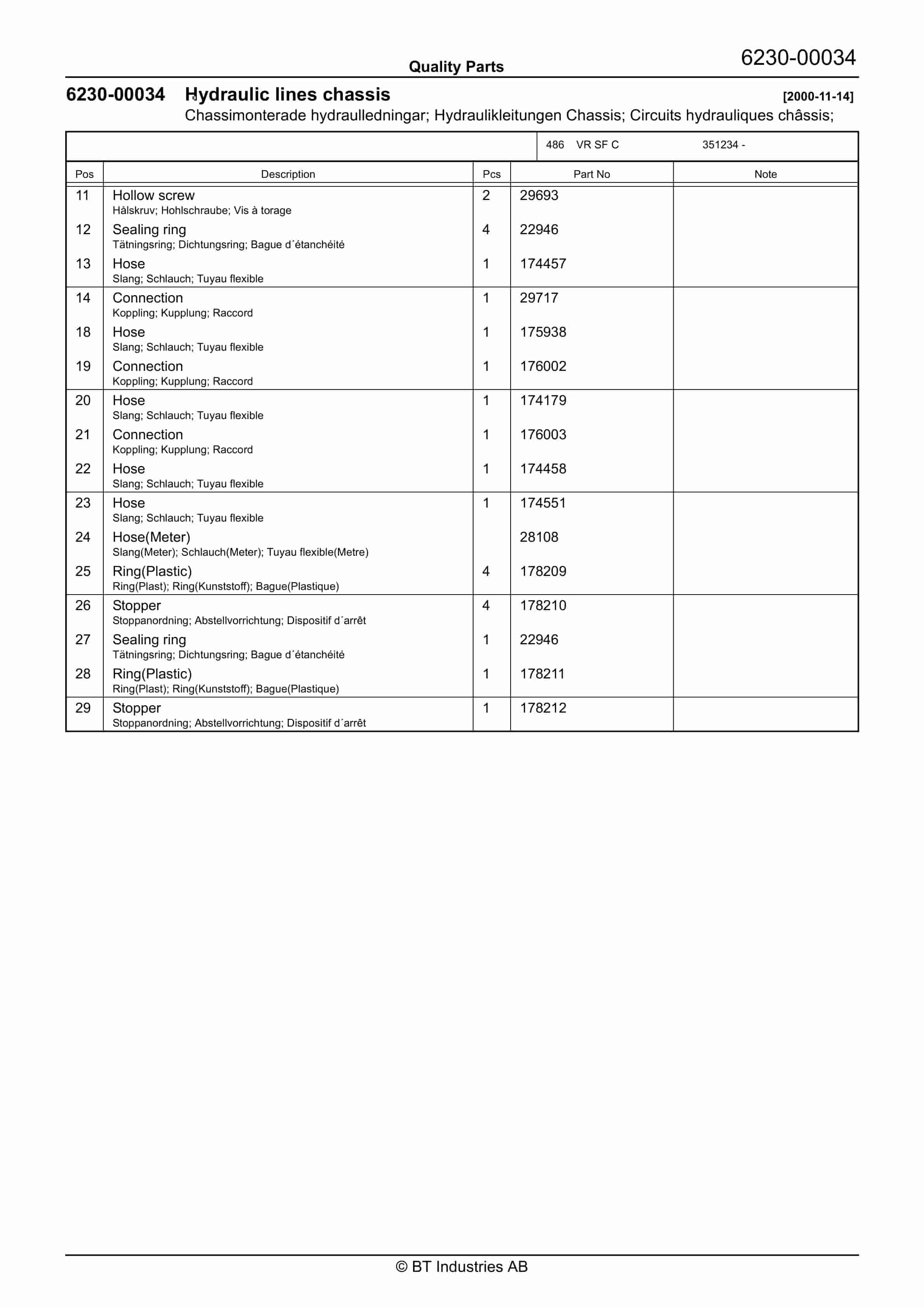

BT VR SF C Quality Parts 237871

$30.00

Type Of Manual: Quality Parts
Manual ID: 237871
: Parts Manual PDF
Number of Pages: 184
Size: 10.5MB
Format: PDF

Category: BT Parts Manual PDF

Model List:
- VR SF C

1. Chassis
1.1. Chassi Chassis Châssis
2. Motors
2.1. Motorer Motoren Moteurs
3. Transmission/Drive gear
3.1. Kraftöverföring/Drivväxel Kraftübertragung/Fahrgetriebe Transmission/Groupe de traction
4. Brake/Wheel/Caterpillar system
4.1. Broms-/Hjul-/Bandsystem Brems-/Rad-/Bandsystem Freins/Roues/ Chenilles
5. Steering system
5.1. Styrsystem Steuer-/Lenksystem Système de direction
6. Electrical system
6.1. Elektriskt system Elektroanlage Système électrique
7. Hydraulic/pneumatic system
7.1. Hydraulik/pneumatik Hydraulikanlage/Pneumatik Système hydraulique/pneumatique
8. Work function – lifting masts
8.1. Arbetsfunktion – lyftstativ Arbeitsfunktion – Hubgerüste Fonction de travail – mâts de levage
9. Options/attachments
9.1. Tillbehör/extrautrustning Zubehör/Zusatzausrüstung Equipement supplémentaire/Options
10. P0011464
11. Inspection covers 2001-10-30
12. P0012305
13. Inspection covers 2000-06-06
14. P0011855
15. Battery compartment parts 2000-03-13
16. P0010055
17. Motor fixing points 2003-12-04
18. P0024339
19. Cabin fixing points 2005-08-29
20. P0025824
21. Cabin windows 2006-05-18
22. P0020843
23. Cabin door 2004-04-20
24. P0021641
25. Seat, cushions 2005-03-30
26. P0027061
27. Cabin heating/ventilation 2006-05-23
28. P0019264
29. Driver controls ( mechanical ) 2005-03-29
30. P0022809
31. Internal fittings 2005-03-29
32. P0007925
33. Collision bumper/guards 2004-12-21
34. P0010303
35. Driver protection 2003-12-04
36. P0010410
37. Driver protection 2003-12-04
38. P0019592
39. Signs, warnings, decals 2003-12-03
40. P0020723
41. Electric pump motor 2004-04-20
42. P0022836
43. Electric steering motor 2006-04-03
44. P0009593
45. Electric fan motor, electric fan 2006-05-17
46. P0011293
47. Electric fan motor, electric fan 2006-04-03
48. P0020721
49. Electric drive motor 2005-03-29
50. P0009744
51. Mechanical drive gear unit 2003-12-09
52. P0007232
53. Travel brake controls 2006-04-03
54. P0012281
55. Electrically controlled travel brake 2003-12-09
56. P0026959
57. Electrically controlled travel brake 2006-05-23
58. P0000249
59. Drive wheel 2005-03-29
60. P0008933
61. Fork/support arm wheels 2003-12-09
62. P0009400
63. Fork/support arm wheels 2003-12-09
64. P0012280
65. Fork/support arm wheels 2003-12-09
66. P0022838
67. Electric steering wheel/lever 2005-03-29
68. P0009627
69. Steering angle sensor 2006-04-03
70. P0016555
71. Steering bearings 2006-04-03
72. P0011344
73. Auto guidance equipment (on board) 2000-10-11
74. P0012927
75. Auto guidance PCBs 2000-10-11
76. P0011851
77. Auto guidance antennas 2000-03-13
78. P0011853
79. Auto guidance harness/cables 2002-11-12
80. P0007932
81. Lighting 2003-04-01
82. P0019213
83. General alarm signals (audible/visual) 2006-04-03
84. P0026037
85. Battery cut out connector/contactor 2006-05-17
86. P0007136
87. Instrument panel, display 2006-05-17
88. P0011915
89. Level/position transducers/lamps 2000-03-21
90. P0011916
91. Level/position transducers/lamps 2000-03-21
92. P0011955
93. Level/position transducers/lamps 2003-12-09
94. P0000151
95. Start/stop switch 2006-04-03
96. P0000257
97. Travel direction switch (separate) 2006-05-17
98. P0002924
99. Travel direction switch (separate) 2004-09-23
100. P0007232
101. Speed control 2006-04-03
102. P0012282
103. Driving function harnesses/fuse 2000-05-30
104. P0025413
105. Driving function harnesses/fuse 2006-01-31
106. P0014003
107. Drive motor cables/resistors/fuses 2006-01-26
108. P0019648
109. Transistor panel 2006-01-26
110. P0010293
111. Work function micro switches, potentiometers 2003-12-09
112. P0025293
113. Work function micro switches, potentiometers 2006-01-31
114. P0011463
115. Work function harnesses/fuse 1999-12-01
116. P0019387
117. Work function harnesses/fuse 2003-12-03
118. P0012303
119. Battery/motor cables, fuse 2003-12-09
120. P0019554
121. Drive/multi-function PCBs 2006-05-23
122. P0011952
123. Work function PCBs 2003-06-05
124. P0003334
125. Safety electronics harnesses, fuse 2005-03-30
126. P0010298
127. Lift/lowering/reach movement probes/sensors 2003-12-09
128. P0009598
129. Safety probes/sensors 2006-04-03
130. P0009651
131. Safety probes/sensors 2006-04-03
132. P0010378
133. Safety probes/sensors 2003-12-09
134. P0019391
135. Aisle probes/sensors 2003-12-03
136. P0024602
137. Hydraulic tank 2005-08-29
138. P0010337
139. Hydraulic tank lines 2003-12-09
140. P0022362
141. Hydraulic tank lines 2006-04-03
142. P0010610
143. Filters and housing 2006-04-03
144. P0011856
145. Filters and housing 2000-03-13
146. P0019208
147. Hydraulic pump 2005-03-29
148. P0010321
149. Main valve unit lift/reach/tilt 2003-12-09
150. P0017230
151. Main valve unit lift/reach/tilt 2003-02-24
152. P0011467
153. Hydraulic lines chassis 2000-10-16
154. P0011828
155. Hydraulic lines chassis 2000-11-14
156. P0012311
157. Mast valve units 2000-06-07
158. P0011827
159. Mast hydraulic lines 2000-03-07
160. P0012034
161. Mast hydraulic lines 2001-03-29
162. P0016893
163. Main lift cylinders 2006-05-18
164. P0012036
165. Free lift cylinders 2003-01-20
166. P0009657
167. Tilt cylinders 2004-01-08
168. P0010143
169. Main mast 2003-12-09
170. P0019995
171. Main lift chain system 2004-04-20
172. P0000171
173. Main mast guidance/dampers 2006-04-03
174. P0006181
175. Main mast guidance/dampers 2004-06-22
176. P0011832
177. Main mast suspension 2000-03-08
178. P0011960
179. Other load carriers 2003-04-08
180. P0011998
181. Shuttle fork unit 2006-04-20
182. P0011954
183. Shuttle fork power unit 2000-03-29
184. P0011365
185. Extra electrical equipment 2003-12-09
186. P0012046
187. Extra electrical equipment 2000-04-17
188. P0022822
189. Radio/recorder 2005-03-29
190. P0011956
191. Extra lighting 2000-03-29
192. P0014721
193. Extra warning lights/alarm 2003-12-09
194. P0019576
195. Extra warning lights/alarm 2003-12-03
196. P0011102
197. Charger attachment 2006-04-03
198. P0011862
199. Positioning/TV equip., height preselector 2005-03-29
200. P0022831
201. Positioning/TV equip., height preselector 2005-03-29
202. P0011315
203. Extra electrical equipment 2005-12-15
204. P0022833
205. Extra electrical equipment 2005-03-29
206. P0023055
207. Truck log device, code locking device 2005-03-29
208. P0023076
209. Truck log device, code locking device 2005-03-29
210. P0005065
211. Other extra equipment 2003-04-01
212. P0008971
213. Other extra equipment 2006-04-03
214. P0012002
215. Other extra equipment 2003-04-15
